Immunoglobulin Genes

1

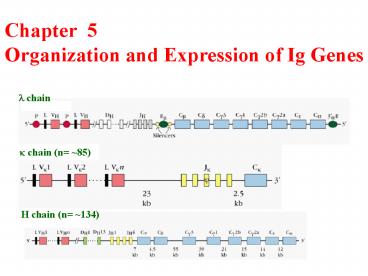

Chapter 5 Organization and Expression of Ig
Genes
l chain
k chain (n 85)
H chain (n 134)
2

• Unique features of Ig genes (1)
• Vertebrates can respond to a limitless array of
• foreign proteins.
• Every Ab molecule contains a unique
  a.a.sequence
• in its V region, but only one of a limited
  number of
• invariable sequences in its C region.
• Germ-line DNA contains multiple gene segments
• encode portions of a single Ig H or L chain.

3

• Unique features of Ig genes (2)
• The Ig gene segments carried in the germ cells
• cant be transcribed translated into H L
  chains
• until they are rearranged into functional
  genes.
• During B-cell maturation in the bone marrow,
• Ig gene segments are rearranged and generated
• into more than 108 combinations of V region.
• Each B cell has a unique combination and is
• antigenically committed to a specific epitope.

4

• Unique features of Ig genes (3)
• Mature B cells no longer contain identical
• chromosomal DNA to germ-line DNA.
• After antigenic stimulation, further
  rearrangement
• of C-region gene segments can generate changes

• in isotypes without changing the specificity
  of Ig.
• Genomic rearrangement is an essential feature
• of lymphocyte differentiation, and no other
• vertebrate cell type has been shown to undergo

• this process.

5

• Chapter 5
• Genetic model compatible with Ig structure
• Multigene organization of Ig genes
• V-region gene rearrangements
• Mechanism of V-region DNA rearrangements
• Generation of Ab diversity
• Class switching among C-region genes
• Expression of Ig genes
• Regulation of Ig-gene transcription
• Ab genes and Ab engineering

6
Genetic Model Compatible with Ig Structure
7
Germ-line theory The genome contributed
by the germ cells, egg and sperm, contains a
large repertoire of Ig genes. Somatic-variati
on theory The genome contains a small
number of Ig genes, from which a large
number of Ab specificities are generated in
the somatic cells by mutation or
recombination.
8
- How could stability be maintained in the C
region while some kind of diversifying
mechanism generated the V region? - There
must be mechanisms not only for generating Ab
diversity but also for maintaining
constancy. - Neither the germ-line nor the
somatic variation theory could offer a
reasonable explanation of the central feature
of Ig structure.
9
The Two-gene model of Dryer and
Bennett
(1965) Two separate genes encode a single
Ig H or L chain, one gene for the V region
and the other for the C region.
10
The suggestion that two genes encoded a single
polypeptide contradicted the existing one
gene-one polypeptide principle and was without
precedent in any known biological system.
11
Verification of the Dryer and Bennet Hypothesis
(by Tonegawa and Hozumi, 1976)
First direct evidence that separate genes
encode the V and C regions of Ig and that the
genes are rearranged in the course of B-cell
differentiation.
12
(No Transcript)
13
Structure of Embryonic and Myeloma
k Chain DNA
14
Multigene organization of Ig genes
15
(No Transcript)
16
l-Chain Multigene Family
V region 2 Vl gene segments
3 Jl gene segments C region 3 Cl gene segments
l1, l2, l3 subtypes (mouse) In humans 30 Vl,
4 Jl and 4 Cl segments
17
k-Chain Multigene Family
V region 85 Vk gene segments
4 Jk gene segments C region 1 Ck gene
segments (mouse) In humans 40 Vk, 5 Jk and 1
Ck segments
18
H-Chain Multigene Family
V region 134 VH gene segments
13 DH gene segments 4
JH gene segments C region 8 CH gene
segments (mouse) In humans 51 VH, 27 DH, 6 JH
and 9 CH segments
19
V-region gene rearrangements
20
V Region gene rearrangements - The
H-chain V-region genes rearrange first, then
the L-chain V-region genes. - The
rearrangements are random events
21
V-D-J Rearrangements in H-Chain DNA
(1st rearrangement)
(2nd rearrangement)
22
V-J Rearrangements in L-Chain DNA
23
Mechanism of V-region DNA rearrangements
24
Two unique recombination signal sequences (RSSs)
flanking each germ-line V, D, and J gene
segment One-turn RSS located at 3 to each Vk,
5 to each Jl, and
both sides of each DH gene segment Two-turn RSS
located at 3 to each Vl VH and
5 to each Jk JH gene segment

25
Recombination Signal Sequences (RSS)
(palindromic)
26

• One turn/two-turn joining rule
• - Signal sequences having a one-turn spacer (12
  bp)
• can join only with sequences having a two-turn

• spacer (23 bp).
• This joining rule ensures that a VL segment
  joins
• only to a JL segment and not to another VL
  segment.
• The rule likewise ensures that VH, DH, and JH
• segments join in proper order and that
  segments
• of the same type do not join each other.

27
Enzymatic Joining of Gene Segments Recombination-
Activating Genes RAG-1, RAG-2 -
mediate V-(D)-J joining
28

• Deletional joining (coding joint)
• - two gene segments are in the
• same transcriptional orientation
• - deletion of the signal joint and
• intervening DNA as a circular
• excision product
• (b) Inversional joining (signal joint)
• - two gene segments have opposite
• orientation
• - retention of both the coding joint
• and the signal joint (and inter-
• vening DNA) on the chromosome
• TdT
• Terminal deoxynucleotidyl transferase
• DSBR
• Double Strand Break Repair

29
Figure 4-7
30
Figure 4-7 part 1 of 3
31
Figure 4-7 part 2 of 3
32
Figure 4-7 part 3 of 3
33
Defects in Ig-Gene Rearrangements RAG-1-/- or
RAG-2-/- mice - lack RAG-1 or RAG-2 -
cannot start the recombination process SCID
(severe combined immunodeficiency) mice -
lack double strand break repair (DSBR) enzymes
- can carry out synapsis, introduce d.s. breaks
and form a normal signal joint -
cannot properly join the coding sequences
34

• Imprecise Joining
• productive and nonproductive
• rearrangements
• productive rearrangement in
• one allele is enough
• If rearrangement is not
• produced, the B cell dies by
• apoptosis.

35
Allelic Exclusion
A single B cell is only specific for a single
epitope !!!
36
Generation of Ab diversity
37
Antibody Diversity Seven
means of generation of Ab diversity 1.
Multiple germ-line V, D, and J gene segments
2. Combinatorial V-(D)-J joining 3.
Junctional flexibility. 4. P-region
nucleotide addition (P-addition) 5.
N-region nucleotide addition (N-addition)
6. Somatic hypermutation 7. Combinatorial
association of light and heavy chains
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
Junctional Flexibility
42
Four different joinings of Vk21- Jk1
(Precise)
(Flexible)
43
Since CDR3 makes a major contribution to Ag
binding by the Ab molecule, amino acid changes
generated by junctional flexibility can make a
major contribution to Ab diversity.
44
P-Addition
Palindromic sequences
45
N-Addition
Palindromic sequences N-nucleotides
46

• - Up to 15 N-nucleotides can be added to both
• the DH-JH and VH-DHJH joints.
• Thus, a complete H-chain V region is encoded
• by a VHNDHNJH unit.
• N regions appears to consist of wholly random
• sequences

47
Somatic Hypermutation -
Somatic hypermutation occurs only within germinal
centers, structures that form in
secondary lymphoid organs within a week or
so of immunization with an Ag that
activates a T-cell-dependent B-cell response.
- Somatic hypermutation occurs at a frequency
approaching 10-3/bp/generation. -
This rate is at least 100,000s-fold higher than
the spontaneous mutation rate, about
10-8/bp/generation, in other genes. -
B cells with higher-affinity Ig receptors will
be preferentially selected for survival
because of their greater ability to bind to
the Ag. ----- Affinity Maturation
48
A secondary lymphoid follicle consisting of a
large germinal center
49
A Lymph Node
50
The Spleen
51
Peyers Patch
52
Experimental evidence for somatic mutation in V
region of Ig genes
53
These data show

• The frequency of mutation increases in the course
  of the primary response (day 7 vs. day 14)
• Frequency of mutation is higher after secondary
  and tertiary immunizations than after primary
  immunization.
• The dissociation constant decreases during the
  transition from the primary to tertiary responses

54
Antibody Diversity Seven
means of generation of Ab diversity 1.
Multiple germ-line V, D, and J gene segments
2. Combinatorial V-(D)-J joining 3.
Junctional flexibility 4. P-region
nucleotide addition (P-addition) 5.
N-region nucleotide addition (N-addition)
6. Somatic hypermutation after Ag stimulation
7. Combinatorial association of light and
heavy chains (8262 heavy X 320 light)
2,644,240
55
Class Switching Among C-Region Genes
56
Organization of H chain
Cm
V region
C region
57

• Class (isotype) switching
• Class-specific recombinase proteins may
• bind to switch regions and facilitate DNA
• recombination.
• Cytokines secreted by activated TH cells
• have been shown to induce B cells to class
• switch to a particular isotype.
• - IL-4 induces Cm to Cg1 or Ce (Chapter 11)

58
Switch regions

• Class switching needs 3 elements
• Switch regions
• Switch recombinase
• Cytokines

59
Heavy-chain primary transcripts undergo
differential RNA processing
60
sIgM
mIgM
61
(No Transcript)
62
Expression of Membrane or Secreted IgM
63
Simultaneous Expression of IgM and IgD (a)
64
Simultaneous Expression of IgM and IgD (b)
65
Synthesis, Assembly, and Secretion of Igs
Assembly of light and heavy chains occurs in
the cisternae of RER
66
Regulation of Ig-Gene Transcription
67
Three major classes of cis regulatory sequences
in DNA

• Promoter TATA box about 200 nucleotides upstream
  from initiation site. (B-cell promoters have an
  octomer sequence that is specific to B-cells)
• Enhancers Nucleotide sequences situated some
  distance upstream of downstream from a gene.
  Activatates transcription from the promoter
  sequence
• Silencers Nucleotide sequences that down
  regulate transcription.

68
Regulation of Ig-Gene Transcription
Promoters
Enhancers
Silencers
