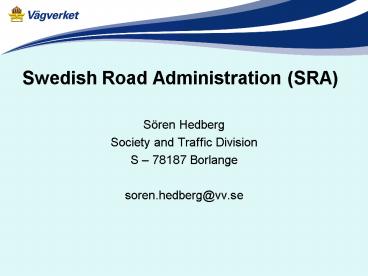

Swedish Road Administration SRA

1
Swedish Road Administration (SRA)

• Sören Hedberg
• Society and Traffic Division
• S 78187 Borlange
• soren.hedberg_at_vv.se

2
European Community, Road Transport-Technology,
Weight and Dimensions for Road Traffic

• 85/3/EC was the first Directive to harmonise
  Vehicle Weight and Dimension for international
  traffic
• Is regarded as minimum provisions for weight,
  national
• Limits Truck semitrailer length to 16.5 meter
• Limits Truck full Trailer length to 18.35 meter
• Total authorised mass 40/44 tonnes for int.
  traffic
• Not for Type Approval of Vehicles (97/27/EC)

3
Aim of the Directive

• To reflect a balance between the rational and
  economical use of vehicles and the cost for
  infrastructure maintenance, road safety and the
  protection of the environment
• Common standards on vehicle dimensions should
  remain stable in the long term

4
96/53/EC

• There were different standards applied in Member
  States
• This affects the conditions of competition and is
  an obstacle to traffic between Member States
• To limit wear and tear on the roads and bridges,
  i e preserve the road capital (road friendly
  suspension introduced)
• This Directive is primarily a transport safety
  measure but,
• it also allows for the well functioning of the
  Single Market with harmonised rules

5
Scope

• Certain road vehicles circulating within the
  Community, Categories M2, M3, N2, N3, O3 and O4
  (definitions in 70/156/EEC)
• Controls maximum authorized dimensions in
• - national and
• - international traffic
• Limits maximum authorized masses in
• - international traffic

6
Recast Directive 96/53/EC, main provisions

• Contain 85/3/EC and its amendments
• Increase truck full trailer max length to 18.75
  meter
• Introduce max. loading length of 15.65 meter
  (enable truck cabins 0.4 meters longer for safety
  reasons)
• Still, articulated vehicles are max. 16.5 meter,
  which prevents the carriage of 45 feet maritime
  containers
• Vehicle width increased to 2.55 m (2.60 m)
• Extended to national transport
• No positive tolerances may be applied on
  dimensions

7
In short

• The free circulation of a 40 tonne, standard
  five-axle vehicle and semitrailer combination is
  guaranteed throughout the EU, provided the load
  on the driving axle does not exceed 11,5 tonnes.
• Equally, a standard two-axle bus or lorry of up
  to 18 tonnes can circulate freely.
• 44 tonnes in total is allowed when carrying 40 ft
  ISO container in combined transport (road/rail)
• Member States are free to apply higher axle loads
  and vehicle height above 4 meter in national
  traffic

8
Council Directive 2002/7/EC

• Deals with increased length of buses
• Bus with two axles max. 13.5 meters
• Bus with three or more axles max. 15.0 meters
• Bus Trailers max. 18.75 meters

9
Exemptions allowed

• Exceptional transports/loads
• Modular concept
• Special operations linked to logging and forestry
  industry
• Prototype Vehicles
• Grandfathers rights

10
Implementation of 96/53/EC

• Example of one Member State SWEDEN
• Public roads 138 000 km
• Private roads 75 000 km receiving state subsidies
• 14 500 bridges on the state road network
• 15 000 local community and private bridges
• 36 ferry routes on the state road network

11
SWEDEN
500 km
12
(No Transcript)
13
How did we implement the new Directives

• First step 85/3/EC
• - projected mix of vehicles
• - traffic flow
• - road design
• Second step 96/53/EC additional
• - twin tyres
• - air suspension
• - inflation pressure maximum 8 bars

14
Problems involved

• Axle loads and tyre inflation pressure affects
  the speed of road degradation
• Vehicle total mass affects the lifespan of bridges

15
Results/Investments

• Reinforcement of roads and bridges
• 10/16 tonnes to 10/18 tonnes was carried through
  from 1988 up to 1995
• necessary investment 300 M (about 3000
  / km)
• 2. 10/18 tonnes to 11.5/19 tonnes from 1996
  onwards
• necessary investment 300 M
• Step 2 also increased new road investment
  costs by 2 and also maintenence costs yearly
  by 25 M for 138 000 km of main roads

16
Effectiveness?

• The benefit of increased bogie weights from 16-19
  tonnes together with the increase of total
  roadtrain mass from 51.4 to 60 tonnes is 10 times
  larger than the costs for the improvements of
  road network in timespan 1995-2005
• In practice, in the longer term the cost is
  higher due to tyre inflation pressure over 8 bars
  and in many cases overloaded vehicles

17
Development of max. Roadtrain mass in Sweden

• Before 1945 12 tonnes
• 1946 24.0
• 1952 33.5
• 1977 51.4
• 1990 56.0
• 1993 onwards 60.0
• 2008 80.0 ?

18
Special Provision in 96/53/EC

• There is an important exemption
• the "modular concept", is used for national
  goods transport in Sweden and Finland. It allows
  lorry combinations of up to 25,25m in length
  (e.g. a 7,82m long load carrier and a 13,6 m long
  semi-trailer) and is a concept built on existing
  vehicle types available in the Community.
• is allowed on the basis that this exemption does
  not have a significant effect on international
  competition in these Member States

19
Modular concept, 25.25 m

• Some facts
• When 96/53/EC was adopted, all present transport
  ministers, except S and FIN, did commit
  themselves not to make use of the modular system
  until the Commission evaluated the system with
  long vehicle combinations. No report is yet
  issued.
• Transport ministers from new MS and candidate
  countries were not present and thus may feel free
  to use the system for their domestic transport
  operation

20
How does it work in practise ?

• In operation since 1998

21
European Standard Vehicles vs. Module System
22
The Modular Concept is in favour of
Intermodality when using semitrailer and swap
body units or containers
23
General development
Source DG-TREN Statistical pocketbook 2004
24
Effects of 38 transport increase (EU White
Paper) When looking at the work of 100 trucks
today
3500 pallets
Average 35 pallets/truck
100 trucks
Today
8 800 m road space
4830 pallets (38)
138 trucks
38 of goods, Todays trucks
12 200 m road space 4830 pallets x 2,5
Average 52 pallets/truck
4830 pallets (38)
93 trucks
38 of goods, Modular Concept
8940 m road space 4830 pallets x 1.85
70 m safety distance between trucks
25
Larger vehicles lower fuel consumption per
tonkm
litres/1000tonkm
-15
Nominal GVW/GCW, tonnes
26
The future for longer Vehicle combinations ?

• Report on public consultations on the
  Transport White Paper december 2005, comments
  from stakeholders,
• - Various regions express concern on their
  peripheral situation
• - Suggestions to improve efficiency of
  European logistic chains (ex. update weight/dim.
  of trucks)
• - In the report about Freight Transports
  Logistics in Europe, com. suggests
• It might now be opportune to seriously explore
  this modular concept for Europe

27
Summary

• 96/53/EC is important for Int. Transport
• The harmonised axle loads increases maintenence
  costs
• Policing of axle overloads important
• Open for future development
• The reason is the increase in goods flow
• New direction in transport policy, multimodality

28
Thank You !

• More info www.vv.se
• soren.hedberg_at_vv.se
