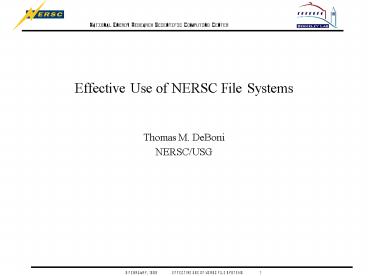

Effective Use of NERSC File Systems

1
Effective Use of NERSC File Systems

• Thomas M. DeBoni
• NERSC/USG

2
Effective Use of NERSC File Systems

• Contents
• Home Directories
• Scratch Space
• Mass Storage
• Networked File Systems
• Resource Conservation
• Examples
• Details
• See also
• http//home.nersc.gov/training/tutorials/file.mana
  gement.html

3
Home Directories

• Your private portion of the file systems on a
  computer
• Default current working directory when you log
  in
• Knows as system environment variable HOME
• Usage limited in bytes
• Max size is 2 GB on T3E, 5 GB on J-90s
• Warnings issued at 75-90 usage
• Theres not enough space for everybody to use
  this much at the same time, so migration
  sometimes happens
• Usage limited in inodes
• An inode is a file or directory
• Max number is 6000 on T3E, unsettled on J-90s
• Warnings issued at 75-90 usage

4
Home Directories, cont.

• HOME
• is routinely backed up
• is shared among all J-90s
• is NOT the fastest file system available
• should be used for development, debugging, pre-
  and post-processing, and other administrative
  tasks
• should NOT be routinely used by large jobs
  requiring high performance
• Startup files (.cshrc, .login, etc.) may change
  your working directory on login
• Remove all references to WRK from these files

5
Home Directories, cont.

• Files can be migrated to backing store
• Largest and oldest files first
• De-migrate with dmget command before using, or
• Automatically de-migrated when referenced, but
  with unknown delay
• Example listing
• killeen 257 ls -al
• total 64
• drwx------ 2 u10101 zzz 4096 Sep 21
  1111 .
• drwxr-xr-x 5 u10101 zzz 4096 Sep 21
  1111 ..
• mrw------- 1 u10101 zzz 2414 Sep 21
  1111 decomp.job.log
• mrw------- 1 u10101 zzz 2712 Sep 21
  1111 decomp.job.out
• -rw------- 1 u10101 zzz 2381 Sep 21
  1111 decomp.job2.log
• -rw------- 1 u10101 zzz 11490 Sep 21
  1111 decomp.job2.out

m in first column means file has been migrated
6
Home Directories, cont.

• A word about quotas
• Use the quota command to view them
• mcurie 154 quota
• File system /u5
• User deboni, Id 9950
• Aggregate blocks (512 bytes)
  Inodes
• User Quota 3906240 ( 19.2)
  3500 ( 17.2)
• Warning 3515616 ( 21.4)
  2975 ( 20.2)
• Usage 751416
  602

Current usage is this of max usage is
this of warning level

• Maximum usage
• allowed
• Level at which
• warning will be
• issued
• Current usage

7
Scratch Space

• Also known as temporary storage or working
  storage
• A pool of fast RAID drives
• The fastest file system available
• Unique to each batch system
• Not backed up
• Usage limits are larger than for HOME
• 75 GB and 5000-6000 inodes on T3E, unsettled on
  J-90s
• Should be used for large files and high
  performance jobs
• This is transient space, and persistence will
  vary with usage and demand

8
Scratch Space, Cont.

• System environment variable TMPDIR
• Created for each session or batch job
• Randomly named, so always use TMPDIR to refer to
  it
• Deleted at the end of session or job
• Use TMPDIR if you want the OS to manage your
  scratch space usage for you.
• E.g., on the J-90s, you cant log on to batch
  machines, and each has its own scratch space, so
  you cant get at it directly, as you can on the
  T3E.

9
Scratch Space, cont.

• /tmp or /usr/tmp
• Create directories there for yourself
• Watch out for name collisions with other users
  directories
• Delete files and directories as you finish with
  them
• This space will be scavenged depending on demand
  largest and oldest files are usually deleted
  first
• It should be safe for 7 to 14 days
• You must manage this scratch space for yourself

10
Scratch Space, cont.

• Pre-staging files to scratch space is a good
  idea, but...
• You dont know when your batch job will run, so
  it may not work when batch queues are heavily
  loaded
• Staging files in a batch script is a good idea,
  but...
• It idles your processor ensemble and uses up
  serial time
• So, do it both ways
• !/bin/csh -f
• Change to scratch directory
• cd /tmp/mydir
• Check for presence of pre-staged files
• if (-e foo.input) then
• echo "input file prestaged"
• else
• echo "fetching input file"
• hsi "get foo.input"
• endif

11
Scratch Space, cont.

• What about intermediate I/O? Example to follow
• What about I/O from parallel programs?
• This is a deep topic
• Beware of interleaving of multiple outputs to a
  single file
• J-90 codes typically use a small number of files
  at a time
• T3E codes may use hundreds of files at a time
• Special mechanisms exist to manage parallel files
  and I/O
• General rule the more you do, the faster it
  should be
• See these sources for further info
• http//home.nersc.gov/software/prgenv/opt/binary.h
  tml
• http//home.nersc.gov/training/tutorials/T3E/IO/
• http//www.cray.com/swpubs/
• (See, especially , " CRAY T3E Fortran
  Optimization Guide, SG-2518 3.0)

12
Mass Storage

• NERSC provides the High Performance Storage
  System (HPSS)
• A modern, flexible, hierarchical system
• Optimized for large files and fast transfers
• Built on multiple disk farms and tape libraries
• Used for system backups, file migration, and user
  archives
• Has multiple user interface utilities
• HSI - powerful, flexible, convenient utility,
  from SDSC and NERSC
• pftp - parallel ftp, locally customized, fastest
  for large files
• ftp - traditional version, available everywhere
• The proper place to save large, important,
  long-lived files (e.g. raw output and restart
  data)
• Requires a separate storage account (DCE
  account), but can automatically authenticate
  after initial setup

13
Networked File Systems

• Networked or distributed file systems are
  intended to decouple a files physical location
  from its logical location
• Can be very convenient, but also dangerous
• There are three of interest
• NFS - Developed at Sun and has become a standard
  in workstation environments
• Used as little as possible at NERSC, due to
  security and performance concerns
• AFS - More modern, global in scope, with pretty
  good security
• Used at NERSC via the gateway system
  dano.nersc.gov
• Use AFS with care - it can ruin performance
• DFS - A coming standard that NERSC is evolving
  toward also has good security and will be global
  in scope

14
Resource Conservation

• Critical resources are expensive and rare
• They are shared among (competed for by) all users
• Four critical resources related to file systems
  use
• Storage space - the actual files and bytes of
  data
• File system entries - inodes one per file or
  directory
• Bandwidth - bits per second, in transfers between
  devices
• Time - servers, I/O devices, and CPU cycles
• NERSC meters (charges for) all these types
• Resource conservation must be engineered in
  (dont depend on luck)

15
Bandwidth Conservation

• Design parallel I/O carefully
• Human readable I/O probably should be done by a
  single (master) process(or) to/from a single file
• Binary I/O may be done by one process(or) or by
  many, as required
• Binary data may occupy many files which match
  problem decomposition for parallel execution
• Limits exist on the number of files that can be
  open at any one time
• Flushing larger buffers is usually a better idea
  than flushing smaller ones more often.
• For further info, see
• Cray publication Application Programmer's I/O
  Guide
• NERSC web doc http//home.nersc.gov/training/tutor
  ials/T3E/IO/
• Man page for the assign command

16
Bandwidth Conservation, cont.

• Transfer files carefully
• Session setup is not free - move files to/from
  mass storage in as few sessions or commands as
  possible dont run pftp in a loop
• Use multiple-file transfer commands, such as
  mget, when possible
• Use the appropriate utility for the job
• Meta-data operations do not involve actual file
  access
• Renaming files or directories or moving files
  around within HPSS
• changing file or directory permissions in HPSS
• Use hsi for these sorts of operations, for
  efficiency
• For further info see
• NERSC web doc http//home.nersc.gov/hardware/stora
  ge/hpss.html
• NERSC web doc http//home.nersc.gov/hardware/stora
  ge/hsi.html

17
Bandwidth and Time Conservation

• Use the fastest utility available
• Use pftp when moving within the NERSC domain
• Use multiple-file transfer commands, such as
  mget, when possible
• Use ftp when moving files into or out of the
  NERSC domain
• Use the fastest devices and networks available
• This is a deep area and oversimplified here ...
• Dont make a fast machine wait on a slow one
• Pre-stage and de-migrate files needed by batch
  jobs into fast storage space
• Sometimes a multiple-step process is better
• First, move files from outside NERSC onto a NERSC
  computer (a workstation)
• Then, move files from the NERSC computer to the
  destination device
• Avoid networked file systems
• For further info see
• NERSC web doc http//home.nersc.gov/hardware/stora
  ge/hpss.html
• Man pages for ftp, pftp, and hsi

18
Bandwidth and Storage Conservation

• Shrink files, if appropriate
• If the file contains redundant or unimportant
  data
• Such as white space in formatted output
• Use Unix commands compress and gzip
• Combine files into archives
• If the files are small, transferring them
  individually may involve more setup time than
  transfer time
• Use Unix commands tar, ar, and cpio
• For more info, see
• Man pages for all the above commands

19
Example 1 - batch pftp multiple file access with
a here-doc

• !/bin/csh
• ...
• First, copy the source from the submitting
  directory and compile it.
• pftp -i -v archive ltlt
• cd my_HPSS_directory
• mget data myprog
• quit
• ja
• ./myprog ltdata gtoutfile
• ja -cst
• Save the output file in HPSS.
• pftp -i -v archive ltlt
• cd my_HPSS_directory
• mput outfile restart
• quit

Here-document
20
Example 2 - batch hsi multiple file access

• !/bin/csh
• ...
• First, copy the source from the submitting
  directory and compile it.
• hsi archive cd my_HPSS_directory mget data
  myprog
• ja
• ./myprog ltdata gtoutfile
• ja -cst
• Save the output file in HPSS.
• hsi archive cd my_HPSS_directory mput outfile
  restart
• exit

21
Example 3 - Minimizing parallel cpu idling during
pftp I/O

• !/bin/csh -f
• preliminary job steps, including fetching
  executables and input files
• . . .
• parallel code execution with mpprun
• set i 1
• mpprun -n 128 a.out lt bigjob.input gt
  bigjob.output
• Intermediate file movement, to save output file
  to mass storage
• mv bigjob.output bigjob.outputi
• mv bigjob.restart bigjob.restartI
• Generate a separate serial job to do the
  actual I/O
• echo "pftp -i -v archive ltltEOF\
• mkdir bigjobs/job.06.15.99\
• cd bigjobs/job.06.15.99 \
• mput bigjob.outputi bigjob.restarti \
• ls\
• quit\
• EOF" qsub -q serial

22
Example 4 - Minimizing parallel cpu idling during
HSI I/O

• !/bin/csh -f
• preliminary job steps, including fetching
  executables and input files
• . . .
• parallel code execution with mpprun
• set i 1
• mpprun -n 128 a.out lt bigjob.input gt
  bigjob.output
• Intermediate file movement, to save output file
  to mass storage
• mv bigjob.output bigjob.outputi
• mv bigjob.restart bigjob.restarti
• Generate a separate serial job do to the
  actual I/O
• echo hsi archive mkdir bigjobs/job.06.15.99 cd
  bigjobs/job.06.15.99 mput bigjob.outputi
  bigjob.restarti ls qsub -q serial
• . . .
• further parallel code execution, perhaps
  through shell script looping
• _at_i i 1
• . . .

23
Example 5 - Minimizing usage with tar and compress

• mcurie 181 ls -al STD bigjob
• -rw-r--r-- 1 deboni mpccc 0 Dec 23
  1226 STDIN.e48938
• -rw-r--r-- 1 deboni mpccc 0 Dec 23
  1227 STDIN.e48939
• -rw-r--r-- 1 deboni mpccc 1126 Dec 23
  1226 STDIN.l48938
• -rw-r--r-- 1 deboni mpccc 1126 Dec 23
  1227 STDIN.l48939
• -rw-r--r-- 1 deboni mpccc 7181 Dec 23
  1226 STDIN.o48938
• -rw-r--r-- 1 deboni mpccc 7181 Dec 23
  1227 STDIN.o48939
• -rw------- 1 deboni mpccc 486 Feb 4
  1124 bigjob.output
• -rw------- 1 deboni mpccc 486 Feb 4
  1210 bigjob.output1
• -rw------- 1 deboni mpccc 486 Feb 4
  1210 bigjob.output2
• -rw------- 1 deboni mpccc 972 Feb 4
  1124 bigjob.restart
• -rw------- 1 deboni mpccc 972 Feb 4
  1210 bigjob.restart1
• -rw------- 1 deboni mpccc 972 Feb 4
  1210 bigjob.restart2
• --------------------total space 20988 bytes
  and 12 inodes
• mcurie 182 tar cf batch.tar STD bigjob
• mcurie 183 ls -al batch.tar
• -rw------- 1 deboni mpccc 65536 Feb 5
  0915 batch.tar
• mcurie 184 compress batch.tar
• mcurie 185 ls -al batch.tar

24
Example 6 - Minimizing usage with cpio

• cd HOME
• /bin/find . -type f -size -15000c -atime 90 ! \
• ( -type m -o -type M \) \ -print gt hitlist
• vi hitlist
• cat hitlist cpio -co gt myfiles.cpio
• cat hitlist xargs rm -f
• Here's what the above commands (NOT a shell
  script!) do
• 1) First, cd to home directory and generate a
  list of eligible files
• 2) the find command will find regular files
  smaller than 15000 chars, that have not been
  accessed in 90 days, and are not migrated.
• 3) Use "vi" to examine the list and delete items
  from it that you do not want removed.
• 4) The fourth line will create the cpio file
  archive.
• 5) The fifth line will remove all the files now
  stored in the archive.

25
Details - some useful ftp and pftp commands

• FTP Commands Meanings or actions
  PFTP Variants
• get ltrfgt ltlfgt retrieve a file
  pget
• put ltlfgt ltrfgt store a file
  pput
• mget ltfgt ltfgt retrieve multiple files
  mpget
• mput ltfgt ltfgt store multiple files
  mpput
• del ltfgt delete a file
• mdel ltfgt ltfgt delete multiple files
• mkdir ltdgt create a remote directory
• rmdir ltdgt delete a remote directory
• cd ltdgt change to remote dirctory
• lcd ltdgt change to local directory
• ls, dir list files in directory
• ldir list files in local directory
• !ltcmdgt perform ltcmdgt locally outside
  ftp/pftp
• ltfgt file name, ltlfgt local file name, ltrfgt
  remote file name
• Caveats
• Be aware of where your actions will take place
• Watch out for name collisions

26
Details - HSI commands

• HPSS File and Directory Commands
• get, mget, recv - Copy file(s) from
  HPSS to a local
• directory
• cget - Copy file from HPSS
  to a local
• directory if not
  already there
• put, mput, replace,
• save, store, send - Copy local file(s)
  to HPSS
• cput - Copy local file to
  HPSS if it
• doesnt already
  exist there
• cp, copy - Copy file within
  HPSS
• mv, move, rename - Rename/relocate an
  HPSS file
• delete, mdelete, erase, rm - Remove a file from
  HPSS
• ls, list - List directory

27
Details - HSI commands, cont.

• HPSS File and Directory Commands, cont.
• find - Traverse a
  directory tree looking
• for a file
• mkdir, md, add - Create an HPSS
  directory
• rmdir, rd, remove - Delete an HPSS
  directory
• pwd - Print current
  directory
• cd, cdls - Change current
  directory
• Local File and Directory Commands
• lcd, lcdls - Change local
  directory
• lls - List local
  directory
• lpwd - Print current local
  directory
• ! - Issue shell command

28
Details - HSI commands, cont.

• File Administrative Information
• chmod - Change permissions of file or
  directory
• umask - Set file creation permission
  mask
• Miscellaneous HSI commands
• help - Display help file
• quit, exit, end - Terminate HSI
• in - Read commands from a local
  file
• out - Write HSI output to a local
  file
• log - Write commands and responses
  to a log file
• prompt - Toggles prompting for mget,
  mput, mdelete

29
Details - HSI commands, cont.

• HSI can accept input several different ways
• From a command session, consisting of multiple
  lines and ending with an explicit termination
  command
• From a single line command, with semicolons ()
  separating commands
• hsi mkdir foo cd foo put data_file
• From a command file
• hsi in command_file
• HSI can read from standard input and write to
  standard output
• tar cvf - . hsi put - datadir.tar
• hsi get - datadir.tar tar xvf -
• Wildcards are supported, but quoting must be used
  in one-line commands to prevent shell
  interpretation.
• hsi cd foo mget data

30
Details - HSI commands, cont.

• WARNING For 'get' and 'put' operations, HSI uses
  a different syntax than ftp a colon () is
  used to separate local and remote file names.
• put local_file hpss_file
• get local_file hpss_file
• Recursive operations are allowed for the
  following commands
• cget, chgrp, chmod, chown, cput, delete, get,
  ls,
• mdelete, mget, mput, put, rm
• Special commands exist for setting up variables
  whose values are directories, commands, and
  command-sets.
• The complete HSI manual is online at
  http//home.nersc.gov/hardware/storage/hsi.html

31
Details - Tasks that HSI Simplifies

• Accessing segmented CFS files
• CFS handled files larger then 400 MB by spliting
  them into smaller subfiles and storing the
  subfiles. HSI is the only utility that can read
  and rejoin segmented CFS files to reproduce their
  original state. The procedure for handling such
  files is quite simple simply read the first of
  the segmented subfiles from the archive storage
  system.
• Renaming/moving or copying an entire subdirectory

• ltmv/cpgt path1 path2 renames/copies path1 to
  path2
• Changing the permissions of several files at
  once
• chmod perms files changes the permissions
  of all files to perms the
  file specifications may
  include wildcards the permissions may
  be given as octal numbers or via
  symbolic designators.

32
Details - Getting Access to AFS Directories

• Dont do this in batch jobs!
• killeen 210 telnet dano.nersc.gov
• Trying 128.55.200.40...
• Connected to dano.nersc.gov.
• Escape character is ''.
• Hello killeen.nersc.gov.
•

• gt WARNING Unauthorized access to this
  computer system is lt
• gt prohibited, and is subject to criminal
  and civil penalties. lt
• gt Use constitutes consent to security
  testing and monitoring. lt
•

• UNIX(r) System V Release 4.0 (dano)
• login u10101
• Password

33
Details - Getting Access to AFS Directories, cont.

•

• AFS gateway user interface

•

• used to enable AFS access on J90's
  and T3E
• (select enable attached hosts (1)
  before exiting)
•

•

• 1) enable attached hosts (knfs)

• 2) disable attached hosts (unlog)

• 3) list tokens (tokens)

• 4) authenticate to another cell (klog)

•

• 5) help

• 0) exit (logoff)

•

• enter command(0-5) 3
• Tokens held by the Cache Manager

34
Details - Getting Access to AFS Directories, cont.

• enter command(0-5)0
• Connection closed by foreign host.
• killeen 213 pwd
• /U3/u10101
• killeen 214 cd /afs/nersc.gov
• killeen 215 pwd
• /afs/nersc.gov
• Option 4 is used to attach other cells,
  regardless of location, but you must have login
  and password to use in the klog process.

35
Details - Dealing With Your DCE Account

• DCE is a modern authentication methodology that
  will likely evolve into general use at NERSC
• Right now, it merely control access to HPSS
• DCE accounts and login/password info must be
  gotten from NERSC Support staff
• Initial login is necessary to change from initial
  password, and to set up future automatic
  authentication
• It has been occasionally necessary for a few
  users to re-initialize their accounts
• Both procedures are easy
• DCE is currently most reliable on
  killeen.nersc.gov

36
Details - Dealing With Your DCE Account, cont.

• Initial Setup Once you have your initial DCE
  login and password, change it with the following
  procedure, on any NERSC mainframe
• dce_login
• Enter Principal Name ltHPSS_user_namegt
• Enter Password ltcurrent_or_temporary_HPSS/DCE_
  passwordgt
• chpass -p
• Changing registry password for HPSS_user_name
• New password ltnew_HPSS/DCE_passwdgt
• Re-enter new password ltnew_HPSS/DCE_passwdgt
• Enter your previous password for verification
  ltcurrent_or_temporary_HPSS/DCE_passwordgt
• kdestroy
• exit
• You will need to log in to HPSS only on your next
  use, and thereafter you will be automatically
  authenticated.

37
Details - Dealing With Your DCE Account, cont.

• If you should get the following message from
  HPSS...
• mcurie 224 hsi hpss
• credential user mismatch
• use -l option to generate a new cred file
• DCE Principal
• it means automatic authentication has failed.
• You must authenticate manually, until you
  re-initialize authentication
• mcurie 232 hsi -l hpss
• DCE Principal u10101
• Password
• ------------------------------------------------
  -----------
• NERSC HPSS USER SYSTEM(hpss)

• ------------------------------------------------
  -----------
• V1.5 Username u10101 UID 0123
• ? quit
• Subsequent usage should not require full login.
• In rare and unusual situations, do rm .hsipw
  and then repeat the above.
