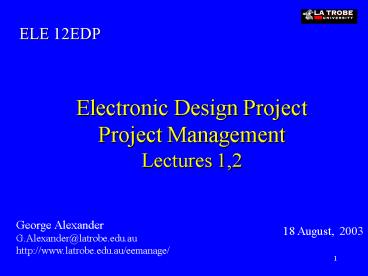

Electronic Design Project Project Management Lectures 1,2

1
Electronic Design ProjectProject
ManagementLectures 1,2
ELE 12EDP
George Alexander G.Alexander_at_latrobe.edu.au http/
/www.latrobe.edu.au/eemanage/
18 August, 2003
2
Contact Details
Lecturer George Alexander Department Electroni
c Engineering Office Physical Sciences 2 PS2
129B E-mail G.Alexander_at_latrobe.edu.au Website
www.ee.latrobe.edu.au Availability Mon, Wed,
Fri
PLEASE NOTE when e-mailing type ELE 11EDP in the
subject field
3
Timetable

• LECTURES
• Monday 0900 MARB 241A
• Monday 1100 HS2 223
• Lab sessions (2hr)
• Monday 15.00 BG 320/324
• Wednesday 11.00 BG 320/324

4
Assessment

• 1-hour examination (closed book) 30
• Major project 50
• Assignments and laboratory work 20

5
Reading

• Project Management From Idea to Implementation
• Haynes, M.E. Kogan Page, 1990

6
Approach to the topic

• Presentation of the principles of project
  management as contained in Haynes text.
• Some practical insights into how these principles
  have applied in practice in a leading edge
  telecommunications company.
• Relating this to the EDP project

7
Background George Alexander

• BSc (Eng) Edinburgh 1967
• MBA Deakin 1986
• Manufacturing
• Logistics, production, engineering including
  maintenance, production eng, test eng, QA
• Design
• Hardware, software projects. Business support
• Consulting/Project Management

8
ERICSSON

• Headquarters in Stockholm, Sweden
• Currently employs 60,000 people in 140 countries
• Largest global supplier of mobile systems
• Est. 2003 sales A25bn
• In Australia
• Main customers Telstra, Vodafone, Hutchison
• Regional support for Asia Pacific region
• Until recently, major design centre

9
Project Management as a Career

• Good project managers are very highly regarded
  and well rewarded.
• Skills required include
• People management skills
• Negotiation skills
• Sound business knowledge
• Post-graduate qualifications e.g. through PMI
  are becoming the norm.
• Good project managers make things happen on
  time, on budget, with quality outcomes. They are
  good for business.

10
WHAT IS A PROJECT?

• A project is an undertaking which has a clear
  beginning and end.
• Established to achieve defined task with specific
  cost and quality objectives.
• Optimises the use of available resources
  skills, tools, systems.
• Team-based
• Driven by customer/market demand

11
In what way is Project Management different?

• Projects have finite life spans. Other
  organisation units exist indefinitely.
• Projects often require resources on a part-time
  basis. Permanent organisations try to use
  resources full-time.
• Sharing of resources frequently leads to conflict
  over priorities.

12
Project vs line organisation

• Engineers permanently belong to a line
  organisation which is responsible for their
  training, salary levels etc.
• Engineers are assigned to projects for a given
  period usually full-time.
• The line organisation is responsible for the
  future planning/provision of the required numbers
  and skills to accommodate the overall project
  needs.

13
MANAGING BUSINESS AND ENGINEERING
PROJECTSConcepts and Implementationby John M
Nicholas 1990 Prentice Hall
14
Types of Projects

• Research
• Development
• Problem Solving
• Construction
• Manufacturing Technical Projects
• Business

15
Types of project

• Projects vary in terms of
• Size
• Duration
• Urgency
• Dedicated/shared resources
• Capital intensive
• Labour intensive
• Local or global focus

16
Examples of Projects

• New robotic line
• New manufacturing plant
• Quality improvement projects (AQA)
• New computer system (Y2K)
• Design of rural telephone exchange
• Design of new exchange processor
• Roll-out of 3G mobile network

17
The Project Life Cycle

• According to Haynes there are four phases
• Conceiving and defining the project
• Planning the project
• Implementing the plan
• Completing and evaluating the project
• Activity levels vary during each phase

18
Reasons for Design

• New technology generation
• New component technology
• New production technology
• Need for product enhancements
• Priority determined by urgency
• Highest priority redesign now, retrofit
• Non-urgent redesign for next product release

19
(No Transcript)
20
(No Transcript)
21
Project Evolution

• Client (internal/external) demand
• Prestudy
• Feasibility study including business case,
  organisation, defining competences and
  availability, time plan
• Project execution team building, continuous
  monitoring, reporting, risk analysis

22
The importance of the early phases

• Clearly defining client needs
• Getting input from the experts
• Exchange of information client and experts
• Absolutely clear definition of the project
  specification common understanding

23
Project Parameters
Project Parameters
Quality
Cost
Time
Schedule
Specifications
Budget
Source Haynes, M.E. Project Management from Idea
to Implementation Kogan Page, 1990
24
Project Issues

• What is the purpose of the project?
• What are the objectives?
• What are the desired outcomes?
• How will success be measured?

25
Getting Started

• Haynes stresses the importance of a common
  understanding between the team members of the
  projects definition, scope and basic
  implementation strategy. Then
• 1. Study, discuss, analyse.
• 2. Write a preliminary project definition.
• 3. Set an end-results objective.
• 4. List imperatives and desirables.
• 5. Generate alternative strategies.
• 6. Evaluate alternatives.
• 7. Choose a course of action.

26
Refer Fire Alarm Specifications
27
Fire Alarm End-result Objectives, Imperatives
and Desirables

• List as many end-result objectives as you can
  think of.
• Classify each one as an imperative or a desirable

28
Brainstorming

• Brainstorming is a free-form process that taps
  into the creative potential of a group through
  association of ideas.
• Association works as a two-way current when a
  group member voices an idea, this stimulates
  ideas from others, which in turn leads to more
  ideas from the one who initiated the idea.

29
Brainstorming Procedures

• List all ideas offered by group members.
• Do not evaluate or judge ideas at this stage
• Do not discuss ideas at this time except to
  clarify understanding.
• Welcome blue-sky ideas. Its easier to
  eliminate ideas later.
• Repetition is OK. Dont waste time sorting out
  duplication.

30
Brainstorming Procedures (contd.)

• Encourage quantity. The more ideas you generate,
  the greater your chance of finding a useful one.
• Dont be too anxious to close the process. When a
  plateau is reached, let things rest and then
  start again.

31
Generating Alternative Strategies

• For the purpose of example, we will only look at
  the different possible methods of manufacture.
• How shall we build the fire alarm prototype?
• List as many different methods as you can think
  of.

32
Evaluate Alternative Strategies

• Carefully evaluate the alternative strategies.
• Which construction method do you think meets the
  quality, cost and time objectives of the project?

33
Evaluate Alternative Strategies
34
Planning the Project

• Detailed and comprehensive planning is a vital
  factor in a successful project.
• The quality of the outcomes is usually directly
  related to the quality of the plan.
• A project plan should list in detail what is
  required to successfully complete the project,
  along with criteria by which performance can be
  measured, both during the life of the project and
  at its completion.

35
Recommended Planning Steps (Haynes)

• Establish the project objective
• Choose a basic strategy for achieving the
  objective.
• Break the project down into subunits or steps.
• Determine the performance standards for each
  subunit.
• Determine how much time is required to complete
  each subunit.
• Determine the proper sequence for completing the
  subunits and aggregate the information into a
  schedule for the total project.

36
Recommended Planning Steps (Haynes)

• Design the cost of each subunit and aggregate
  costs into the project budget.
• Design the necessary staff organisation,
  including the number and kind of positions, and
  the duties and responsibilities of each
• Determine what training, if any is required for
  the project team members.
• Develop the necessary policies and procedures.

37

Electronic Design ProjectProject
ManagementLecture 3
ELE 12EDP
George Alexander G.Alexander_at_latrobe.edu.au www.ee
.latrobe.edu.au/
25 August, 2003
38
Project Parameters
Project Parameters
Quality
Cost
Time
Schedule
Specifications
Budget
Source Haynes, M.E. Project Management from Idea
to Implementation Kogan Page, 1990
39
Project Objective and Basic Strategy

• If the project has been well defined then it is
  usually a straightforward process to clarify the
  project objective and the basic strategy for
  achieving the objective, from the information
  provided in the project definition.
• What is the project objective of our fire alarm
  project?
• Suggest some basic strategies for achieving the
  objective.

40
Breaking the project into subunits

• To accurately plan the three project parameters
  of quality, cost and time, it is essential that
  the project be divided into easily manageable
  subunits or work packages.
• This process can be achieved by identifying the
  logical subdivisions of the project, then
  breaking down each subdivision, and repeating the
  process until a discrete unit of work is
  identified.
• This is usually expressed diagrammatically as an
  objectives tree or a work breakdown structure.

41
Work Breakdown StructureComplete the following
work breakdown structure for the fire alarm
project.
42
Performance Specifications

• Performance specifications should be written for
  each subunit identified by the work breakdown
  structure.
• The specifications must include all the relevant
  information necessary to meet the projects
  quality requirements such as,
  components/materials to be used, methods of
  construction, standards to be met, tests to be
  performed.
• Write performance specifications for each of the
  three subunits Control Panel, Latch Detector
  Signals, and Generation of Alarm Signals

43
Planning the Time Requirements(1)

• Careful planning and scheduling of the effort is
  essential if costs are to be minimised and the
  project completed in the shortest possible time.
• To plan the project time requirements, look at
  the work breakdown structure and determine
  answers to the following questions -

44
Planning the Time Requirements(2)

• What time is required to complete each subunit?
• In what sequence must the units be completed?
• Which subunits can be underway at the same time?
• This analysis determines for each subunit
• The duration of each step
• The earliest time that each step can be started
• The latest time that each step must be started

45
Gantt Charts

• Displays the time relationship between the
  project subunits
• Lists steps and and time required
• Parallel lines indicate parallel events.
• Slack time is indicated by a dotted line.

46
Example Gantt Chart
47
Planning the Project Costs - Budgeting

• Careful planning of the project costs is vital.
• If costs are greatly overestimated, the project
  may be rejected as uncompetitive.
• If costs are greatly underestimated, it is likely
  that the project will lose money.
• The budget provides a basis for monitoring costs
  and taking corrective action where necessary.
• While some inaccuracies are inevitable, these can
  be minimised through careful planning and
  research.

48
Typical project costs(1)

• Direct Labour covers the cost of all manhours
  directly expended on the project (usually based
  on an hourly rate which includes the overhead
  costs).
• Overhead includes charges such as payroll tax,
  WorkCover and other labour-related costs.
  Sometimes calculated as a percentage of the
  direct labour cost.
• (Refer Example Manhour rate composition).
• Direct materials required e.g. components, PCBs
• Supplies such as tools and equipment

49
Typical project costs(2)

• Equipment rental e.g. special test equipment
• General and administrative management and
  support services e.g. purchasing, engineering,
  IT. Sometimes applied as a percentage of project
  cost. (Refer example Example manhour rate
  composition).
• Profit associated with the project, often
  calculated as a percentage of cost. (It is
  unusual to include profit in the project budget.
  If the project adheres to the quality, time, cost
  parameters - profit will automatically follow).

50
Some other costs

• Travel e.g. overseas to test ASICs, or to gain
  access to expertise
• Special software requirements
• Advice from consulting firms
• Hardware for specialised test environment
• Access to simulated test environment
• Project team-building and celebrations

51
Example manhour rate composition

• Direct labour related
• Salaries, bonuses
• Payroll tax, WorkCover, superannuation
• Office space
• Computer lease
• Vehicle
• Indirect charges (overheads)
• Management, administration
• Miscellaneous supplies
• Charges from support areas IT, HR, Purchasing,
  Accounts etc.

52
Assigning Responsibility/Managing Complexity

• Project complexity means that one person cannot
  be directly responsible for every aspect of the
  project.
• Responsibility for each subunit must be
  delegated.
• Responsibility allocation depends on the scope
  and size of the project.
• Responsibility may be assigned to a subunit or to
  a group of subunits.
• Some parts of the project may be subcontracted
• Consider assigning responsibility to
  subcontractors or service departments.
• Consider responsibility as a means of developing
  project management competence.

53
Example of project responsibility structure
(1)Design/commissioning of robot assembly line
Steering Group (P)
Project Manager (F)
Mechanical (F)
Electrical (F)
Maintenance (F)
Purchasing (P)
Production (P)
(P) Part-time (F) Full-time
54
Example of project responsibility structure
(2)Exchange Switch Design Upgrade
Steering Group (P)
Total Project Manager (F)
ASIC(1) design Italy (F)
Software modules (1) Sweden (F)
ASIC(2) design Australia (F)
Software modules (2) Australia (F)
System Integration and test Australia (F)
(P) Part-time (F) Full-time
55
Electronic Design ProjectProject
ManagementLecture 4
ELE 12EDP
George Alexander G.Alexander_at_latrobe.edu.au www.ee
.latrobe.edu.au/
25 August, 2003
56
Implementing the Plan

• The project manager must co-ordinate all
  elements of the project
• Controlling work in progress
• Providing feedback
• Negotiating for materials, supplies and services
• Resolving differences

57
Controlling work in progress

• The project plan is the key to effectively
  controlling the project in terms of quality, time
  and cost. It involves
• Establish standards. (Refer specification).
• Monitor performance.
• Take corrective action.

58
Performance Monitoring Tools

• Control Point Identification Charts
• Anticipates problems and solutions.
• Project Control Charts
• Monitors status of schedule and budget.
• Milestone Charts
• Reports scheduled and actual milestone dates.
• Budget Control Charts
• Plots actual vs budget cumulated costs.

59
Risk Management

• Identify what could go wrong.
• Can be a group meeting or, for a large project,
  an intensive 2-3 day workshop with prescribed
  methodology.
• Categorise/rate each item in terms of
• Likelihood of happening (H/M/L)
• Consequences/adverse impact (H/M/L)
• For items with high likelihood and high impact,
  draw up a contingency plan.
• If there is no viable contingency plan, then the
  issue must be highlighted as a risk (to the
  client and other stakeholders).

60
Action Responsibility Matrix - Example
61
Providing Feedback

• Feedback negative and positive - should be
  provided on a regular basis to those involved in
  the project.
• This helps maintain good performance and correct
  poor performance.

Intentions
Actions
Results
Feedback
Source Haynes, M.E. Project Management from Idea
to Implementation Kogan Page, 1990
62
Progress and time reporting

• All project team members must regularly and
  accurately report progress for their specific
  responsibility areas.
• This is critical if the project managers are to
  be aware of true project progress and
  difficulties.
• Time expended on the various activities must be
  reported accurately and on time.
• Delays in time reporting can result in delays in
  invoicing the client and in wrong project cost
  reporting.

63
Negotiating and resolving differences

• A significant proportion of the project managers
  time is spent negotiating and resolving
  differences.
• This is often caused by scarce resources -
  materials and people and differing views of the
  priorities that apply.
• Negotiation and conflict resolution are key
  skills, learned with experience, complemented by
  formal training.

64
Completing and evaluating the project

• Successful conclusion requires client acceptance
  of the project outcomes.
• This means agreement that the quality time and
  cost parameters have been met, including any
  agreed changes made during the life of the
  project.
• It is vital that any changes made to the original
  project plan are agreed with the client and fully
  documented.

65
Change Control within a project

• It is vital that changes are scrupulously managed
  during the course of a project.
• Changes to the original specification must be
  agreed in writing with the client including
  their impact on quality, time, and cost.
• Changes may be necessary due to unforeseen
  technical difficulties, or simply a change of
  mind on the part of the client.
• Unforeseen problems can be minimised through
  thorough initial planning.

66
The Completion Process

• Delivery
• Wrap up and close down
• Celebration
• Evaluation and reflection
• LEARN FROM THE EXPERIENCE

67
Other facets of Project Management

• Negotiation and conflict resolution
• Assertiveness
• Team Building
• Performance management
• Budget control
• Ability to handle pressure
• Project Management Systems

68
Project Management Systems

• Quite sophisticated software packages are
  available for managing projects particularly
  complex projects.
• They assist in tracking time-reporting, and other
  costs, and assist in monitoring the project
  schedule.
• Some examples are
• MS Project
• ARTEMIS
• Primavera

69
Thanks and good luck in managing your
electronic design project!
