Dynamic kernel patching

1

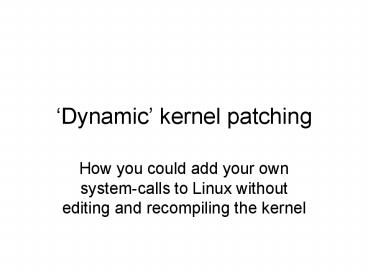

Dynamic kernel patching

• How you could add your own system-calls to Linux
  without editing and recompiling the kernel

2
System calls

• System Calls are the basic OS mechanism for
  providing privileged kernel services to
  application programs (e.g., fork(), clone(),
  execve(), read(), write(), signal(), getpid(),
  waitpid(), gettimeofday(), setitimer(), etc.)
• Linux implements over 300 system calls
• To understand how system calls work, we can try
  creating one of our own design

3
Open Source philosophy

• Linux source-code is publicly available
• In principle, anyone could edit the sources to
  add their own new functions into Linux
• In practice, it is inconvenient to do this
• The steps needed involve reconfiguring,
  recompiling, and reinstalling your kernel
• For novices these steps are treacherous!
• Any error risks data-loss and down-time

4
Alternative to edit/recompile

• Linux modules offer an alternative method for
  modifying the OS kernels functionality
• Its safer -- and vastly more convenient since
  error-recovery only needs a reboot, and minimal
  system knowledge suffices
• The main hurdle to be overcome concerns the issue
  of linking module code to some non-exported
  Linux kernel data-structures

5
Invoking kernel services
user-mode (restricted privileges)
kernel-mode (unrestricted privileges)
application program
installable module
ret
call
call
ret
Linux kernel
standard runtime libraries
int 0x80
iret
6
The system-call jump-table

• There are approximately 300 system-calls
• Any specific system-call is selected by its
  ID-number (its placed into register eax)
• It would be inefficient to use if-else tests or
  even a switch-statement to transfer to the
  service-routines entry-point
• Instead an array of function-pointers is directly
  accessed (using the ID-number)
• This array is named sys_call_table

7
Assembly language (.data)

• .section .data
• sys_call_table
• .long sys_restart_syscall
• .long sys_exit
• .long sys_fork
• .long sys_read
• .long sys_write
• // etc (from arch/i386/kernel/entry.S)

8
The jump-table idea
sys_call_table
sys_restart_syscall
.section .text
0 1 2 3 4 5 6 7 8
sys_exit
sys_fork
sys_read
sys_write
sys_open
sys_close
etc
9
Assembly language (.text)

• .section .text
• system_call
• // copy parameters from registers onto stack
• call sys_call_table(, eax, 4)
• jmp ret_from_sys_call
• ret_from_sys_call
• // perform rescheduling and signal-handling
• iret // return to caller (in user-mode)

10
Changing the jump-table

• To install our own system-call function, we just
  need to change an entry in the Linux
  sys_call_table array, so it points to our own
  module function, but save the former entry
  somewhere (so we can restore it if we remove our
  module from the kernel)
• But we first need to find sys_call_table --
  and there are two easy ways to do that

11
Finding the jump-table

• Older versions of Linux (prior to 2.4.18) used to
  export the sys_call_table as a global
  symbol, but current versions keep this tables
  address private (for security)
• But often during kernel-installation there is a
  System.map file that gets put into the /boot
  directory and assuming it matches your compiled
  kernel it holds the kernel address for the
  sys_call_table array

12
Using uname and grep

• You can use the uname command to find out which
  kernel-version is running
• uname -r
• Then you can use the grep command to find
  sys_call_table in your System.map file, like
  this
• grep sys_call_table /boot/System.map-2.6.22.5c
  slabs

13
The vmlinux file

• Your compiled kernel (uncompressed) is left in
  the /usr/src/linux directory
• It is an ELF-format (executable) file
• It contains .text and .data sections
• You can examine your vmlinux kernel with the
  objdump system-utility
• You can pipe the output through the grep
  utility to locate the sys_call_table symbol

14

Executable versus Linkable
ELF Header
ELF Header
Program-Header Table (optional)
Program-Header Table
Segment 1 Data
Section 1 Data
Section 2 Data
Segment 2 Data
Section 3 Data
Segment 3 Data
Section n Data
Segment n Data
Section-Header Table (optional)
Section-Header Table
Linkable File
Executable File
15
Where is sys_call_table ?

• This is how you use objdump and grep to find
  the sys_call_table address
• cd /usr/src/linux
• objdump t vmlinux grep sys_call_table

16
Exporting sys_call_table

• Once you know the address of your kernels
  sys_call_table, you can write a module to
  export that address to other modules, e.g.
• // declare global variable
• unsigned long sys_call_table
• EXPORT_SYMBOL(sys_call_table)
• int init_module( void)
• sys_call_table (unsigned long )0xC0251500
• return 0

17
Avoid hard-coded constant

• You probably dont want to hard code the
  sys_call_tables value in your module if you
  ever recompile your kernel, or use a differently
  configured kernel, youd have to remember to edit
  your module and then recompile it or risk a
  corrupted system!
• Theres a way to suply the required value as a
  module-parameter during insmod

18
Module paramerers

• char svctable // declare global variable
• module_param( svctable, charp, 0444 )
• // Then you install your module like this
• /sbin/insmod myexport.ko svctablec0251500
• // Linux will assign the address of your input
  string c0251500 to the svctable pointer

19
simple_strtoul()

• There is a kernel function you can use, in your
  init_module() function, that will convert a
  string of hexadecimal digits into an unsigned
  long
• int init_module( void )
• unsigned long myval
• myval simple_strtoul( svctable, NULL, 16 )
• sys_call_table (unsigned long )myval
• return 0

20
Shell scripts

• Its inconvenient and risks typing errors if
  you must manually search vmlinux and then type
  in the sys_call_tables address every time you
  want to install your module
• Fortunately this sequence of steps can be readily
  automated by using a shell-script
• We have created an example myscript

21
shell-script format

• First line !/bin/sh
• Some assignment-statements
• version(uname r)
• mapfile/boot/System.map-version
• Some commands (useful while debugging)
• echo version
• echo mapfile

22
The cut command

• You can use the cut operation on a line of text
  to remove the parts you dont want
• An output-line from the grep program can be
  piped in as a input-line to cut
• You supply a command-line argument to the cut
  program, to tell it which parts of the
  character-array you wish to retain
• For example cut c0-8
• Only characters 0 through 8 will be retained

23
Finishing up

• Our myscript concludes by executing the command
  which installs our myexport.o module into the
  kernel, and automatically supplies the required
  module-parameter
• If your /boot directory doesnt happen to have
  the System.map file in it, you can extract the
  sys_call_table address from the uncompressed
  vmlinux kernel-binary

24
The objdump program

• The vmlinux file contains a Symbol-Table
  section that includes sys_call_table
• You can display that Symbol-Table using the
  objdump command with the t flag objdump t
  /usr/src/linux/vmlinux
• You can pipe the output into grep to find the
  sys_call_table symbol-value
• You can use cut to isolate the address

25
Which entry can we change?

• We would not want to risk disrupting the normal
  Linux behavior through unintended alterations of
  some vital system-service
• But a few entries in sys_call_table are no
  longer being used by the newer kernels
• If documented as being obsolete it would be
  reasonably safe for us to reuse an array-entry
  for our own purposes
• For example system-call 17 is obsolete

26
newcall.c

• We created this module to demonstrate the
  dynamic kernel patching technique
• It installs a function for system-call 17
• This function increments the value stored in a
  variable of type int whose address is supplied
  as a function-argument
• We wrote the try17.cpp demo to test it!

27
Recently an extra obstacle

• Some recent versions of the Linux kernel
  (including ours in the classroom and labs) have
  placed the sys_call_table (as the default
  configuration-option) in read-only memory
  within kernel-space, despite the already existing
  protections of ring 0
• What this achieves is creation of an added
  obstacle to alterations by privileged-code

28
page-frame attributes
virtual memory address of our sys_call_table
array
1100 0000 00 10 0101 0001 0101 0000 0000
0xC0251500
sys_ call_ table
2 1 0
P
R / W
S / U
frame attributes
CR3
Page-Frame
Page-Directory
Page-Tables
We cannot modify entries in sys_call_table
unless its page-frame is writable
29
Tweak page-frame attributes

• Our newcall.c module needs to be sure it can
  modify entry 17 in sys_call_table
• So it locates the page-table entry for the
  page-frame containing sys_call_table and sets
  its writable bit to be TRUE
• But it preserves the previous value of that
  entry, so it can be restored if we remove our
  newcall.ko object from the kernel

30
In-class exercise 1

• Write a kernel module (named unused.c) which
  will create a pseudo-file that reports how many
  unimplemented system-calls are still available.
  The total number of locations in the
  sys_call_table array is given by a defined
  constant NR_syscalls so you can just search the
  array to count how many entries match
  sys_ni_syscall (its the value found initially
  in location 17)
