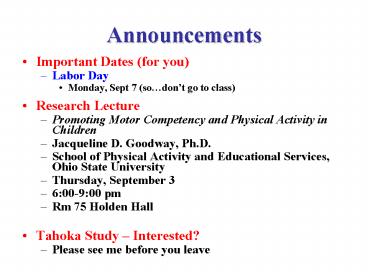

Announcements

• Important Dates (for you)
• Labor Day
• Monday, Sept 7 (sodont go to class)
• Research Lecture
• Promoting Motor Competency and Physical Activity
  in Children
• Jacqueline D. Goodway, Ph.D.
• School of Physical Activity and Educational
  Services, Ohio State University
• Thursday, September 3
• 600-900 pm
• Rm 75 Holden Hall
• Tahoka Study Interested?
• Please see me before you leave

2
Basic Concepts TerminologyPlanes Axes,
Joints, Vectors Scalars, Forces Moments

• ESS 4361-001
• Lecture 2
• Readings Notes and any review textbook

3
Overview

• Review of Basic Concepts
• Planes Axes
• Joints Degrees of Freedom
• Forces Moments of Force
• Begin reading and working through Ch 1
• 1st exam will be around Sept. 19th!

4
Part 1Methods and Measurement Tools
5
Anthropometry

• Measurement of the human body
• Tools
• Scales, tape measures, calipers, video, imaging,
  cadaver studies, regression equations,
  statistical equations, population statistics,
  geometric modeling
• Measures (of whole body as well as segments)
• BSIP (segment mass, com, moment of inertia)
• Height, weight, length, circumference, breadth,
  mass
• So, in what situations would anthropometry be
  useful?

6
Kinetics

• Measure of the forces causing or occurring as a
  result of motion
• Tools
• Force plates, tensiometers, strain gauges,
  dynamometers, accelerometers
• Measures
• Impact/ground reaction forces, joint moments,
  impulse, momentum
• So, in what situations would kinetics be useful?

7
Kinematics

• Measure of motion without regard for the forces
  that cause the motion.
• Tools
• Motion Analysis
• Modeling
• Measures
• Variables of space and time
• Position, Velocity, Acceleration
• So, in what situations would kinematics be useful?

8
Part 1 Review Planes, Axes Relative Position
9
Skeleton

• Axial Skeleton
• Head
• Neck
• Trunk
• Appendicular Skeleton
• Upper extremities
• Lower extremities

10
Reference Positions

• Anatomical Position
• Standard reference point
• Palms face front
• Fundamental Position
• Similar to anatomical position
• Arms more relaxed
• Palms face inward

11
Relative Position

• Medial toward midline of the body
• Lateral away from midline of the body
• Proximal toward point of attachment
• Distal away from point of attachment
• Superior toward the top of the head
• Inferior toward the bottom of the feet

12
Relative Position

• Anterior front, ventral
• Posterior back, dorsal
• Ipsilateral on the same side
• Contralateral on opposite sides

• Relative angle
• - Included angle between two segments

13
Relative Position
14
Planes Axes

• Plane
• Flat, two-dimensional surface
• Cardinal Planes
• Planes positioned at right angles and
  intersecting the center of mass
• Divide body into perfect halves
• Axis of Rotation
• Point about which movement occurs
• Perpendicular to plane of motion

15
Cardinal Planes

• Sagittal Plane
• Left Right halves
• Medio-lateral axis (frontal)
• Frontal (Coronal)
• Front Back halves
• Antero-posterior axis (sagittal)
• Transverse (Horizontal)
• Upper Lower halves
• Longitudinal axis (transverse)
• Many other planes exist

16
Form and Function

• Structure of the human musculoskeletal system
  somewhat dictates function
• Different joints allow rotations in only certain
  planes, while restricting motion in other planes
• Think of the joint structure and how the
  muscle-tendon complex crosses the joint
• Then think of the motion that is allowed at the
  joint
• Example Hip versus Knee

17
Part 2 maybe reviewJoints Degrees of Freedom
18
Types of Diarthrodial Joints
19
Types of Diarthrodial Joints
Plane or Gliding Joint Two flat surfaces slide
over one another (Ex Carpals)
20
Other Types of Joints

• Synarthrodial or Fibrous
• Bones held together by fibrous articulations
• Little or no movement
• Example
• Sutures in skull
• Amphiarthrodial or Cartilaginous
• Hyaline cartilage or fibrocartilage holds joints
  together
• Little movement (but more than synarthrodial)
• Example
• Intervertebral discs

21
Degrees of Freedom

• Degrees of Freedom (DOF)
• Number of planes in which a joint can move
• 1 DOF
• Uniaxial (hinge joint)
• Example Inter-phalangeal (flex-extend)
• 2 DOF
• Biaxial
• Example Wrist (flex-extend, ulnar-radial
  deviation)
• 3 DOF
• Triaxial
• Example Shoulder (flex-extend, abd-add, IR-ER)

22
Summary of Joints

• 7 Types of Di-arthroidal Joints
• Hinge (elbow, inter-phalangeal)
• Pivot (radio-ulnar)
• Plane, Gliding (Vertebrae)
• Ellipsoid (metacarpal-phalangeal)
• Ball and Socket (hip, shoulder)
• Condylar (knee)
• Saddle (thumb)

23
Part 3 definitely reviewScalars, Vectors,
Forces Moments

• Reading NF, Chapter 1

24
Scalars, Vectors and Tensors

• Scalars
• Described by magnitude only
• e.g., mass, energy, power, mechanical work,
  temperature
• Vectors
• Have both magnitude and direction
• e.g., velocity, force, moment, acceleration
• Represented by arrows
• Tensors
• Term referring to all such quantities in physics
  (e.g. scalars, vectors, strain)

25
Magnitude and Direction

• Magnitude
• Positive number corresponding to the numerical
  measure of that quantity
• Direction
• Noted by either a drawn or directed vector
  (arrow)
• OR
• Noted by the /- sign associated with a
  magnitude, where or is associated with a
  left, right, up, down direction.

26
Force

• Force
• Vector quantity
• A force causes or tends to cause motion
  (acceleration) or a change in shape (deformation)
  of an object
• Push
• Pull
• Rub (friction)
• Blow (impact)

Force vectors are usually drawn as arrows
indicating direction and magnitude (length of
vector).
27
Force Characteristics

• Force is a Vector Quantity
• Magnitude
• Direction
• 2 Qualities of Force Application
• Point of application
• Line of application

28
Force Classifications

• Force Classifications
• External Forces
• e.g. Ground Reaction Forces (GRF)
• Internal Forces
• e.g. Muscle and Ligament Forces
• Another classification set can be
• Non-Contact
• Contact

29
Non-Contact Forces

• Newtons Law of Gravitational Force
• The force of gravity is inversely proportional to
  the square of the distance between attracting
  objects and directly proportional to the product
  of their masses.
• G universal gravitational constant (6.67
  10-11 Nm2/kg2)
• m1 mass of one object
• m2 mass of other object
• r distance between the mass centres of the
  objects

30
Gravitational Acceleration

• Force due to Gravity
• Fg -9.81 m/s2
• We use simply g
• Attractive force of the earth on an object
• Fg (G mobject Mearth) / r2
• Weight
• Weight m a m g
• g is acceleration due to gravity (same as Fg
  above)
• Bodyweight is body mass times gravitational
  acceleration

31
Ground Reaction Forces

• Person standing on the ground
• Force exerted by the body downward (F or Wt)
• Reaction force (Ry) exerted by the ground
• Equal in magnitude, and opposite in direction
• If the body moves then additional forces act

32
Forces during Locomotion

• During locomotion
• We exert forces on the ground to create ground
  reaction forces which propel our body along (e.g.
  forward, to the side, backward)
• Ground reaction forces can be measured using a
  force plate

33
Ground Reaction Force (GRF)

• Force equal in magnitude and opposite in
  direction to the force which is applied
• Force Platform

34
Linear versus Angular Motion

• Linear Motion
• Motion in a straight line or curvilinear path
• Rectilinear
• Curvilinear
• Path of motion never crosses back on itself
• Angular Motion
• All points of a body move through the same
  angular path (not necessarily the same distance)
• Motion of a point or object about an axis of
  rotation (fixed or translating)
• Doesnt have to complete the circle

35
Linear versus Angular Motion
36
Linear versus Angular Kinetics

• Linear Kinetics
• Line of force application is through the axis of
  rotation or COM
• No rotation
• Examples?
• Angular Kinetics
• Line of force application does not pass through
  the axis of rotation
• Thus causing rotation
• Examples?

37
Torque Moment of Force

• Moment of Force (Torque)
• A force that creates rotation about an axis
• Tendency of a force to cause rotation
• Equivalent terms
• Moment
• Moment of Force
• Torque
• SI unit is the Newton-meter
• Newton meter (Nm)

38
Basic ConceptsTorque Moment of Force

• M
• Moment (M, angular)
• F
• Force (F, linear)
• d
• Perpendicular (-) distance from the axis of
  rotation to the line of force application

39
Example
40
Basic ConceptsTorque and Moment Vectors

• Moment (Torque) that load creates about the elbow
• M F d-

If the load (W) is 50kg (assume frictionless
pulley) and d- is 8cm, what is the moment created
by the load?
41
Summary

• Basic Concepts and Terminology
• Planes Axes
• Joint Degrees of Freedom
• Scalars, vectors tensors
• Forces Moments of Force

42
For next time

• More Basic Concepts Review
• Newtons Laws
• SI Units
• Rigid Body Analysis
• Free Body Diagrams
• Statics
• Continue working through Chapter 1
