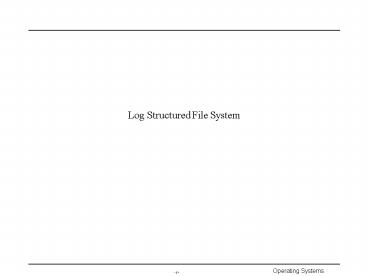

Log Structured File System

1
Log Structured File System
2
Transactions in File System

• Main Points
• reliability from unreliable components
• concept
• atomicity all or nothing
• durability once it happens, it is there
• serializability transactions appear to happen
  one by one
• Motivation
• File Systems have lots of data structures
• bitmap for free blocks
• directory
• file header
• indirect blocks
• data blocks
• for performance reason, all must be cached
• read requests are easy
• what about writes?

3
Transactions in File System

• Write to cache
• write through cache is not of any help
• write back data can be lost on a crash
• Multiple updates that belong to one operation
• what happen if a crash occurs between updates
• e.g. 1 move a file between directories
• delete file from old directory
• add file to new directory
• e.g. 2 create a new file
• allocate space on disk for header, data
• write new header to disk
• add the new file to the directory

4
Transactions in File System

• Unix Approach (ad hoc)
• meta-data consistency
• synchronous write-through
• multiple updates are done in specific order
• after crash, fsck program fixes up anything in
  progress
• e.g.
• file created, but not yet in a directory gt
  delete file
• blocks allocated, but not in bitmap gt update
  bitmap
• user data consistency
• write back to disk every 30 seconds or by user
  request
• no guarantee blocks are written to disk in any
  order
• no support for transaction
• user may want multiple file operation done as a
  unit

5
Transactions in File System

• Write-ahead logging
• Almost all the file systems since 1985 use
  write-ahead logging
• Windows/NT, Solaris, OSF, etc.
• mechanism
• operation
• write all changes in a transaction to log
• send file changes to disk
• reclaim log space
• if crash, read log
• if log isn't complete, no change!
• if log is completely written, apply all changes
  to disk
• if log is zero, then don't worry. All updates
  have gotten to disk
• pros cons
• reliability
• asynchronous write-behind
• - all data written twice

6
Log-Structured File Systems

• Idea
• write data once
• log is the only copy of the data
• as you modify disk blocks, store them in log
• put everything data blocks, file header, etc, on
  log
• Data fetch
• if need to get data from disk, get it from the
  log
• keep map in memory
• tells you where everything is
• map should be in the log for crash recovery

7
Log-Structured File Systems

• Advantage
• all writes are sequential!!
• no seeks, except for reads
• reads can be handled by cache
• cache is getting bigger
• in extreme case, disk IO only for writes which
  are sequential
• same problems of contiguous allocation
• many files are deleted in the first 5 minutes
• need garbage collection
• if disk fills up, problem!!
• keep disk under-utilized

8
Log-Structured File Systems

• Mechanism
• Issues for implementing the log
• how to retrieve information from the log
• enough free space for the log
• Cache file changes, and writes sequentially on
  the disk in a single operation
• fast writes
• Information retrieval
• inode map at a fixed checkpoint region
• indices to inodes contained in the write
• most of them are cached in memory
• fast reads

9
Log Examples
LFS
data
i-node
dir
i-node
data
i-node
dir
i-node
map
log
FFS
i-node
i-node
data
dir
i-node
i-node
dir
data

• In FFS, each inode is at a fixed location on disk
• an index into the inode set is sufficient to find
  it
• in LFS, a map is needed to locate inode since it
  is mixed with data on the log

10
Log-Structured File Systems

• Space management
• holes left by deleting files
• threading
• use the dispersed holes like a linked list
• fragmentation will get worse
• copying
• copy a file out of the log to a leave large hole
• expensive especially for long-lived files
• Segment
• Concept
• clean segments are linked (threading)
• segments with holes may be copied into a clean
  segment
• collect long-lived files into the same segment
• segment cleaning policy
• when? low watermark for clean segments
• how many segments? high watermark
• which segments? - most fragmented
• how to group files?
• files in the same directory

11
Log-Structured File Systems

• Recovery
• checkpoints and roll-forward (NOT a roll-back!!)
• possible since all the file operations are in the
  log
• checkpoint
• a point in the log at which file system is
  completed
• contains
• address of inode maps
• segment usage table
• current time
• checkpoint region
• contains checkpoint
• placed at a specific location on disk
• operation
• 1. write out all modified information to disk
• 2. write out checkpoint region
• on a crash,
• roll-forward operations logged after the last
  checkpoint
• if the crash occurs while writing a checkpoint,
• keep old checkpoint

12
Roll-Forward

• Recover as much information as possible
• in segment summary block, there exist
• a new inode then, there must be data blocks
  before it. Just update inode map
• data blocks without inode ignores them since we
  dont know if the data blocks are complete
• Each inode has counter to indicate how many
  directories refer it
• reference counter updated, but directory is not
  written
• directory is written, but the reference counter
  is not updated
• employs special write ahead log for directory
  changes

13
Informed Prefetching and Caching

• Instructor Joonwon Lee

14
Introduction

• Prefetching
• memory prefetching (to cache memory)
• more about the issues in architecture
• too fast to be controlled by some intelligence
• disk prefetching (to memory buffer)
• disk latency is larger in different order of
  magnitude
• Pros Cons of prefetching
• reduce latency when the prefetched data is
  accessed
• file cache may be wasted if the prefetched data
  is unused
• difficult to know when the prefetched data will
  be used
• interference with other cached data and virtual
  memory is difficult to understand
• Assumptions
• disk parallelism is underutilized
• file performance is getting more important with
  faster CPU
• applications provide hints

15
Limits of RAID

• RAID increases disk throughput when the workload
  can be processed in parallel
• very large accesses
• multiple concurrent accesses
• Many real I/O workload is not parallel
• get a byte from a file
• think
• get another byte from (the same or another) file
• access only a single disk at a time

16
Real I/O Workload

• Recent trends
• faster CPU generated I/O requests more often
• programs favor larger data objects
• file cache hit ratio is more important than
  before
• Most workload is read
• writes can be done behind in parallel
• read blocks the applications
• most access patterns are predictable.
• Lets use the predictability as hints

17
Overview of Informed Prefetching

• Application discloses its future resource
  requirements
• the system makes the final decisions, not
  applications
• Disclosing hints are issued through ioctl
• file specifier
• file name or file descriptor
• pattern specifier
• sequential
• list of ltoffset, lengthgt
• What to do with the disclosing hints
• parallelize the I/O request for RAID
• keep the data in the cache
• schedule disk to reduce seek time

18
Informed Cache Manager Schematic
19
A System Model

• Tdisk latency of the disk fetch
• Tdriver buffer allocation, queueing at the
  driver, and interrupt service

20
Benefit of a buffer

• Tstall (x) read stall time when there are x
  buffers for x prefetches
• Tpf (x) service time for a hinted read when
  there are x buffers

- benefit of using one more buffer
issue(a)
use(a)
use(a)
x buffers
gt x(TcpuThitTdriver)
Tstall
21
Stall time for a disk access

• At worst, it takes Tdisk
• before x-th request generates, it takes x(Tcpu
  Thit Tdriver) for the CPU at best (all cache
  hits, no stall)

• prefetch horizon P(TCPU) distance at which
  Tstall becomes zero, i.e., there is no need to
  prefetch beyond this point

22
What really happens

• 3 buffers are assumed
• so,

23
Benefit of a single buffer

• When used for prefetching
• When used for demand miss
• ?

24
Model Verification

• The model underestimates the stall time due to
• neglecting disk contention
• variation in disk service time (queueing effect)
• overall, it is a good estimator

25
Cost of Shrinking LRU buffer cache

• hit ratio H(n) for file cache with n buffers
• service time
• cost for taking a buffer from the file cache
• H(n) varies with workload
• need dynamic run time monitoring

26
Cost for Ejecting a Prefetched Block

• cost is paid when the ejected block is accessed
  again later
• cost when that block is prefetched in x accesses
  in advance
• Tstall can be zero beyond the prefetch horizon
• ejection frees one block for y-x accesses
• increase in service time per access is

y
x
prefetch
eject
reaccess
region affected by eviction
27
(No Transcript)
28
Seeking Global Optimum

• Normalization of each estimate LRU, hinted
  prefetch
• multiply each with usage rate
• unhinted demand access rate LRU cache
  estimate(TLRU)
• access rate to the hinted sequence (TPF)
• When a manager needs a new block
• each estimator selects the least valuable block
• hint the block that is accessed in the furthest
  future
• LRU the block at the bottom of the LRU stack
• the manager selects the least valuable block
• compare the benefit with the cost of least
  valuable block

29
Real World Estimator

• LRU Cache hit ratio
• can be measured in the cache but the cache size
  varies as time goes on use ghost buffer to
  measure to the maximum size of the cache
• keeping history of each cache block is too much
  work
• use segment
• Use system wide prefetch horizon
• upper bound
• For Teject, assume prefetch happens at the
  prefetch horizon
• assuming

30
After 4 Years,

• Providing hints is too much burden to programmers
• Automatic hints generation is desired
• there are idle CPU times when program blocks for
  I/O
• speculative execution can provide hints for
  future I/O accesses
• Approaches made
• a kernel threads performs the speculative
  execution
• this speculating thread shares the address space
• Issues
• run time overhead
• incorrectness
• may affect the correctness of the results
• incorrect hints may waste I/O bandwidth

31
Ensuring Program Correctness

• Software copy-on-write
• prevents code/data distortion
• for each new write to a memory region, make a
  copy
• insert code to every load/store to check if it is
  to a copied region
• software fault isolation
• code is inserted to a copy of code (shadow code)
• original code is not changed, so no overhead for
  normal execution
• Generates no system call
• system state is not changed by the speculative
  execution
• Signal handler
• catches all exceptions that may disturb normal
  execution

32
Generating Correct and Timely Hints

• Problems
• the speculating thread may lack behind generating
  stale hints
• the speculating thread may stray from the
  execution path
• How to detect the problems
• the original thread checks the hint log prepared
  by the speculating thread
• if it is wrong, the original thread prepares a
  copy of register set and sets the flag
• when the speculating thread is invoked, checks
  the flag
• if set, restart using the register set
