Title: Memory Management


1

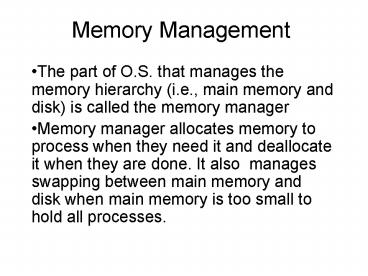

Memory Management
  • The part of O.S. that manages the memory
    hierarchy (i.e., main memory and disk) is called
    the memory manager
  • Memory manager allocates memory to process when
    they need it and deallocate it when they are
    done. It also manages swapping between main
    memory and disk when main memory is too small to
    hold all processes.

2
Memory Managements Schemes
  • There are two types of memory managements the
    ones that move back and forth between main memory
    and disk (i.e., swapping and paging) and those
    that do not.
  • The example of the second one is monoprogramming
    without swapping (rarely used today). In this
    approach only one program is running at a time
    and memory is used by this program and O.S.
  • Three ways of organizing the memory in
    monoprogramming approach is shown is next slide

3

4
Relocation and Protection
  • When a program is linked (all parts of program
    are combined into a single address space), linker
    should know at what address the program will
    begin in memory.
  • Because the program each time is loaded into a
    different partition, its source code should be
    re-locatable.
  • One solution is relocation during loading which
    means linker should modify the re-locatable
    addresses.
  • The problem is even this method can not stop the
    program to read or writes the memory locations
    belonging to the other users (i.e., protection
    problem)

5
Relocation and Protection
  • Solution to both of these problems is using two
    special hardware registers, called base and limit
    registers. When process is scheduled, the base
    register is loaded with the address of start of
    its partition and limit register with the length
    of its partition.
  • Example base addr, X if loaded at location
    x10
  • x 10 20
  • 2x 3 23
  • x 40 50

6
Swapping
  • In the interactive system because sometimes there
    is not enough memory for the active processes,
    excess processes must kept on disk and brought in
    to run dynamically.
  • Swapping is one of the memory management
    technique, in which each process is brought in
    its entirely and after running it for a while
    putting it back on the disk.
  • The partitions can be variable that means number,
    location and size of the partitions vary
    dynamically to improve memory utilization

7

8
Swapping
  • Swapping may cause multiple holes in memory in
    that case all the processes should move downward
    to be able to combine the holes into one big one
    ( memory compaction)
  • Swapping is slow and also if processes data
    segment grow dynamically there should be a little
    extra memory whenever a process is swapped in. If
    there is no space in the memory when processes
    growing they should be swapped out of the memory
    or killed (if there is no disk space).
  • Also if both stack segment (for return addresses
    and local variable) and data segment (for heap
    and dynamically allocated variables) of the
    processes grow, special memory configuration
    should be considered (see next slide)

9

10
Issues with Variable Partitions
  • How do we choose which hole to assign to a
    process? (allocation strategy)
  • How do we manage memory to keep track of holes?
    (see next slide)
  • How do we avoid many small holes? One possible
    solution is compaction but there are several
    variations for compaction. The questions is which
    processes should be moved)

11
Memory Management with Bitmaps
  • Each allocation unit in the memory corresponds to
    one bit in the bitmap (e.g. it is 0 if the unit
    is free and 1 if it is occupied)
  • The size of allocation unit is important. The
    smaller allocation unit the larger bitmap.
  • If the allocation unit is chosen large, the
    bitmap is smaller but if process size is not an
    exact multiple of the allocation unit the memory
    may be wasted

12
Memory Management with Linked Lists
  • A linked list keeps track of allocated and free
    segments (i.e., process or hole).

13
Memory Management with Linked Lists
  • If the list is sorted by address the combinations
    of terminating the process x can be shown as
    follows. List update is different for each
    situation. Using double-linked list is more
    convenient.

14
Memory Management with Linked Lists
  • For allocation of memory for new process
    allocation strategies are
  • First fit first available hole. Generates
    largest holes
  • Next fit next hole. Search starts from the
    previous place instead of the beginning of the
    list
  • Best fit finds the best hole with the size close
    to the size needed. It is slower and the results
    useless tiny holes
  • Worst fit takes the largest hole
  • Quick fit maintains the separate lists of common
    sizes such as 4KB,12KB and 20KB holes. It is fast
    but the disadvantage is merging of free spaces is
    expensive

15
Virtual Memory
  • Overlays are the parts of program that are
    created by programmer. By keeping some overlays
    on disk it was possible to fit a program larger
    than memory in the memory. Swapping overlays in
    and out (they call each other) and also splitting
    a program to overlays were boring and time
    consuming.
  • To solve this problem virtual memory was devised
    in 1961. It means if the size of program exceeds
    the size of memory, O.S. keeps those part of the
    program currently in use, in main memory and the
    rest on disk. It can be used in single program
    and multiprogramming environments.

16
Paging
  • Most of the virtual memory systems use a
    technique called paging, which is based on
    virtual addressing.
  • When a program references an address, this
    address is virtual address and forms virtual
    address space. A virtual address does not go
    directly to a memory bus. Instead it goes to
    Memory Management Unit (MMU) that maps virtual
    address onto physical memory address. (see next
    slide)

17
Virtual Address

18
Paging
  • Virtual address space is divided into the units
    called pages corresponding to the units in the
    physical memory called page frames.
  • Page table maps virtual pages onto page frames.
    (see next slide)
  • If the related page frame exist in the memory
    physical address is found and the address in the
    instruction transformed into physical address.
  • If related page frame does not exist in memory
    it is a page fault. That means the related page
    exist on disk. In case of page fault O.S. frees
    one of the used page frames (writes it to disk)
    and fetched the reference page into that page
    frame and updates the page table.

19

20
Page Table
  • The internal structure of the page table consists
    of 3 bits that shows the number of page frame
    and a bit that shows availability of page frame
    in memory.
  • The incoming address consists of virtual page
    number that translate to 3 bits address of page
    frame and offset that copies directly to output
    address. (see next slide)
  • Each process has its own page table. If O.S.
    copies the process page table from memory to an
    array of fast hardware registers, the memory
    references reduced but since page table is large,
    it is expensive. If O.S. keeps the process page
    table in the memory, there should be one or two
    memory reference (reading the page table) for
    each instruction. This is a disadvantage because
    of slowing down the execution. We will see
    different solutions later.

21

22
Paging
  • In general by knowing the logical address space
    and page size the page table can be designed
  • For example with 16 bit addressing and 4k page
    size since 4K 212 it means we need 12 bit
    offset and 16- 12 4 bit for higher numbers for
    memory logical address. The structure of page
    table can be same as previous slide.

23
Paging
  • Example For the 8 bit addressing system and page
    size of 32 bytes we need 5 bits for offset and 3
    bits for the higher bits of memory logical
    address. If we assume 8 bit for physical
    addressing the page table can be as the
    following
  • 000 010
  • 001 111
  • 010 011
  • 011 000
  • 100 101
  • 101 001
  • 110 100
  • 111 110
  • changes logical address 011 01101gt 000 01101
    (physical)
  • and logical address 110 0110gt 100 0110
    (physical)

24
Issues with the Page Tables
  • With 4KB page size and 32 bit address space 1
    million pages can be addressed. It means the page
    table must have 1 million entries. One of the way
    for dealing with such a large page table is using
    multilevel page table. With multilevel page table
    we can keep only the pages that are needed in the
    memory (see next slide).
  • Another issue is mapping must be fast. For
    example if the instruction takes 4 nsec, the page
    lookup must be done under 1 nsec.

25
2 level scheme
  • The first 2 bits are the index to the table1 that
    remains in the main memory.
  • The second 2 bits are index to table2 that
    contains the pages which may not exist in memory.
    (table2 is subject to paging)
  • table1 table2 page frame
  • 00 ---------- 00
  • 01
  • 10 -------1011
  • 11
  • 01--------------- 00
  • 01
  • for example 0010 1100 changes to 1011 1100
  • Only the tables that are currently used are kept
    in the memory

26
Structure of a PageTable Entry
  • The modified bit or dirty bit shows if the page
    is modified in the memory. In the case of
    reclaiming the page frame page with dirty bit
    must be written back to disk. Otherwise it could
    be abandoned.

27
TLBs Translation Lookaside Buffers
  • Using fast hardware lookup cache ( typically
    between 8-2048 entries) is standard solution to
    speed up paging (see next slide).
  • In general the logical address is searched in
    TLB. If address is there and access does not
    violate the protection bit the page frame is
    taken directly from TLB. In case of miss it goes
    to the page table. The missed page looked up from
    page table and replaced by one of the entry of
    TLB for the future use.

28
TLBs Translation Lookaside Buffers

29
Inverted Page Tables
  • There is only one entry per page frame in real
    memory.
  • Advantage Less memory is required for example
    with 256 MB Ram and 4K page size 216 pages can
    hold in the memory so we need 65,536 (equal to
    216) entries instead of 252 entries that was
    required for traditional page table with 64bit
    addressing
  • Disadvantage Must search the whole table to find
    the address of the page for the requested process
    because it is not indexed on virtual page (see
    the next slide).

30
Inverted Page Tables

31
Page Replacement Algorithm
  • When a page fault occurs the operating system has
    to choose the page to evict from the memory.
  • The Optimal Page Replacement Algorithm is based
    on the knowledge of the future usage of a page.
    It evicts the pages that will be used as far as
    possible in the future. It can not be implemented
    except for if the program runs for the second
    time and system recorded the usage of the pages
    from the first time run of that program.
  • The only use of optimal algorithm is to compare
    its performance with the other realizable
    algorithms.

32
NRU (Not Recently Used)
  • This algorithm uses the M (modified) and
    R(referenced) bit of page table entry. On each
    page fault it removes a page at random from the
    lowest numbered of following classes
  • Class 0 not referenced, not modified
  • Class 1not referenced , modified
  • Class 2referenced, not modified
  • Class 3referenced, modified

33
The Second Chance Replacement Algorithm
  • FIFO List of the pages with head and tail. On
    each page fault the oldest page which is at the
    head is removed
  • Problem with FIFO is it may throw out the heavily
    used pages that came early
  • Second chance algorithm is enhancement of FIFO to
    solve this problem
  • On each page fault it checks the R bit of the
    oldest page if it is 0, the page is replaced if
    it is 1, the bit cleared and the page is put onto
    the end of the list of pages. (see the next
    slide)

34
The Second Chance Replacement Algorithm

35
The Clock Page Replacement Algorithm
  • Problem with Second Page Replacement Algorithm is
    inefficiency because of moving pages around its
    list.
  • Clock Page Replacement solves this problem. On
    each page fault the pointed page is inspected. If
    its R bit is 0, the page is evicted and
    pointer(hand) is advanced one position. If R is
    1, it is cleared and pointer is advanced to the
    next page (see next slide)

36
The Clock Page Replacement Algorithm

37
The Least Recently Used (LRU) Page Replacement
Algorithm
  • LRU throw out the page that has not been used
    for the longest time. Implementation
  • Link list of the used pages.
  • Expensive because link list requires update on
    each reference to the page
  • 64 bit hardware counter that stores the time of
    references for each page. On each page fault the
    page with lowest counter is LRU page.
  • Each page table entry should be large enough
    to contain the counter.
  • Using a matrix (hardware) nn for n page frames
    On each reference to the page k, first all bits
    of row k are set to 1 and then all bits of column
    k are set to zeros. The row with the lowest
    binary value is the LRU page.

38
LRU with matrix. Pages 0,1,2,3,2,1,0,3,2,3
39
Simulation LRU in Software
  • NFU (Not Frequently Used) algorithm is
    approximation of LRU that can be done in
    software.
  • There is a software counter for each page. O.S
    adds the value (0 or 1) of the R bit related to
    that page on each clock interrupt.
  • The problem with NFU is it does not forget the
    number of counts. It means if a page received
    lots of references in the past, even if it has
    not been used recently it never evicts from the
    memory.

40
Simulation LRU in Software
  • To solve this problem the modified algorithm,
    known as aging works as the follows
  • 8 bit reference byte is used for each page and at
    referenced intervals (clock tick) a one bit right
    shift occurs. Then R bit is added to the leftmost
    bit. The lowest binary value is the LRU page.
    (see next slide)
  • The difference between aging and LRU is in aging
    if two pages contain the same value of 0, we can
    not say which one is less used before 8 clock
    ticks.

41
Aging algorithm simulation of LRU

42
More on Page replacement algorithms
  • High paging activities is called thrashing . A
    process is thrashing if it is spending more time
    on paging than execution.
  • Usually processes exhibit locality of references.
    Means they reference small fraction of their
    pages
  • When a process brings the pages after a while it
    has most of the pages it needs. This strategy is
    called demand paging that means pages are load on
    demand, not in advance.
  • The strategies that try to load the pages before
    process run are prepaging.

43
Working set model
  • The set of pages that a process is currently
    using is called its working set.
  • If k considered the most recent memory
    references, there is a wide range of k in which
    working set is unchanged. (see next slide) It
    means prepaging is possible.
  • Prepaging algorithms guess which pages will be
    needed when a process restarts. This prediction
    is based on the process working set when process
    was stopped.
  • At each page fault, working set page replacement
    algorithms check to see if the page is part of
    the working set of the current process or not.
  • WSClock algorithm is the modified working set
    algorithm that is based on clock algorithm.

44
Working set model

K
45
Summary of Page Replacement Algorithms

46
Modeling Page Replacement Algorithms
  • For some page replacement algorithms, increasing
    the number of frames does not necessarily reduce
    the number of page faults. This strange
    situation has become known as Beladys Anomaly.
  • For example FIFO caused more page faults with
    four page frames than with three for a program
    with five virtual pages and following page
    references (see next slide)
  • 0 1 2 3 0 1 4 0 1 2 3 4

47

48
Stack Algorithms
  • In these modeling algorithms, paging can be
    characterized by three items
  • 1- The reference string of the executing process
  • 2- The page replacement algorithm
  • 3- The number of page frames available in the
    memory
  • For example using LRU page replacement and
    virtual address of eight pages and physical
    memory of four pages next slide shows the state
    of memory for each of the reference string
  • 0 2 1 3 5 4 6 3 7 4 7 3 3 5 5 3 1 1 1 7 2 3 4
    1

49

The State of Memory With LRU stack-based
algorithm
50
The Distance String
  • The distance from top of the stack is called
    distance string.
  • Distance string depends on reference string and
    paging algorithm. It shows the performance of
    algorithm. For example for (a) most of the string
    are between 1 and k. It shows with a memory of k
    page frames few page fault occur. But for (b) the
    reference are so spread out that generates lots
    of page faults.

(b)
(a)
51
Segmentation
  • Although paging provides a large linear address
    space without having to buy physical memory but
    using one linear address space may cause some
    problems.
  • For example suppose with having virtual address
    of 0 to some maximum address we want to allocate
    the space for different tables of a program that
    are built up as compilation proceeds. Since we
    have a one-dimensional memory, all five tables
    that are produced by compiler, should be
    allocated as contiguous chunks. The problem is
    with growing tables, one table may bump into
    another. (see the next slide)

52

53
Segmentation
  • Segmentation is a general solution to this
    problem. It is providing the machine with many
    completely independent address spaces, called
    segments
  • Segments have variable sizes and each of them can
    grow or shrink independently without affecting
    each other.
  • For example next slide shows a segmented memory
    for the compiler tables

54

55
Advantages of Segmentation
  • Simplifying handling of growing/shrinking data
    structures
  • Since each segment starts with address of 0, if
    each procedure occupies a separate segment then
    linking up of procedures compiled separately is
    simplified. It is true because a call to
    procedure in segment n uses two part address
    (n,0) it means size changes of other procedures
    does not affect the starting address which is n
  • Sharing procedures or data between several
    processes is easier with segments (e.g. shared
    library)
  • Different segments can have different kind of
    protection (e.g. read/write but not executable
    for an array segment)
  • Major problem with segmentation is external
    fragmentation that can be dealt by compaction
    (see next slide)

56

57
Segmentation with Paging
  • If the segments are large by paging them only the
    pages that are needed can be placed in memory.
  • MULTICS (OS of Honeywell 6000) uses segmentation
    with paging. Each 34-bit MULTICS has segment
    number and address within that segment. The
    segment number is used to find segment
    descriptor. Segment descriptor points to the page
    table by keeping 18 bits address and contains
    the segment information (see next slide)

58

59
Segmentation with Paging in MULTICS
  • By finding segment number from virtual address
    then if there is no segment fault, page frame
    number can be find. If it is in the memory the
    memory address of the page is extracted and will
    be added to the offset. (see next slide)
  • If page frame is not in the memory page fault
    occurs.
  • The problem is this algorithm is slow so MULTICS
    uses a 16-word TBL to speedup the searching.

60
Write a Comment
User Comments (0)
About PowerShow.com
