Uncalibrated Epipolar Calibration

1

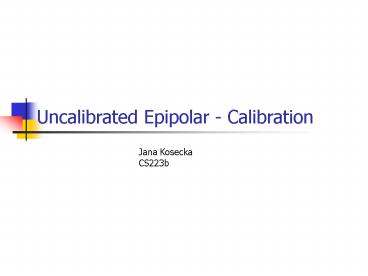

Uncalibrated Epipolar - Calibration
Jana Kosecka CS223b
2
Uncalibrated Camera
3
Overview

• Calibration with a rig
• Uncalibrated epipolar geometry

4
Uncalibrated Camera
5
Taxonomy on Uncalibrated Reconstruction

• is known, back to calibrated case
• is unknown
• Calibration with complete scene knowledge (a rig)
  estimate
• Uncalibrated reconstruction despite the lack of
  knowledge of
• Autocalibration (recover from uncalibrated
  images)
• Use partial knowledge
• Parallel lines, vanishing points, planar motion,
  constant intrinsic
• Ambiguities, stratification (multiple views)

6
Calibration with a Rig
Use the fact that both 3-D and 2-D coordinates of
feature points on a pre-fabricated object (e.g.,
a cube) are known.
7
Calibration with a Rig

• Recover projection matrix

• Factor the into and
  using QR decomposition

8
More details

• Direct calibration by recovering and decomposing
  the projection matrix

2 constraints per point
9
More details

• Recover projection matrix
• Collect the constraints from all N points into
  matrix M (2N x 12)
• Solution eigenvector associated with the
  smallest eigenvalue
• Unstack the solution and decompose into rotation
  and translation

• Factor the into and
  using QR decomposition

10
Calibration with a planar pattern
To eliminate unknown depth, multiply both sides
by
11
Calibration with a planar pattern
Because are orthogonal and unit norm
vectors of rotation matrix We get the following
two constraints

• We want to recover S

• Unknowns in K (S)

Skew is often close 0 -gt 4 unknowns

• S is symmetric matrix (6 unknowns) in general we
  need at least 3 views
• To recover S (2 constraints per view) - S can be
  recovered linearly
• Get K by Cholesky decomposition of directly from
  entries of S

12
Alternative camera models/projections
Orthographic projection
Scaled orthographic projection
Affine camera model
13
Barrel and Pincushion Distortion
tele
wideangle
14
Models of Radial Distortion
distance from center
15
Tangential Distortion
cheap CMOS chip
cheap lens
cheap glue
cheap camera
16
Barrel distortion
17
Distorted Camera Calibration

• Set k1k20, solve for undistorted case
• Find optimal k1,k2 via nonlinear least squares
• Iterate
• ?Tends to generate good calibrations

18
Calibration Software Matlab
19
Calibration Software OpenCV
20
Calibration by nonlinear Least Squares

• Least Mean Square
• Gradient descent

21
The Calibration Problem Quiz

• Given
• Calibration pattern with N corners
• K views of this calibration pattern
• How large would N and K have to be?
• Can we recover all intrinsic parameters?

NO
22
Constraints

• N points
• K images ? 2NK constraints
• 4 intrinsics (distortion 2)
• 6K extrinsics
• ? need 2NK 6K4
• ? (N-3)K 2

Hint may not be co-linear
23
The Calibration Problem Quiz
need (N-3)K 2
Hint may not be co-linear
24
Problem with Least Squares

• Many parameters (slow)
• Many local minima! (slower)
