Title: Assessing Software Maintainability with Visual Analytics: SQuAVisiT Experience

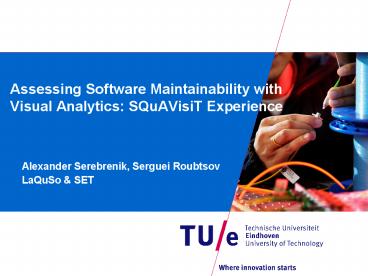

1
Assessing Software Maintainability with Visual
Analytics SQuAVisiT Experience
  • Alexander Serebrenik, Serguei Roubtsov
  • LaQuSo SET

2
Real life industrial systems
  • They are often
  • Not only OO (e.g., legacy systems)
  • Heterogeneous (C/Assembler, Cobol/PL SQL,)
  • Incomplete (some code is in libraries and
    third-party components)
  • Not compilable and executable within analysis
    environment ( weird OS, proprietary development
    environment, )

3
Goal Maintainability assessment
  • Maintenance is a problem
  • 2007, US companies spent 100 billion US
  • In some Dutch companies 60-80 of the budget

http//www.cs.jyu.fi/koskinen/smcosts.htm
4
What code is hard to maintain?
  • Badly understandable
  • not documented
  • cluttered or inconsistently used/developed code
  • too big
  • Badly modifiable
  • code is duplicated
  • code is intertwined
  • code is non-extendable
  • code is non-portable
  • Badly testable / analysable
  • code is too complex

5
Approaches
  • Typical approaches
  • Analyze
  • Visualize
  • Analyze Visualize
  • Problems with Analyze Visualize
  • Pretty pictures do not convey meaning
  • Ugly pictures do not scale
  • One to rule them all rigid architectures
  • Different tools provide different insights!

6
Our approach
Visual Software Analytics Analysis
Visualisation Flexibility
7
SQuAVisiT
  • Flexible
  • Plug-in architecture
  • Languages
  • C, Cobol, Java, JavaScript, PL/SQL
  • Analysis tools
  • dependency extractors, duplication detectors,
    error detectors, metrics calculators, parsers,
    style checkers
  • Visualization tools
  • Gemini, GraphViz, ExTraVis (thank you Danny!),
    MatrixZoom, MetricsView

8
Case studies
  • 1000 facets of visual analytics
  • based on LaQuSo case studies

9
LaQuSo?
10
Industrial cases
  • Usually up to 2 weeks analysis time
  • Range from 150 KLOC to 1.7 MLOC
  • Homogeneous and heterogeneous
  • Customers usually report problems experienced
  • Need to migrate due to discontinuation of support
    by a third party
  • Danger of architecture deterioration due to
    extensive change
  • Lack of knowledge due to high degree of staff
    rotation
  • Maintenance (dis)continuation decision
  • As an illustration we discuss only some of the
    analyses carried out in each case.

11
Overview of industrial cases
12
Expert system
Industrial case Insurance companys expert system
  • What kind of system do we have?
  • Heterogeneous Javascript, PL/SQL, C, Java,
    Cobol
  • Medium size 300 KLOC
  • 15 years old
  • Scarce documentation
  • Oracle DB
  • Problem reported
  • Maintenance (dis)continuation decision

13
Dependencies Model Matrix View
Data layer
  • (Almost) layered good design
  • BUT data layer is accessed from several layers
  • Layers affected by calls from top layer are
    visible (red squares)
  • What are the maintenance implications of this
    figure?

14
Dependencies Model Extravis
  • Absence of dedicated data access layer is
    confirmed
  • HTTP is called only internally
  • Green bubbles controversial coding approach
  • Parameters as names f(1,3) -gt f_1_3

15
Code duplication model CCFinder/Gemini
  • PL/SQL part
  • Code is polluted with duplication restructuring
    would improve maintainability but may change the
    architecture

16
What can we conclude?
  • Layered architecture
  • System is well-structured
  • Controversial coding practices
  • But locally well-documented (not shown here)
  • Code polluted by duplication
  • Low impact if no major changes are expected
  • Conclusions
  • Maintain for limited amount of time (3-5 years)
  • Encourage knowledge sharing
  • Develop overview documentation

17
Case conclusions
  • Assessment required multiple analyses and
    visualizations
  • Dependencies
  • Code duplication
  • and in fact even more

Different techniques provide different insights!
18
Industrial case Embedded System
  • What kind of code do we have?
  • C with embedded Assembler
  • Complete
  • Modules of interest can be parsed
  • Medium size 150 KLOC
  • No documentation
  • Problems reported
  • Danger of architecture deterioration due to
    extensive change.
  • Developers assumption
  • Layered architecture

19
Dependencies Structure
  • system is poorly layered
  • unexpected cross-dependencies exist between
    components

20
Expert system
Industrial case Insurance companys front-end
  • What kind of system do we have?
  • Technical data
  • Homogeneous Java
  • Large 750 KLOC
  • Oracle DB
  • J2EE (Spring Framework)
  • Recently developed by a third party
  • No documentation
  • Code was not available for our inspection (black
    box)

21
Code not available? What can we do?
Customer
SQuAVisiT
  • Install locally.
  • Perform measurements.
  • Tune

results
  • Analyse, interpret.

report
22
Understandability Documentation
  • No technical documentation available.
  • Comments percentage
  • Average 43
  • Ranging from 0 to 1500. Why?
  • large repeated header blocks of comments
  • commented out code
  • Javadoc
  • 85260 violations
  • Missing or malformed declarations
  • Documentation generation is impossible, or
  • Documentation quality is compromised
  • Documentation quality should be reassessed!

23
Object-Oriented Metrics for Packages
  • Abstractness of a package P ease of inheritance
  • A abstract classes in P/classes in P
  • Instability of a package P ease of change
  • I Ce/(Ce Ca)
  • Efferent coupling (Ce)
  • packages P depends upon
  • Afferent coupling (Ca)
  • packages dependent upon P

24
Modification Abstractness and Instability
  • Imbalance is
  • significant

Implementation classes
Zone of uselessness lack of dependencies on them
1
Instability (I)
0
Interface classes
Zone of pain hard to change
0
1
Abstractness (A)
25
Modification Abstractness and Instability
  • Normalized distance Abstractness Instability
    1
  • Purple the application, yellow Spring
  • The application is better!

26
Object-Oriented Metrics for Classes
  • WMC here number of methods per class
  • DIT depth of inheritance tree
  • NOC number of children
  • CBO number of classes related to a given class
  • RFC number of different methods that can be
    executed when a method of the class is invoked

27
Closer look Depth of Inheritance
  • 50of classes with inheritance depth 0.
  • Lack of reuse via inheritance.

28
Closer look coupling between objects
  • CBO Average classes related to the given

NASA High Quality
NASA Low Quality
Spring Framework
Loan Path
1.25
2.48
4.45
6.83
  • Average coupling is too high!
  • Reduce dependencies

29
What have we seen?
  • Architecture is suboptimal
  • Documentation should be reassessed

30
Case conclusions
  • Recall we have not seen the code!
  • Black box analysis
  • Metrics provide valuable insights in software
    quality
  • Assessment results were confirmed by the customer

31
Industrial case Pension fund
  • What kind of system do we have?
  • Homogeneous Cobol
  • Large 1.7 MLOC
  • 17 years old
  • Oracle DB
  • Problem reported
  • Need to migrate due to discontinuation of support

32
Dead code?
  • Empty spaces in the visualization
  • 1216 modules not called by other modules
  • Dead code?
  • Other (sub)systems?
  • 600 are dead
  • Confirmed by the developers

33
Conclusions
  • Visual software analytics assessment supported
    by visualization, analysis and tool flexibility
  • SQuAVisiT is a flexible tool allowing
  • To analyse different languages
  • To address different maintainability aspects
  • To combine different analysis and visualization
    techniques
  • In practice, SQuAVisiT supported analysis of
  • Middle-size to large systems (150 KLOC 1.7
    MLOC)
  • Short amount of time 10-14 days
  • Even black box!
