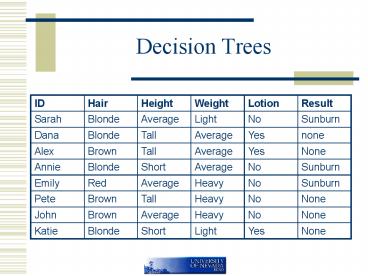

Decision Trees

1
Decision Trees
2
Decision Tree
3
DT Inducer
4
Whats the DT?
5
Root

• Outlook!, humidity, wind, temp

6
Version Space VS Decision Tree

• ID3 searches a complete hypothesis space (any
  finite-valued discrete function). It searches
  incompletely using hill climbing with the
  heuristic Preferring shorter trees with high
  information gain attributes closer to the root
  (Inductive bias)
• Version spaces search an incomplete hypothesis
  space completely. Inductive bias arises from the
  bias in the hypothesis representation

7
Issues

• How deep?
• Continuous attributes?
• Missing attribute values?
• Attributes with different costs?

8
Overfitting

• Tree grows deep enough to perform well on
  training data. But
• There may be noise in the data
• Not enough examples
• Over-fitting h overfits the data if h does
  worse on training examples but does better over
  all instances

9
(No Transcript)
10
Handling Overfitting

• Stop growing tree earlier
• Post pruning (works better in practice)

11
Methods

• Construct tree then use a validation set a
  separate set of examples, distinct from training
  set to evaluate the utility of post-pruning nodes
• Construct Tree with all available data then use
  statistical tests to determine whether expanding
  or pruning a node is likely to produce an
  improvement only on the training example or the
  entire instance distribution

12
Training and validation

• 2/3 used for training
• 1/3 used for validation (Should be a large enough
  sample)
• Validation set is a safety check
• Validation set is unlikely to contain the same
  random errors and coincidental regularities as
  the training set.

13
(No Transcript)
14
Reduced error pruning

• Pruning a node Remove subtree rooted at that
  node make it a leaf node, and give it the most
  common classification of training examples at
  that node
• Consider each node for pruning
• Remove node only if the pruned tree performs no
  worse than original
• Iterate and stop when further pruning decreases
  decision accuracy on validation set

15
From Trees to Rules

• Traverse DT from root to each leaf
• Each such path defines a rule
• Example
• If
• ?x hair color is blonde
• ?x uses lotion
• Then
• Nothing happens

16
Rules from DT

• If
• ?x hair color is blonde
• ?x uses no lotion
• Then
• ?x turns red
• If
• ?x hair color is red
• Then
• ?x turns red

• If
• ?x hair color is blonde
• ?x uses lotion
• Then
• Nothing happens
• If
• ?x hair color is dark
• Then
• Nothing happens

17
Rule Pruning

• Eliminate unnecessary antecedents. Consider
• If ?x hair color is blonde
• ?x uses lotion
• Then nothing happens
• Suppose we eliminate the first antecedent
  (blonde)
• The rule triggers for each person who uses lotion
• If ?x uses lotion Then nothing happens
• Data shows that nothing happens to anyone using
  lotion!
• Might as well drop the first antecedent since it
  makes no difference!

18
Contingency tables

• Formalizing the intuition. For those who used
  lotion

• For those who used lotion, it does not matter if
  they are blonde or not blonde, they do not get
  sunburned.

19
Contingency tables

• Formalize the intuition. For those who are blonde

• For those who are blonde, it does matter whether
  or not they use lotion. Two of those who use
  lotion get sunburned and two do not.

20
Contingency tables

• If ?x is blonde and does not use lotion then ?x
  turns red
• Eliminate ?x is blonde ?if ?x does not use lotion
  then ?x turns red
• For those who do not use lotion

• Looks like ?x is blonde is important

21
Contingency tables

• If ?x is blonde and does not use lotion then ?x
  turns red
• Eliminate ?x does not use lotion ?if ?x is blonde
  then ?x turns red
• For those who are blonde

• Looks like ?x does not use lotion is important

22
Contingency tables

• If ?x is redhead Then ?x turns red
• Eliminate ?x is redhead ? Rule always fires!
• Look at Everyone

• Evidently red hair is important

23
Contingency tables

• If ?x is dark haired Then Nothing happens
• Eliminate ?x is dark haired ? Rule always fires!
• Look at Everyone

• Is being dark haired important?

24
Contingency tables

• If ?x is dark haired Then Nothing happens
• Eliminate ?x is dark haired ? Rule always fires!
• Look at Everyone

• Is being dark haired important?

25
Eliminate Unnecessary rules

• If ?x is blonde ?x uses no lotion Then ?x is
  sunburned
• If ?x uses lotion Then ?x Nothing happens
• If ?x is redhead Then ?x is sunburned
• If ?x is dark haired Then Nothing happens
• Can we come up with a default rule that
  eliminates the need for some of the above rules?

26
Eliminate Unnecessary rules

• If ?x uses lotion Then ?x Nothing happens
• If ?x is dark haired Then Nothing happens
• If no other rule applies
• Then Nothing happens

27
Default rules

• If ?x is blonde ?x uses no lotion Then ?x is
  sunburned
• If ?x is redhead Then ?x is sunburned
• If no other rule applies
• Then ?x gets sunburned

28
Eliminate rules using defaults

• Heuristic 1 Choose the default rule that
  eliminates/replaces as many other rules as
  possible
• Both default rules eliminate 2 other rules ?
  cannot use this heuristic
• Heuristic 2 (to choose among rules identified by
  heuristic 1) Choose the default rule that covers
  the most common consequent
• 5 not sunburned, 3 sunburned
• Choose If no other rule applies Then nothing
  happens

29
General Procedure
Fishers exact test cab be used to do this check
30
Why rules?

• Distinguish between different contexts
• Each rule can be considered separately for
  antecedent pruning. Contrast this with DT. You
  can remove a node or not?
• But there may be many contexts through that node.
  That is, there may be many rules that go through
  that node and removing the node means you remove
  ALL rules that go through that node
• If we consider each rule separately, we can
  consider all contexts of a DT node separately.

31
Why Rules?

• In DTs nodes near root are more important than
  nodes near leaves.
• Rules avoid the distinction between attribute
  tests near the root and those later on.
• We can avoid thinking about re-organizing the
  tree if we have to remove the root node!

32
Why rules?

• Rules may be more readable

33
Continuous valued attributes

• Sort examples according to continuous values
• Identify adjacent examples that differ in target
  values (play?)
• Pick one of (48 60)/2 and (90 80)/2 by
  evaluating disorder of the new feature tempGT54
  and tempGT85
• Can also come up with multiple intervals. Use
  both above?

34
Feature selection

• Search through space of feature subsets for a
  subset that maximizes performance
