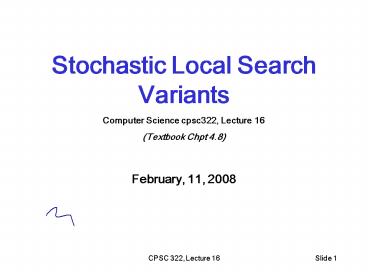

Stochastic Local Search Variants

1
Stochastic Local Search Variants Computer Science
cpsc322, Lecture 16 (Textbook Chpt
4.8) February, 11, 2008
2
Lecture Overview

• Recap SLS
• SLS variants

3
Stochastic Local Search

• Idea combine hill climbing (advantage finds
  local maximum) with randomization (advantage
  doesn't get stuck).
• As well as uphill steps we can allow a small
  probability of
• Random steps move to a random neighbor.
• Random restart reassign random values to all
  variables.

4
Runtime Distribution

• Plots runtime (or number of steps) and the
  proportion (or number) of the runs that are
  solved within that runtime.
• note the use of a log scale on the x axis

5
Tabu lists

• SLS algorithms can get stuck in plateaus
• To prevent cycling we can maintain a tabu list of
  the k last nodes visited.
• Don't visit a node that is already on the tabu
  list.
• If k1, we don't allow the search to visit the
  same assignment twice in a row.
• This method can be expensive if k is large.

6
Lecture Overview

• Recap SLS
• SLS variants
• Simulated Annealing
• Beam search
• Genetic Algorithms

7
Simulated Annealing

• Annealing a metallurgical process where metals
  are hardened by being slowly cooled.
• Analogy start with a high temperature'' a
  high tendency to take random steps
• Over time, cool down more likely to follow the
  scoring function
• Temperature reduces over time, according to an
  annealing schedule

8
Simulated Annealing algorithm

• Here's how it works (for maximizing)
• You are in node n. Pick a variable at random and
  a new value at random. You generate n'
• If it is an improvement i.e.,
  , adopt it.
• If it isn't an improvement, adopt it
  probabilistically depending on the difference and
  a temperature parameter, T.
• we move to n' with probability e(h(n')-h(n))/T

9
Properties of simulated annealing search

• One can prove If T decreases slowly enough, then
  simulated annealing search will find a global
  optimum with probability approaching 1
• Widely used in VLSI layout, airline scheduling,
  etc.

10
Lecture Overview

• Recap SLS
• SLS variants
• Simulated Annealing
• Population Based
• Beam search
• Genetic Algorithms

11
Population Based SLS

• Often we have more memory than the one required
  for current node ( tabu list)
• Key Idea maintain a population of k nodes
• At every stage, update your population.
• Whenever one node is a solution, report it.

Simplest strategy Parallel Search

• All searches are independent
• Like k restarts, but uses k times the minimum
  number of steps.

12
Population Based SLS Beam Search

• Non Stochastic
• Like parallel search, with k nodes, but you
  choose the k best out of all of the neighbors.
• Useful information is passed among the k parallel
  search thread
• Extreme case If one successor generates several
  good neighbors and the other k-1 all generate bad
  successors.

13
Population Based SLS Stochastic Beam Search

• Deterministic Beam Search can suffer from lack of
  diversity among the k states (just a more
  expensive hill climbing)
• Stochastic version alleviates this problem
• Selects the k nodes at random
• But probability of selection proportional to
  their value

14
Stochastic Beam Search Advantages

• It maintains diversity amongst the nodes.
• Biological metaphor
• The scoring function value reflects the fitness
  of the node.
• like asexual reproduction
• each node gives its mutations
• the higher the fitness the more likely the
  individual will survive.

15
Lecture Overview

• Recap SLS
• SLS variants
• Simulated Annealing
• Population Based
• Beam search
• Genetic Algorithms

16
Population Based SLS Genetic Algorithms

• Start with k randomly generated states
  (population))
• A state is represented as a string over a finite
  alphabet (often a string of 0s and 1s)
• A successor state is generated by combining two
  parent states (loosely analogous to how DNA is
  spliced in sexual reproduction
• Evaluation function (fitness function). Higher
  values for better states.
• Produce the next generation of states by
  selection, crossover, and mutation

17
Genetic algorithms Example

• Representation and fitness function

State string over finite alphabet
Fitness function higher value better states
18
Genetic algorithms Example
Selection common strategy, probability of being
chosen for reproduction is directly proportional
to fitness score

• 24/(24232011) 31
• 23/(24232011) 29 etc

19
Genetic algorithms Example
Reproduction cross-over and mutation
20
Genetic Algorithms Conclusions

• Their performance is very sensitive to the choice
  of state representation and fitness function
• Extremely slow (not surprising as they are
  inspired by evolution!)

21
CSPs summary

• Find a single variable assignment that satisfies
  all of our constraints (atemporal)
• Systematic Search approach (search space ..?)
• Constraint network support
• inference e.g., Arc Consistency (can tell you if
  solution does not exist)
• Decomposition
• Heuristic Search (degree, min-remaining)
• (Stochastic) Local Search (search space ..?)
• Huge search spaces and highly connected
  constraint network but solutions densely
  distributed
• No guarantee to find a solution (if one exists).
• Unable to show that no solution exists

22
What is coming next?

• How to select and organize a sequence of actions
  to achieve a given goal
• Relying on the powerful representation of states
  as a set of features. (like CSPs)
• Relying on sophisticated actions representation
  (unlike CSPs)

23
Modules we'll cover in this course

• Environment

Stochastic
Deterministic
Search
Single Action
Constraint Satisfaction (CSPs)
Decision
Logics
Search
Sequence of Actions
Constraint Satisfaction (CSPs)
Planning
24
Next class
Start Planning (Chp 11)
