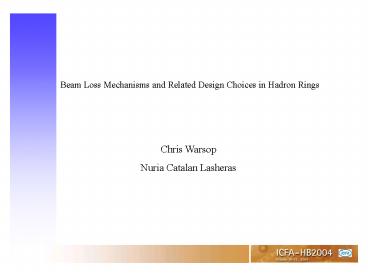

Beam Loss Mechanisms and Related Design Choices
in Hadron Rings
Chris Warsop Nuria Catalan Lasheras
2
Purpose and Scope of Talk
  • Loss is expected to be a main factor limiting
    performance
  • Activation, Risk of Damage
  • Detector Background Levels, Quenching of SC
    Magnets
  • Main Content
  • 1. Summarise Loss Mechanisms
  • 2. Implementation of Low Loss Design
  • 3. Key Design Factors and Choices
  • 4. Summary
  • Scope
  • Focus on Low-Medium Energy HI Proton Rings ISIS,
    ESS, SNS, JPARC,
  • Less on LHC, RHIC, SIS100 the subject of
    later talks

3
1.1 Space Charge Transverse (i)
1. Loss Mechanisms
  • Space charge shifts beam into resonant condition
    driven by Magnet Errors
  • Incoherent Space Charge Limit
  • Overestimate! Must Consider Coherent modes
  • For the Non Coupled Case
  • EG m2, 2D round beam, non split
  • Cm1/2, 3/4
  • Breathing Mode, Quad Mode
  • Higher orders, coupling more modes
  • Avoid resonant conditions, correct errors!

A Fedotov, I Hofmann
4
1.1 Space Charge Transverse (ii)
1. Loss Mechanisms
  • Space charge also drives loss
  • Space Charge Resonances (4th order, coupling)
  • Image Effects
  • Time varying distributions drive transverse halo
    creation
  • see later
  • Key Measures
  • ? Higher Energy, Large Transverse
    Emittance/Acceptance, Bunching Factor
  • Working Point (Qx,Qy) Selection, Magnet Error
    Correction
  • ? Optimised Injection Painting

5
1.1 Space Charge Longitudinal
1. Loss Mechanisms
  • Space Charge perturbs longitudinal motion
  • Need fine control of Longitudinal Motion
  • To prevent halo creation and bunch broadening
  • To optimise the momentum distribution bunching
    factor
  • Transverse tune shifts and stability
  • Key Measures
  • ? Optimised longitudinal injection painting
    including space charge,
  • Inductive Inserts, Dual Harmonic RF Systems,

6
1.2 Instabilities Longitudinal (i)
1. Loss Mechanisms
  • Longitudinal Microwave "coasting beam"
  • Keil-Schnell-Boussard
  • Key Measures
  • ? Minimise Z// RF Shields, Smooth Transitions,
    Resistivity
  • ? Momentum Spread Distribution, Peak intensity
  • For High Space Charge KSB pessimistic exceed by
    factor 5 - 10
  • Stability Under Capacitative Z//
  • Inductive Insert in PSR
  • Compensate Reactive
  • Increase Resistive

K Ng et al
7
1.2 Instabilities Longitudinal (ii)
1. Loss Mechanisms
  • Longitudinal Single Bunch
  • Robinson Stability Beam Loading
  • Feed-forward compensation, compensation by
    de-tuning etc.
  • Multiple control loops
  • In addition to previous precautions
  • ? Powerful, Optimised (complicated) RF Systems
  • Longitudinal Coupled Bunch (nb3)
  • Narrow Band Impedances of cavities damp High
    Order Modes

8
1.2 Instabilities Transverse (i)
1. Loss Mechanisms
  • Transverse Microwave "coasting beam"
  • Stability Criterion
  • Key Measures
  • ? Minimise Z- RF Shields, Smooth Transitions,
    Resistivity, Extraction Kickers
  • ? Momentum Spread Distribution, Peak intensity
  • ? Chromaticity sign (above or below transition),
    change Q
  • ? Landau Damping Octupoles
  • ? Damping Systems

9
1.2 Instabilities Transverse (ii)
1. Loss Mechanisms
  • Transverse Single Bunch Head Tail
  • Effects of transverse impedance, betatron and
    synchrotron motion
  • Key Measures similar to above
  • ? Chromaticity sign above or below transition
    (for "normal" impedance)
  • ? Select Q above integer, minimise resistivity
    (for resistive wall)
  • ? Landau Damping with Octupoles, Active Damping
  • Observation of Head Tail Resistive Wall
  • ISIS Synchrotron single 200 ns bunch, 1013
    protons, 200 MeV (?lt ?t)
  • At Natural Chromaticity (? -1.3), m1
  • Cured by Ramping Qy

Monitor difference signal
10
1.2 Instabilities Electron Cloud and Related
Losses (i)
1. Loss Mechanisms
  • Current RD Topic understanding incomplete
  • Key observations
  • PSR strong vertical instability at thresh hold,
    fast loss
  • ISIS no e-p effects seen (yet!)
  • CERN PS, SPS large No. of electrons under LHC
    conditions
  • RHIC pressure rise with halved normal bunch
    spacing
  • Problems
  • E-P instability threshold limits intensity, or
    causes emittance growth.
  • Vacuum pressure rise
  • Heating effects (SC Magnets)
  • Effects of Neutralisation tune shifts, resonance
    crossing, loss?, diagnostics?

11
1.2 Instabilities Electron Cloud and Related
Losses (ii)
1. Loss Mechanisms
  • Electron Production
  • Stripping Foil, Residual Gas Ionisation, Loss
    Induced, Multipacting, (SR)
  • Much work into Measurement Simulation of
    electron production
  • PSR Solutions Combined measures raised stable
    beam threshold
  • PSR RFA Signal Trailing Edge Multipacting
  • Use of Skew Quads, Sextupoles, Octupoles (Landau
    Damping)
  • RF Buncher, Inductive Inserts (beam in gap)
  • Solutions
  • ? TiN Coating, Surface Scrubbing
  • ? Longitudinal Magnetic field
  • ? Clearing Electrodes
  • ? Damping

R Macek

12
1. Loss Mechanisms
1.3 Other Loss Mechanisms
  • Magnet Errors, Transverse Resonances, General
    Optimisation
  • closed orbit errors, alignment correction
    dipoles
  • gradient error correction, Q setting trim
    quadrupoles
  • chromaticity control, correction sextupole
    families
  • Landau damping octupole families
  • Interactions with Residual Gas
  • Interactions with the Stripping Foil
  • Inelastic/Elastic Scattering, Ionisation Energy
    Loss, H0 Excited States
  • Intrabeam Scattering

13
2.1 Stability and Control of Injected Beam
2. Low Loss Designs
  • For consistent low loss in ring need stable well
    defined injection beam
  • Examples
  • LHC "Injector Chain"
  • Injection Line Collimation for ESS, SNS, JPARC,
  • Remove Linac beam variations in the Injection
    Line
  • Transverse Collimation
  • Momentum Control

14
2.1 ESS Injection Achromat
2. Low Loss Designs
HEBT
LINAC
EC
MR
BR
MS2
HS1
HS2
HS3
HS4
MS1
  • Collimation in three planes
  • Exploits Foil Stripping of H-
  • Achromaticarc r42.5 m
  • Normalised dispersion 5.5 m1/2
  • Low field pre stripping

EC Energy Enhancement Cavity MR Momentum Ramping
Cavity BR Bunch Rotation Cavity HS Horizontal
Foil Scrapers MS Momentum Foil Scrapers VS Vertica
l Foil Scrapers
42.5 m
MS3
VS1
ACHROMAT
VS2
VS3
VS4
Rings
15
2.2 (i) Multi-Turn Charge-Exchange Injection
2. Low Loss Designs
  • Main Considerations
  • Paint optimal distributions for stability
  • Transverse Closed Orbit and Injection Point
    Manipulation
  • Longitudinal Chopping, Injected Momentum Ring
    RF Manipulation
  • Minimise Foil Traversals Loss, Foil Lifetime
  • Small Cross Section, Optimised Optics - mis-match
  • Thickness heating stress, efficiency
  • Remove Stripping Products (H0, H-, e-)
  • Practical Factors
  • Foil support and exchange, material
  • Apertures, realistic layout of injection region
  • Optimised magnet fields to avoid pre stripping

16
2.2 (ii) SNS Injection
2. Low Loss Designs
  • Zero Dispersion at Injection Point
  • In Chicane Magnet
  • Independent H, V and P
  • Correlated or anti-correlated HV
  • Energy Spreader for P
  • Includes
  • Removal of H, e-
  • Flexible!

17
2.2 (iii) Optimised Transverse Painting - SNS
2. Low Loss Designs
  • What is Best Transversely Correlated or Anti
    correlated

J Beebe-Wang et al
Correlated
Anti-Correlated
Non "ideal" but paints over beam
halo Rectangular x-y cross section Preserved?
Ideally gives a uniform density Elliptical x-y
cross section Halo generated during injection
18
2.2 (iv) Simulation Results
2. Low Loss Designs
J Beebe-Wang et al
  • Correlated Seems Better
  • Smaller Halo
  • Fewer Foil Hits
  • Better Distribution for Target
  • Improved Schemes with Oscillating Painting
  • Power supplies, Aperture demands?
  • How much might these ideas help on existing
    machines/upgrades?

Correlated
Anti-Correlated
Simpsons code
19
2.3 Storage, Acceleration, Extraction,
2. Low Loss Designs
  • Accumulator Ring Stability until Extraction
    (ESS, SNS)
  • Loss Control Collimation, BIG
  • Longitudinal/Transverse Halo Control Extraction
    Loss
  • RCS Stability through Acceleration (ISIS,
    JPARC)
  • As Accumulator but more difficult!
  • Power supply tracking, programmable trim magnets
    ...
  • Other Machines
  • Bunch Compression for Proton Drivers
  • Collision

20
3.1 Major Systems and Lattice Considerations
3. Key Factors
  • Basic Choices
  • Accumulator or RCS, Beam Energy, Circumference,
  • Optical and Spatial Requirements for Lattice
  • Injection dispersion, matching,
  • Extraction straights for fast kickers and
    septum, (redundancy, fail safe)
  • Collimation two stage betatron, momentum, beam
    in gap kicker,
  • RF space in straights
  • Working point space charge, stability,
  • Optics acceptance
  • Special Requirements

21
3.2 ESS Accumulator Lattice
3. Key Factors
  • Key features
  • Triplet Structure
  • Long Dispersionless Straights
  • Two Rings

Parameters Energy 1.334 GeV Rep Rate 50 Hz
Circumference 219.9 m Intensity 2.34x1014
ppp Power 2.5 MW per ring Q(4.19,4.31), No
Sp3 frf1.24 MHz, h1 (h2)
22
3.3 Other Important Features
3. Key Factors
  • Aperture
  • Acceptance of Machine, Collimators and Extraction
    Line. Painted Emittance.
  • Diagnostics
  • Ability to Control and Manipulate beam and halo
    (large dynamic range)
  • Protection
  • Combination of hardware, diagnostics (fast),
    interlocks, procedures

23
4. Summary and Thoughts (i)
4. Summary
  • Have given an outline of major considerations for
    low loss design
  • New machines depend on a very large body of
    knowledge
  • Important RD areas Instabilities (e-p effects),
    Space Charge
  • Optimised Design of Low Loss Machines
  • Now a well developed art
  • How reliably can we predict loss levels and
    distributions?
  • Critical to final performance
  • Must continue to test Theories and Codes with
    Experiment
  • More Experiments!

24
4. Summary and Thoughts (ii)
4. Summary
  • Many Machines being built and commissioned now
  • What are the key issues?
  • Differences between simulation and reality
  • Diagnostics and Control limitations
  • Optimisation Methods e.g. loss, collimation,
    injection
  • Protection Strategies Faults, Accidents

25
Acknowledgements
  • Material from many SNS, JPARC, CERN, ESS related
    publications, including
  • J Wei, Synchrotrons Accumulators for HI Proton
    Beams, RMP, Vol. 75, October 2003
  • I Hofmann et al, Space Charge Resonances and
    Instabilities in Rings, AIP CP 642, etc.
  • R Baartman, Betatron Resonances with Space
    Charge, AIP CP 448
  • K Schindl, Instabilities, CAS Zeuthen 2003,
  • A Chao, Physics of Collective Beam Instabilities
    , Wiley
  • K Ng, Physics of Intensity Dependant Beam
    Instabilities, Fermilab-FN-0713
  • A Hofmann, B Zotter, F Sacherer, Instabilities,
    CERN 77-13
  • R Macek, E-P WG Summary AIP CP642, PAC 2001, etc
  • G Rees, C Prior, ESS Technical Reports etc.
Write a Comment
User Comments (0)
About PowerShow.com
