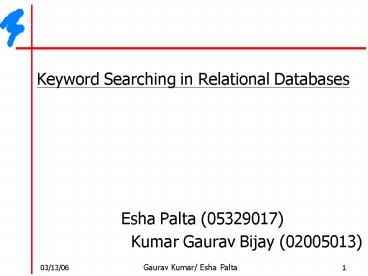

Keyword Searching in Relational Databases

1

• Keyword Searching in Relational Databases
• Esha Palta (05329017)
• Kumar Gaurav Bijay (02005013)

2
Dilbert Strip ?
3
Motivation

• Keyword search
• We have SQL, why keyword-querying?
• SQL - not appropriate for naive users
• So many online databases (imdb, citeseer,
  bseindia ) user cannot keep track of schema
  for all of these

4
Simple Approaches

• Using Form interfaces
• Require separate form for each type of query
  confusing
• Not suitable for ad-hoc queries how many forms
  will you provide?
• How about Google?
• Export data from db to documents and do keyword-
  querying on these
• Suffers from duplication overheads
• Google wants all keywords in one document. DB is
  often normalized, so need to join tables and
  store as documents
• Multiple combinations of tables to join. Not
  scalable

5
Differences from Web Search

• Related data split across multiple tuples due to
  normalization
• Different keywords may match tuples from
  different relations
• What joins are to be computed can only be decided
  on the fly
• Need to find result containing all keywords and
  rank them somehow

Writes (AuthorId, PaperId)
Paper (PaperId, PaperName)
Author (AuthorId, AuthorName)
Cites (Citing, Cited)
The DBLP Bibliography Schema
6
Systems for DB search

• BANKS (Browsing and Keyword Search)
• IITB (ICDE 02)
• DBXplorer Microsoft Research (ICDE 02)
• ObjectRank IBM, UCSD, FIU (VLDB 04)
• Bidirectional BANKS IITB (VLDB 05)

7
Systems for DB search

• BANKS (Browsing and Keyword Search)
• IITB (ICDE 02)
• DBXplorer Microsoft Research (ICDE 02)
• ObjectRank IBM, UCSD, FIU (VLDB 04)
• Bidirectional BANKS IITB (VLDB 05)
• will cover in depth

8
BANKS (ICDE 02)
9
The BANKS system

• BANKS Architecture
• Available on the web
• http//www.cse.iitb.ac.in/banks
• Connects to database using JDBC
• JDBC metadata features used to provide schema
  browsing
• Preprocesses db

User
BANKS
HTTP
JDBC
Web-server
Database
10
Basic Model

• Database modeled as a graph
• Nodes tuples
• Edges references between tuples
• foreign key (assume for this talk), inclusion
  dependencies, ..
• Edges are directed.

PaperIdPaperName
AuthorIDPaperId
AuthorId
DBLP example
11
The BANKS Answer Model

• Query set of search terms t1, t2, .., tn
• For each search term ti we find set of nodes Si
  matching ti
• Eg Query Sudarshan Roy (t1 Sudarshan, t2
  Roy)
• Answer rooted, directed tree connecting nodes
  matching keywords
• Root node has special significance, may be
  restricted to some relations
• E.g. relations representing entities, not
  relationships
• May include intermediate nodes not in any Si
  (Steiner Tree)
• Multiple answers
• Ranking based on proximity prestige

12
Answer Example
Query sudarshan roy
Paper
Writes
Writes
Author
Author

• We would like to find sets of (closely) connected
  tuples that match all given keywords

13
Edge Directionality

• Directed tree will miss desired answers. For eg
• Query DBXplorer ObjectRank
• So, for each forward edge, BANKS adds a back edge

CitedBy
Cited
Cites
BANKS
DBXPlorer
ObjectRank
Cites
CitedBy
Cited
DBXPlorer
BANKS
Cites
ObjectRank
Cites
14
Edge Directionality

• What if we ignore directionality?
• Some popular tuples are connected to many other
  tuples
• E.g. Students -gt departments -gt university
• Problem A popular tuple would create misleading
  shortcuts between tuples
• E.g. every student would be closely linked with
  every other student via the department/university
• Solution define different forward and backward
  edge weights
• Forward edges In the direction of the foreign
  key reference

15
Edge Weight

• Weight of forward edge based on schema
• e.g. citation link weights gt writes link
  weights
• Weight of backward edge indegree of edges
  pointing to the node

16
Edge Weight Scaling

• Normalize edge score Escore(e)
• Make edge weight scale-free by dividing edge
  weigth by wmin
• Problem Some backward edges have unduly large
  weights
• Depress the scale by defining Escore(e) as
  log(1w(e)/wmin )
• Overall Escore E 1 / (1 ?e Escore(e))

17
Node Weight

• Set weight of a Node Indegree of the node
• As per prestige rankings nodes with multiple
  pointers to them get a higher prestige
• So, higher node weight corresponds to higher
  prestige
• Problem Nodes with many in-edges result in
  skewed answers
• Subdue extreme node weights by using
  log(1indegree)
• Node score Nscore Average of node scores
  (root-node-weight ? leaf-node-weights)

18
Combining Scores

• Combining two independent metrics node weight
  and edge weight
• Normalize each to 0-1
• Combine using weighting factor ?
• Additive (1- ?) Escore ? Nscore
• Multiplicative Escore Nscore?
• Performance study to compare alternatives and to
  find reasonable values for ?

19
First Step Symbol Table

• The first step is to build a symbol table
• This table is in the db and is not normalized
• Example

20
Searching for Best Answers

• Backward Expanding Search Algorithm
• Assume graph fits in memory
• Idea find vertices from which a forward path
  exists to at least one node from each Si.
• Run concurrent single source shortest path
  algorithm from each node matching a keyword
• Create an iterator for each node matching a
  keyword
• Traverse the graph edges in reverse direction
• Output a node whenever it is on the intersection
  of the sets of nodes reached from each keyword
• Answer trees may not be generated in relevance
  order

21
Backward Expanding Search
Iterators
22
BANKS Query Result Example

• Result of Sudarshan Roy

23
Result Ordering

• Answers need not be always in Relevance order

This tree is output
Better Root Missed
2
2
2
5
2
1
24
Result Ordering (contd)

• Solution
• Generate all connection trees and then sort them
• Increases computation costs and leads to a
  greatly increased time to generate initial
  results
• Create a small heap ordered on the relevance of
  the trees
• Output highest ranked tree from heap to user when
  heap is full
• What about duplicate results?
• Maintain a list of generated results for
  duplicate detection
• Discard result according to relevance

25
Experience and Performance

• BANKS provides keyword search coupled with
  extensive browsing facilities
• Schema browsing data browsing
• Graphical display of data
• Implemented using Java servlets
• Keyword search response times typically 1 to 3
  seconds on
• DBLP database with 100,000 tuples/300,000 edges
• P3 600 MHz, 512 MB RAM

26
Anecdotes

• Mohan
• Returns C. Mohan at top based on prestige (number
  of papers written)
• Transaction
• Returns Jim Grays classic paper and textbook as
  top answers based on prestige (number of
  citations)
• Sunita Seltzer
• No common papers, but both have papers with
  Stonebraker system finds this connection

27
Effect of Parameters

• Log scaling of edge weights worked well
• (1- ?) E ? N versus E N???????made little
  difference
• Best with ? .2 (subdue node weights but not
  entirely)

28
BANKS (VLDB 05)
29
Motivation

• BANKS performs poorly if
• Keyword matches lot of nodes (so lot of Dijkstra
  sources)
• Search hits a node with large fan in.

Wastes time
Sudarshan
Roy
30
New Ideas Forward Search

• Why only backward, lets search forward too

How about fwd Searching ?

Sudarshan
Roy
31
New Ideas - Activation

• Activation - Cannot forward search from each
  node.
• Spread activation from keyword nodes to others.
• Activation is like Page Rank with decay.
• High Activation ? close to many keywords.

32
Activation Spreading

• Spreading Activation
• Node with highest activation explored first
• Activation spread to neighbors (µ 0.3)
• Gives low activation to neighbors of hubs

33
Modifications to Model

• Graph model stays the same.
• BANKS is concerned with search more than how to
  tune parameters or define node weights / edge
  weights.
• BANKS code
• Tree Node Score, N
• Tree Edge Score, E
• Total Score ENl (l 0.2)


34
The New Algorithm

• Need two priority queues
• Qin - do backward search from these nodes
• Qout - do forward search from these nodes
• Each node, n keeps 3 variables per keyword, ti
• sp i Node to got to from n for shortest-path
  to ti
• distance i Length of the shortest-path from
  n to ti
• Activation i Activation to n from keyword ti

35
The New Algorithm continued

• Set initial activation keyword nodes and add to
  Qin for backward-search.
• At each step, pick node with maximum activation
• i.e. if (Qin.getMaxActivation gt Qout.
  getMaxActivation))
• // use node from Qin
• else
• // use node from Qout
• If node from Qin, do backward search and add
  itself to Qout. (newly explored nodes into Qin)
• If node from Qout, do forward search
• If node has reached from all keyword, generate
  result-tree. answer is buffered as results can
  be out of order

36
Explanation with example
Qin
Qout
N100
N4
Roy Sudarshan
N1

N3
N2
Roy
Sudarshan
37
Explanation with example
Qin
Qout
N100
Roy Sudarshan
N4
N1 N2
N1

N3
N2
Roy
Sudarshan
38
Explanation with example
Qin
Qout
N100
N1 Roy Sudarshan
N2 N3 N100
N4
N1

N3
N2
Roy
Sudarshan
Result Found !
39
Generation of top-k results

• If we know the score of next-best answer, all
  buffered answers with better score can be output.
• Need upper bounds

40
Computation of upper bound

• For each keyword ti, we have explored nodes upto
  some length say li.
• So, next best score (approx.)
• This is not a true upper bound, but works quite
  well and is simple !

41
Are we losing answers ?

• BANKS I used many Dijkstra states, BANKS II
  uses 2 only forward and backward search-states.
• The result is that we can now lose answers !

42
Answer Loss Example
Ny
K1
K2
Nx
K1
This is the generated answer.
This answer is lost.
43

• But, we will generate this tree rooted at Nx
• So, a rotated tree with same nodes but different
  root is often generated !

NY
K2
NX
K1
44
Metrics of Performance

• Manually obtain best relevant answers.
• Determine 2 times
• Time taken to produce last relevant answer.
• Time taken to output last relevant answer.
• Search algorithms
• MI-Bkwd original backward search
• Iterator for every node matching a keyword
• SI-Bkwd backward search with single backward
  iterator
• Bidirec bidirectional search
• Datasets
• DBLP, IMDB 2 million nodes, 9 million edges
• US Patent DB 4 million nodes, 15 million edges

45
Graph - I

• MI-Bkwd versus SI-Bkwd

• SI-Bkwd gain increases with origin size,
  keywords

46
Graph - II

• SI-Bkwd versus Bidirec

• Bidirec gain increases with origin size,
  keywords

47
A Critique

• BANKS needs a lot of memory.
• Need to cluster and keep parts of graph on disk.
• Work is in progress ?

48
DBXplorer (ICDE 02)
49
DBXplorer (Microsoft Research)

• Use symbol table to determine which tables to
  join.
• Generate all possible table join combinations
• Figure

T1, T2, T3, T4 and T5 are tables
50
Cool ideas in DBXplorer

• Symbol table need not be at tuple level. If
  column has an index, column level symbol table
  is ok.
• Table Compression
• e.g. Keywords Columns Keywords Columns

K1
K1
C1
C1
K2
K2
X
K3
C2
C2
K3
K4
K4
K5
K5
Intermediate Column
51
ObjectRank (VLDB 04)
52
ObjectRank (IBM, FIU, UCSD)

• Creates objects in database. Object definition is
  manual.
• e.g. in DBLP, author, conference and paper can
  be defined as objects.
• Heavily inspired by PageRank.
• Each node is given global ObjectRank just like
  PageRank of Google.

53
ObjectRank Ideas

• Keyword-level ObjectRank for each keyword,
  precompute and save object ranks of nodes can
  optimize by defining cut-off)
• Score of node, n w.r.t. keyword k
• scorek(n) f (Global-object-rank (n),
  Objectrankk (n))
• At run time, scores are combined
• scorek1,k2,,km(n) scorek1(n) scorek2(n)
  scorekm(n)

54
ObjectRank Algorithm and answers

• If graph is DAG or near DAG, topologically sort
  and spread ObjectRank in this order.
• Answers are single objects and not Cluster /
  group as in BANKS.
• Demo at
• http//teriyaki.ucsd.edu9099/objrank/main05_ne
  w.html

55
Conclusion

• Studied BANKS, both versions.
• Covered cool ideas from DBXplorer and ObjectRank.
• Graph of BANKS must be made disk-resident.

56
References

• Gaurav Bhalotia, Arvind Hulgeri, Charuta Nakhe,
  Soumen Chakrabarti, and S. Sudarshan.Keyword
  Searching and Browsing in Databases using
  BANKS.In International Conference on Data
  Engineering (ICDE), pages 10831096, 2002.
• Varun Kacholia, Shashank Pandit, Soumen
  Chakrabarti, S. Sudarshan et. al.Bidirectional
  Expansion for Keyword Search on Graph
  Databases.In VLDB Conference, pages 505516,
  2005.
• Sanjay Agrawal, Surajit Chaudhari, and Gautam
  Das.DBXplorer A System for Keyword-Based Search
  over Relational Databases.In International
  Conference on Data Engineering (ICDE), pages
  522, 2002.
• Andrey Balmin, Vagelis Hristidis, and Yannis
  Papakonstantinou.ObjectRank Authority-Based
  Keyword Search in Databases.In VLDB Conference,
  pages 564575, 2004.

57
Appendix

• Extra slides

58
Browsing - May add??????

• Hyperlinks are there for all primary key foreign
  key attributes
• Each table is displayed with set of tools for
  interacting with data
• Projection (using drop), Selection, Join,
  Group-by, Sort
• Template facilities to do a variety of tasks
• Browsing data by grouping and creating crosstabs
• e.g., theses grouped by department and year
• Hierarchical views of data
• Nested XML style, even on relational data
• Graphical displays
• Bar charts, pie charts, etc
• Templates are generic and can be applied on any
  data matching assumed schema
• Can be applied after applying selections
• New templates can be created by user,
  interactively

59
Example of Browsing in BANKS
60
Related Work

• DataSpot (DTL)/Mercado Intuifind VLDB 98
• Based on patent by Palmon (filed 1995, granted
  1998)
• Based on hypergraph model, similar answer model
  to ours
• Differences our model of backward link weights
  and prestige
• Proximity Search VLDB98
• Different model of proximity based on adding up
  support
• No edge weights, prestige, different evaluation
  algorithm
• Information units (linked Web pages) WWW10
• No directionality, only studied in Web context
• Microsoft DBExplorer (this conference)
• No ranking, based on SQL generation
• Addresses efficient construction of text indexes
• Microsoft English query

61
Extensions

• Summarization of output
• group the output tuples into sets that have same
  tree structure
• define the notion of similarity between two
  result trees
• perform restricted search
• Metadata queries (attributekeyword queries)
• For example authorlevy
• match all the tuples of a relation
• costly
• Forward searching approach

62
Proposed Conclusions and Future Work

• BANKS is an integrated browsing and keyword
  querying system for relational databases
• Future work
• Keyword queries on XML
• Disambiguating queries by selecting
• Nodes G.W.Bush Bush Jr or Bush Sr
• Tree structure coauthors or cites
• Boolean queries
• Metadata queries
• Summarization of output
