Title: Advanced Ray Tracing

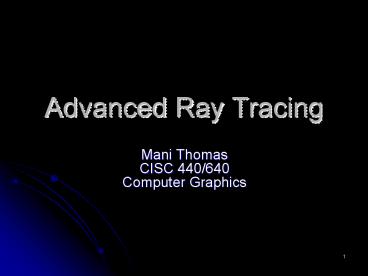

1
Advanced Ray Tracing
  • Mani Thomas
  • CISC 440/640
  • Computer Graphics

2
Review
  • Ray tracing
  • Compute 3D ray into the scene for each 2D image
    pixel
  • Compute 3D intersection point of ray with nearest
    object in scene
  • Test each primitive in the scene for intersection
  • Find nearest intersection
  • Recursively spawn rays from the point of
    intersection
  • Shadow Rays
  • Reflected rays
  • Transmitted rays
  • Accumulate the color from each of the spawned
    rays at the point of intersection

3
Review
  • Ray object intersection
  • Intersection with a plane
  • Implicit form
  • Intersection
  • Intersection with a sphere
  • Implicit form
  • Intersection

4
Review
  • Shadow feelers
  • Spawn a ray from P to the light sources
  • If there is an intersection of the shadow ray
    with any object then P is in shadow
  • Reflection
  • Angle of incidence angle of Reflection

5
Review
  • Refraction
  • Ray passing through media of different refractive
    indices bend towards/away from the normal
  • Snells Law
  • ni and nr are the refractive indices of the two
    media
  • Transmitted ray

6
Review
  • Using Extents
  • Ray tracing is slow, performing the same
    functions.
  • Most of the time is spent in computing
    intersections
  • Each ray should be intersected with every object
    in the scene
  • Each ray, spawns out reflected/transmitted rays
    which have to be interested with the objects in
    the scene

7
Review
  • Extent of an object is a shape that encloses the
    object
  • Compute complicated intersections if and only if
    the ray hits the extent
  • Two shapes most commonly used as extents
  • Sphere specified by a center and radius (C , r)
  • Box specified by sides aligned to the
    coordinate axis

8
Review
  • Super-sampling
  • Instead of shooting one ray per pixel, shoot four
    rays through the corners of a pixel
  • Adaptive super-sampling (Whitteds approach)
  • Shoot more rays through corners with higher
    intensity variation
  • Compute final color as a weighted average rather
    than the regular average

9
Road map
  • Monte Carlo methods
  • Distributed ray tracing
  • Bidirectional ray tracing
  • Caustics
  • POV-ray

10
Distributed Ray Tracing
  • Distributed ray tracing is NOT ray tracing on a
    distributed system.
  • Distributed ray tracing is a ray tracing method
    based on randomly distributed oversampling to
    reduce aliasing artifacts in rendered images
    (Allen Martin, http//www.cs.wpi.edu/matt/courses
    /cs563/talks/dist_ray/dist.html)

11
Distributed Ray Tracing
  • Developed by Cook, et. al. (Distributed Ray
    Tracing, Computer Graphics, vol. 18, no. 3, pp
    137-145, 1984)
  • Stochastic Oversampling (http//www.cs.virginia.ed
    u/cs551dl/lecture11/sld016.htm)
  • Pixel for antialiasing
  • Light source for soft shadows
  • Reflection function for soft (glossy) reflections
  • Time for motion blur
  • Lens for depth of field

12
Distributed Ray tracing
  • Gloss (fuzzy reflections)
  • Partially reflecting surfaces
  • Traditional ray tracing
  • reflections look identical to the scene they are
    reflecting
  • reflections are always sharp
  • Randomly distributing the rays reflected by the
    surface
  • Send out a packet of rays around the reflecting
    direction.
  • The actual value of reflectance is the
    statistical mean of the values returned by each
    of these rays

13
Distributed Ray tracing
  • Distributing a set of reflection rays by randomly
    perturbing the ideal specular reflection ray.
  • The spread of the distribution determines the
    glossiness where a wider distribution spread
    models a rougher surface.

taken from http//www.cs.wpi.edu/emmanuel/courses
/cs563/write_ups/zackw/realistic_raytracing.html
14
Distributed Ray tracing
  • first image is from the traditional ray tracer
  • second one uses 16 rays in place of the single
    reflected ray
  • third image uses 64 rays

taken from http//www.uwm.edu/People/dtstrock/grap
hics/mcrt.html
15
Distributed Ray tracing
taken from http//www.cs.wpi.edu/emmanuel/courses
/cs563/write_ups/zackw/realistic_raytracing.html
16
Distributed Ray tracing
  • Fuzzy translucency
  • Same as glossy reflections, but you jitter the
    refracted ray
  • Analytical function similar to the shading
  • A transmission function is used instead of a
    reflectance function
  • Light is gathered from the other side of the
    surface.
  • Cast randomly distributed rays in the general
    direction of the transmitted ray from traditional
    ray tracing.
  • The average value computed from each of these
    rays the true translucent component.

17
Distributed Ray tracing
  • first image is obtained from a traditional ray
    tracer
  • Second image uses 10 rays for the transmitted ray
  • third image uses 20 rays

taken from http//www.cs.wpi.edu/matt/courses/cs5
63/talks/dist_ray/dist_trans_fuzzy_20.html
18
Distributed Ray tracing
  • first image is from the traditional ray tracer
  • second one uses 16 rays in place of the single
    reflected ray
  • third images uses 64 rays

taken from http//www.uwm.edu/People/dtstrock/grap
hics/mcrt.html
19
Distributed Ray tracing
  • Penumbras (soft shadows)
  • Traditional ray tracing shadows are discrete
  • Shadow feelers used to check if a point is in
    shadow with respect to a point light source
  • Incorrect for large light sources and/or light
    sources that are close to the object
  • The transition from fully shadowed to partially
    shadowed is gradual.
  • Due to the finite area of real light sources, and
    scattering of light of other surfaces

20
Distributed Ray tracing
  • Penumbras (soft shadows)
  • A set of rays are cast about the projected area
    of the light source.
  • The projected area helps tackle the large area
    light source
  • The amount of light transmitted by the ratio of
    the number of rays that hit the source to the
    number of rays cast

21
Distributed Ray tracing
  • In case of a point source, the occluder would
    create a sharp shadow boundary
  • In an area light source or if the light source is
    closer to the object
  • Creation of a penumbra region
  • Sending out shadow feelers to capture the
    penumbra region

taken from http//www.cs.wpi.edu/emmanuel/courses
/cs563/write_ups/zackw/realistic_raytracing.html
22
taken from http//www.cs.wpi.edu/emmanuel/courses
/cs563/write_ups/zackw/realistic_raytracing.html
23
Distributed Ray tracing
taken from http//www.cs.unc.edu/andrewz/comp238/
hw2/
24
Distributed Ray tracing
  • Depth of field - the distance that objects appear
    in focus
  • Objects that are too far away or two close will
    appear unfocused and blurry
  • pinhole camera model does not truly mimic the
    real world situation
  • Pinhole assumed to be infinitely small
  • Changing focal length change field of view but
    does not change focus

25
Distributed Ray tracing
  • Distributed ray tracing creates depth of field by
    placing an artificial lens in front of the view
    plane.
  • Randomly distributed rays are used once again to
    simulate the blurring of depth of field.
  • The first ray cast is not modified by the lens.
  • focal point of the lens is at a fixed distance
    along this ray
  • Rest of the rays sent out for the same pixel will
    be scattered about the surface of the lens
  • Points in the scene that are close to the focal
    point of the lens will be in sharp focus.
  • Points closer or further away will be blurred

26
taken from http//www-courses.cs.uiuc.edu/cs419/m
p2/gallery-sp04/
27
Distributed Ray tracing
taken from http//www-courses.cs.uiuc.edu/cs419/m
p2/mp2-gallery-sp05/
28
Distributed Ray tracing
  • Motion blur
  • Temporal sampling rather than spatial sampling
  • A Frame represents an average of the scene during
    the time that the camera shutter is open
  • Before each ray is cast, objects are translated
    or rotated to their correct position for that
    frame.
  • The rays are averaged to give the actual value.
  • Objects with the most motion will have the most
    blurring in the rendered image.

29
Distributed Ray tracing
taken from http//www-courses.cs.uiuc.edu/cs419/m
p2/mp2-gallery-sp05/
30
Distributed Ray tracing
taken from http//www-courses.cs.uiuc.edu/cs419/m
p2/mp2-gallery-sp05/
31
Bidirectional Ray tracing
caustic
Created by H. Wann Jensen
32
Bidirectional Ray tracing
  • Caustic - (Concentrated) specular
    reflection/refraction onto a diffuse surface
  • Standard ray tracing cannot handle caustics

caustic
Created by H. Wann Jensen
33
Light Paths
  • Interactions of the light ray can be expressed
    using regular expressions
  • L is the light source
  • E is the eye/camera
  • D is a diffuse surface
  • S is a specular surface

from Sillion Puech
34
Light Paths
  • Direct visualization of the light LE
  • Local illumination LDE, LSE
  • Ray tracing LSE, LDSE
  • Caustics LSDE

from Sillion Puech
Taken from cisc 440/640 Fall 2005
35
Diffuse Surfaces
  • Uncertainty in the direction that a photon will
    take for diffuse surfaces
  • For specular surfaces, the BRDF (probability
    that incoming photon will leave in a particular
    direction) has a thin profile
  • We can predict the direction of the outgoing
    photon
  • For an ideal diffuse surfaces, the BRDF would be
    spherical
  • The photon can travel along any of the direction
    with equal probability

from Sillion Puech
36
Bidirectional Ray tracing
from P. Heckbert
  • Idea Trace forward light rays into scene as well
    as backward eye rays
  • At diffuse surfaces, light rays additively
    deposit photons in radiosity textures, or
    rexes, where they are picked up by eye rays
  • The rays of the forward and backward pass "meet
    in the middle" to exchange information.

Paul S. Heckbert, Adaptive radiosity textures
for bidirectional ray tracing , SIGGRAPH 1990
37
Radiosity
  • Handling cases such as LDE
  • Color Bleeding

courtesy of Cornell
38
Softwares
  • Two beautiful rendering/modelling softwares
  • POV-ray (http//www.povray.org/)
  • Persistence of Vision - ray tracer
  • A free rendering tool (not a modeling tool)
  • Uses a text based scene description language
    (SDL)
  • Available on Windows/linux/MAC OS
  • Blender (http//www.blender3d.org)
  • Modeling, Animation, rendering tool
  • Especially useful in 3D game creation
  • Available for Windows, Linux, Irix, Sun Solaris,
    FreeBSD or Mac OS X under GPL

39
POV-ray
created using POV-ray, http//www.povray.org/
40
POV-ray
created using POV-ray, http//www.povray.org/
41
POV-ray
created using POV-ray, http//www.povray.org/
42
POV-ray
created using POV-ray, http//www.povray.org/
43
Conclusion
  • Traditional Ray tracing
  • Shadow feelers
  • Reflection
  • Refraction
  • Distributed Ray tracing
  • Jittered sampling
  • Bidirectional Ray tracing
  • Caustics

44
Thank you
Write a Comment
User Comments (0)
About PowerShow.com
