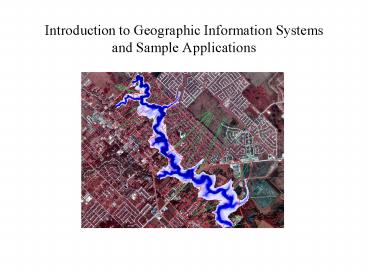

Introduction to Geographic Information Systems and Sample Applications

1
Introduction to Geographic Information
Systemsand Sample Applications
2
Overview

• Role of a GIS
• Parts of a GIS
• Spatial Data
• Relational Databases
• Geodesy and Map Projections
• ArcView and Sample Applications
• Scale and Resolution

3
What is GIS????

• Standard definition
• An organized collection of computer hardware,
  software, geographic data, and personnel designed
  to efficiently capture, store, update,
  manipulate, analyze, and display all forms of
  geographically referenced information.
• Sound efficient??????

4
GIS Simplified

• A computer-based tool for mapping and analyzing
  things.

• Geospatial Database a set of compatible data
  layers or themes

5
The Role of GIS

• The advanced modeling programs and technologies
  used in water resources studies are increasingly
  GIS-based.
• Examples include
• Floodplain Assessments
• Land Use Planning
• Demographic and Economic Data
• Hydrologic and Water Quality Data Display
• Rainfall Analysis with NEXRAD Radar

6
Digital Hydrologic / Hydraulic Processing
HEC-RAS Water surface profiles
HEC-HMS Flood discharge
HEC-GeoHMS
HEC-GeoRAS
ArcView Digital Elevation Model
ArcView Flood plain maps
Digital Map Database
7
Parts of a GIS

• A GIS should be able to

• Take in spatial data - both maps and attributes
• Establish logical linkages between the data
  elements
• Put data into a storage system in which the data,
  and the places on the map that the data
  represents, are directly linked
• Perform analysis
• Produce and display information

• Take in spatial data - both maps and attributes
• Establish logical linkages between the data
  elements
• Put data into a storage system in which the data,
  and the places on the map that the data
  represents, are directly linked
• Perform analysis
• Produce and display information

8
Spatial Data

• Spatial data is what goes into a GIS
• Maps are one of the most common forms of spatial
  data
• Features represented by areas
• Alphanumeric data to describe areas
• Descriptive data is known as attributes

9
Attributes

• GIS stores more than just maps
• Relationship between map features and attributes
  within a GIS
• Dynamic interactive maps

10
Data Entry and Storage

• Store data in a logical way
• Maps and data are stored in digital form
• Digital layers with attributes attached
• Layers are stored together in a relational
  database using a database management system
  (DBMS).

11
Database Management System

• Inside the DBMS, spatial data is stored as
  digital layers with their associated attributes

12
Analysis

• Why should spatial data be stored in a GIS?
• Want to use the power of the computer to ask
  questions of the spatial data
• Analyze data and produce new information
• Convey technical data non-technically

13
Discrete and Continuous Space
Discrete Space Vector GIS Lumped models
Continuous Space Raster GIS, Tin Distributed
models
14
Spatial Data Vector format
Vector data are defined spatially
(x1,y1)
Point - a pair of x and y coordinates
vertex
Line - a sequence of points
Node
Polygon - a closed set of lines
15
River Reaches
Flow along lines through the landscape
16
River Basins
Hydrologic features containing several different
types of flow processes
17
Spatial Data Grid (Raster) format
Raster data are described by a cell grid, one
value per cell
18
NEXRAD Rainfall Intensity Image October 18, 1994
_at_ 300 AM (CST)
19
NEXRAD Rainfall Intensity Image October 18, 1994
_at_ 400 AM (CST)
20
(No Transcript)
21
(No Transcript)
22
Raster and Vector Data
Vector
Raster
Point
Line
Zone of cells
Polygon
23
Points as Cells
24
Line as a Sequence of Cells
25
Polygon as a Zone of Cells
26
Vector Data

• Uses positions to represent real world entities
• Points, lines, polygons

Reservoir and Highway
27
Raster Data

• Samples attributes at fixed intervals
• List of numbers, one number per cell

Reservoir and Highway
28
Hydrologic Cycle
Atmospheric water
Surface water
Subsurface water
Connecting processes in the hydrologic cycle
involves linking spatial features of various kinds
29
Concept Summary

• A region can be considered spatially discrete or
  spatially continuous
• Discrete space is represented by features (vector
  data) and continuous space by elements or
  cells(raster data)
• Atmospheric water, surface water and subsurface
  water have a variety of continuous and discrete
  space representations with different boundaries

30
Levels of Analysis Relational Database
Relational Linkages
Spatial Attributes
Water Right Locations
Descriptive Attributes
31
Feature Attribute Table
Fields
Records
32
Value Attribute Table
Attributes of grid zones
33
Linked Tables
34
Tables Edit, Join and Link
35
Relationships in Linking and Joining Tables
Source Table (new information to be added)
Destination Table (existing information)
Many to one relation
Primary Key field (each record must have a
unique value)
Relate field (can have one or many records for
each value)
36
Concept Summary

• Grid or raster representation is used to link
  hydrologic processes at the element or cell
  level
• Grid data model is based on square cells
• Point, line, area and network features have a
  corresponding grid cell representation which
  forms the basis of the raster-vector data model

37
Concept Summary

• Features have descriptive attributes stored in an
  attribute table
• Attribute tables can be linked or joined to
  related tables using a key field

38
Break Time
39
Geodesy and Map Projections

• Geodesy - the shape of the earth and definition
  of earth datums
• Map Projection - the transformation of a curved
  earth to a flat map
• Coordinate systems - (x,y) coordinate systems for
  map data

40
Types of Coordinate Systems

• (1) Global Cartesian coordinates (x,y,z) for the
  whole earth
• (2) Geographic coordinates (f, l, z)
• (3) Projected coordinates (x, y, z) on a local
  area of the earths surface
• The z-coordinate in (1) and (3) is defined
  geometrically in (2) the z-coordinate is defined
  gravitationally

41
Global Cartesian Coordinates (x,y,z)
42
Geographic Coordinates (f, l, z)

• Latitude (f) and Longitude (l) defined using an
  ellipsoid, an ellipse rotated about an axis
• Elevation (z) defined using geoid, a surface of
  constant gravitational potential
• Earth datums define standard values of the
  ellipsoid and geoid

43
Origin of Geographic Coordinates
Equator
(0,0)
Prime Meridian
44
Latitude and Longitude
Longitude line (Meridian)
N
W
E
S
Range 180ºW - 0º - 180ºE
Latitude line (Parallel)
N
W
E
S
(0ºN, 0ºE) Equator, Prime Meridian
Range 90ºS - 0º - 90ºN
45
Latitude and Longitude in North America
60 N
30 N
60 W
120 W
90 W
0 N
46
Shape of the Earth
It is actually a spheroid, slightly larger in
radius at the equator than at the poles
We think of the earth as a sphere
47
Geographic Coordinates (f, l, z)

• Latitude (f) and Longitude (l) defined using an
  ellipsoid, an ellipse rotated about an axis
• Elevation (z) defined using geoid, a surface of
  constant gravitational potential
• Earth datums define standard values of the
  ellipsoid and geoid

48
Ellipsoid or SpheroidRotate an ellipse around an
axis
Z
b
a
O
Y
a
X
Rotational axis
49
Horizontal Earth Datums

• An earth datum is defined by an ellipse and an
  axis of rotation
• NAD27 (North American Datum of 1927) uses the
  Clarke (1866) ellipsoid on a non geocentric axis
  of rotation
• NAD83 (NAD,1983) uses the GRS80 ellipsoid on a
  geocentric axis of rotation
• WGS84 (World Geodetic System of 1984) uses GRS80,
  almost the same as NAD83

50
Representations of the Earth
Mean Sea Level is a surface of constant
gravitational potential called the Geoid
51
Geoid and Ellipsoid
Earth surface
Ellipsoid
Ocean
Geoid
Gravity Anomaly
52
Vertical Earth Datums

• A vertical datum defines elevation, z
• NGVD29 (National Geodetic Vertical Datum of 1929)
• NAVD88 (North American Vertical Datum of 1988)
• takes into account a map of gravity anomalies
  between the ellipsoid and the geoid

53
Length on Meridians and Parallels
(Lat, Long) (f, l)
Length on a Meridian AB Re Df (same for all
latitudes)
R
Dl
D
R
30 N
C
B
Re
Df
0 N
Re
Length on a Parallel CD R Dl Re Dl Cos
f (varies with latitude)
A
54
Geodesy and Map Projections

• Geodesy - the shape of the earth and definition
  of earth datums
• Map Projection - the transformation of a curved
  earth to a flat map
• Coordinate systems - (x,y) coordinate systems for
  map data

55
Map Projection
Flat Map Cartesian coordinates x,y (Easting
Northing)
Curved Earth Geographic coordinates f,
l (Latitude Longitude)
56
Earth to Globe to Map
Map Projection
Map Scale
Scale Factor
Map distanceGlobe distance

(e.g. 0.9996)
(e.g. 124,000)
57
Geographic and Projected Coordinates
(f, l)
(x, y)
Map Projection
58
Projection onto a Flat Surface(Three Broad
Classes by Light Source)
59
Gnomonic Projection
60
Stereographic Projection
61
Orthographic Projection
62
World from Space Orthographic Projection
63
Types of Projections

• Conic (Albers Equal Area, Lambert Conformal
  Conic) - good for East-West land areas
• Cylindrical (Transverse Mercator) - good for
  North-South land areas
• Azimuthal (Lambert Azimuthal Equal Area) - good
  for global views

64
Conic Projections(Albers, Lambert)
65
Azimuthal (Lambert)
66
Projections Preserve Some Earth Properties

• Area - correct earth surface area (Albers Equal
  Area) important for mass balances
• Shape - local angles are shown correctly (Lambert
  Conformal Conic)
• Direction - all directions are shown correctly
  relative to the center (Lambert Azimuthal Equal
  Area)
• Distance - preserved along particular lines
• Some projections preserve two properties

67
Geodesy and Map Projections

• Geodesy - the shape of the earth and definition
  of earth datums
• Map Projection - the transformation of a curved
  earth to a flat map
• Coordinate systems - (x,y) coordinate systems for
  map data

68
Coordinate Systems

• Hydrologic calculations are done in Cartesian or
  Planar coordinates (x,y,z)
• Earth locations are measured in Geographic
  coordinates of latitude and longitude (f,l)
• Map Projections transform (f,l) (x,y)

69
Coordinate System
A planar coordinate system is defined by a
pair of orthogonal (x,y) axes drawn through an
origin
Y
X
Origin
(xo,yo)
(fo,lo)
70
Universal Transverse Mercator Coordinate System

• Uses the Transverse Mercator projection
• Each zone has a Central Meridian (lo), zones are
  6 wide, and go from pole to pole
• 60 zones cover the earth from East to West
• Reference Latitude (fo), is the equator
• (Xshift, Yshift) false easting and northing so
  you never have a negative coordinate

71
Cylindrical Projections(Mercator)
Transverse
Oblique
72
Mercator Projection
73
UTM Projection (Zone 15)
74
UTM Zone 14
-99
-102
-96
6
Origin
Equator
-120
-90
-60
75
Universal Transverse Mercator Projection
76
Summary Concepts

• Two basic locational systems geometric or
  Cartesian (x, y, z) and geographic or
  gravitational (f, l, z)
• Mean sea level surface or geoid is approximated
  by an ellipsoid to define an earth datum which
  gives (f, l) and distance above geoid gives (z)

77
Summary Concepts (Cont.)

• To prepare a map, the earth is first reduced to a
  globe and then projected onto a flat surface
• Three basic types of map projections conic,
  cylindrical and azimuthal
• A particular projection is defined by a datum, a
  projection type and a set of projection
  parameters

78
Summary Concepts (Cont.)

• Standard coordinate systems use particular
  projections over zones of the earths surface
• Types of standard coordinate systems UTM, State
  Plane, Texas State Mapping System, Standard
  Hydrologic Grid

79
What is ArcView?

• Desktop geographic information system (GIS) from
  ESRI
• Uses scripting language called Avenue
• Customize GUI
• April 20, 2002 ArcGIS released

80
(No Transcript)
81
Geographic Features
82
Feature Attributes
83
Feature Attributes
84
Feature Attributes
85
Sample Applications
86
(No Transcript)
87
(No Transcript)
88
(No Transcript)
89
(No Transcript)
90
(No Transcript)
91
(No Transcript)
92
(No Transcript)
93
(No Transcript)
94
Site Selection Example

• At least five acres in size
• Vacant or for sale
• Zoned commercial
• Not subject to flooding
• Located not more than one mile from a heavy duty
  road
• Situated on terrain whose maximum slope is less
  than ten percent

95
Parcel gt 5 Acre
96
Parcels Zoned for Commercial
97
Within Distance x of Highway
98
(No Transcript)
99
(No Transcript)
100
Trinity River Basin
Continuous Space Representation
Discrete Space Representation
Digital Elevation Model (30m cells)
River reaches and their watersheds
TNRCC water quality segments and their
watersheds
101
(No Transcript)
102
Soil Map of TNRCC Management Segment 841 Lower
West Fork Trinity River
103
Watershed
Lumped Models
? Discrete flow systems e.g. watersheds,
streams ? Ordinary differential equations ?
Spatially averaged properties ? Network of
connected flow systems
Input, I(t)
A
A
1
2
A
Storage, S
1
A
C
2
Output, Q(t)
1
S
C
1
104
(No Transcript)
105
30m DEM of Lower West Fork, Trinity River
Both regions and features can be represented
using elements
106
Distributed Models
? Continuous flow systems e.g. groundwater,
air ? Spatially distributed properties ?
Vertically averaged or integrated flows ? Partial
differential equations ? Must solve both the
continuity and momentum equations
y
x
