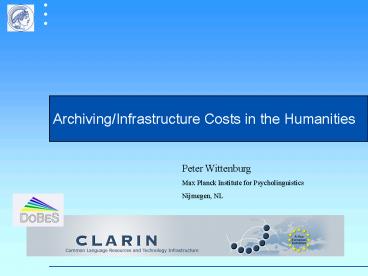

Archiving/Infrastructure Costs in the Humanities
Peter Wittenburg Max Planck Institute for
Psycholinguistics Nijmegen, NL
2
? ? ?
the digital trap
45 Terabyte
increase 12 TB

• since 1995 a belief of technologists in an
  all-digital-domain
• since 2000 a belief of researchers in this way
• since then a rapid increase of storage capacity
  requirements
• since 2002 an awareness of digital archiving
  (long-term)
• large heterogeneity (video, audio, texts, EEG,
  fMRI, eye
• tracking, motion tracking, etc)

3
? ? ?
DOBES Impulse
From the 6500 languages every two weeks one is
dying!

• 2000 decision of VolkswagenFoundation to fund
  Endangered
• Languages Programme as a distributed
  international enterprise
• 45 teams working completely independently with
  one digital archive
• increased awareness about need for long-term
  preservation
• relevant for linguistic theory building, but
  also part of cultural heritage

4
? ? ?
efforts for long-term preservation

• 6 copies at large computer
• centers with technology
• migration strategy
• replacement of technology
• at regular time intervals
• data exchange with an
• increasing amount of regional
• repositories set up by the
• MPI team (about 10 new
• requests)
• unique effort but necessary
• 80 of our recordings are
• endangered (UNESCO)

5
? ? ?
living archives 1

• digital archives in the research world are
  living entities
• Digital Dilemma Report of Academy of Motion
  Picture Arts
• and Sciences
• until now "file and forget system" in an old
  mine
• with 50 survival rate of films after 50 years

• costs for conventional master copy 1.059
• costs for digital master copy 12.514
• reason for cost factor
• digital archiving is a dynamic process

6
? ? ?
living archives 2

• changes/migration at different levels
• storage technology migration - old exhibits
  errors
• encoding formats change
• MPEG1 -gt MPEG2 -gt H.264 (MPEG4) -gt mJPEG2000
• representation format/schemas change
• xx -gt XML-specific -gt XML generic -gt
  RDF/OWL/SKOS
• software technology changes
• etc
• research archives are even worse
• new versions and continuous extensions
• commentary, enrichments, relations
• virtual collection building

7
? ? ?
need software support for
efficient resource creation
resource organization and categorization and
archive management (consistency, coherence)
accessing, searching, enriching the archive and
analyzing and visualizing its content etc
8
? ? ?
MPI cost estimates
Maintaining a large and complex living archive
costs at least 400 k/year. (linguistic support,
SW development, head etc. not calculated)
9
? ? ?
software maintenance costs

• at MPI start in 2000 as bottom-up process
• repository system (about 100.000 lines of code)
• incl. metadata, access management etc
• dedicated system tailored to language
  resources
• utilization software (about 230.000 lines of
  code)
• much more heterogeneous
• rep. system now used by about 13 institutes
• creation costs of repository system 1 M
• sw maintenance costs for repository system about
  60k/y
• at Max Planck Digital Library start in 2004 as
  top-down process
• repository system with about 900.000 lines of
  code
• much bigger claim of generality etc
• yet little code base of utilization software
• creation costs of repository system (without
  FEDORA) 7 M
• maintenance costs probably more than 400 k/y
• repository system is core - need maximal
  independence (MPG, EU)

10
? ? ?
CLARIN basic goal

• CLARIN is a distributed and heterogeneous
  facility (research infrastructure)
• thus different to the LHC facility in Geneva

• need to move from a domain of accidental
  collaborations to a
• structured domain with clear responsibilities
• basis of such a domain is visibility and
  interoperability -gt registries, etc
• virtual observatory of language resources and
  technology

11
? ? ?
CLARIN backbone by centers

• various types of centers in CLARIN
• A infrastructure centers with high availability
  and persistence
• (AA infra, PID, center registry, metadata
  portals, concept registry, etc)
• B resource and technology service providers
  with a certain
• commitment for persistent services
• (texts, lexica, multimedia recordings,
  parsers, translators, etc)
• C metadata service providers without access to
  the content
• (enrichment of the visibility of LRT)
• R centers having resources and tools, but
  without machine readable
• access level
• E external centers offering services of various
  types
• (libraries, national IDFs, national grid
  centers, TERENA,
• MPG will offer PID service to research
  world, etc)

12
? ? ?
CLARIN cost efficiency

• cost efficiency is crucial for the operating
  phase of infrastructures
• example PID service (persistent and unique
  Identifiers)
• one main center for all over EU would be
  sufficient
• for high availability probably two other centers
  with mirrors
• but a few other criteria to be respected for LRT
  centers
• countries want to take care of their languages
• countries have "political" situations where
  several centers are wanted
• service often optimal where you have the
  involved experts and
• knowledge is heterogeneous (texts, speech,
  multimodality, etc)
• therefore country responsibility and funding
  must be basic rule
• there are already institutes that come close to
  what we expect in CLARIN
• this will reduce the real costs - but cannot be
  calculated yet

13
? ? ?
CLARIN cost estimates - general

• already in 2006 ESFRI wanted to have a cost
  calculation
• impossible task but
• based on 10 years and 20 centers we estimated
  146 M incl.
• preparation and construction phase
• let's see how far we are
• let's assume that we have 24 participating
  countries and let's assume that
• each country has 1 resource center and 1
  technology center
• (it can be seen already now that several
  countries will have more,
• LT centers will cost less, but there will be
  more smaller ones)
• let's also assume that each country has in
  average as much data and
• complexity as the MPI
• let's also assume that maintaining a technology
  center is as expensive
• (which will turn out to be a too low
  assumption)

14
? ? ?
CLARIN cost - just maintenance
15
? ? ?
other CLARIN costs

• in addition the following costs will appear in
  CLARIN in all phases
• they do not add to the focus of the APA workshop
  on persistence
• the ESFRI estimation was made for 10 years
• (preparation 3, construction 4, operation 3)

16
? ? ?
CLARIN compare estimates

• based on 48 centers we now estimate for the
  operation phase
• 23.2 / year or 0.48 M / y / center
• but ignored other costs (seen before)
• share infra costs by larger group of centers
• no final idea yet how many centers we will have
  at the end
• personally guess that we will have a structuring
  effect (explicit costs)
• based on 10 years and 20 centers we first
  estimated 146 M
• incl. preparation (3), construction phase (4)
  and other costs
• i.e. 14.6 M / year or 0.7 M / y / center
• CLARIN will offer a number of preservation
  centers such as MPI
• the service is already offered with some
  restrictions
• by having some explicit curation and archiving
  centers CLARIN
• will take care of the preservation of language
  resources
• don't know yet how much DANS (NL) / AHDS (UK)
  etc cost

17
? ? ?
Falls nicht to end in Babylonish scenario nous
avons still etwas time om schattingen te
improve. Thanks for your attention!
