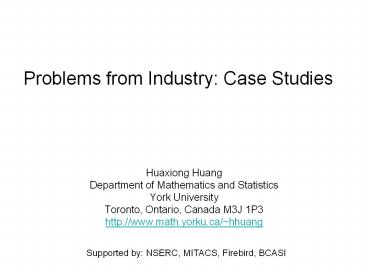

Problems from Industry: Case Studies

1
Problems from Industry Case Studies

• Huaxiong Huang
• Department of Mathematics and Statistics
• York University
• Toronto, Ontario, Canada M3J 1P3
• http//www.math.yorku.ca/hhuang

Supported by NSERC, MITACS, Firebird, BCASI
2
Outline

• Stress Reduction for Semiconductor Crystal
  Growth.
• Collaborators S. Bohun, I. Frigaard, S. Liang.
• Temperature Control in Hot Rolling Steel Plant.
• Collaborators J. Ockendon, Y. Tan.
• Optimal Consumption in Personal Finance.
• Collaborators M. Cao, M. Milevsky, J. Wei, J.
  Wang.

3
Stress Reduction during Crystal Growth

• Growth Process

• Simulation

4
Problem and Objective

• Problem

• Objective model and reduce thermal stress

Thermal Stress
Dislocations
5
Full Problem

• Temperature flow equations phase change

6
Basic Thermal Elasticity

• Thermal elasticity
• Equilibrium equation
• von Mises stress
• Resolved stress (in the slip directions)

7
A Simplified Model for Thermal Stress

• Temperature
• Growth (of moving interface)
• Meniscus and corner
• Other boundary conditions

8
Non-dimensionalisation

• Temperature
• Boundary conditions
• Interface

9
Approximate Solution

• Asymptotic expansion
• Equations up-to 1st order
• Lateral boundary condition
• Interface
• Top boundary

10
0th Order Solution

• Reduced to 1D!
• Pseudo-steady state
• Cylindrical crystals
• Conic crystals

11
1st Order Solution

• Also reduced to 1D!
• Cylindrical crystals
• Conic crystals
• General shape
• Stress is determined by the first order solution
  (next slide).

12
Thermal Stress

• Plain stress assumption
• Stress components
• von Mises stress
• Maximum von Mises stress

13
Size and Shape Effects
14
Shape Effect II
Convex Modification
Concave Modification
15
Stress Control and Reduction

• Examples from the Nature taken from Design in
  Nature, 1998

16
Other Examples
17
Stress Control and Reduction in Crystals

• Previous work
• Capillary control controls crystal radius by
  pulling rate
• Bulk control controls pulling rate, interface
  stability, temperature, thermal stress, etc. by
  heater power, melt flow
• Feedback control controls radial motion
  stability
• Optimal control using reduced model (Bornaide et
  al, 1991 Irizarry-Rivera and Seider, 1997
  Metzger and Backofen, 2000 Metzger 2002)
• Optimal control using full numerical simulation
  (Gunzburg et al, 2002 Muller, 2002, etc.)
• All assume cylindrical shape (reasonable for
  silicon) no shape optimization was attempted.
• Our approach
• Optimal control using semi-analytical solution
  (Huang and Liang, 2005)
• Both shape and thermal flux are used as control
  functions.

18
Stress Reduction by Thermal Flux Control

• Problem setup
• Alternative (optimal control) formulation
• Constraint

19
Method of Lagrange Multiplier

• Modified objective functional
• Euler-Lagrange equations

20
Stress Reduction by Shape Control

• Optimal control setup
• Euler-Lagrange equations

21
Results I Conic Crystals
History of Max Stress
Three Flux Variations
Stress at Final Length
22
Results II Linear Thermal Flux
Max Stress
Growth Angle
Crystal Shape
23
Results III Optimal Thermal Flux
Growth Angle
Max Stress
Crystal Shape
24
Parametric Studies Effect of Penalty Parameters
Growth Angle
Crystal Shape
Max Stress
25
Conclusion and Future Work

• Stress can be reduced significantly by control
  thermal flux or crystal shape or both
• Efficient solution procedure for optimal control
  is developed using asymptotic solution
• Sensitivity and parametric study show that the
  solution is robust
• Improvements can be made by
• incorporating the effect of melt flow (numerical
  simulation is currently under way)
• incorporating effect of gas flow (fluent
  simulation shows temporary effect may be
  important)
• Incorporating anisotropic effect (nearly done).

26
Temperature Control in Hot-Rolling Mills

• Cooling by laminar flow
• Q1 Bao Steels rule of thumb
• Q2 Is full numerical solution necessary for the
  control problem?

27
Model

• Temperature equation and boundary conditions

28
Non-dimensionalization

• Scaling
• Equations and BCs
• Simplified equation

29
Discussion

• Exact solution
• Leading order approximation
• Temperature via optimal control

30
Optimal Consumption with Restricted Assets

• Examples of illiquid assets
• Lockup restrictions imposed as part of IPOs
• Selling restrictions as part of stock or
  stock-option compensation packages for executives
  and other employees
• SEC Rule 144.
• Reasons for selling restriction
• Retaining key employees
• Encouraging long term performance.
• Financial implications for holding restricted
  stocks
• Cost of restricted stocks can be high (30-80)
  KLL, 2003
• Purpose of present study
• Generalizing KLL (2003) to the stock-option
  case.
• Validate (or invalidate) current practice of
  favoring stocks.

31
Model

• Continuous-time optimal consumption model due to
  Merton (1969, 1971)
• Stochastic processes for market and stock
• Maximize expected utility

32
Model (cont.)

• Dynamics of the option
• Dynamics of the total wealth
• Proportions of wealth

33
Hamilton-Jacobi-Bellman Equation

• A 2nd order, 3D, highly nonlinear PDE.

34
Solution of HJB

• First order conditions
• HJB
• Terminal condition (zero bequest)
• Two-period Approach

35
Post-Vesting (Merton)

• Similarity solution
• Key features of the Merton solution
• Holing on market only
• Constant portfolio distribution
• Proportional consumption rate (w.r..t. total
  wealth).

36
Vesting Period (stock only)

• Incomplete similarity reduction
• Simplified HJB (1D)
• Numerical issues
• Explicit or implicit?
• Boundary conditions loss of positivity, etc.

37
Vesting Period (stock-option)

• Incomplete similarity reduction
• Reduced HJB (2D)
• Numerical method ADI.

38
Results value function
39
Results optimal weight and consumption
40
Option or stock?
