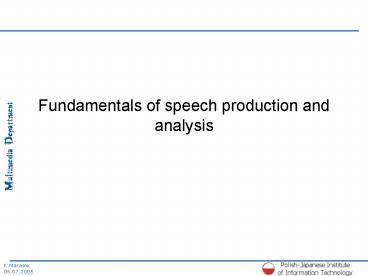

Fundamentals of speech production and analysis

1
Fundamentals of speech production and analysis
2
Speech production and analysis Web tutorium

• Speech production
• Basic speech units phoneme, syllable, word,
  phrase, sentence, speaking turn
• phone subphonetic units, diphone, triphone,
  syllable as recognition units
• types of sounds
• manner and place (constriction of vocal tract) of
  articulation,
• vowels and consonants
• sonorants (vowels, diphtongs, glides, liquides,
  nasals)
• obstruents (stops, fricatives, affricates)
• consonants classification depending on vocal
  tract configuration
• labials, dentals, alveolars, palatals, glottals
  and pharingeals
• transient sounds (diphtongs, glides, stops and
  affricates) and continuant sounds
• vowels front, back, middle, low, high - vowels
  rectangle
• IPA chart
• coarticulation
• prosodic features sentence intonation and word
  stress
• voice quality and paralinguistic features
• time and frequency features
• formants and duration, wide- and narrow-band
  spectrograms

3
Principles of speech analysis

• Speech detection remove silence and noise
• signal preprocessing and conditioning
• pre-emphasis to enhance speech signal at higher
  frequencies H(z)1-az-1, a0.95
• high-pass filtering
• spectral analysis
• short -time Fourier transform (STFT)
• where w(n-m) is a window sequence for observation
  of n-th time instant
• window is usually tapered to avoid effects of
  multiplication in time domain, so called
  convolution ex.
  Hamming window
• frequency and time resolution trade-off (FFT
  principle)
• vector of coefficients as an output, magnitude in
  log-scale considered only power spectrum
• side-effects spectral leakage, picket-fence
  effect etc., biased estimator of PFD
• do not fit to F0 fluctuations, pitch synchronous
  analysis
• spectrograms reading exercises

4
Other methods of speech analysis

• Time-frequency distributions
• where f(q,t) is the kernel function defining
  smoothing properties of the TFDs Wigner-Ville,
  Rihacek, and others
• spectrogram is a special case of TFD
• no trade-off between time and frequency
  resolution - limited only by Heisenbergs
  uncertainty principle (sampling frequency), but
  interference between signal components
• wavelet transform future analysis tool?
  Non-uniform sampling of time-frequency plane
• Filter bank analysis
• the most specific cues of the signal are located
  in specific frequency bands
• FIR-filters better (linear phase), but can be
  very long, IIR shorter, usually filtering in
  frequency domain used,
• powerful enough for small vocabulary application
  ex. 7 bands for DTW 60 words recognizer

Filter bank for telephony
5
Wigner-Ville distribution

• /a/ vowel

6
Wigner-Ville distribution

• /t/ stop
• sig1wavread('d\pjwstk\charlotte\lectures\ata2.wa
  v')
• plot(sig1)
• tfrwv(sig1)

7
Linear Predictive Coding (LPC)

• Wiener (1966), Markel and Gray (1976), Makhoul
  (1973)
• ARMA model of a process
• where p and q are model orders of pole and zero
  filters, and a and b represent sets of
  coefficients
• LPCAR, in order to compute coefficients is
  necessary to define the prediction error, so
  called residual signal
• the coefficients of the filter can be than
  computed applying last-square criterion to
  minimize a total squared error
• once the predictor coefficients have been
  estimated, the e(n) signal can be used for a
  perfect signal reconstruction

8
LPC

• speech synthesis application
• critical model order, quantization of parameters
  and excitation signal
• computation of coefficients many methods,
  usually autocorrelation or auto-covariance
• features of LPC
• modeling of peaks of the spectrum good for
  formant frequency and bandwidth estimation
• smoothed spectrum - spectral envelope
• acoustic model of a tube with p/2 cylindrical
  sections
• model order rule of thumb sampling frequency in
  kHz 2
• SVD for model order estimation
• application in speech recognition signal
  parametrization, but not commonly used
• RASTA filtering for noisy signals

LPC Synthesis
9
LPC-based coeffcients

• Usually not LPC coefficients are used, rather
  derivates
• reflection coefficients directly obtainable
  during LPC computations (Levinson-Durbin
  recursion)
• E(I) is the total prediction error at the i-th
  recursion step and al(I) is the l-th coefficient.
  Let E(0)R(0) where R(i) is i-th autocorrelation
  coeffcient, then recursively for i1p
• where ki denote the reflection coefficient
  (PARCOR), klt1
• acoustic tube model let Ai be the cross-section
  of i-th segment then for neighboring sections
  holds
• line spectral frequencies poles of AR
  filterconcentration of two or more LSFs in a
  narrow frequency interval indicates the presence
  of a resonance in the LPC spectrum
• LPC cepstral coeffcients (
  ), Mel-based possible,
• perceptual LPC (PLP, Hermansky), using hearing
  properties, effective for noisy data

10
LPC

• Vowel LPC spectrum for various model orders

11
Homomorphic cepstral analysis

• Signal decomposition into components having
  different spectral charcteristics
• the objective is to decompose given signal s(n)
  into source e(n) and vocal tract h(n) components
  s(n)e(n)h(n) (-convolution), what in frequency
  domain equals to
• taking log one gets
• the frequency response of the vocal tract
  log(H) is a slowly varying component and
  represents the envelope of log(S), while
  log(E) is rapidly varied excitation component
• the components can be separated in the log
  spectral domain by computing IFFT and retaining
  lowest order coefficients to account for the
  vocal-tract transfer function
• inverse Fourier transform of log(S) is called
  cepstrum (real cepstrum, exists also complex
  cepstrum)

Block diagram of homomorphic analysis
12
Cepstral Analysis and Auditory Models

• Cepstrally smoothed spectrum examples
• widely used in pattern-matching problems, because
  Euclidean distance between two cepstral vectors
  represents a good measure for comparing
  log-spectra
• Auditory Models
• separating the message from surounding noise
• modeling of output from cochlea
• bark or mel scale of frequency axis linear to
  ca. 1000 Hz, logarithmic above
• Acoustic features for SR
• static short time interval (20-50 ms)
• dynamic change of parameters
• The features describe Front-End of the recognizer

13
Filter bank based coefficients

• Reduce the dimensionality of spectral signal
  representation
• fundamental decisions structure of the filter
  bank number of filters, their response and
  spacing in frequency
• symmetric triangular filter used to weight DFT
  values quick and dirty approximation of
  band-pass filtering
• Example of a filter bank (24 triangular filters)
  spaced according to Mel-scale
• Mel based cepstral coeffcients (MFCC), most
  popular in ASR usually computed as IFFT of
  log-energy output of filter bank consisting of i
  triangular filter masks
• C0 approximates log-energy of the signal, higher
  order coefficients represents log-energy ratio
  between bands (i.e. c1 provides log-energy ratio
  between intervals 0,Fs/4 and Fs/4, Fs/2-
  higher for sonorants, lower for fricatives), but
  for higher order coefficients interpretation is
  complicated
• IFFT is orthogonal transform, i.e. coeffcients
  are uncorrelated -gt simplified acoustic models
  can be used
• MFCC speech reconstruction (IBM, ICASSP-2000)

14
Fundamental Frequency and Formants

• F0 estimation (Hess) determining the main period
  in quasi-periodic waveform
• usually using autocorrelation function and the
  average magnitude difference function (AMDF)

  where L is the frame length
  Npis
  number of point pairs (peak in ACF
  and valley in AMDF indicates F0)
• usually speech signal is first low-pass filtered
  to avoid influence of formants
• cepstral analysis peak at T0
• Formant ferquency estimation
• resonances in vocal tract are related to complex
  poles of LPC model zkRe(zk)jIm(zk)
• cepstral smoothed spectrum also used
• a lot of methods, but..
• tracking of formant frequencies is a problem not
  solved yet

15
Dynamic features

• Temporal variation and contextual dependency
• time derivative features
• not sensitive to slow channel-dependent
  variations of static parameters
• first order difference is affected by various
  types of noise, thus smoothing necessary
• polynomial expansion of time derivatives (Furui)
• second order derivatives acceleration also often
  used
• Typical set of parameters E,12 MFCC, DE, DMFCC,
  DDE, DD MFCC observation vector consists of 39
  parameters
• Other types of dynamic features
• spectral variation function
• dynamic cepstrum
• Karhunen-Loeve Transformation (KLT) segmenting
  speech into subword units depending only on
  acoustic properties without a priori defined
  units, like phonemes
• RASTA processing - band-pass filtering
