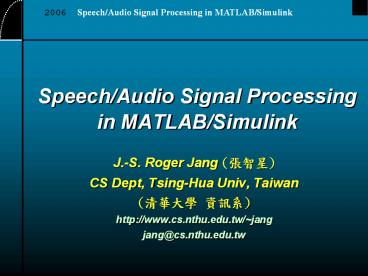

2006 Speech/Audio Signal Processing in
MATLAB/Simulink

• J.-S. Roger Jang (???)
• CS Dept, Tsing-Hua Univ, Taiwan
• (???? ???)
• http//www.cs.nthu.edu.tw/jang
• jang_at_cs.nthu.edu.tw

2
About Me

• Experiences
• 1993-1995 The MathWorks, Inc.
• 1995-now CS Dept., Tsing Hua Univ., Taiwan
• Research interests
• Speech/Audio Signal Processing, Fuzzy Logic,
  Neural Networks, Pattern Recognition, Biometric
  Identification, Document Classification,
  Web-based Technologies
• Programming languages
• MATLAB, C, JavaScript, VBScript, Perl

3
Outline

• Wave file manipulation
• Reading, writing, recording ...
• Time-domain processing
• Delay, filtering, sptools
• Frequency-domain processing
• Spectrogram
• Pitch determination
• Auto-correlation, SIFT, AMDF, HPS ...
• Others
• Formant estimation, speech coding

4
Toolbox/Blockset Used

• MATLAB
• Simulink
• Signal Processing Toolbox
• DSP Blockset

5
MATLAB Primer

• Before you start, you need to get familiar with
  MATLAB. Please read MATLAB Primer at the
  following page
• http//neural.cs.nthu.edu.tw/jang/demo/demoDownloa
  d.asp
• Exercise
• Please plot two curves ysin(2t) and ycos(3t)
  in the same figure.
• Please plot x vs. y where xsin(2t) and
  ycos(3t).

6
To Read a Wave File

• To read a MS .wav file (PCM format only) wavread
• y wavread(file)
• wavread(file, n1, n2)
• y, fs, nbits, opts wavread(file)
• wavread(file, n)
• y, fs, nbits wavread(file)
• If the wav file is stereo, y will be a two-column
  matrix.

7
To Read a Wav File

• Example (wavRead01.m)
• y, fs wavread('singapore.wav')
• plot((1length(y))/fs, y)
• xlabel('Time in seconds')
• ylabel('Amplitude')

• Exercise
• Plot the waveform of rrrrr.wav. Use MATLABs
  zoom button to find the consecutive curling R
  occurs.
• Plot the two-channel waveform in flanger.wav.

8
Solution to the Previous Exercise

• wavRead02.m
• y, fs wavread(flanger.wav)
• subplot(2,1,1), plot((1length(y))/fs, y(,1))
• subplot(2,1,2), plot((1length(y))/fs, y(,2))

9
To Play Wav Files

• To play sound using Windows audio output device
  wavplay, sound, soundsc
• wavplay(y, fs)
• wavplay(y, fs, async) non-blocking call
• wavplay(y, fs, sync) blocking call
• sound(y, fs)
• soundsc() autoscale the sound
• Example (wavPlay01.m)
• y, fs wavread(rrrrr.wav)
• wavplay(y, fs)
• Exercise
• Follow the example to play flanger.wav.

10
To Read/Play Using DSP Blocks

• To read/play sound using DSP Blockset
• DSP Blockset/DSP Sources/From Wave File
• DSP Blockset/DSP Sinks/To Wave Device
• Example
• Exercise
• Create a model as shown above.

Frame-based operation!
11
Solution

• Solution to the previous exercise
• slWavFilePlay01.mdl

12
To Write a Wave File

• To write MS wave files wavwrite
• wavwrite(y, fs, nbits, wavefile)
• nbits must be 8 or 16.
• y must have two columns for stereo data.
• Amplitude values outside -1,1 are clipped.
• Example (wavWrite01.m)
• y, fs wavread(rrrrr.wav)
• wavwrite(y, fs1.2, 8, testout.wav)
• !start testout.wav
• Exercise
• Try out the above example.

13
To Record a Wave File

• To record wave files
• 1. Use the recording utility under WinXP.
• 2. Use wavrecord under MATLAB.
• 3. Use From Wave Device under Simulink, under
  DSP Blocksets/Platform Specific IO/Windows
  (Win32)
• Example
• 1. Go ahead and try WinXP recording utility!
• 2. Try wavRecord01.m
• 3. Try slWavFileRecord01.mdl
• Exercise
• Try out the above examples.

14
Time-Domain Speech Signals

• A typical time-domain plot of speech signals
• Amplitude volume or intensity
• Frequency pitch

15
Changing Wave Playback Param.

• To control the play of a sound
• Normal wavplay(y, fs)
• High volume wavplay(2y, fs)
• Low volume wavplay(0.5y, fs)
• High pitch (and faster) wavplay(y, 1.2fs)
• Low pitch (and slower) wavplay(y, 0.8fs)
• Exercise
• Try wavPlay01.m and trace the code.
• Create wavPlay02.m such that you can record
  your own voice on the fly.

16
Time-Domain Signal Processing

• Take-home exrecise
• How to get a high pitch with the same time span?

17
Synthetic Sounds

• Use a sine wave generator (under DSP blocksets)
  to produce sounds
• Single frequency
• Multiple frequencies
• Amplitude modulation
• Exercise
• Create the above models.

18
Solution

• Solution to the previous exercise
• sineSource01
• sineSource02
• sineSource03

19
Delay in Speech/Audio

• What is a delay in a signal?
• y(n) --gt y(n-k)
• What effects can delay generate?
• Echo
• Reverberation
• Chorus
• Flanging

20
Single Delay in Audio Signal

• Block diagram

a
Input
Output
u(n)
y(n) u(n) au(n-k)
Simulink model
Exercise Create the above model.
21
Multiple Delay in Audio Signal

• How to create karaoke effects

a
Input
Output y(n)
u(n)
2
3
y(n) u(n) a u(n-k) a u(n-2k) a u(n-3k) ...
Simulink model
22
Multiple Delay in Audio Signal

• Parameter values
• Feedback gain a lt 1
• Actual delay time k/fs
• Exercise
• Create the above model and change some parameters
  to see their effects.
• Modify the model to take microphone input (so you
  can start singing karaoke now!)
• Use a configurable subsystem to include all
  possible input files and the microphone. (See
  next page.)

23
Multiple Delay in Audio Signal

• How to use configurable subsystem block?
• 1. Create a library (say, wavinput.mdl)
• 2. Get a block of configurable subsystem
• 3. Fill the dialog box with the library name

24
Audio Flanging

• Flanging sound
• A sound similar to the sound of a jet plane
  flying overhead, or a "whooshing" sound
• Pitch modulation due to a variable delay
• Simulink demo
• dspafxf.mdl (all platforms)
• dspafxf_nt.mdl (for 95/98/NT)

25
Audio Flanging

• Simulink model

Original spectrogram
Modified spectrogram
26
Signal Processing Using sptool

• To invoke sptool, type sptool.

27
Speech Production

• How is speech produced?
• Speech is produced when air is forced from the
  lungs through the vocal cords (glottis) and along
  the vocal tract.
• Analogy to System Theory
• Input air forced into the vocal cords
• Output media vibration
• System (or filter) vocal tract
• Pitch frequency frequency of the input
• Formant frequency resonant frequency

28
Source Filter Model of Speech

• The source-filter model of speech production
• Speech is split into a rapidly varying excitation
  signal and a slowly varying filter. The envelope
  of the power spectra contains the vocal tract
  information.

Two important characteristics of the model are
fundamental (pitch) frequency (f0) and formants
(F1, F2, F3, )
29
Frame Analysis of Speech Signal
Speech wave form
Zoom in
Overlap
Frame
30
Spectrogram

• Spectrogram (specgram.m) displays short-time
  frequency contents

Wave form
Spectrogram
31
Real-time Spectrogram

• Try dspstfft_win32

Spectrogram
Spectrum
32
Pitch and Formants

• Pitch and formants can be defined visually

Pitch period 1/f0
First formant F1
Second formant F2
33
Spectrogram Reading

• Spectrogram Reading
• http//cslu.cse.ogi.edu/tutordemos/SpectrogramRead
  ing/spectrogram_reading.html

Waveform
Spectrogram
compute
34
Pitch Determination Algorithms

• Time-domain
• Auto-correlation
• AMDF (Average Magnitude Difference Function)
• Gold-Rabiner algorithm (1969)
• Frequency-domain
• Cepstrum (Noll 1964)
• Harmonic product spectrum (Schroeder 1968)
• Others
• SIFT (Simple inverse filter tracking)
• Maximum likelihood
• Neural network approach

35
Autocorrelation of Each Frame

• Let s(k) be a frame of size 128.

1
128
s(k)
s(k-h)
h30
x(30) dot prod. of overlapped
sum(s(31128).s(199)
Autocorrelation x(h)
Pitch period
30
36
Autocorrelation via DSP Blockset

• Real-time autocorrelation demo
• Exercise
• Construct the above model and try it.

37
Pitch Tracking via Autocorrelation

• Real-time pitch tracking via autocorrelation
  pitch2.mdl

38
Formant Analysis

• Characteristics of formants
• Formants are perceptually defined.
• The corresponding physical property is the
  frequencies of resonances of the vocal tract.
• Formant analysis is useful as the position of the
  first two formants pretty much identifies a
  vowel.
• Computation methods
• Peak picking on the smoothed spectrum
• Peak picking on the LP spectrum
• Factoring for the LP roots
• Fitting of mixture of Gaussians

39
Formant Analysis

• Track Draw
• A package for formant synthesis with options to
  sketch formant tracks on a spectrogram.
• http//www.utdallas.edu/assmann/TRACKDRAW/trackdr
  aw.html
• Formant Location Algorithm
• MATLAB code by Michelle Jamrozik
• http//ece.clemson.edu/speech/files.htm

40
Speech Waveform Coding

• Time domain coding
• PCM Pulse Code Modulation
• DPCM Differential PCM
• ADPCM Adaptive Differential PCM (dspadpcm.mdl)
• Frequency domain coding
• Sub-band coding
• Transform coding
• Speech Coding in MATLAB
• http//www.eas.asu.edu/speech/education/educ1.htm
  l

41
Conclusions

• Ideal tools for speech/audio signal processing
• MATLAB
• Simulink
• Signal Processing Toolbox
• DSP Blockset
• Advantages
• Reliable functions well-established and tested
• Visible graphical algorithm design tools
• High-level programming language yet C-compatible
• Powerful visualization capabilities
• Easy debugging
• Integrated environment

42
References

• 1 Discrete-Time Processing of Speech Signals,
  by Deller, Proakis and Hansen, Prentice
  Hall, 1993
• 2 Fundamentals of Speech Recognition, by
  Rabiner and Juang, Prentice Hall, 1993
• 3 Effects Explained, http//www.harmony-centra
  l.com/Effects/effects-explained.html
• 4 TrackDraw, http//www.utdallas.edu/assmann/
  TRACKDRAW/trackdraw.html
• 5 Speech Coding in MATLAB, http//www.eas.asu.
  edu/speech/education/educ1.html
