Linux: Firewalls and NAT

1

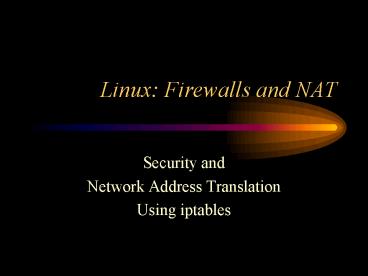

Linux Firewalls and NAT

• Security and
• Network Address Translation
• Using iptables

2
Why Linux?

• Free operating system
• Unix like
• Lots of tools
• www.freshmeat.net
• www.sourceforge.net
• Best tool for the job?

3
Security in General

• Unplugged and locked in a room, anything is
  secure, but not very useful.
• Principle of Least Privilege
• Workstations
• Do they need to be listening at all?
• Servers
• What, where, when, why, how
• Expose as little as is needed

4
Security Over Time

• Everyone is good
• TCP Wrappers
• Software has to implement
• Ipchains
• Not stateful
• NAT is somewhat clunky
• Iptables
• Stateful

5
Iptables Quick Reference

• Chains
• input, output, forward, prerouting, postrouting
• Targets
• Accept, drop, reject, log
• Conditions
• Input, output interface (-i, -o)
• Source, destination (-s, -d)
• Source, destination ports (--sport, --dport)
• SYN bit set (--syn)
• Others
• http//www.netfilter.org/documentation/HOWTO/packe
  t-filtering-HOWTO.html

6
Packet Path

• Image from
• http//www.knowplace.org/netfilter/packet_traversa
• Complex version
• http//www.docum.org/stef.coene/qos/kptd/

7
Stateful? What does that mean?

• Connection streams are identified
• States
• New, Established, Related, Invalid
• Modules for special protocols
• Irc, ftp, h.323, quake3, snmp
• More secure
• Rule sets can be tighter
• Ports above 1024 can remain closed
• Adds some overhead
• For more in-depth info, see
• http//iptables-tutorial.frozentux.net/iptables-tu
  torial.html

8
Firewall Options

• Subnet based
• Reduces usable addresses
• Upstream provider has to know
• Proxy ARP based
• Almost invisible
• No change in addressing needed
• Bridge based
• Requires kernel patch

Internet
Network
9
ProxyARP

• All interfaces get the same ip address
• Enable proxyarp on interfaces
• echo 1 gt /proc/sys/net/ipv4/conf/eth0/proxy_arp
• Build the routing table
• ip route del 128.174.5.0/24 dev eth0
• ip route del 128.174.5.0/24 dev eth1
• ip route add 128.174.5.1/32 dev eth0
• ip route add 128.174.5.57/32 dev eth1
• ip route add 128.174.5.80/32 dev eth2
• ip route add 128.174.5.53/32 dev eth3
• ip route add 128.174.5.0/24 eth1
• The last one is special
• Firewall will now answer arp requests for hosts
  on other interfaces (bridge-like)

10
Filtering with ProxyARP

• Any filter can be applied
• Block all incoming 135 traffic (blaster, welchia)
• -A FORWARD -i eth0 o eth1 p tcp dport 135 j
  DROP
• Block all outgoing web traffic
• -A FORWARD -i eth1 o eth0 p tcp dport 80 j
  DROP
• Block incoming DNS traffic
• -A FORWARD -i eth0 o eth1 p udp dport 53 j
  DROP
• Allow ssh from one host to one host
• -A FORWARD -i eth0 o eth1 p tcp destination
  128.174.5.80 dport 22 source 192.168.1.5 j
  ACCEPT

11
Network Address Translation

• Source NAT (SNAT)
• Traditional Masquerading
• Change the source address of a packet
• Done Post Routing
• Destination NAT (DNAT)
• Change the destination of a packet
• Done Pre Routing
• Examples
• Port Forwarding
• Load sharing/balancing
• Transparent proxy

12
Basic Source NAT
Assuming Eth0 public 128.174.5.58 Eth1
private 192.168.1.1
/sbin/iptables -A FORWARD -i eth0 -o eth1 -m
state --state ESTABLISHED,RELATED -j
ACCEPT /sbin/iptables -A FORWARD -i eth1 -o eth0
-j ACCEPT /sbin/iptables -t nat -A POSTROUTING -o
eth0 -j SNAT --to 128.174.5.58
13
Source NAT and Filtering

• /sbin/iptables -A FORWARD -i eth0 -o eth1 -m
  state --state ESTABLISHED,RELATED -j ACCEPT
• /sbin/iptables -A FORWARD -i eth1 -s
  192.168.1.0/24 -p tcp --dport 80 -d 128.174.5.58
  -j ACCEPT
• /sbin/iptables -A FORWARD -i eth1 -s
  192.168.1.0/24 -p tcp --dport 80 -d 0.0.0.0/0 -j
  REJECT
• /sbin/iptables -A FORWARD -i eth1 -o eth0 -j
  ACCEPT
• /sbin/iptables -t nat -A POSTROUTING -o eth0 -j
  SNAT --to 128.174.5.58

14
Destination NAT

• Internal Webserver, visible to world
• iptables -t nat -A PREROUTING -p tcp --dport 80
  -i eth0 -j DNAT --to 192.168.1.108080
• Load balancing
• iptables -t nat -A PREROUTING -i eth0 -j DNAT
  --to 192.168.1.5-192.168.1.10
• Transparent proxy
• iptables -t nat -A PREROUTING -i eth0 -p tcp
  --dport 80 -j REDIRECT --to-port 3128

15
Real Life Examples

• General Purpose examples
• http//www-wsg.cso.uiuc.edu/talks/iptables/
• Linked from http//biss.beckman.uiuc.edu/security/
  workshops/
• Multi purpose masquerading/web proxy
• http//www.staff.uiuc.edu/betka/masq.txt
• Dedicated proxy arp firewall
• http//www.staff.uiuc.edu/betka/firewall.txt
• Multi purpose firewall systems
• Boot off CD and/or floppy
• http//leaf.sourceforge.net/

16
Resources

• http//www.netfilter.org/
• http//biss.beckman.uiuc.edu/security/workshops/
• http//pfilter.sourceforge.net/
• http//www.shorewall.net/
• http//smoothwall.org/
• http//leaf.sourceforge.net/
• Questions?
