An Introduction to Parallel Programming with MPI

1

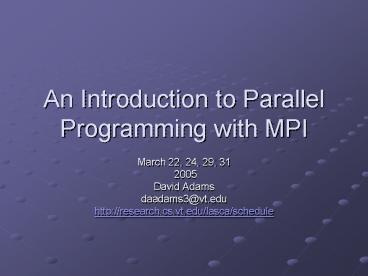

An Introduction to Parallel Programming with MPI

• March 22, 24, 29, 31
• 2005
• David Adams
• daadams3_at_vt.edu
• http//research.cs.vt.edu/lasca/schedule

2
Outline

• Disclaimers
• Overview of basic parallel programming on a
  cluster with the goals of MPI
• Batch system interaction
• Startup procedures
• Quick review
• Blocking message passing
• Non-blocking message passing
• Collective communications

3
Review

• Functions we have covered in detail
• MPI_INIT MPI_FINALIZE
• MPI_COMM_SIZE MPI_COMM_RANK
• MPI_SEND MPI_RECV
• MPI_ISEND MPI_IRECV
• MPI_WAIT MPI_TEST
• Useful constants
• MPI_COMM_WORLD MPI_ANY_SOURCE
• MPI_ANY_TAG MPI_SUCCESS
• MPI_REQUEST_NULL MPI_TAG_UB

4
Collective Communications

• Transmit data to all processes within a
  communicator domain. (All processes in
  MPI_COMM_WORLD for example.)
• Called by every member of a communicator but can
  not be relied on to synchronize the processes
  (except MPI_BARRIER).
• Come only in blocking versions and standard mode
  semantics.
• Collective communications are SLOW but are a
  convenient way of passing the optimization of
  data transfer to the vendor instead of the end
  user.
• Everything accomplished with collective
  communications could also be done using the
  functions we have already gone over. They are
  simply shortcuts and implementer optimizations
  for communication patterns that are used often by
  parallel programmers.

5
BARRIER

• MPI_BARRIER(COMM, IERROR)
• IN INTEGER COMM
• OUT IERROR
• Blocks the caller until all processes in the
  group have entered the call to MPI_BARRIER.
• Allows for process synchronization and is the
  only collective operation that guarantees
  synchronization at the call even though others
  could synchronize as a side effect.

6
Broadcast

• MPI_BCAST(BUFFER, COUNT, DATATYPE, ROOT, COMM,
  IERROR)
• INOUT lttypegt BUFFER()
• IN INTEGER COUNT, DATATYPE, ROOT, COMM
• OUT IERROR
• Broadcasts a message from the process with rank
  root to all processes of the communicator group.
• Serves as both the blocking send and blocking
  receive for message completion and must be called
  by every processor in the communicator group.
• Conceptually, this can be viewed as sending a
  single message from root to every processor in
  the group but MPI implementations are free to
  make this more efficient.
• On return, the contents of the root processors
  BUFFER have been copied to all processes

7
Broadcast
Data ?
Data ?
A0
A0
A0
? Processes
? Processes
A0
A0
A0
A0
8
Gather

• MPI_GATHER(SENDBUF, SENDCOUNT, SENDTYPE, RECVBUF,
  RECVCOUNT, RECVTYPE, COMM, IERROR)
• OUT lttypegt RECVBUF()
• IN lttypegt SENDBUF()
• IN INTEGER SENDCOUNT, RECVCOUNT, SENDTYPE,
  RECVTYPE, COMM
• OUT IERROR
• Each process (including the root) sends the
  contents of its send buffer to the root process.
• The root process collects the messages in rank
  order and stores them in the RECVBUF.
• If there are n processes in the communicator
  group then the RECVBUF must be n times larger
  than the SENDBUF.
• RECVCOUNT SENDCOUNT, meaning that the function
  is looking for the count of objects of type
  RECVTYPE that it is receiving from each process.

9
Gather
Data ?
Data ?
A0
A0
A1
A2
A3
A4
A5
A1
? Processes
? Processes
A2
A3
A4
A5
10
Scatter

• MPI_SCATTER(SENDBUF, SENDCOUNT, SENDTYPE,
  RECVBUF, RECVCOUNT, RECVTYPE, COMM, IERROR)
• OUT lttypegt RECVBUF()
• IN lttypegt SENDBUF()
• IN INTEGER SENDCOUNT, RECVCOUNT, SENDTYPE,
  RECVTYPE, COMM
• OUT IERROR
• MPI_SCATTER is the inverse of MPI_GATHER.
• The outcome of this function is for root to take
  its SENDBUF and split it into n equal segments, 0
  through (n-1), where the ith segment is delivered
  to the ith process in the group.

11
Scatter
Data ?
Data ?
A0
A1
A2
A3
A4
A5
A0
A1
? Processes
? Processes
A2
A3
A4
A5
12
ALLGATHER
Data ?
Data ?
A0
A0
B0
C0
D0
E0
F0
B0
A0
B0
C0
D0
E0
F0
? Processes
? Processes
C0
A0
B0
C0
D0
E0
F0
D0
A0
B0
C0
D0
E0
F0
E0
A0
B0
C0
D0
E0
F0
F0
A0
B0
C0
D0
E0
F0
13
ALLTOALL
Data ?
Data ?
A0
A1
A2
A3
A4
A5
A0
B0
C0
D0
E0
F0
B0
B1
B2
B3
B4
B5
A1
B1
C1
D1
E1
F1
? Processes
? Processes
C0
C1
C2
C3
C4
C5
A2
B2
C2
D2
E2
F2
D0
D1
D2
D3
D4
D5
A3
B3
C3
D3
E3
F3
E0
E1
E2
E3
E4
E5
A4
B4
C4
D4
E4
F4
F0
F1
F2
F3
F4
F5
A5
B5
C5
D5
E5
F5
14
Global Reductions

• MPI can perform a global reduction operation
  across all members of a communicator group.
• Reduction operations include operations like
• Maximum
• Minimum
• Sum
• Product
• ANDs and ORs

15
MPI_REDUCE

• MPI_REDUCE(SENDBUF, RECVBUF, COUNT, DATATYPE, OP,
  ROOT, COMM, IERROR)
• OUT lttypegt RECVBUF()
• IN lttypegt SENDBUF()
• IN INTEGER COUNT, DATATYPE, OP, ROOT, COMM
• OUT IERROR
• Combines the elements provided in the input
  buffer of each process in the group, using the
  operation OP, and returns the combined value in
  the output buffer of the process with rank ROOT.
• Predefined operations include
• MPI_MAX MPI_MIN MPI_SUM
• MPI_PROD MPI_LAND MPI_BAND
• MPI_LOR MPI_BOR MPI_LXOR
• MPI_BXOR

16
