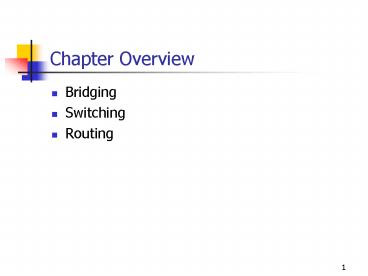

Chapter Overview
  • Bridging
  • Switching
  • Routing

2
What Is a Bridge?
  • A data-link layer device that connects networks
    and filters packets
  • Propagates only packets destined for the other
    side of the bridge
  • Can reduce network traffic and collisions
  • Can lessen delays

3
Connecting LANs with a Bridge
4
Bridges and Collisions
  • A collision domain is a network (or part of a
    network) that is constructed so that a collision
    occurs when two computers transmit packets at
    precisely the same time.
  • Adding a hub to a local area network (LAN)
    increases its size but maintains a single
    collision domain because hubs relay signals
    immediately at the physical layer, without
    filtering them.
  • Hubs do not relay packets immediately they wait
    until the entire packet is received.
  • Because the bridge delays propagation, computers
    on opposite sides of the bridge transmitting at
    the same time do not cause a collision.
  • Adding a bridge to a LAN splits it into two
    collision domains, resulting in fewer collisions
    and increased efficiency.

5
Broadcasts
6
Bridges and Broadcasts
  • Bridges propagate all broadcast packets without
    filtering them.
  • The network segments on either side of a bridge
    are in the same broadcast domain.

7
Transparent Bridging
  • Transparent bridging is a method for
    automatically compiling a bridges address
    tables.
  • Bridges maintain an address table for each
    network segment.
  • Bridges read the source and destination addresses
    of packets and compare them to the tables to
    determine whether to propagate them.
  • When a bridge lacks the information needed to
    filter a packet, it propagates the packet by
    default.

8
Bridge Types
  • Local bridge. Connects network segments of the
    same type and at the same location
  • Translation bridge. Connects network segments at
    the same location that use different media or
    different protocols
  • Remote bridge. Connects network segments at
    remote locations, using a wide area network (WAN)
    link

9
Translation Bridge
10
Switch Characteristics
  • Data-link layer device
  • Replaces bridges and sometimes routers
  • Similar in appearance to a hub
  • Forwards incoming traffic out to the destination
    port only
  • Converts a shared network medium to a dedicated
    one
  • Offers advantages such as reduced network
    congestion and the use of full network bandwidth
  • Can operate in full-duplex mode

11
Switching
12
Replacing Routers with Switches
13
Virtual LANs
  • A virtual LAN (VLAN) is a subnet that exists
    inside a switch.
  • Broadcasts sent by a computer go only to the
    other computers in the VLAN.
  • Communications within a VLAN are switched.
  • Communications between VLANs can be routed or
    switched.

14
Layer 3 Switching
  • Layer 3 switching minimizes the amount of routing
    between VLANs because routing occurs only when
    absolutely necessary.
  • A router establishes a connection between systems
    and then switches take over.

15
Switch Types
  • A cut-through switch begins to forward packets
    immediately.
  • A store-and-forward switch waits until the entire
    packet arrives before forwarding it.

16
Router Characteristics
  • Connect networks together to form an internetwork
  • Are network layer devices
  • Can connect LANs running different data-link
    layer protocols

17
Router Functions
  • Forward packets to the destination network
  • Strip the data-link layer frames from incoming
    packets and repackage the data into new frames
  • Fragment packets when necessary

18
Routing Process Example
19
Hops
20
Routing Tables
  • Routing tables are essential to the router
    operation and functions.
  • There are two methods of creating routing tables
  • Static routing. Manual creation of routing table
    entries by an administrator
  • Dynamic routing. Automatic creation of routing
    table entries by using a specialized routing
    protocol

21
Router Types
  • Routers can be stand-alone hardware devices or
    software running on a computer.
  • Hardware routers. Range from expensive
    rack-mounted devices to small stand-alone units
  • Software routers. Include Microsoft Windows 2000
    Internet Connection Sharing (ICS), and Routing
    and Remote Access

22
Chapter Summary
  • Bridging
  • Bridges selectively relay packets between network
    segments, depending on their data-link layer
    destination addresses.
  • Bridges maintain a single broadcast domain and
    create separate collision domains.
  • Switching
  • Switches improve on the function of bridges by
    forwarding packets only to their destination
    systems.
  • Switches reduce the collisions on a network and
    increase the bandwidth available to each
    computer.
  • Routing
  • Routers are used to connect networks together at
    the network layer of the OSI reference model.
  • Routers strip away the data-link layer frame of
    incoming packets and build a new frame using the
    data-link layer protocol of the outgoing network.
  • Routing tables can be created manually by a
    network administrator or automatically by a
    routing protocol.
