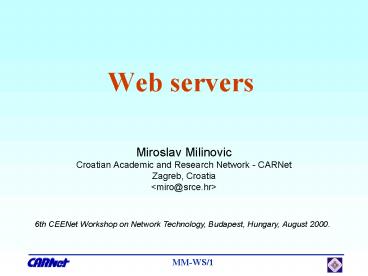

Web servers

1
Web servers

• Miroslav Milinovic
• Croatian Academic and Research Network - CARNet
• Zagreb, Croatia
• ltmiro_at_srce.hrgt

6th CEENet Workshop on Network Technology,
Budapest, Hungary, August 2000.
2
Content

• Web server
• Apache
• directory structure configuration files
  directives running
• access control authentication
• Common Gateway Interface (CGI) passing data
• Server side includes (SSI)
• API modules handlers
• virtual servers
• Measuring the Web
• Summary

3
How Web works?
WWW servers
Internet
(WWW)
users browse
?
?
HTML files
authors write HTML
?
4
Web server

• general purpose data delivery vehicle
• a program (daemon, httpd)
• responds to an incoming TCP connection and
  provides a service to the client
• runs independently
• Web servers
• do NOT validate HTML code (parse documents)
• do NOT check links
• follow MIME rules (without checking file content)
• Web site host Web server information (file
  system)

5
Web server software

• traditionally freely available
• for most of the platforms
• UNIX, Ms Windows, Macintosh, VMS, VM,
• list of available servers software
• http//www.yahoo.com/Computers_and_Internet/Softwa
  re/Internet/World_Wide_Web/Servers/
• Web Server Survey
• http//www.netcraft.com/Survey/
• popular server programs
• CERN, NCSA (first ones)
• Apache, MS IIS, Netscape servers, ...

6
Apache

• A PAtCHy server is a kind of a plug-in
  replacement for NCSA httpd
• under constant development
• freely available
• in source code
• binaries for many platforms (v. 1.3.x includes
  also the Windows NT)
• supports HTPP 1.1. from 1.2.
• useful addresses
• Apache home http//www.apache.org/
• http//www.apacheweek.com/
• support via Usenet group(s)

7
Where to put the server?

• server should run where information is been
  created
• choose host carefully
• give an DNS alias name to the selected host
  (www. mydoimain.mycuntry)
• ServerRoot, DocumentRoot and Log files
  directories should be chosen carefully according
  to rules for all daemons and disk space
  requirements
• User Home Pages?
• CGI rules!

8
Apache directory structure

• can be designed (changed) during installation
  (compilation) process
• some important directories
• cgi-bin/ - CGI scripts directory (examples
  present)
• conf/ - configuration files for httpd server
• htdocs/ - main directory for documents
• logs/ - directory with log files (currently
  empty)
• other stuff (bin/, man/)

9
Apache configuration files

• look in conf/ directory
• access.conf - access configuration
• httpd.conf - server configuration
• mime.types - MIME type to extensions definition
• srm.conf - resource configuration
• .-dist - distribution templates
• since v.1.3.6. it is recommended to use only main
  configuration file httpd.conf

10
Apache configuration directives

• general rules
• case insensitive (not true for file/directory
  names)
• comment lines begin with
• one directive per line
• each line of these files consists of
• directive data data2 ... datan
• extra whitespace is ignored

11
httpd.conf

• ServerType standalone
• Port 80
• User nobody
• Group nogroup
• ServerAdmin your_e-mail_address
• ServerRoot /home/httpd/
• ErrorLog /home/httpd/logs/error_log
• TransferLog /home/httpd/logs/access_log
• PidFile /home/httpd/logs/httpd.pid
• more directives
• Keep Alive, Spare Servers, Proxy, Cache, Virtual
  Servers, ...

?
12
httpd.conf (srm.conf)

• DocumentRoot /home/httpd/htdocs/
• UserDir public_html
• DirectoryIndex index.html
• AccessFileName .htaccess
• DefaultType text/plain
• ScriptAlias /cgi-bin/ /home/httpd/cgi-bin/
• more directives
• Icons, Language, Handlers, ...

?
13
httpd.conf (access.conf)

• defines
• which types of services are allowed
• in what circumstances
• ltDirectory dir_namegt directives
  lt/DirectorygtltDirectoryMatch regexgt directives
  lt/DirectoryMatchgt lt Files file1 file2 gt
  directives lt/Filesgt ltFilesMatch regexgt
  directives lt/FilesMatchgt
• be very careful due to possible problems
• operational
• security

14
mime.types

• list of MIME types know to your server
• format type/subtype file_extension
• example text/html html htm
• image/gif gif
• files with other extension will be sent with
  DefaultType
• add an entry according to your needs

15
Starting and stopping Apache

• if you selected standalone server type
• simply execute the program (apachectl start)
• setup automated startup (during boot)
• apachectl options START, STOP, CONFIGTEST
• Apache dynamically adapts to the workload
• to stop (restart) the server use
• kill command (UNIX) (pid is in httpd.pid file)
• apachectl stop

16
Access control

• two levels
• per-server (Global Access Configuration file) -
  using directives in httpd.conf (access.conf)
• per-directory (Per-directory Access Configuration
  file) - using .htaccess files (you can change
  this file name using AccessFileName directive in
  httpd.conf (srm.conf)
• two ways
• by user/password
• by host/domain

17
httpd.conf (access.conf) DocumentRoot settings

• ltDirectory /home/httpd/htdocsgt
• instead of the Directory it is possible to
  use Location (controls URLs) or Files
  (controls files).
• it is possible to use wild cards here ?
• Options Indexes FollowSymLinks
• Option can be FollowSymLinks,
  SymLinksIfOwnerMatch, ExecCGI, Includes, Indexes,
  IncludesNoExec, All, None
• AllowOverride All
• Specify which Options can be overridden by
  per-directory access files
• lt/Directorygt

18
httpd.conf (access.conf) Scripts directory

• ltDirectory /home/httpd/cgi-bingt
• Options FollowSymLinks
• AllowOverride None
• lt/Directorygt
• the later directives (according to the order in
  the configuration files) are the more important
  (specific)
• if permitted the more specific are the settings
  in the .htaccess

19
User/password authentication

• Create a file called .htaccess in required
  directory (of course you can do this on the
  server level)
• AuthUserFile /home/httpd/admin/.htpasswd
• AuthGroupFile /dev/null
• AuthName ByPassword
• AuthType Basic
• ltLimit GETgt
• require user username
• lt/Limitgt

?
20
User/password authentication

• using htpasswd command create the password file
• htpasswd -c /home/httpd/bin/.htpasswd username
• enter password of your choice (later you can
  check the content of .htpasswd file)
• multiple users (of course you have to create
  entries in .htpasswd file)
• add users in require directive in .htaccess
• OR
• create a group file (.htgroup), use directives
  AuthGroupFile and require group in .htaccess file
• OR
• use require valid-user directives (all users from
  .htpasswd have access)

21
It works, but ...

• server asks browser for user/password to allow
  access
• password is send over the network not encrypted
  but "uuencoded"
• password is not visible in the clear, but can
  easily be decoded by anyone who happens to catch
  the right network packet (sniffers in action)
• this method of authentication is as safe as
  telnet-style username and password security

22
Host/domain authentication

• protective .htaccess file looks like
• ltLimit GETgt
• order deny,allow
• deny from all
• allow from hostname/domain
• lt/Limitgt

?
23
Host/domain authentication

• open .htaccess file looks like
• ltLimit GETgt
• order allow,deny
• allow from all
• deny from hostname/domain
• lt/Limitgt

24
Access control

• it is possible to use authentication by
  host/domain and by user/password together
• for better security compile the Apache with the
  SSL (Secure Socket Layer)
• then server and client exchange the keys on the
  beginning of the session and all of the
  transactions are encrypted

25
Common Gateway Interface (CGI)

• WWW server is able to communicate with other
  programs (CGI scripts)
• CGI scripts can be written in any programming
  language (shell script, PERL, C, )
• CGI scripts can use CGI environment variables
• CGI is used for
• getting input from user, forms processing,
  returning any kind of dynamic information,
  gateways to other services, ...
• workload is on the servers side (be careful)

?
26
CGI

• server needs to be configured for CGI operation
  to enforce security procedures
• ScriptAlias /cgi-bin/ /home/httpd/cgi-bin/
• all of the files in /cgi-bin/ are considered to
  be a executable scripts (regardless of the name
  of the file)
• security measures (with CGI scripts)
• parse and check user input
• programs should have only the power they require
• dynamically generated programs are not permitted
• carefully examine all cgi scripts (do not allow
  users to execute their own programs)

27
Passing data (GET method)

• data is simply attached to the end of the URL
• ? is used to separate data from URL
  (http//url?data)
• CGI programs are executed with URL address
• http//www_server/cgi-bin/program_name?data
• simple example ltISINDEXgt tag
• browser asks for input from user and attaches it
  to the URL
• the input is rewritten by browser (spaces become
  "", \n become "", )
• server puts part of URL after "?" in to the
  environment variable QUERY_STRING

28
Passing data (POST method)

• recommended method for processing FORMS
• on the HTML page with form you declare which
  script will be called to process data from the
  form
• ltFORM METHODPOST ACTION/cgi-bin/script_namegt

• ...
• lt/FORMgt
• when user hits the submit button client contacts
  server and passes request (POST
  /cgi-bin/script_name) with data from the form
  (data follows URL as a document)
• to pass the data to the CGI program server uses
  environment variables and stdin

?
29
Passing data (POST method)

• server executes the CGI script and provides it
  with
• list of environment variables
• input stream of FORM contents in namevalue
  pairs(name1value1name2value2name3value3)
• script knows how long this input stream is from
  environmental variable CONTENT_LENGHT
• CGI script general procedure order
• read input from stdin
• split namevalue pairs and do value conversion
  (spaces, ...)
• do something and print out results in HTML form
  tostdout

?
30
Passing data (POST method)

• CGI scripts are responsible for formatting output
  on "stdout" back to the server (finally server
  will pass this information to the client)
• CGI script is responsible for generating content
  specific headers and send them as a first lines
  of output to the server
• for example
• Content-type text/plain
• FOLLOWED BY (at lest) ONE BLANK
  LINE !

31
Server side includes (SSI)

• server can be configured to scan documents with
  shtml extension for occurrence of construction
  like
• lt!--command tag1"value1" tag2"value2" --gt
• and replace them with the result of the command
• this concept is used to add
• current date, any other CGI environment variable
  value
• document's (or other file's) last modification
  data, size
• inline other document contents into the current
  document
• result of work of any other program on any Web
  server side

32
API modules handlers

• Apache breaks down clients request handling into
  a series of steps
• URL --gt Filename translation
• Auth ID checking
• Auth access checking
• Access checking other than above Auth
• Determining MIME type of the object requested
• Fixups' - if needed
• Actually sending a response back to the client
• Logging the request

?
33
API modules handlers

• on any of those steps you may tide up an handler
  (the procedure)
• a set of handlers may make an module, eg. cgi
  module, log module, server side includes module,
  access module, ...
• consistent specification of the steps allows to
  connect own modules to Apache which replace the
  old one or gives the new possibilities

34
Virtual servers

• one server may listen on many hosts names -
  virtual servers (same port, different hostnames)
• part of basic server configuration (httpd.conf)
• ltVirtualHost hostnamegt lt/VirtualHostgt
• each of the virtual server may have totally
  different content, configuration, separate log
  and error files,
• alternative is to run another server on a
  different port

35
Virtual servers - example

• Port 80
• ServerName test.ceenet.ceu.hu
• NameVirtualHost 193.225.201.125
• ltVirtualHost 193.225.201.125gt
• ServerName test.ceenet.ceu.hu
• DocumentRoot /home/httpd/test
• lt/VirtualHostgt
• ltVirtualHost 193.225.201.125gt
• ServerName virtualtest.ceenet.ceu.hu
• DocumentRoot /home/httpd/virtualtest
• ...
• ltVirtualHostgt

36
Web measurement? Why?

• for content providers
• usability testing
• detection of performance problems
• tuning the server software / benchmarking servers

• for network providers
• evaluating proxies
• detection of performance problems
• for protocol developers
• measuring protocol (DNS, TCP, HTTP) performance
• evaluating changes and new mechanisms

37
Web measurement techniques

• server logs
• proxy (cache) logs
• browser (client) logs
• packet traces

38
Server logs

• servers logs access information in the file
• client host,
• date,
• client request,
• status,
• count of the bytes sent by server
• ...
• standard log files and formats
• it is possible (and easy) to produce many kinds
  of activity reports from that data
• plenty of log analyzers (wwwstat, analog,)

39
Some results

• derived from various studies
• average resource is small (e.g. 8-10 KB)
• 10 of resources attract 90 of traffic
• average of 3-5 resources per Web document
  (including HTML file)
• number of clicks per session (?)
• 4 - server studies
• 10 - client studies

40
Summary

• WWW server
• Apache
• directory structure configuration files
  directives running
• access control authentication
• Common Gateway Interface (CGI) passing data
• Server side includes (SSI)
• API modules handlers
• virtual servers
• Measuring the Web
