Title: FLIGHT DYNAMIC MODELING OF MINI HELICOPTERS


1

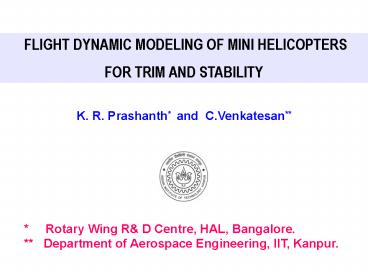

FLIGHT DYNAMIC MODELING OF MINI HELICOPTERS FOR
TRIM AND STABILITY
K. R. Prashanth and C.Venkatesan
Rotary Wing R D Centre, HAL, Bangalore.
Department of Aerospace Engineering, IIT,
Kanpur.
2
Outline
  • Mini Helicopters and its Features
  • Idealisation
  • Coordinate Systems
  • Blade Inertia /Aerodynamic Loads
  • Flight Dynamic Equations
  • Pitch Mechanism of Stabiliser Bar and Main
    Rotor Blades
  • Trim and Stability Equations
  • Results
  • Conclusion / Future work

3
Mini Helicopters and its Features
Conventional Helicopter
Model Helicopter
  • Variable rpm
  • Stabiliser bar for passive control
  • system
  • Rigid blade
  • Fixed rpm
  • No Stabilizer bar
  • Flap-lag-torsion dynamics
  • of blade

4
Forces and Moments on Fuselage
HORIZONTAL STABILIZER
VERTICAL FIN
HELICOPTER DYNAMICS
STABILIZER
MAIN ROTOR
FUSELAGE LOADS
Hub Loads Due to All Blades
TAIL ROTOR
Blade Root Loads
Sectional Inertia Aerodynamic Loads on Blade
5
Idealisation of the Model Helicopter
  • The blades are assumed to have symmetric cross
    section.
  • Vertical fin and a horizontal tail plate have
    symmetric
  • airfoil cross sections
  • Fuselage, rotor shaft, rotor blades are assumed
    to be rigid
  • The feathering axis coincides with elastic axis
    of the blade
  • CG of the helicopter lies on x-z plane

6
Ordering Scheme
  • The basis of the ordering scheme is a small
    dimensionless
  • parameter which represents typical slopes due to
    elastic
  • deflections. It is known that for helicopter
    blades
  • it is in the range of

The ordering scheme is based on the assumption
that
7
Coordinate Systems
lK - Non-inertial hub fixed non
rotating system
R - Hub fixed inertial system
1K and 2K Rotating systems
4K and systems
8
Coordinate Systems
  • 2K and 3K Rotating systems

9
Coordinate Systems
  • 1K and s1 coordinate systems

10
Blade Inertia Loads
Distributed inertia forces
Inertia forces at blade root
Inertia moments at blade root
11
Blade Aerodynamic Loads
  • Classical Unsteady Aerodynamic Theories
  • Theodorson
  • Greenberg
  • Loewy

- Quasi steady aerodynamics based on
Greenberg theory is assumed
12
Blade Aerodynamic Loads
Expression for Circulatory and Non-circulatory
Lifts and Moment
13
Blade Aerodynamic Loads
Distributed aerodynamic load in y direction
Distributed aerodynamic load in z direction
Distributed torsional moment
14
Blade Aerodynamic Loads
Aerodynamic forces at blade root
Aerodynamic moments at blade root
15
Main Rotor Hub Loads
Main rotor hub forces due to all blades
Main rotor hub moments due to blades
16
Forces and Moments on Fuselage
  • Forces and Moments are transformed to CG of the
    Fuselage

Forces
17
Forces and Moments on Fuselage
Moments
18
Flight Dynamic Equations
  • Number of degrees of freedom are six
  • Kinematic relations developed relating
  • Instantaneous angular velocities of the
    helicopter
  • Rate of change of orientation of the helicopter
    to
  • the earth based coordinate system.

19
Flight Dynamic Equations
Helicopter in manoeuvre
PITCH
ROLL
YAW
20
Flight Dynamic Equations
Force Equations
Moment Equations
21
Pitch Mechanism of Stabiliser and Main Rotor
Blades
BLADE PITCH
STABILISER FLAP RESPONSE
COLLECTIVE
CYCLIC
Swash Plate Mechanism
Hub Motion
Collective Input
Cyclic Input
From Servo Actuator
From Servo Actuator
22
Pitch Mechanisms of Stabiliser and Main Rotor
Blades
23
Pitch Mechanisms of Stabiliser and Main Rotor
Blades
Blade Pitch due to Collective Input
24
Pitch Mechanisms of Stabiliser and Main Rotor
Blades
Blade Pitch due to Cyclic Input
25
Pitch Mechanisms of Stabiliser and Main Rotor
Blades
Pitch Angle of Stabiliser Bar
Pitch of stabilizer
26
Pitch Mechanisms of Stabiliser and Main Rotor
Blades
Blade Pitch due to Stabiliser Flap
27
Flap Equation of Motion for Stabilizer Bar
Flap Equation of Motion
28
Flap Equation of Motion for Stabilizer Bar
29
Trim Equations
30
Stability Equations
31
Results
Baseline Data
32
Influence of Mass on Control Angles
33
Influence of Density on Control Angles
34
Influence of Mass on Power Requirement
35
Influence of CG Shift(X-Axis) on Control Angles
36
Influence of CG Shift(Z-Axis) on Control Angles
37
Influence of Altitude on Power Requirement
38
Influence of Density on Power Requirement
39
Stability of the Baseline Vehicle
Eigen Values and Eigen Vectors Baseline Helicopter
Eigen values
Eigen vectors
40
Blade Root Loads
Axial Load Px2k 1307.3 N Shear Load (Y)
Py2k -2.98 N Shear Load (Z) Pz2k 30.4
N Torsional Moment Qx2k 0 Flapping Moment
Qy2k -16.37 Nm Lead-lag Moment Qz2k -1.37
Nm
41
Conclusion
  • Flight dynamic equations for a mini helicopter
    developed
  • including all the essential features
  • Sample results indicate instability of the
    vehicle in hover.

Future Work
  • Trim and stability of the helicopter in forward
    flight
  • Parametric estimation using test data
  • Design of a feedback controller for stability
    augmentation
  • Development of a simulator model for autonomous
    flight

42
THANK YOU
