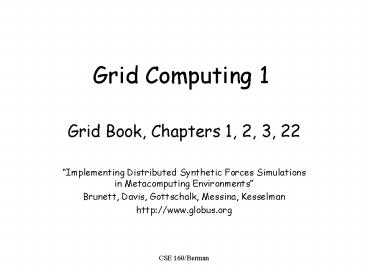

• Grid Book, Chapters 1, 2, 3, 22
• Implementing Distributed Synthetic Forces
  Simulations in Metacomputing Environments
• Brunett, Davis, Gottschalk, Messina, Kesselman
• http//www.globus.org

2
Outline

• What is Grid computing?
• Grid computing applications
• Grid computing history
• Issues in Grid Computing
• Condor, Globus, Legion
• The next step

3
What is Grid Computing?

• Computational Grid is a collection of
  distributed, possibly heterogeneous resources
  which can be used as an ensemble to execute
  large-scale applications
• Computational Grid also called metacomputer

4
Computational Grids

• Term computational grid comes from an analogy
  with the electric power grid
• Electric power is ubiquitous
• Dont need to know the source (transformer,
  generator) of the power or the power company that
  serves it
• Analogy falls down in the area of performance
• Ever-present search for cycles in HPC. Two foci
  of research
• In the box parallel computers -- PetaFLOPS
  architectures
• Increasing development of infrastructure and
  middleware to leverage the performance potential
  of distributed Computational Grids

5
Grid Applications

• Distributed Supercomputing
• Distributed Supercomputing applications couple
  multiple computational resources supercomputers
  and/or workstations
• Examples include
• SFExpress (large-scale modeling of battle
  entities with complex interactive behavior for
  distributed interactive simulation)
• Climate Modeling (high resolution, long time
  scales, complex models)

6
Distributed Supercomputing Example SF Express

• SF Express (Synthetic Forces Express) large
  scale distributed simulation of behavior and
  movement of entities (tanks, trucks, airplanes,
  etc.) for interactive battle simulation.
• Entities require information about
• State of terrain
• Location and state of other entities
• Info updated several times a second
• Interest management allows entities to only look
  at relevant information, enabling scalability

7
SF Express

• Large scale SF Express run goals
• Simulation of 50,000 entities in 8/97, 100,000
  entries in 3/98
• Increase fidelity and resolution of simulation
  over previous runs
• Improve
• Refresh rate
• Training environment responsiveness
• Number of automatic behaviors
• Ultimately use simulation for real-time planning
  as well as training
• Large scale runs extremely resource-intensive

8
SF Express Programming Issues

• How should entities be mapped to computational
  resources?
• Entities receive information based on interests
• Communication reduced and localized based on
  interest management
• Consistency model for entity information must be
  developed
• Which entities can/should be replicated?
• How should updates be performed?

9
SF Express Distributed Application Architecture

• D data server, I interest management, R
  router, S simulation node

10
50,000 entity SF Express Run

• 2 large-scale simulations run on August 11, 1997

11
50,000 entity SF Express Run

• Simulation decomposed terrain (Saudi Arabia,
  Kuwait, Iraq) contiguously among supercomputers
• Each supercomputer simulated a specific area and
  exchanged interest and state information with
  other supercomputers
• All data exchanges were flow-controlled
• Supercomputers fully interconnected, dedicated
  for experiment
• Success depended on moderate to significant
  system administration, interventions, competent
  system support personnel, and numerous phone
  calls.
• Subsequent Globus runs focused on improving data,
  control management and operational issues for
  wide area

12
High-Throughput Applications

• Grid used to schedule large numbers of
  independent or loosely coupled tasks with the
  goal of putting unused cycles to work
• High-throughput applications include RSA
  keycracking, Seti_at_home (detection of
  extra-terrestrial intelligence), MCell

13
High-Throughput Applications

• Biggest master/slave parallel program in the
  world with master website, slaves individual
  computers

14
High-Throughput Example - MCell

• MCell Monte Carlo simulation of cellular
  microphysiology. Simulation implemented as
  large-scale parameter sweep.

15
MCell

• MCell architecture simulations performed by
  independent processors with distinct parameter
  sets and shared input files

16
MCell Programming Issues

• How should we assign tasks to processors to
  optimize locality?
• How can we use partial results during execution
  to steer the computation?
• How do we mine all the resulting data from
  experiments for results
• During execution
• After execution
• How can we use all available resources?

17
Data-Intensive Applications

• Focus is on synthesizing new information from
  large amounts of physically distributed data
• Examples include NILE (distributed system for
  high energy physics experiments using data from
  CLEO), SAR/SRB applications (Grid version of MS
  Terraserver), digital library applications

18
Data-Intensive Example - SARA

• SARA Synthetic Aperture Radar Atlas
• application developed at JPL and SDSC
• Goal Assemble/process files for users desired
• Radar organized into tracks
• User selects track of interestand properties to
  be highlighted
• Raw data is filtered and converted to an image
  format
• Image displayed in web browser

19
SARA Application Architecture

• Application structure focused around optimizing
  the delivery and processing of distributed data

20
SARA Programming Issues

• Which data server should replicated data be
  accessed from?
• Should computation be done at the data server or
  data moved to a compute server or something in
  between?
• How big are the data files and how often will
  they be accessed?

AppLeS/NWS
21
TeleImmersion

• Focus is on use of immersive virtual reality
  systems over a network
• Combines generators, data sets and simulations
  remote from users display environment
• Often used to support collaboration
• Examples include
• Interactive scientific visualization (being
  there with the data), industrial design, art and
  entertainment

22
Teleimmersion Example Combustion System Modeling

• A shared collaborative space
• Link people at multiple locations
• Share and steer scientific simulations on
  supercomputer
• Combustion code developed by Lori Freitag at ANL
• Boiler application used to troubleshoot and
  design better products

Chicago
San Diego
23
Early Experiences with Grid Computing

• Gigabit Testbeds Program
• Late 80s, early 90s, gigabit testbed program
  was developed as joint NSF, DARPA, CNRI
  (Corporation for Networking Research, Bob Kahn)
  initiative
• Goals were to
• investigate potential architecture for a
  gigabit/sec network testbed
• explore usefulness for end-users

24
Gigabit Testbeds Early 90s

• 6 testbeds formed
• CASA (southwest)
• MAGIC (midwest)
• BLANCA (midwest)
• AURORA (northeast)
• NECTAR (northeast)
• VISTANET (southeast)
• Each had a unique blend of research in
  applications and in networking and computer
  science research

25
Gigabit Testbeds
26
Gigabit Testbeds
27
I-Way

• First large-scale modern Grid experiment
• Put together for SC95 (the Supercomputing
  Conference)
• I-Way consisted of a Grid of 17 sites connected
  by vBNS
• Over 60 applications ran on the I-WAY during SC95

28
I-Way Architecture

• Each I-WAY site served by an I-POP (I-WAY Point
  of Presence) used for
• authentication of distributed applications
• distribution of associated libraries and other
  software
• monitoring the connectivity of the I-WAY virtual
  network
• Users could use single authentication and job
  submission across multiple sites or they could
  work directly with end-users
• Scheduling done with a human-in-the-loop

29
I-Soft Software for I-Way

• Kerberos based authentication
• I-POP initiated rsh to local resources
• AFS for distribution of software and state
• Central scheduler
• Dedicated I-WAY nodes on resource
• Interface to local scheduler
• Nexus based communication libraries
• MPI, CaveComm, CC
• In many ways, I-Way experience formed foundation
  of Globus

30
I-Way Application Cloud Detection

• Cloud detection from multimodal satellite data
• Want to determine if satellite image is clear,
  partially cloudy or completely cloudy
• Used remote supercomputer to enhance instruments
  with
• Real-time response
• Enhanced function, accuracy (of pixel image)
• Developed by C. Lee, Aerospace Corporation,
  Kesselman, Caltech et al.

31
PACIs

• 2 NSF Supercomputer Centers (PACIs) SDSC/NPACI
  and NCSA/Alliance, both committed to Grid
  computing
• vBNS backbone between NCSA and SDSC running at
  OC-12 with connectivity to over 100 locations at
  speeds ranging from 45 Mb/s to 155 Mb/s or more

32
PACI Grid
33
NPACI Grid Activities

• Metasystems Thrust Area one of the NPACI
  technology thrust areas
• Goal is to create an operational metasystems for
  NPACI
• Metasystems players
• Globus (Kesselman)
• Legion (Grimshaw)
• AppLeS (Berman and Wolski)
• Network Weather Service (Wolski)

34
Alliance Grid Activities

• Grid Task Force and Distributed Computing team
  are Alliance teams
• Globus supported as exclusive grid infrastructure
  by Alliance
• Grid concept pervasive throughout Alliance
• Access Grid developed for use by distributed
  collaborative groups
• Allliance grid players include Foster (Globus),
  Livny (Condor), Stevens (ANL), Reed (Pablo), etc.

35
 Other Efforts

• Centurion Cluster Legion testbed
• Legion cluster housed at UVA
• 128 533 MHz Dec Alphas
• 128 Dual 400 MHz Pentium2
• Fast ethernet and myrinet
• Globus testbed GUSTO which supports Globus
  infrastructure and application development
• 125 sites in 23 countries as of 2/2000
• Testbed aggregated from partner sites (including
  NPACI)

36
GUSTO (Globus) Computational Grid
37
IPG

• IPG Information Power Grid
• NASA effort in grid computing
• Globus supported as underlying infrastructure
• Application focus include aerospace design,
  environmental and space applications

38
Research and Development Foci for the Grid

• Applications
• Questions revolve around design and development
  of Grid-aware applications
• Different programming models polyalgorithms,
  components, mixed languages, etc.
• Program development environment and tools
  required for development and execution of
  performance-efficient applications

Applications
Middleware
Infrastructure
Resources
39
Research and Development Foci for the Grid

• Middleware
• Questions revolve around the development of tools
  and environments which facilitate application
  performance
• Software must be able to assess and utilize
  dynamic performance characteristics of resources
  to support application
• Agent-based computing and resource negotiation

Applications
Middleware
Infrastructure
Resources
40
Research and Development Foci for the Grid

• Infrastructure
• Development of infrastructure that presents a
  virtual machine view of the Grid to users
• Questions revolve around providing basic services
  to user security, remote file transfer,
  resource management, etc., as well as exposing
  performance characteristics.
• Services must be supported by heterogeneous and
  interoperate

Applications
Middleware
Infrastructure
Resources
41
Research and Development Foci for the Grid

• Resources
• Questions revolve around heterogeneity and scale.
• New challenges focus on combining wireless and
  wired, static and dynamic, low-power and
  high-power, cheap and expensive resources
• Performance characteristics of grid resources
  vary dramatically, integrating them to support
  performance of individual and multiple
  applciations extremely challenging

Applications
Middleware
Infrastructure
Resources
42
What is the difference between Grid Computing,
Cluster Computing and the Web?

• Cluster computing focuses on platforms consisting
  of often homogeneous interconnected nodes in a
  single administrative domain.
• Clusters often consist of PCs or workstations
  and relatively fast networks
• Cluster components can be shared or dedicated
• Application focus is on cycle-stealing
  computations, high-throughput computations,
  distributed computations
• Beowulfs are clustered essentially administered
  as a single multicomputer XXX

43
The Web and Grids

• Web focuses on platforms consisting of large
  number of resources and networks which support
  naming services, protocols, search engines, etc.
• Web consists of very diverse set of
  computational, storage, communication, and other
  resources shared by an immense number of users
• Application focus is on access to information,
  electronic commerce, etc.
• Grid focuses on computing on ensembles of
  distributed heterogeneous resources
• Typically used as a platform for high performance
  computing
• Some grid resources may be shared, other may be
  dedicated or reserved
• Application focus is on high-performance,
  resource-intensive applications
