Task 1091'001: Highly Scalable Placement by Multilevel Optimization

1

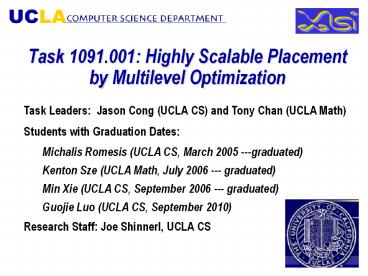

Task 1091.001 Highly Scalable Placement by
Multilevel Optimization

• Task Leaders Jason Cong (UCLA CS) and Tony Chan
  (UCLA Math)
• Students with Graduation Dates
• Michalis Romesis (UCLA CS, March 2005
  ---graduated)
• Kenton Sze (UCLA Math, July 2006 --- graduated)
• Min Xie (UCLA CS, September 2006 --- graduated)
• Guojie Luo (UCLA CS, September 2010)
• Research Staff Joe Shinnerl, UCLA CS

2
Industrial Liaisons

• Patrick McGuinness, Freescale Semiconductor, Inc.
• Natesan Venkateswaran, IBM Corporation
• Amit Chowdhary, Intel Corporation

3
Task Description and Anticipated Result

• Highly scalable multilevel, multiheuristic
  placement algorithms that address the critical
  placement needs of nanometer designs
• scalability
• multi-constraint optimization --- timing,
  routability, power, manufacturability, etc.
• support of mixed-sized placement and incremental
  design.
• Quantitative study of the optimality and
  scalability of placement algorithms
• Construction of synthetic benchmarks with known
  optima to identify the deficiencies of existing
  methods
• Our goal is to achieve one-process-generation
  benefit through innovation of physical-design
  technologies, especially placement.

4
Task Deliverables

• Report on new placement benchmarks with known
  optimal or near optimal solutions for all major
  objectives and constraints. Scalability and
  optimization studies on existing placement
  techniques (Completed 3-Nov-2003)
• Experiments and reports on the applicability of
  integrated AMG-based weighted aggregation and
  weighted interpolation. Improvement measured on
  both PEKO examples and industrial examples from
  SRC member companies (Completed 1-Jun-2004)
• Experiments and reports on multiheuristic,
  multilevel relaxation and the scalable
  incorporation of complex constraints into the
  enhanced multilevel framework. Improvement
  measured on both PEKO and industrial examples
  (Completed 1-Jun-2005)
• A highly scalable placement tool that (i)
  supports multi-constraint optimization,
  mixed-sized placement, and incremental design and
  (ii) produces best-of-class results for both PEKO
  and industrial examples from SRC member companies
  (Completed 1-Jun-2006)
• Final report summarizing research accomplishments
  and future direction (Planned-Oct-31, 2006)

5
Accomplishments in the Past Year

• Improvements in mPL for routing density control
  Best quality, ISPD 2006 contest
• Thermal-Driven Placement
• Heterogeneous Placement

6
Relative Wirelength
A Brief History of mPL

• mPL 1.0 ICCAD00
• ESC Clustering
• Goto relaxation

UNIFORM CELL SIZE

• mPL 1.1
• FC clustering
• Partitioning added
• to legalization

• mPL 2.0
• RDFL relaxation
• Primal-dual netlist pruning

• mPL 3.0 ICCAD03
• QRS relaxation
• AMG interpolation
• Multiple V cycles

• mPL 5.0
• Multilevel force directed
• Mixed-size capability

• mPL 4.0
• Improved DP
• Backtracking
• V cycle

NON-UNIFORM CELL SIZE

• mPL 6.0
• Enhanced
• Routability handling

year
2002
2003
2000
2001
2004
2005
2006
7
mPL Generalized Force-Directed Placement

• Use of accurate objective functions Bertsekas,
  82, Naylor et al, 01
• Optimization-based bin-density constraint
  formulation
• Iterative Uzawa solver
• Multilevel for better runtime and wirelength

8
Accomplishments in the Past Year

• Improvements in mPL for routing density control
  Best quality, ISPD 2006 contest
• Thermal-Driven Placement
• Heterogeneous Placement

9
Core Engine for Density Control

• Overall scheme
• One V cycle with comparable quality
• Minimum perturbation in the last stages of GFD
• Significant speed up without losing solution
  quality
• Routing density handling
• Residual density in each bin
• Even distribution of dummy density into bins
• Cell area inflation for better convergence

GFD with Density Control
Minimun perturbation
10
Macro Spreading

• Need area density below target value Nam,
  ISPD06
• Target distance between neighboring macros
• ? target density
• Spreading represented as objective

H
A1
w2
w
w1
A2
W
fij

• dxi and dyi perturbation
• fxij and fyij piece-wise linear function

x
Hij
11
Experiment Results on ISPD06
mPL6 produces the best solution quality using
ISPD06 routability-driven metric
12
Demonstration of mPL6

• http//cadlab.cs.ucla.edu/cpmo/videos/mPL6-density
  .wmv

13
Accomplishments in the Past Year

• Improvements in mPL core engine for mixed-size
  global placement
• Thermal-Driven Placement
• Heterogeneous Placement

14
Motivation

• High power density due to technology scaling
• Problems caused by high temperature
• Hot spots become more harmful
• Higher temperature ? Higher leakage power ? More
  heat
• Previously negligible effects become first-order
  effects
• Difficult estimation for power, timing, etc

15
Thermal Model

• One layer mesh to model the substrate
• Sj (Ti - Tj) Cxy (Ti Tsink) Cz Pi
• Cxy, Cz are the thermal conductance for the
  substrate and the heat sink
• Solved by Fast DCT
• Solve T from CT P, given C and P
• Diagonalize C GT?G
• G is the discrete cosine matrix
• ? is a diagonal matrix
• T G-1?-1G P

16
Formulation Solution

• Implement ?i(x) and ti(x) with filler cells and
  filler power without area
• Tdes is a given by user
• Solved by Uzawa Algorithm
• As additional thermal-aware GFD following a
  WL-driven V-Cycle

17
Experiment Results on IBM-FastPlace

• Quality improvement
• Teven is the ideal temperature with the same
  total power
• Max. on-chip temperature
• Tinit after Step 1
• Tfinal Tdes after Step
• More than 90 quality improvement within 5 WL
  increase

18
Accomplishments in the Past Year

• Improvements in mPL for routing density control
  1st quality, ISPD 2006 contest
• Thermal-Driven Placement
• Heterogeneous Placement

19
Motivation

• Need for placement on array type chips with
  pre-fabricated resources
• FPGA
• Structured ASIC
• Need for heterogeneous capability
• Memory, DSP, etc
• Block on sites of the same type

20
Related Work

• Academia
• VPR Betz Rose 97, PATH Kong 02, SPCD Chen
  Cong 04,05, PPFF Maidee et al, 03, CAPRI
  Gopalakrishnan et al, 06
• Most comparisons to out-dated tools
• No heterogeneous capability
• Industry
• Quartus II Altera Corp., ISE Xilinx Inc.
• Proprietary chips only
• Techniques not publicly documented

21
Heterogeneous Placement by mPL-H

• First analytical placer for heterogeneous
  placement
• Framework based on mPL6 Chan et al, 05
• Multiple layered placement
• One logical layer for each resource
• Forbidden regions blocked by obstacles
• Uniform wirelength computation
• Filler cells on each layer

DSP
M-RAM
LAB
22
Demonstration of mPL-H

• http//cadlab.cs.ucla.edu/cpmo/videos/mPL-H.wmv

23
Experiment Setting
Verilog netlist
Quartus_map
Clustered .vqm netlist
Stratix Description
.xml
Quartus_fitter
mPL-H
Chip type
.qsf placement
Quartus_router
24
Wirelength Comparison

• WL still important for architecture evaluation
• mPL-H is 3 better in HPWL, and 2 better in
  routed WL than Quartus II v5.0

25
Runtime Comparison

• mPL-H can be 2X faster than Quartus II v5.0 when
  the circuit becomes sufficiently large

26
Overall Accomplishments Over the Funding Period

• 34 reduction in WL over 3 years
• One technology generation advancement

27
Technology Transfer in 2006

• Discussions at conferences and workshops
• ASPDAC 2006, Yokohama, Japan
• ISPD 2006, San Jose, USA
• DAC 2006, San Francisco, USA
• Benchmark Releases (PEKO-MS) http//cadlab.cs.ucla
  .edu/pubbench
• mPL release http//cadlab.cs.ucla.edu/src_686_mp
  l/

28
Software Download Record

• PEKO/PEKU 2002 now
• More than 360 downloads
• SRC member companies
• Cadence, IBM, Intel, Mentor Graphics,etc.
• NON-SRC member companies
• Synopsys, Magma, Monterey Design, etc.
• Universities
• CMU, Michigan, MIT, UC Berkeley, UCSD, etc.,
• mPL 2001 now
• More than 480 downloads
• SRC member companies
• Cadence, Intel, Mentor Graphics,etc.
• NON-SRC member companies
• Synopsys, Magma, Intrinsity, Oasys, etc.
• Universities
• CMU, Michigan, Stanford, UCSD, Natl Taiwan U.,
  etc.,

29
Publications in 2006

• Conference papers
• ASPDAC 2006 J. Cong, M. Xie, A Robust Detailed
  Placement for Mixed-size IC Designs.
• ISPD 2006 T. F. Chan, J. Cong, J. Shinnerl, K.
  Sze and M. Xie, mPL6 Enhanced Multilevel
  Mixed-size Placement.
• Thesis
• Kenton Sze, Multilevel Optimization for VLSI
  Circuit Placement.
• Min Xie, Constraint-Driven Large Scale Circuit
  Placement Algorithms.

30
Room for Further Improvement?
mPL4
mPL5

• Swirls are difficult to correct with localized
  refinement
