WAVV 2004 VSE to Linux

1

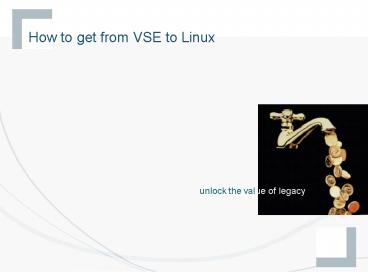

How to get from VSE to Linux
unlock the value of legacy
2
Presentation Information

• Moderator Chris Sims
• Author Michael Waters
• Company Micro Focus
• Contributors Mathias Mezger and Tom Ryan
• Presentation Title How to get from VSE to Linux
• Presentation Abstract Linux and VSE are a
  wonderful combination, but have you ever wondered
  what is involved to convert your VSE system to
  Linux.  Then this is the session for you.  Case
  studies of Customers who have successfully
  converted their VSE systems to Linux will be
  presented.

3
Qualifying Questions

• Do you have a portfolio of legacy COBOL
  applications?
• Do you have a mandate to reduce operational costs
  AND increase agility?
• Is there a risk that your legacy infrastructure
  will constrain your business options?
• Can you afford to rip and replace your legacy
  applications?
• Are you still running VSE/ESA?

4
Gartner Quotes

• "As Linux competes with Windows and Unix, the
  long slow decline of the mainframe platform
  becomes hard to ignore."
• "Efforts to maintain and develop mainframe
  applications with fewer programmers, while
  beneficial in the short term, do not resolve the
  long-term problem of skills availability for this
  platform."
• "IBM mainframe enterprise less than 500 MIPS are
  the most likely to successfully migrate"

5
Legacy Value

• Transactions encapsulate your workflow
• CICS, DB2, and IMS
• COBOL defines your business rules
• Your data reflects your business

6
Mainframe Migration Choices

• Re-engineering or Rip and Replace
• High risk, time and cost
• 74 fail or are significantly late and over
  budget Standish Group
• Packaged applications
• Change business processes or package
  functionality
• Lost functionality, retraining and complex data
  remodeling
• 42 never complete or are more than 50 late
  Gartner
• Mainframe-based modernization
• Low risk and minimal retraining
• No cost savings and limited flexibility
• Lift and Shift
• Low hardware and software costs
• Low risk and minimal retraining
• Modern, open and extensible

Lift and Shift often the best strategy
7
Lift and Shift Migration

• Reduce Cost Increase Agility Minimize Risk
• Re-deploy COBOL to reduce customers costs while
  positioning their legacy software assets for the
  future, with low risk
• Lower total cost of ownership
• Move COBOL to Linux
• Lower cost of integration
• Connect COBOL with J2EE
• Position for change
• Service Oriented Architectures
• Decrease risk of failure
• Reuse skills, processes, applications, and data

Corporations have huge investments in
applications, skills and data
8
Lift and Shift Phased Approach

• Migrate applications to Linux with minimal
  changes
• Lower cost
• Maintain current functionality
• No interuption in day-to-day business operations
• Modernize applications to take advantage of new
  technologies
• Select changes that maintain the value of legacy
  assets
• Business Logic (COBOL)
• Presentation Logic (Java, HTML)
• Communication (Web Services)
• Transaction Controls (J2EE WebSphere)
• Reuse business functionality to provide new,
  modern and cross-platform availability to your
  business operations

9
Lift and Shift Migration
Linux
VSE/ESA
Linux
COBOL BMS CICS DB2 VSAM
COBOL Java / HTML Web Services UDB XML
COBOL BMS ES/MTO UDB ISAM
10
Migration Considerations

• VSE/ESA applications are not always pure COBOL,
  CICS, Batch, DB2 and VSAM
• Languages other than COBOL and C may not be
  supported
• Assembler is not supported
• Data sets may have to be converted
• EBCDIC to ASCII
• No JES and RACF for Linux
• Third party tools may not exist on Linux
• Evolved applications can have unusal
  personalities

11
Migration Considerations II

• Assembler
• Conversion utilities from Software Migrations
  Limited and others
• Codeset
• Micro Focus utilities convert data files from
  EBCDIC to ASCII using a data file layout
  structure to handle binary data
• Batch JCL and schedulers
• Recommend converting JCL to Linux scripting
• Security
• Linux security model is like UNIX, not RACF
• Still a significant concern for Web services
• COBOL
• IBM mainframe dialects are generally supported

12
Migration Considerations III

• Handling of numeric data-items
• These can differ depending on the COBOL operation
• Example
• Definition
• 01 INVENTORY-FIELD.
• 03 INV-FIELD-NUMERIC PIC 9.
• 01 CALC-FIELD PIC S9 COMP-3.
• Instructions
• procedure division.
• IF INVENTORY-FIELD '1'
• MOVE 'Y' TO INVENTORY-FIELD
• ELSE
• MOVE 'N' TO INVENTORY-FIELD
• END-IF
• MOVE INV-FIELD-NUMERIC
• TO CALC-FIELD ? S0C7 might occur on mainframe
• Resolution Recode or use Linux COBOL Compiler
  directive to establish run time time error 163.

13
Migration Considerations IV

• Recent Linux conversions
• Natural
• Adabas
• No Linux equivalent for
• PL/I
• CSP
• CA-Datacom/DB
• CA-IDEAL
• CA-IDMS (conversion utilities by Xitec Software
  and others)
• IMS
• Systems Integrators, including IBM Global
  Services, have experience migrating VSE/ESA to
  Linux

14
Case Studies

• German Bank
• Home Furnishings Retailer
• Clothing Retailer
• Direct Mail Application Provider
• Financial Application Provider

15
German Bank

• Original Environment
• VSE, COBOL, CICS
• 1,000 programs - 50 online, 50 batch
• Few system routines in ASM
• VSAM and sequential data
• Several third party products
• Target Environment
• z/Linux, Micro Focus COBOL, Micro Focus Server
  (CICS)
• ASM programs obsolete or rewritten
• VSAM migrated to UDB/DB2
• Cancel as many third party products as possible
• Motivation
• Reduced total cost of ownership by 50

16
Home Furnishings Retailer

• Original Environment
• z/OS, COBOL, CICS 2,000 programs
• 350 4GL programs 4,000 JCL members
• DB2, VSAM and sequential data Third party
  products
• Target Environment
• z/Linux, Micro Focus COBOL, Micro Focus Server
  (CICS)
• 4GL programs rewritten
• UDB, ISAM (IDX-8) and sequential
• Job Control BASH
• Cancel as many third party products as possible
• Motivation
• Spin-off required smaller data processing center
• Reduce total cost of ownership
• Free up budget for new application development
• Reduce dependency of mainframe veterans

17
Clothing Retailer

• Original Environment
• VSE, COBOL, PL/I, CICS
• 500 programs, 50 online, 50 batch
• 1,200 JCL members
• CA-Datacom, VSAM and sequential data
• Several third party products
• Target Environment
• UNIX or z/Linux Migrate PL/I to ??
• Migrate CA-Datacom to UDB COBOL and Java mix
• Reduce third party products Job Control ??
• Motivation
• Reduce total cost of ownership
• Strategic move to e-commerce

18
Direct Mail Application Provider Group 1

• Original Environment
• z/OS and UNIX
• Micro Focus COBOL
• Target Environment
• z/Linux, Micro Focus COBOL
• Source code unchanged
• Motivation
• Satisfy customer demand (Citibank)

19
Financial Application ABK Systeme GmbH

• A few days to port the code from Solaris to Linux
• Ten months from alpha to production
• Micro Focus COBOL used on all platforms
• zSeries test by IBM Lab in Böblingen, Germany

20
Migrated System

• Reduced Costs
• Dramatically lower hardware and software costs
• Improved developer productivity
• Increased Agility
• Maintainable, adaptable and extensible to
• the internet, SQL, XML and Web Services
• Lower Risk
• Leverages your existing applications, skills and
  data to
• deliver new business value at lower risk

Reduced costs and increased agility at lower risk
21

Legacy is an asset
22
Questions and Answers
23
Contacts

• IBM
• Ed Anderson, Corporate Linux
• 1 512-838-9426
• eda_at_us.ibm.com
• Micro Focus
• Michael Waters, Alliance Manager
• 1 301-838-5259
• michael.waters_at_microfocus.com
