A Unique Collaboration Between Scientists and Educators

1

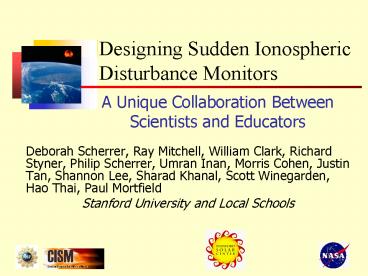

A Unique Collaboration Between Scientists and
Educators
Designing Sudden Ionospheric Disturbance Monitors

• Deborah Scherrer, Ray Mitchell, William Clark,
  Richard Styner, Philip Scherrer, Umran Inan,
  Morris Cohen, Justin Tan, Shannon Lee, Sharad
  Khanal, Scott Winegarden, Hao Thai, Paul
  Mortfield
• Stanford University and Local Schools

2
Quick Overview

• Motivations
• The Plan
• Objectives
• The Monitors SID and AWESOME
• Structure
• Speed Bumps
• The Team

3
Motivations

• Funders
• Research experience for teachers students
• Long-term relationships between teacher interns
  scientists
• More under-represented students into science
• Quantitative results

• Educators
• Experience with how scientists think do
• Content knowledge
• Hands-on, real science, to take back to the
  classroom
• Build EXCITEMENT enthusiasm for science amongst
  students

• Scientists
• Educators support their research
• Effective experience for teachers
• Tap expertize of teacher
• Minimize overhead of training supervision

4
The Plan

• Team community college high school educators
  with scientists to
• Design, develop, classroom-test VLF radio
  receivers that track changes to the Earths
  ionosphere caused by solar activity
• Provide hands-on, authentic science experience
  for teachers and students
• Gather data useful to researchers

5
Details

• Based on AAVSO original concept
• 2 versions
• SID inexpensive (150)
• AWESOME research quality (3000)
• Preassembled, but students build their own
  antenna (10)
• Centralized data repository chat site

6
Objectives

• Place 100 SIDs and 15 AWESOMES
• Target under-represented high schools community
  colleges
• Leverage from CISM Partners
• Teacher workshops
• University application
• Integration into teacher-training courses
• Access to web-based training
• Distribute in a Partnership model, to encourage
  scientist-teacher collaborations

7
Scientific Goals

• Understand the causes effects solar activity
  has on the Earth, hopefully for prediction
  capabilities (daytime data)
• Understand the electrodynamic coupling between
  the troposphere, mesosphere, and the lower
  ionosphere driven by lightning and thunderstorm
  systems  (nighttime data)

8
IHY 2007

• The United Nations and organizers of the
  International Heliophysical Year, 2007, have
  designated these Space Weather Monitors as
  official IHY instruments, to be placed in 191
  countries around the world.

9
The Sun, ionosphere, and radio waves
10
VLF Transmitters
24 around the world
Antenna Wires
Primarily U.S. Navy stations for communicating
with submarines
NLK 24.8 KHz Navy Radio Station, Jim Creek,
WA 1 cycle 7.5 miles (12 km)
200 Towers
VLF signals can be received all over the world,
because of the ionosphere!
11
Our Monitors

• SID
• Low Cost (150)
• Single band
• 1 sample/5 seconds
• Preassembled tuned
• Students build antenna
• Available free to underserved schools

• AWESOME
• Moderate cost (3000)
• Broadband sample rate of 100kHz on each channel
• Capture ELF/VLF frequencies
• 30 Hz - 50kHz
• Dual use system
• Daytime monitor solar activity
• Nighttime monitor atmospheric phenomena
  (e.g. lightning)
• So sensitive that nearly any signal above the
  ambient Earth noise floor can be detected
• Data useable for ionospheric and solar researchers

12
Detecting Solar Flares SID(s)
SID Events!
Not all events are readily explainable students
can research these
13
GOES-12 Weather Satellite
Detecting X-Rays
14
Connecting SID to GOES Data
C5.9
M1.3
C4.5
C3.8
Students have also found flares not cataloged by
GOES!!!
15
Connecting SID events to sunspots (Active Regions)
Event Begin Max End Obs Q Type
Loc/Frq Particulars Reg ----------------
--------------------------------------------------
------------- 1960 1727 1736 1744
G12 5 XRA 1-8A C4.5 3.1E-03
0424 1990 1930 1946 1954 G12 5
XRA 1-8A C5.9 5.9E-03 0424 2000
2112 2134 2140 G12 5 XRA 1-8A
C3.8 3.1E-03 0424 2040 2341 2354
0002 G12 5 XRA 1-8A M1.3 8.5E-03
0424
16
D
D Includes diversity component

Technology expertize
Integration back into science research
D
Integration back into science research
Design develop SID AWESOME
Planning
Communications
Coordination
Integration into university environment Alabama
AM
D
Partners
Production
Reporting
Distribution
Traffic Control
Distribution
Distribution
D
D
General Public Interest in awareness of Space
Weather
Teachers and classrooms high school community
college
D
D
100 SIDs
10 AWESOME
17
Speed Bumps

• Administrivia
• Changes in teaching positions
• Funding
• Time
• Management
• Parts suppliers

18
Our Team

• Stanford Partners
• Philip Scherrer, Solar Observatories Group
• Umran Inan, Stanford EE
• Hao Thai, Solar Observatories Group
• Deborah Scherrer, Stanford Solar Center
• Students
• Morris Cohen, Stanford EE
• Justin Tan, Stanford EE
• Shannon Lee, Chabot Community College
• Sharad Khanal, Stanford Physics
• Scott Winegarden, Mid Penninsula High School
• (now at UC Irvine)
• Mitch Patenaude, Cal State Hayward
• Sam Penrose, Cal State Hayward
• Kenny Oslund, Castro Valley High (now at CalTech)

• Educators
• Ray Mitchell, Chief Engineer Chabot Community
  College, Cal State Hayward
• William Clark, San Lorenzo High School
• Richard Styner, San Lorenzo High School
• Sean Fotrell, Castro Valley High School
• Tim Dave, Chabot Community College
• CISM Partners
• Roberta Johnson, NCAR
• Ramon Lopez, Florida Institute of Tech.
• Pat Reiff, Rice University
• Marius Schamschula, Alabama AM
• Concept Paul Mortfield

19
For more informationon Space Weather Monitors
http//solar-center.stanford.edu/SID dscherrer_at_sol
ar.stanford.edu
