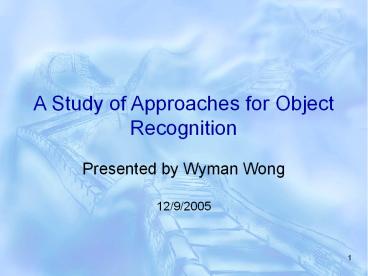

A Study of Approaches for Object Recognition

1
A Study of Approaches for Object Recognition

• Presented by Wyman Wong
• 12/9/2005

2
Outlines

• Introduction
• Model-Based Object Recognition
• AAM
• Inverse Composition AAM
• View-Based Object Recognition
• Recognition based on boundary fragments
• Recognition based on SIFT
• Proposed Research
• Conclusion and Future Work

3
Introduction

• Object Recognition
• A task of finding 3D objects from 2D images (or
  even video) and classifying them into one of the
  many known object types
• Closely related to the success of many computer
  vision applications
• robotics, surveillance, registration etc.
• A difficult problem that a general and
  comprehensive solution to this problem has not
  been made

4
Introduction

• Two main streams of approaches
• Model-Based Object Recognition
• 3D model of the object being recognized is
  available
• Compare the 2D representation of the structure of
  an object with the 2D projection of the model
• View-Based Object Recognition
• 2D representations of the same object viewed at
  different angles and distances when available
• Extract features (as the representations of
  object) and compare them to the features in the
  feature database

5
Introduction

• Pros and Cons of each main stream
• Model-Based Object Recognition
• Model features can be predicted from just a few
  detected features based on the geometric
  constraints
• Models sacrifice its generality
• View-Based Object Recognition
• Greater generality and more easily trainable from
  visual data
• Matching is done by comparing the entire objects,
  some methods may be sensitive to clutter and
  occlusion

6
Model-Based Object Recognition

• Commonly used in face recognition
• General Steps
• Locate the object,
• locate and label its structure,
• adjust the model's parameters until the model
  generates an image similar enough to the real
  object.
• Active Appearance Models (AAM) have been proved
  to be highly useful models for face recognition

7
Active Appearance Models

• They model shape and appearance of objects
  separately
• Shape the vertex locations of a mesh
• Appearance the pixels values of a mesh
• Both of the parameters above used PCA to
  generalize the face recognition to generic face
• Fitting an AAM non-linear optimization solution
  is applied which iteratively solve for
  incremental additive updates to the shape and
  appearance coefficients

8
Inverse Compositional AAMs

• The major difference of these models with AAMs is
  the fitting algorithm
• AAM additive incremental update shape and
  appearance parameters
• ICAAM inverse compositional update The
  algorithm updates the entire warp by composing
  the current warp with the computed incremental
  warp

9
View-Based Object Recognition

• Common approaches
• Correlation-based template matching (Li, W. et
  al. 95)
• SEA, PDE, etc
• Not effective when the following happens
• illumination of environment changes
• Posture and scale of object changes
• Occlusion
• Color Histogram (Swain, M.J. 90)
• Construct histogram for an object and match it
  over image
• It is robust to changing of viewpoint and
  occlusion
• But it requires good isolation and segmentation
  of objects

10
View-Based Object Recognition

• Common approaches
• Feature based
• Extract features from the image that are salient
  and match only to those features when searching
  all location for matches
• Feature types groupings of edges, SIFT etc
• Features property preferences
• View invariant
• Detected frequently enough for reliable
  recognition
• Distinctive
• Image descriptor is created based on detected
  features to increase the matching performance
• Image descriptor Key / Index to database of
  features
• Descriptors property preferences
• Invariant to scaling, rotation, illumination,
  affine transformation and noise

11
Nelsons Approach

• Recognition based on 2D Boundary Fragments
• Prepare 53 clean images for each object and build
  3D recognition database

Object
Camera
12
Nelsons Approach

• Test images used in Nelsons experiment and their
  features

13
Nelsons Approach

• Nelsons experiment has shown his approach has
  high accuracy
• 97.0 success rate for 24 objects database
• under the following conditions
• Large number of images
• Clean images
• Very different objects
• No occlusion and clutter

14
Lowes Approach

• Recognition based on Scale Invariant Feature
  Transform (SIFT)
• SIFT generates distinctive invariant features
• SIFT based image descriptors are generally most
  resistant to common image deformations
  (Mikolajczyk 2005)
• SIFT four steps
• Scale-space extrema detection
• Keypoint localization
• Orientation assignment
• Keypoint descriptor computation

15
Scale-space extrema detection

• DOG LOG
• Search over all sample points in all scales and
  find extrema that are local maxima or minima in
  laplacian space

Small keypoints ? Solve occlusion problem Large
keypoints ? Robust to noise and image blur
16
Keypoint localization

• Reject keypoints with the following properties
• Low contrast (sensitive to noise)
• Localized along edge (sliding effect)
• Solution
• Filter points with value D below 0.03
• Apply Hessian edge detector

17
Orientation assignment

• Pre-compute the gradient magnitude and
  orientation
• Use them to construct keypoint descriptor

18
Keypoint descriptor computation

• Create orientation histogram over 4x4 sample
  regions around the keypoint locations
• Each histogram contains 8 orientation bins
• 4x4x8 128 elements vectors (distinctively
  representing a feature)

19
Object Recognition based on SIFT

• Nearest-neighbor algorithm
• Matching assign features to objects
• There can be many wrong matches
• Solution
• Identify clusters of features
• Generalized Hough transform
• Determine pose of object and then discard outliers

20
Proposed Research

• Personally, I think model-based approach does
  have better performance
• Success of model-based approach requires
• All models of objects to be detected
• Automatically construct models
• Automatically select the best model
• How do the system know which 3D model to be used
  on a specific image of object?
• By view-based approach
• Human looks at an image of object for a moment
  and then realize which model to be used on that
  object
• Then use the specific model to refine the
  identification of the specific object

21
Hybrid of bottom-up and top-down

• View-based approaches just presented are
  bottom-up approaches
• Features edges, extrema (Low Level)
• Descriptors of features
• Matching
• Identification of object (High Level)
• Can it be like that?
• Features
• Matching (Lower Level)
• Guessing of object (Higher Level)
• Matching (Lower Level)
• Guessing of object (Higher Level)
• Identification of object

22
Hierarchy of features

• Lowes system
• All features have equal weight in voting of
  object during identification of object (subject
  to be verified by examining the opened source
  code)
• Special features do not have enough voting power
  to shift the result to the correct one
• Consider the following scenario
• Two objects have many similar features, a1 to
  a100 are similar to b1 to b100, and have just one
  very different feature, a for object A and b
  for object B
• Many a1 to a100 may be poorly captured by
  imaging device and mismatched as b1 to b100 ,
  even we can still recognize the feature a, the
  system may still think the object is B

Object A
Object B
23
Extension of SIFT

• Color descriptors
• Local texture measures incorporated into feature
  descriptors
• Scale-invariant edge groupings
• Generic object class recognition

24
Conclusion and Future Work

• Discussed the different approaches in object
  recognition
• Discussed what is SIFT and how it works
• Discussed the possible extensions to SIFT
• Design hybrid approach
• Design extensions

25
Q A

• Thank you very much!

26
Things to be understood

• Find extrema over same scale space is good, why
  need to find over different scale?
