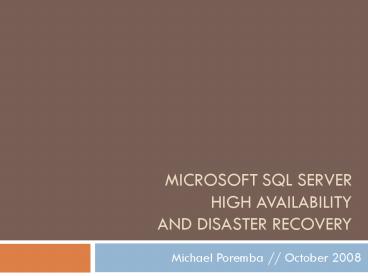

Microsoft SQL Server High Availability and Disaster Recovery

1
Microsoft SQL Server High Availabilityand
Disaster Recovery

• Michael Poremba // October 2008

2
Database HA DR Experience

• Work with business to determine HA or DR
  requirements for applications and data?
• Design HA or DR solutions?
• Administer HA or DR process?
• Still learning MS SQL Server HA DR capabilities?

3
Scope of this Presentation

• Presentation Focus

• Beyond Scope of Presentation

• Data Availability
• Data recovery
• High availability
• Disaster recovery
• Technology Focus
• MS SQL Server
• Physical servers
• SANs

• In-depth how-to(available elsewhere)
• Partitioned views (federated)
• Advanced DBA techniques
• Custom application logic
• 3rd-party software solutions
• Alternate DBMS engines(e.g. Oracle DB2)
• HA on virtual machines
• Complex scenarios solutions
• Load balancing

4
Introduction to Data Availability

• So, you need to make yourproduction database
  bulletproof

5
Data Availability Continuum

• Degrees of protection for information systems

6
Business Case for Availability

• High Availability

• Disaster Recovery

• Keep business-critical applications available
• Secondary
• Server maintenance

• Protect against loss of data center
• Secondary
• Application upgrades
• Infrastructure upgrades

7
Service Level Agreement (SLA)

• Permitted downtime (planned vs. unplanned?)
• Acceptable data/transaction loss
• Application response times
• Mean time to recovery
• Note Database uptime is not equivalent to
  application availability
• Failures of other application services
• Network outages

8
Protect What?

• Application data stores
• Databases
• Files
• Other data repositories
• Database services
• DBMS availability for applications
• Application services
• Application availability for users and external
  systems
• Databases are the heart of most information
  systemsthey deserve the highest affordable
  protection.

9
Database Failure Scenarios

• Physical Infrastructure Failures

• Logical Data Failures

• Storage subsystem
• Disk
• Controller
• Network
• Server
• Power

• Operator errors
• DBMS interruption
• Drops / deletes
• Application defects
• DBMS defects
• Data corruption

10
Service Recovery Strategies
11
Data RecoveryTerminology

• Terminology varies for source vs. copy

12
Data Recovery

• Briefly

13
Database Backups

• Traditional backup types
• Full backup
• Differential backup
• Transaction log backup
• Disk is better than tape
• First backup to disk (separate physical disk
  volume)
• Detect exceptions encountered during backup
• Verify backup files
• Copy backup files to tape or remote disk
• Data retention policy for backup files

14
Database Backup Strategy

• Backup of user databases not sufficient for
  recovery
• System database
• Master database
• MSDB database
• Model database
• External data stores

15
Synch with External Data Stores

• Synchronize recovered database with external data
  stores
• Identity column seeds
• Full-text indexes(SQL Server 2000)
• LDAP entries
• File system objects
• Other databases

16
Backup Retention Policy

• Location of backup files
• Duration of retention
• Protection of sensitive data
• Sarbanes/Oxley (SOX)
• HIPAA
• Internal policies for data management and
  protection
• Access to backups from offsite data storage

17
Data Recovery Process

• Backup file sets
• Full baseline, differential, and transaction logs
• Retrieving backup files
• Offsite storage
• Tape
• Network copy
• Dependency on multiple people to get access to
  backup files

• Recovery strategy depends on failure scenario
• Create comprehensive failure matrix
• Devise recovery strategy for each scenario
• Does worst-case recovery scenario fit within SLA
  parameters?
• Recovery time SLA
• Include future data growth in recovery plan
• Fully test recovery strategiespractice is
  essential

18
High Availability
19
High Availability

• Minimize or avoid service downtime
• Whether planned or unplanned
• When components fail,service interruption is
  brief or non-existent
• Automatic failover
• Eliminate single points of failure (as
  affordable)
• Redundant components
• Fault-tolerant servers

20
Redundant Components

• Objective Avoid single points of failure (where
  affordable)
• Approach Use redundant components for database
  service
• Database server nodes
• Server components
• ECC RAM failure-tolerant HW OS
• DBMS instance
• User databases
• Storage devices
• Storage unit components
• MPIO Interfaces paths switches controllers
• RAID Disks
• Networking
• MPIO Interfaces paths switches
• Data copies
• E.g. Recovering torn page from mirror in SQL
  Server 2008

21
Transaction Log Shipping

• Warm standby solution
• Duplicate user database
• Copy transaction logs to standby server restore
• Database available for read-only access
• Users must disconnect for logs to be applied
• Two database licenses required if querying
  standby
• Manual application failover
• Supported on standard hardware
• Possible data loss (unapplied transactions)

22
Database Mirroring

• Redundancy at user database level
• Duplicate copy of user database
• Independent storage devices
• Multiple copies of instance databases
• Mirrored over private network channel
• Mirror always redoing transactions from principal
• Negligible impact on transaction throughput
• Multiple mirroring modes
• High-availability commit _at_ log on mirror
  automatic failover
• High-protection commit _at_ log on mirror manual
  failover
• High-performance commit when logged on principal
• Very fast automatic failoverseconds
• Requires witness server
• Mirror-aware application client connection
• Provided by client library
• Database connection string must specify both
  servers
• Mirror may be available for read-only access
  (snapshots)
• Works with standard hardware

23
Mirror Witness

• With mirroring, more than one server is required
  to decide on failover
• Witness automates failover from primary to mirror
• Watches database availability
• Reports observations back to principal and mirror
• Runs in separate SQL Server instance (Express is
  OK)
• Prevents split brain scenario
• Very low resource consumption
• Can be witness for multiple databases
• Not a single point of failure

24
SQL Server Failover Clustering

• Two clustered nodes
• Active/Passive config
• MS SQL services
• Running on virtual server
• Shared storage device
• User databases
• System databases
• Quorum drive
• Redundant internal components

25
Active/Passive Failover Clustering

• Redundancy at database instance level
• All databases fail over together
• Shared copy of system databases
• Single data copy on shared storage device
• No I/O overhead reducing throughput
• Storage unit is single point of failure for
  cluster
• All database services are clustered
• SQL Agent Analysis Services Full-Text engine,
  MS DTC
• Automatic failover (up to minutes)
• DBMS accessed over virtual IP
• Database not available from inactive node for DB
  client connections
• Storage is controlled by one cluster node at a
  time
• Requires hardware certified by Microsoft for
  Microsoft Cluster Service

26
HA Comparison

• Database Mirroring

• Failover Clustering

• Scope user DB
• Standard hardware
• One SQL license(unless querying snapshots on
  mirror)
• Very fast failover (seconds)
• OS flexible (e.g. 32/64)
• Independent storage
• Independent services
• Reporting on mirror
• Geographic separation OK

• Scope DBMS instance
• Certified hardware
• One SQL license(only one node can access
  database)
• Automatic failover (up to minutes)
• Enterprise OS
• Shared storage
• Clustered services
• Standby not available
• Servers are usually co-located

27
Considerations for HA

• HA complements backup and recovery strategy
• Does not replace data recovery plan
• Application service availability is often
  determined by a network of interdependent
  services
• Availability can be difficult to define (e.g.
  partial failures)
• Failure probability difficult to measure or
  compute
• Increased system complexity could lead to lower
  service availability!
• Operator error a leading cause of availability
  issues
• Increased number/types of system components
• More complex to configure and administer

28
Data Recovery Requirements
29
Disaster Recovery
30
Disaster Recovery

• Minimize downtime of business operations
• Redundant systems and facilities
• SQL Server features
• Transaction log shipping
• Database mirroring
• Failover clustering
• Other technologies
• Storage-based mirroring

31
Disaster Recovery Planning

• Data security requirements
• Clarify SLA, data loss allowance
• Evaluate system cost vs. data protection
• Failure analysis
• System redundancy
• Process validation
• Training for personnel
• Prevention practices
• Executing disaster recovery and business
  continuity
• Practice, practice, practice

32
Business Continuity Facility

• System redundancy
• Systems Web servers app servers database, etc.
• Data Databases data files on OS security info,
  etc.
• Networking Domain, routing, subnet, VIPs, etc.
• Alternate facilities
• Network bandwidth
• Physical or network access by operations staff
• Failover
• Often a deliberate decision, using manual failover

33
Data Redundancy

• Synchronous redundancy
• Network bandwidth cost
• Network latency and application performance
• Network reliability
• Asynchronous redundancy
• Risk of data loss
• More cost-effective
• Resilient to network latency issues
• Candidate Technologies
• SQL Server database mirroring
• Failover clustering with SAN-based mirroring

34
DR Using Database Mirroring

• Two sites Primary and DR location
• Separate failover clusters at each site
• SQL Server database mirroring between sites

35
DR Using SAN-Based Mirroring

• Two sites Primary and DR location
• Four-node failover cluster one virtual IP
  address
• SAN-based mirroring between sites
• Manual cluster failover

36
Complimentary Technologies

• Skip if time is running short.

37
SAN-Based Data Mirroring

• Data blocks duplicated at storage level
• Similar to transaction log shipping
• Copy performed in sequence and coordinated with
  database checkpoint
• Ensures consistency of mirrored data files
• Synchronous or asynchronous mirroring
• Co-located or geographically dispersedboth are
  OK
• SAN link bandwidth must support database I/O rate
• May require extra feature support from SAN vendor
• Could rely on Failover Clustering for HA

38
SQL Server Database Snapshots

• Read-only point-in-time database snapshot
• No data is copiedinstantaneous
• Historical snapshot pages tracked separately from
  changing pages
• Snapshots can be maintained indefinitely
• Limited only by available storage
• Snapshot copy can be used for reporting
• Read-only, so no locking issues

39
SQL Server Replication

• Transactional replication
• High transaction volume
• Low data latency required
• Mixed technologies Integrates with other DBMS
• Merge replication
• Bi-directional data changes
• Typically server-to-client
• Snapshot replication
• Large, infrequent data changes
• Data change latency OK
• Best for smaller data sets

• Subscriber databases available for reporting
• Replicate data subsets
• Some data loss is possible
• Periodically validate replicated data

40
App Development and Admin
41
Considerations for App Developers

• App services tolerant to database service
  interruptions
• Application transactions must be handled in
  codedata consistency
• Exception handling for transaction retry,
  connection recovery
• Requires coding standards, code reviews, and
  testing
• Bulk data operations
• Transaction volume impacts rollback time during
  failover
• Batch jobs must be run on alternate nodes
• Dont bypass transaction logging
• Synchronization with external data sources?
• Be aware of database recovery model
• Mirroring uses FailoverPartner in connection
  string
• Use TCP/IP as client protocol

42
Considerations for Admins

• Use identical server hardware, when possible
• Design network redundancies, when feasible
• Consider network latency for geographic
  separation
• Always manage through virtual cluster, not
  individual cluster nodes
• Retest failover/failback after HA maintenance
• Diagnose after failover
• Repair alternate node
• Resynchronize data, as necessary
• Be aware of primary/secondary locations
• Ensure application services are connected and
  functioning properly
• Keep server node configurations synchronized
• Service pack and patch levels
• Duplicate non-redundant resources
• Jobs logins and permissions OS sys objects

43
HA Risks

• System performance degradation
• HA system complexity leads to availability issues
• Some system failures not planned for
• Backup and recovery planning incomplete
• Administrators not fully trained or informed
• User databases not synchronized with other data
  sources

44
Common Admin Use Cases

• Maintain HA nodes
• Hardware maintenance
• Rolling upgrades and software patches
• Resynchronize the redundant copy
• Re-synch mirror
• Restart log shipping
• Diagnose and repair
• Diagnose cause of failover
• Repair failed node and restore failover
  capabilities
• Test failover and failback

45
Common Admin Actions

• Train and practice administrators to
• Initiate a database mirror
• Manually failover mirror database or cluster node
• Add/remove passive node from mirror or cluster
• Upgrade/patch servers nodes
• Restart or redirect application services

46
More Information
47
ReferencesBooks

• High Availability

• Related Topics

• Microsoft SQL Server 2008 High Availability with
  Clustering Database Mirroringby Michael Otey,
  2009.
• Microsoft SQL Server High Availabilityby Paul
  Bertucci, 2004.
• Pro SQL Server 2005 High Availabilityby Allan
  Hirt, 2007.

• Pro SQL Server 2005 Replication by Sujoy Paul,
  2006.
• Pro SQL Server 2005 Service Brokerby Klaus
  Aschenbrenner, 2007.
• The Rational Guide to SQL Server 2005 Service
  Brokerby Roger Wolter, 2006.

48
ReferencesPresentations

• Microsoft Load Balancing and Clusteringhttp//ce.
  sharif.edu/courses/84-85/2/ce317/resources/root/le
  cture20slides/14.20Microsoft20Load20Balancing
  20and20Clustering.ppt
• SQL Server 2005 High Availabilityhttp//www.atlan
  tamdf.com/Presentations/AtlantaMDF_111207HA.ppt
• High Availability Technologies In SQL Server 2000
  And SQL Server 2005 http//202.181.238.2/hk/teche
  d2004/ppt/Day_2_Rm407/DAT431(1330-1445).ppt
• Meeting the Availability Challengehttp//download
  .microsoft.com/download/E/D/C/EDCF54DB-19CD-4882-9
  FC4-4F7D46FCEAA6/HighAvailability.ppt
• Disaster Recovery Mistakeshttp//www.sqlsig.org/O
  ct201120DASSUG20-20Jason20Hall2010-11-0720M
  M.ppt
• SQL Server 2005 High Availabilityhttp//blogs.msd
  n.com/sql2005event/attachment/564303.ashx
• Effective Usage of SQL Server 2005 Database
  Mirroring http//www.sqlserver-qa.net/SSQA-Effect
  ive20Usage20of20SQL20Server20200520Database
  20Mirroring_show.ppt

49
ReferencesArticles

• Achieve High Availability for SQL
  Serverhttp//technet.microsoft.com/en-us/magazine
  /cc162477.aspx
• Geographically Dispersed Clusters in Windows
  Server 2003http//www.microsoft.com/windowsserver
  2003/techinfo/overview/clustergeo.mspx
• Restoring file and filegroup backups
  http//support.microsoft.com/kb/281122/en-us
• Restoring specific tables or rows from
  backupshttp//support.microsoft.com/kb/321836/en-
  us
• Maintaining Availability During
  Upgradeshttp//msdn.microsoft.com/en-us/library/m
  s191449.aspx
