The neuroanatomy of dopamine and the effects of neuroleptics

1

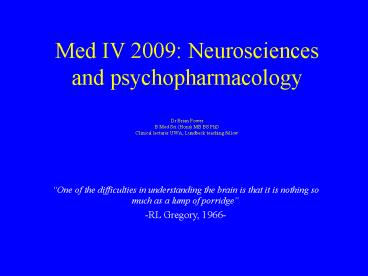

Med IV 2009 Neurosciences and psychopharmacology
Dr Brian Power B Med Sci (Hons) MB BS
PhDClinical lecturer UWA, Lundbeck teaching
fellow
One of the difficulties in understanding the
brain is that it is nothing so much as a lump of
porridge -RL Gregory, 1966-
2
Causes of a raised CK
3
The neuroanatomy of dopamine and the effects of
neuroleptics
DA
DA
DA
DA
DA
DA
4
Direction of nerve impulse
Axon terminal of presynaptic neuron
Synthesis of neurotransmitter
Destruction
Neurotransmitter in vesicles
autoreceptor
Uptake
Release
Synapse
Destruction
receptors
Dendrite of postsynaptic neuron
5
Dopamine (DA)

• an inhibitory monoamine
• distribution of dopaminergic cell bodies
• mesencephalon A8-A10
• diencephalon A11-A14
• telencephalon A15-A17
• many neurons in the brain use DA, and DA
  receptors are widespread, but there are several
  specific DA pathways in the brain

6
Lifecycle of dopamine

• Tyrosine gt L DOPA gt Dopamine (DA)
• rate limiting enzyme TH (tyrosine hydroxylase)
• DDC (DOPA decarboxylase)
• DA diffuses across synapse post synaptic
  receptor (mediates action)
• 2nd messenger (not ligand gated ion channels)
• D1 and D5 post synaptic inhibition
• D2-D4 pre and post synaptic inhibition
• Reuptake into presynaptic neuron
• Degradation to HVA (which can be measured in
  blood/CSF)
• monoamine oxidase (MAO) in presynaptic
  mitochondria
• catechol-O-methyl transferase (COMT), outside
  neuron

7
Tyrosine
MAO
DA
DA
DA
DA
DA
DA
DA
COMT
DA
DA
Release
Uptake
DA
DA
receptors
8
Chemicals altering synaptic activity

• DA depletor (inhibit synthesis) reserpine,
  tetrabenzine, AMPT
• DA neurotoxin MPTP
• DA releaser amphetamine
• DA agonist bromocriptine, apomorphine
• DA antagonist neuroleptics
• DA uptake inhibitor cocaine, amphetamine
• DA degradation inhibitor (inhibit MAO)
  selegeline, pargyline, tranylcypromine

9
toxin
MPTP
Depletor
TH
DDC
Tyr
LDOPA
Dopamine
pargyline
MAO
reserpine
destruction
DA
DA
DA
DA
DA
DA
Release
Uptake
amphetamine
DA
DA
cocaine
DA
DA
Agonist
Antagonist
bromocriptine
neuroleptic
10
Major dopaminergic pathways

• mesolimbic
• mesocortical
• tubero- infundibular
• nigostriatal

Figure from Kaplan and Sadok, 1998
11
(No Transcript)
12
Psychosis

• problems with thought form
• problems with thought content
• perceptual abnormalities
• disorganised speech or behaviour

13
Symptoms of schizophrenia

• Positive symptoms
• delusions, hallucinations, disorganised speech or
  behaviour, catatonic behaviour, agitation,
  distortions in language or communication
• Negative symptoms
• blunted affect, emotional withdrawal, poor
  rapport, passivity, apathetic social withdrawal,
  difficult in abstract thinking, lack of
  spontaneity, stereotyped thinking (the 5 as
  alogia, avolition, anhedonia, attentional
  impairment, affective bluntening)
• Neurocognitive symptoms
• impairments in attention, information processing,
  verbal fluency, serial learning, executive
  function

14
Dopamine Hypothesis of Schizophrenia
Hypoactivity Negative symptoms Cognitive
impairment
Hyperactivity Positive symptoms
Borrowed from Shymko 2006 adapted from Inoue and
Nakata. Jpn J Pharmacol. 200186376.
15
The ideal treatment

• there are four DA pathways
• blocking the hyperactive mesolimbic pathway is
  useful blocking the other 3 would be harmful
• the perfect treatment would
• decrease positive symptoms (decrease DA in
  mesolimbic pathway)
• improve negative and neurocognitive symptoms
  (increase DA in mesocortical pathway)
• have no effect on nigrostrital or
  tuberoinfundibular pathway

16
Neuroleptics

• DA antagonists/ antipsychotics
• D1 and D5 most neuroleptics block these, but
  blockade correlates poorly with antipsychotic
  action
• D2, D3, D4 neuroleptic affinity for D2
  correlates with antipsychotic potency
• Effects
• 1. typicals (dopamine antagonists) decrease
  positive symptoms
• 2. atypicals (mostly DA serotonin antagonists)
  decrease positive symptoms, improve negative
  symptoms and neurocognitive symptoms

17
Variable side effects depending on class and dose
of medication

• 3. nigrostriatal dopamine blockade motor SE
  (extrapyramidal side effects EPSE)
• 4. tuberoinfundibular dopamine blockade
  prolactin increase
• 5. anticholinergic effects (muscarinic
  cholinergic activity)
• 6. anti alpha adrenergic effects (adrenergic
  activity)
• 7. antihistamine effects (histamine activity)

18
1. Typical antipsychotics

• block D2 receptors
• clinical effect essentially decrease
  hyperactivity of mesolimbic dopaminergic pathway
• side effects effectively block the hypoactive
  mesocortical pathway (increase negative
  symptoms), block effects of DA in nigrostriatal
  and tuberoinfundibular pathways (EPSE and
  hyperprolactinaemia)
• provide symptom relief in SCZ, but significant
  side effects
• inexpensive, have depot preparations, well
  established side effect profiles

19
2. Atypical antipsychotics

• block D2, D4 and 5HT receptors
• newer
• DA and serotonin (5HT) blockade thought to
  account for action (decreased positive as well as
  improved negative and neurocognitive symptoms)
• some have fewer SE
• EPSE, especially TD
• hyperprolactinaemia
• more expensive, but cost effective
• less well established side effect profiles, only
  one kind of depot

20
Unwanted effects of neuroleptics

• 3. EPSE
• 4. hyperprolactinaemia
• 5. anticholinergic, 6. antiadrenergic, 7.
  antihistaminergic

21
3. EPSE

• from dopamine receptor blockade in nigrostriatal
  pathway, leading to a pro cholinergic effect
• ie anticholinergic benztropine can help with some
  EPSE
• motor side effects
• tremor
• dystonia sustained involuntary motor activity
• akasthisia motor restlessness
• parkinsonism bradykinesia, rigidity, tremor
• tardive dyskinesia permanent orofacial
  dyskinesia
• neuroleptic malignant syndrome (NMS) life
  threatening triad of change in muscle tone and
  mental state, and autonomic instability

22
Substantia nigra is part of the extrapyramidal
nervous system

• Extrapyramidal (ie those cells involved in motor
  function that are not pyramidal cells of motor
  cortex

Figure from Haines, 1991
23
Components of basal ganglia

• cortical linkers
• putamen (L husk)
• caudate nucleus
• globus pallidus (internal and external segments)
• regulators
• subthalamic nucleus
• substantia nigra
• putamen GP lentiform /lenticular nucleus (L
  lentil)
• caudate lenticular nucleus corpus striatum
  (striped appearance)
• caudate putamen striatum (embryologically
  related)

(Figure from Kandell, Schwartz and Jessell, 2001)
24
Basal ganglia
25
Simplified Circuitry

• Direct pathway
• ctx CP
• CP - GP
• GP - thalamus
• thalamus ctx
• net effect -- on ctx
• Indirect pathway
• ctx CP
• CP - GPe
• Gpe - STN
• STN GPi
• GPi - thalamus
• thalamus ctx
• net effect --- - on ctx

(Figure from Kandell, Schwartz and Jessell, 2001)
26
Dopaminergic regulation by SN

• SN pc excites the direct pathway overall
  excitation of cortex
• SN pc inhibits the indirect pathway overall
  excitation of the cortex

(Figure from Kandell, Schwartz and Jessell, 2001)
27
Procholinergic effect of dopamine blockade

• acetylcholine and dopamine have a reciprocal
  relationship in the nigrostriatal pathway
• dopamine inhibits acetylcholine release
• dopamine blockade has procholinergic effect

(Figure from Kandell, Schwartz and Jessell, 2001)
28
Functional aspects

• Disorders of basal ganglia manifest as
• disturbances of muscle tone
• increased generally (eg in PD)
• dystonia (selective muscle groups only)
• tone may be decreased
• involuntary movements
• tremors
• movements chorea (brisk), athetosis (slow),
  ballismus (violent)

29
3A. Acute dystonia

• affects face, neck and trunk
• especially likely after parenteral admin
• within hrs to days, especially young males
• Sx
• laryngeal spasm (potentially fatal)
• oculogyric crisis (involuntary contractions of
  eye mm resulting in conjugate gaze usually in
  upward direction) and opisthotonus (tetanic spasm
  in mm of back
• Tx benztropine 1-2mg IMI, every 10-15 min if
  necessary (max 6mg/24hr)

30
3B. Parkinsonism

• signs and symptoms tremor, rigidity, difficulty
  moving
• bradykinesia (inability to initiate movement,
  and, when the movement starts, inability to stop
  it)
• resting tremor (high frequency, pill rolling)
• muscular rigidity (increased tone, lead pipe
  rigidity, cogwheeling)
• positive signs extra movements (tremor, tone)
• negative signs loss of function, expressionless,
  drooling
• can we explain signs and symptoms via simplified
  circuit? NO!..but lets try
• SN pc excites the direct pathway overall
  excitation of cortex
• SN pc inhibits the indirect pathway overall
  excitation of the cortex
• if we block dopamine lose excitation of SN on
  direct pathway (less excitation), lose inhibition
  on indirect pathway (inhibition)
• benztropine 0.5-2mg daily

31
3C. Akasthisia

• severe sense of agitation and restlessness of the
  limbs
• may present as a feeling of inner restlessness
• develops within hrs to days
• Tx
• propanolol 20-40mg orally TDS-QID or
• diazepam 2-5mg orally, TDS

32
3D. Tardive dyskinesia

• complex syndrome of involuntary hyperkinetic
  movements
• mostly affect mouth, lips, tongue, jaw
• no effective treatments available
• slowly withdraw causative agent
• consider alternative AP

33
3E. NMS

• 2 of pt on AP, can occur any time, but usually
  in first 30 days, mortality 5-20
• Sx evolve over 1-2 days, recover over 2-3 weeks
• triad altered mental state, autonomic
  instability (temp, BP), neuromuscular
  hyperactivity (change in tone)
• ? systemic dopamine blockade

34
3E. NMS

• DDs NMS, SS, lithium toxicity, drug
  intoxication, drug withdrawal
• complications metabolic acidosis,
  myoglobulinaemia, renal failure, PE, chronic
  cerebellar syndrome, DIC, death
• Ix obs, check med chart!, IV access and measure
  CK, UEC, coags, lithium level, other drug levels,
  UDS
• Tx cease AP, resuscitate (cooling, BP,
  rehydrate), fluids, medical review, DA agonist,
  mm relaxant, heparin

35
4. Hyperprolactinaemia

• DA cell bodies in the hypothalamic arcuate
  nucelus (A12) project to the pituitary gland
• inhibit prolactin and growth hormone
• inhibition of DA at tuberoinfundibular pathway by
  neuroleptic leads to increased prolactin
• weight gain, galactorrhoea, gynecomastia, sexual
  dysfunction, amenorrhoea/menstrual irregularity,
  infertility, ?osteoporosis

36
Other side effects of neuroleptics

• depends on class and dose of medication
• 5. anticholinergic
• strong anticholinergic activity correlates with
  decreased EPSE (limits the procholinergic effect
  of dopamine blockade!)
• muscarinic blockade dry mouth, blurred vision
  (loss of accommodation), constipation, urinary
  hesitancy/ retention, cognitive blunting
• 6. anti alpha adrenergic
• postural hypotension, hypothermia, impotence,
  failure to ejaculate
• 7. antihistaminergic
• weight gain and drowsiness

37
Atypicals v typicals 5HT activity

• Atypicals are serotonin AND dopamine antagonists
• Parallel pathways from the brainstem DA and 5HT
• 5HT inhibits DA release from axon terminals in
  the various DA pathways, but the degree of
  control differs from one pathway to another
• The ability of one neuroleptic to block 5HT also
  depends on the class and dose of the medication

Figures from Stahl
38
Serotoninergic blockade facilitates dopamine
release

• by blocking the 5HT receptor, DA is released
• this DA can compete with the neuroleptic in the
  synapse, and reverse the blockade of DA receptors
• results in a net increase of DA activity in the
  mesocortical pathway (improve negative and
  neurocogntive symptoms), as the 5HT2A receptors
  predominate over D2 receptors there (ie the
  neuroleptic occupies the 5HT2A site)
• decreased side effects (increased DA in the
  nigrostriatal and tuberoinfundibular pathways)
  here D2 receptors predominate over 5HT2A

Figures from Stahl
39
Why dont atypical neuroleptics increase positive
symptoms?

• this mechanism fails to reverse D2 antagonism in
  the mesolimbic system (otherwise positive
  symptoms would increase)
• the strength of the serotonin pathway in the
  mesolimbic system is thought not to be as robust
  as in the other pathways
• other evidence pointing towards selective D2/3
  activity (eg aripiprazole, amisulpride)

D2
5HT
D3
40
Figures from

• 1. The Human Brain, Nolte (1991), 3rd edition,
  London.
• 2. Principles of neural science, Kandell,
  Schwartz and Jessell (1991), 3rd edition, Sydney.
• 3. Neuroanatomy, an atlas of structures, sections
  and systems, Haines, DE (1991) 3rd edition,
  Sydney.
• 4. Lecture and tutorial notes, Dr John Mitrofanis
  (2000), The University of Sydney.
• 5. Lecture notes G Shymko (2006), Fremantle
  Hospital, WA.
• 6. Essential Psychopharmacology, Stahl (2002),
  2nd edition, Cambridge.
