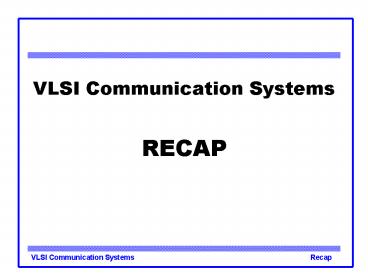

VLSI Communication Systems RECAP

1
VLSI Communication Systems RECAP
2
CMOS

• Digital CMOS
• MOS circuits qualitative, quantitative
• Gates, flops
• Datapath
• Memories
• Scaling
• Analog CMOS
• Number of basic elements
• Diff amp, data converters, multipliers, LNA
• Compensate for poor quality process

3
Comm Theory

• Channel
• Finite bandwidth
• Multipath
• Doppler
• Attenuation
• Sharing
• Modulation
• Multiply carrier(s)
• BFSK, BPSK, QPSK, OFDM, Spread spectrum
• Shaping, equalization\

4
Filtering

• Spec pass/stop band, ripple
• Many benefits to digital filtering
• Can be implemented in many ways
• FFT
• Replaces direct convolution
• Various interpretations, best is PVR view
• Not competitive for most wireless applications
• Cordic
• Compute sin/cos with very little hardware

5
DFGs

• Data Flow Graph
• Represents any statically schedulable
  computation
• More than just multiply, add, delay elements
• LDPC, FFT, sorting arrays, dep checks, etc.
• Even some dynamic computations
• Iteration bound

6
Generic Optimizations

• Pipelining
• Tradeoff latency for clock speed
• Retiming
• Move flops to even out path delays
• Unfolding
• Parallize to meet IB
• Folding
• Map a DFG with 1000s of nodes to hardware with
  10s of execution units

7
IIR filters

• Allowing feedback can lead to huge reductions in
  hardware complexity
• Poles can boost frequencies, zeroes can only
  attenuate them
• Essential when doing adaptive filtering
• Many problems
• Pipelining is harder
• Numerical issues stability, limit cycles, etc.
• Various optimizations
• Some to meet IB, some to surpass it
• Understanding z-domain critical

8
Numeric Strength Reduction

• Share hardware across different computations
• MCM
• Ax
• Exponentiation
• MIMO
• General algorithm for sub-expression sharing
• Look for terms common to two separate computations

9
Numerical Issues

• Coefficient quantization
• Use 2nd order stages
• Compute the effects of over/underflow, truncation
• Analytical approach state space equations
• Simulations
• Use better architectures
• Lattice filters

10
ECC

• Core idea
• Add redundancy to recover from errors
• FEC vs ARQ
• Various schemes
• Two basic classes block, convolutional
• Differ in terms of number of errors they can
  recover from, implementation cost
• Shannon limit
• Linear Block Codes
• G, H matrices
• Simple decoding bit flipping, works well when H
  is sparse

11
What we left out

• Analog/RF, antenna issues
• Better left to specialized classes
• Comm theory error probabilities, detailed
  channel models, timing recovery
• Often simulation is more accurate
• VLSI Signal Processing
• Systolic arrays
• Fast convolution, algorithmic strength reduction
• Bit level arithmetic, redundant arithmetic
• Wave pipelining
• Low power design
• DSPs
