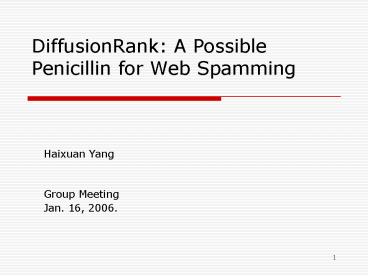

DiffusionRank: A Possible Penicillin for Web Spamming

1
DiffusionRank A Possible Penicillin for Web
Spamming

• Haixuan Yang
• Group Meeting
• Jan. 16, 2006.

2
Outline

• Introduction
• DiffusionRank
• Model Establishment
• Computation consideration
• Discussion on ?
• Results
• Conclusions

3
Introduction

• PageRank
• Tries to find the importance of a Web page based
  on the link structure.
• The importance of a page i is defined recursively
  in terms of pages which point to it
• It proves to be effective for ranking Web pages.

4
Introduction

• PageRank
• Two problems
• The incomplete information about the Web
  structure.
• Solution predict the Web Structure as a random
  graph.
• The web pages manipulated by people for
  commercial interests.
• About 70 of all pages in the .biz domain are
  spam
• About 35 of the pages in the .us domain belong
  to spam category.
• Two methods used for manipulating spam pages
• Link Stuffing
• Keyword Stuffing
• Solution DiffusionRank

5
An example for manipulation
The rank value of node 1 can be increased greatly!
6
Why?

• Two reasons
• Over-democratic
• All pages are born equal--equal voting ability of
  one page the sum of each column is equal to one.
• Input-independent
• For any given non-zero initial input, the
  iteration will converge to the same stable
  distribution.
• Heat Diffusion Model -- a natural way to avoid
  these two factors
• Pages are not equal as some pages are born with
  high temperatures while others are born with low
  temperatures.
• Different initial temperature distributions will
  give rise to different temperature distributions
  after a fixed time period.

7
DiffusionRank

• On an undirected graph
• Assumption the amount of the heat flow from j to
  i is proportional to the heat difference between
  i and j.
• Solution

8
DiffusionRank

• On an undirected graph
• Assumption the amount of the heat flow from j to
  i is proportional to the heat difference between
  i and j.
• Solution
• On a directed graph
• Assumption there is extra energy imposed on the
  link (j, i) such that the heat flow only from j
  to i if there is no link (i,j).
• Solution
• On a random directed graph
• Assumption the heat flow is proportional to the
  probability of the link (j,i).
• Solution

9
DiffusionRank

• On a random directed graph
• Solution
• The initial value f(i,0) in f(0) is set to be 1
  if i is trusted and 0 otherwise according to the
  inverse PageRank.

10
Computation consideration

• Approximation of heat kernel
• N?
• When Ngt30, the real eigenvalues of
  are less than 0.01
• when Ngt100, they are less than 0.005.
• We use N100 in the paper.

When N tends to infinity
11
Discuss ?

• ?can be understood as the thermal conductivity.
• When ?0, the ranking value is most robust to
  manipulation since no heat is diffused, but the
  Web structure is completely ignored
• When ? 8, DiffusionRank becomes PageRank, it can
  be manipulated easily.
• When?1, DiffusionRank works well in practice

12
DiffusionRank

• Advantages
• Can detect Group-group relations
• Can cut Graphs
• Anti-manipulation

? 0.5 or 1
1
-1
13
DiffusionRank

• Experiments
• Data
• a toy graph (6 nodes)
• a middle-size real-world graph (18542 nodes)
• a large-size real-world graph crawled from CUHK
  (607170 nodes)
• Compare with TrustRank and PageRank

14
Results

• The tendency of DiffusionRank when ? becomes
  larger
• On the toy graph

15
Anti-manipulation On the toy graph
16
Anti-manipulation on the middle graph and the
large graph
17
Stability--the order difference between ranking
results for an algorithm before it is manipulated
and those after that
18
Conclusions

• This anti-manipulation feature enables
  DiffusionRank to be a candidate as a penicillin
  for Web spamming.
• DiffusionRank is a generalization of PageRank
  (when ?8).
• DiffusionRank can be employed to detect
  group-group relation.
• DiffusionRank can be used to cut graph.
