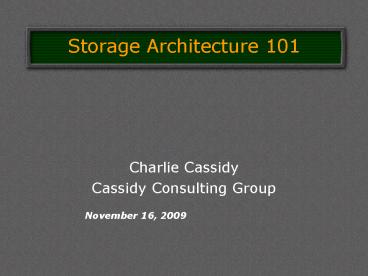

Storage Architecture 101

1
Storage Architecture 101

• Charlie Cassidy
• Cassidy Consulting Group

November 16, 2009
2
New Technology Hype Cycle
SATA, iSCSI and Infiniband
SAN, NAS
ATA, SCSI, 100baseT, RAID
Peak of Inflated Expectations
Plateau of Productivity
Slope of Enlightenment
Fibre Channel, 1394
Attention
Trough of Disillusionment
Fails to Establish Compelling End-User Value
Trigger
Time
Source Gartner Group
3
Basic Storage and Systems Architecture Concepts

• Network architecture
• Network topologies
• Protocol stacks
• Network components
• Storage architecture
• Storage interconnects
• Storage management

4
Network Architecture Concepts

• Network topologies
• Bus
• Star
• Loop
• Physical vs. Logical
• Protocol stacks
• TCP/IP Ethernet
• Network components
• Hub
• Router
• Bridge
• Switch
• Firewalls proxy servers

5
Basic Network Topologies
6
Bus

• What is it?
• Transmission path where each node picks up all
  signals

• Advantages
• Architectural simplicity
• Every node sees everything

• Disadvantages
• Limited scalability
• Speed / scalability tradeoff
• Transmission line effects
• Electrical complexity

• Major uses
• PCI
• SCSI
• Ethernet

7
Loop or Ring

• What is it?
• Transmission path where each node connects to two
  other devices

• Advantages
• Ease of cabling
• Physically easy to scale
• High aggregate bandwidth if you take advantage of
  temporal reuse

• Major uses
• Fiber Channel Arb. Loop
• Token Ring

• Disadvantages
• Need to deal with loop breakage
• Long loops have long latency

8
Star

• What is it?
• Also called hub and spoke
• Transmission path where each node is connected to
  a central location

• Advantages
• Simple, point-to-point cabling
• Easier electrical interface
• Can remove nodes without disturbing others

• Disadvantages
• Lots of wires
• Wire length
• Cost of hubs/switches

• Major uses
• 10/100 base T (physically, also logically if
  switched)
• VAXcluster CI
• POTS

9
Networking Components

• Hub
• Simple interconnect point for a star
• Switch
• Interconnect point for a star with multiple
  internal paths
• Operates at datalink level
• Bridge
• Interconnection between two networks at datalink
  layer
• May do protocol translation (e.g. FC-SCSI bridge)
• Router
• Interconnection between two networks at network
  layer
• Often combined with switches

10
Most Networks Are Combinations
11
Protocol Stacks

• Layering of functionality that trades off a
  little efficiency for
• Simplicity
• Extensibility
• Robustness
• Efficiency often gained back by the gains in
  simplicity

Data
Header 4
Data
Header 3
Data
Header 2
Data
Header 1
12
Protocol Stack
NFS
FTP SMTP SNMP Telnet
7 Application
XDR
6 Presentation
RPC
5 Session
TCP, UDP
4 Transport
IP
3 Network
Routing
ICMP
FC-4 Upper Mapping
FC-3 Common Services
ARP, RARP
2 Data Link
FC-2 Signaling
Not Specified
FC-1 Encode/Decode
1 Physical
FC-0 Media
OSI
IP
Fiber Channel
13
SCSI Architecture
14
The SNIA Storage Networking ModelInfrastructure
for Data

• Storage Clients Consumers such as file
  systems, DBMS, applications
• Virtualization Aggregators (such as LUN
  managers, RAID, etc.) and attribute-extenders
• Storage Devices Disk Subsystems, Tape

File/Record Subsystem
Storage Interconnect
Block Aggregation
Device Interconnect
Storage Device
Source SNIA web site
15
What is a SAN?
File/Record Subsystem
HP/UX
Linux
AIX/ Monterey
Windows NT/2000
Solaris
Storage Interconnect
SAN
Block Aggregation
SAN Services
Device Interconnect
Virtual Array
Disk Array
Tape Library
Tape
Disk Array
Storage Devices
Source SNIA web site
16
The SNIA Storage Model
Source SNIA web site
17
Storage Architecture Concepts

• Interconnect vs. Architecture
• SAN Storage (or Systems) Area Network
• NAS Network Attached Storage
• RAID Redundant Arrays of Inexpensive (or
  Independent) Disks
• JBOD - Just a Bunch of Disks

18
SAN

• What is it?
• Storage (or System) Area Network
• Usually Fiber Channel (either Cu or Fiber)
• Block addressed storage

• Advantages
• System scalability
• Advanced, flexible availability features (RAID)
• Advanced management features (Storage Resource
  Management SW, GUIs)

• Disadvantages
• Very high cost
• Lack of interoperability between vendors
  (although this is improving)

• Major players
• EMC, IBM, Sun, Compaq
• Brocade, McData/EMC, Ancor/Qlogic, Gadzoox, Vixel

19
NAS

• What is it?
• Network Attached Storage
• Usually Ethernet attached
• File accessed storage

• Advantages
• Lower cost than SAN
• Ubiquitous interoperability w/ Ethernet
• Cross-platform file sharing
• Scalability

• Disadvantages
• Limited scalability for a single file system
  (needs SW assist)
• Limited flexibility and robustness at low end
  (RAID0,1 only or single RAID5 LUN)

• Major players
• Network Appliance, EMC
• Quantum/Snap, Maxtor

20
RAID

• What is it?
• Redundant Arrays of Inexpensive (or Independent)
  Disks
• A way to gang multiple disk drives together to
  enhance capacity and availability

• Advantages
• Availability
• Capacity
• Performance (?)

• Disadvantages
• Complexity
• Scalability (being fixed)
• Manageability

• Major players
• EMC, IBM, Sun, CPQ, HP
• A host of smaller VARs (MTI, Data Direct)

21
Reliability vs. Availability vs. Lifetime

• Availability expressed as uptime (e.g. 99.9)
• MTBF/(MTBF MTTR)
• Reliability expressed as Mean Time Between
  Failures (in hours)
• Only applies to a population
• Lifetime is the life expectancy of a device

The Reliability Bathtub Curve
Infant Mortality (Quality)
Wearout
Steady State
MTBF
Lifetime
22
Specific Interconnect Technologies

• ATA
• SATA
• SCSI
• USB
• FCAL
• GbE
• Infiniband
• 1394 (Firewire, iLink)

23
Storage Interconnect Market Vision

• SERVERS DISAGGREGATE and network storage becomes
  the standard attachment and configuration
• IP storage will dominate after 2004
• Fibre channel is growing but, will plateau
  within 3 years
• STORAGE CONNECTS to the fabric, InfiniBand,
  Ethernet, SAN
• Dedicated-function SERVER AND STORAGE APPLIANCES
  ship in the millions

100
90
80
70
60
50
Percent of Total New Server Shipments
40
30
20
10
0
Source Strategic Research, 9/00
24
ATA

• What is it?
• AT Attach
• A.k.a. IDE (Integrated Drive Electronics)
• Low cost, ubiquitous HDD interface for PCs

• Advantages
• Lowest cost
• Relatively fast performance for single drive on
  modern versions (ATA/66, ATA/100)

• Disadvantages
• Limited scalability (2 drives)
• Lack of performance features (command queuing,
  large caches, high RPM motors)

• Major players
• All HDD vendors (Quantum leads on development)
• All PC manufactures

25
SATA

• What is it?
• Serial version of ATA interface
• Up to 1 Gb/s

• Advantages
• Low cost
• Easier cabling than ATA

• Disadvantages
• Limited scalability (2 drives)
• Lack of performance features (command queuing,
  large caches, high RPM motors) THIS WILL GET
  FIXED

• Major players
• Quantum, WD, Seagate, Maxtor
• IBM, Sun

26
SCSI

• What is it?
• Small Computer Systems Interface
• Legacy midrange interconnect for disks, tapes,
  storage subsystems and other peripherals
  (Fishfinders)

• Advantages
• Medium cost
• Scalable up to 15 drives per bus
• Advanced performance features (command queuing,
  large caches, high RPM motors)

• Disadvantages
• Higher cost / lower volumes than ATA
• Higher complexity (termination issues, cabling
  issues)
• Fat, short, expensive cables

• Major players
• IBM, Seagate, Quantum, Fujitsu
• Dell, Compaq, EMC, IBM, HWP

27
USB

• What is it?
• Universal Serial Bus
• Modern serial peripheral bus for fishfinders
  (printers, scanners, cameras, floppies, some
  HDDs)

• Advantages
• Simple
• Low Cost
• Scalable through inexpensive hubs

• Disadvantages
• Slow (USB 1.1)

• Major players
• Driven by Intel
• All major PC manufacturers and peripheral makers

28
FCAL

• Advantages
• Scalable to very large configurations
• Same protocol as SAN, more efficient

• What is it?
• Fiber Channel Arbitrated Loop
• Copper version of fiber channel connected in loop
  topology

• Disadvantages
• Need to deal with loop breakage (can use switched
  star topology to deal with this)
• Higher cost and power
• Interoperability has been an issue
• Complexity

• Major players
• Seagate, IBM, Fujitsu
• EMC, Sun, CPQ, IBM, HWP, Dell
• Brocade, Crossroads,

29
Infiniband

• What is it?
• Next generation computer room interconnect
  specifically targeted at Internet computing
• Serial, Up to 1 Gb/s
• Serious competition to FC for next generation SAN
  interconnect

• Advantages
• Low cost
• Low overhead
• Marries well to VI architecture to give data
  transfer to/from user space

• Disadvantages
• TTM of infrastructure / complete solution

• Major players
• Intel, IBM
• Qlogic, LSI Logic

30
Gigabit Ethernet

• What is it?
• Next Generation LAN (1 Gb/s)
• Either block accessed (iSCSI) or file accessed
  (NAS)
• Another serious contender for next generation
  SANs (w/ iSCSI)

• Advantages
• Hardware will be ubiquitous
• Well developed industry infrastructure with
  excellent interoperability

• Disadvantages
• TCP/IP stack is inefficient for storage (several
  companies looking at doing in ASICs)

• Major players
• Cisco, IBM, Sun, EMC

31
1394 (Firewire, iLink)

• Advantages
• Low cost
• Isochronous transfers (guaranteed BW for
  streaming applications)

• What is it?
• A/V interconnect for digital video, consumer
  electronics
• 400 Mb/s in 1st generation

• Disadvantages
• Limited success
• Complex architecture with many options (a la
  SCSI, FC)

• Major players
• Sony (iLink) , Apple (Firewire), Maxtor

32
Key Storage User Concerns

• Management
• Enormous growth, larger assets, multiple assets
• Interoperability
• Heterogeneous server, storage and infrastructure
• Disaster recovery
• Shrinking backup windows, backup consolidation,
  network and server congestion

Source SNIA, 2/2001
33
Storage Management Costs
Storage Management Costs (/MB/Mo.)

• Lack of management can increase costs 3 to 10x
• Continually adding additional HDDs only works for
  small sites
• Decentralization is adding to storage costs
• Unix and NT significantly behind enterprise (IBM)
  in storage management
• Reduced management cost is one of the major goals
  of SANs

Without Storage Management
With StorageManagement
IS Personnel Cost
Source Fred Moore, Storage Panorama 2000
34
The (Proposed) Answer Virtualization

• Decouple the physical storage from the objects
  being managed
• Virtual disks have
• Capabilities performance, reliability,
  availability
• Attributes cost
• Data has
• Needs performance, reliability, availability
• Management becomes matching capabilities and
  needs can be automated

35
Virtualization

• Can be done in host software, subsystem or by a
  special virtualization appliance
• Can be in the data path (in-band, symmetric
  pooling) or out of the data path (out-of-band,
  asymmetric pooling)
• Presents a single unified model for storage
• Reduces the number of objects under management
• Can be scaled easily and dynamically
