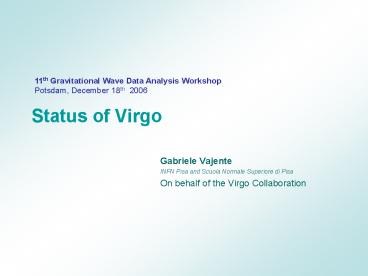

Status of Virgo

1
Status of Virgo
11th Gravitational Wave Data Analysis Workshop
Potsdam, December 18th 2006

• Gabriele Vajente
• INFN Pisa and Scuola Normale Superiore di Pisa
• On behalf of the Virgo Collaboration

2
Virgo collaboration

• New groups joined the collaboration

ESPCI ParisLAPP LAL OrsayLMA LyonOCA
INFN Perugia INFN Firenze INFN NapoliINFN
PisaINFN Roma 1
NIKHEF
INFN Roma 2
3
Restart after shutdown

• Last winter shutdown for hardware upgrades
• Injection bench replacement to run with higher
  input power (10 W enter the ITF)
• Power Recycling mirror replacement with new
  monolithic mirror, higher reflectivity (95 )

4
Thermal issues

• Higher power produces thermal effects

BS Pick-off power Lower sideband Higher sideband

• Lock acquisition long (20 min)
• Thermal transient is a critical period
• Wait for 10 min after reaching dark fringe
  condition
• Needed a reduction of input power to 5.5 W
  (entering the ITF)
• Need for a thermal compensation system, work
  starting

5
Week-end Science Run

• Periodic short data taking started in September
  2006
• start moving towards a science run operation
• take snapshots of the commissioning progress
• take clean data in controlled conditions
• light organization
• priority always on commissioning
• WSR1 September 08th - 11th
• WSR2 September 22th - 25th
• WSR3 October 06th - 09th
• WSR4 October 13th - 16th
• WSR5 November 10th - 13th
• WSR6 December 01th - 04th
• WSR7 January 12th - 15th

6
Sensitivity in WSRs
7
Comparison of sensitivity
8
Duty cycle and horizon in WSRs
WSR1 Duty cycle 87.7 Longest lock 15 h
WSR2 Duty cycle 68.7 Longest lock 27 h
Horizon for NS NS (averaged) MPc
WSR5 Duty cycle 64.2 Longest lock 10 h
WSR6 Duty cycle 80.5 Longest lock 18 h
9
Dependence on weather conditions

• The horizon is affected by microseismic
  conditions
• Sea activity
• Wind
• Suspension control improvements on-going

RMS 220 mHz 1 Hz
Seismic activity a.u.
RMS 30 mHz 100 mHz
Seismic activity a.u.
Horizon NS-NS optimal MPc
10
Noise budget

• Below 50 Hz control noise (longitudinal and
  angular)
• Above 1kHz frequency noise
• and shot noise
• Intermediate region

WSR5
11
Acoustic noise / diffused light

• The main suspect is acoustic and seismic noise
  from benches in air
• Through diffused and scattered light effects
• Investigations on-going

Projection of acoustic noise introduced by the
detection bench, measured with acoustic noise
injections
12
Brief overview of Data Analysis at Virgo

• Virgo search groups
• Bursts
• Binary inspirals
• Periodic signals
• Stochastic background
• Noise studies
• Virgo-Bars network
• Virgo-LIGO collaboration

13
Brief overview of Data Analysis at Virgo

• Analysis of data quality (talk by E.Cuoco)
• Studies on veto procedures and efficiency (poster
  by M. Del Prete)
• Search fro bursts from GRB 050915a (poster by A.
  Corsi)

• Virgo search groups
• Bursts
• Binary inspirals
• Periodic signals
• Stochastic background
• Noise studies
• Virgo-Bars network
• Virgo-LIGO collaboration

14
Brief overview of Data Analysis at Virgo

• Virgo search groups
• Bursts
• Binary inspirals
• Periodic signals
• Stochastic background
• Noise studies
• Virgo-Bars network
• Virgo-LIGO collaboration

• On-line analysis perfomed using Merlino and MBTA
  algorithms(talk by L. B. Bosi)
• Study on coherent analysis with a network of
  ITF(poster by S. Birindelli)
• Improvements in the timing accuracy(poster by D.
  Grosjean)

15
Brief overview of Data Analysis at Virgo

• Virgo search groups
• Bursts
• Binary inspirals
• Periodic signals
• Stochastic background
• Noise studies
• Virgo-Bars network
• Virgo-LIGO collaboration

• Coincidence analysis between C6 and C7 run (talk
  by C.Palomba)

16
Brief overview of Data Analysis at Virgo

• Virgo search groups
• Bursts
• Binary inspirals
• Periodic signals
• Stochastic background
• Noise studies
• Virgo-Bars network
• Virgo-LIGO collaboration

• Analysis of prospect of detection in a network
  search Virgo/LSC(talk by G.Cella)

17
Brief overview of Data Analysis at Virgo

• Virgo search groups
• Bursts
• Binary inspirals
• Periodic signals
• Stochastic background
• Noise studies
• Virgo-Bars network
• Virgo-LIGO collaboration

• Search and removal of lines(poster by I. Fiori
  et al.)

18
Brief overview of Data Analysis at Virgo

• Virgo search groups
• Bursts
• Binary inspirals
• Periodic signals
• Stochastic background
• Noise studies
• Virgo-Bars network
• Virgo-LIGO collaboration

• Analyzed 24 hours of data in coincidence during
  Virgo C7 run
• ILIAS-WG2 methodological paper under
  preparation(Talk by L. Baggio)

19
Brief overview of Data Analysis at Virgo

• Virgo search groups
• Bursts
• Binary inspirals
• Periodic signals
• Stochastic background
• Noise studies
• Virgo-Bars network
• Virgo-LIGO collaboration

• Comparison of calibration and pipelines
• Methodological work on simulated data
• Exchanges of short data segments for developing
  and testing networkanalysis methods.

20
Prospects for the future
Virgo commissioning
TIME
Virgo WSRs
Virgo Scientific Run (in coincidence with S5)
2007
Virgo commissioning
Virgo upgrade
2008
Virgo commissioning
Virgo Scientific Run
2009
21
Virgo

• 50 W laser, F150 cavities
• Low loss suprasil end mirrors
• Monolitic suspensions

Thermal noise decreased
Shot noise decreased
22
Summary

• WSR program started and continuing
• with good duty cycle
• improving sensitivity (high frequency almost at
  measured shot noise, comparable with LIGO)
• Commissioning continues
• big efforts in the 50 - 500 Hz region
• Goal to have a Science Run in coincidence with
  LSC S5
• Plans for Virgo upgrade
