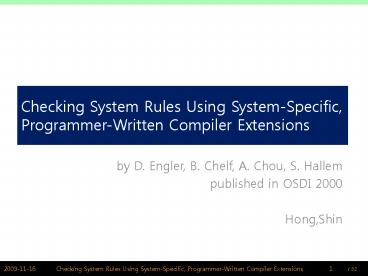

Checking System Rules Using System-Specific,
Programmer-Written Compiler Extensions

• by D. Engler, B. Chelf, A. Chou, S. Hallem
• published in OSDI 2000
• Hong,Shin

2
Contents

• Introduction
• Meta-level Compilation
• Checking Assertion Side-effect
• Temporal Ordering
• Enforcing Rules Globally
• Linux Mutual Exclusion
• Conclusion

3
Introduction 1/4

• System software must obey many rules.
• e.g. check user permission before modifying
  kernel data structures
• A code that does not obey these rules may crash
  the system.
• There are several methods to find violations of
  system rules.
• Model checking
• Testing
• Manual inspection

2009-11-16
Checking System Rules Using System-Specific,
Programmer-Written Compiler Extensions
3
4
Introduction 2/4

• Model checking
• Pros rigorous checking
• Cons models are difficult and costly to
  construct
• Testing
• Pros working with an actual code
• Cons not scalable, finding the cause of a test
  failure can be difficult
• Manual inspection
• Pros easy adapt to ad hoc coding conventions and
  system rules.
• Cons impossible for complex codes, reliability
  of manual inspection is erratic.

5
Introduction 3/4

• One possible alternative is to use static
  compiler analysis to find rule violations.
• Models are not needed.
• Static analysis can examine much more paths than
  testing.
• Reduces the need to construct numerous test cases

• ?Compilers can be used to enforce system rules
  because many rules have a straightforward mapping
  to program source.

6
Introduction 4/4

• Meta-level compilation
• Extends compilers with lightweight,
  system-specific checkers.
• System implementers write extensions in a
  high-level state-machine language, metal.
• Using metal, system implementers can specify
  system rules as code patterns.
• The written extensions are dynamically linked
  into an extensible compiler, xg.
• The extended compiler detects any rule violation
  in an input code by matching the code to
  specified patterns.

7
Meta-level Compilation 1/6

• Many system rules describe legal orderings of
  operations or specific contexts where these
  operations can or cannot occur.
• A meta-level compiler extension can check these
  rules by searching for the corresponding
  operations and checking that codes obey the given
  ordering or contextual restrictions.
• Metal
• Compiler extensions are written in a high-level,
  state-machine language, metal.
• xg compiler translates each input function into
  its internal representation, the extensions are
  applied down every possible execution path in
  that function.

8
Meta-level Compilation 2/6

• Rule templates
• Never/always do X
• e.g. Never use floating point in kernel.
• Always do X before/after Y
• e.g. Always check that user given pointers are
  not null before using
• in kernel.
• Never do X before/after Y
• e.g. Never acquire a lock twice.
• In situation X, do Y
• e.g. While interrupts are disabled, do not call
  functions that can sleep.
• In situation X, do Y rather than Z
• e.g. If code does not share data with interrupt
  handlers, then use
• spin locks rather than interrupt disabling.

9
Meta-level Compilation 3/6

• Ex. a metal state-machine to detect (1) when
  interrupts disabled using cli() are not
  re-enabled using either sti() or restore_flags()
  and (2) duplicate enable/disable calls.

inlcude linux-includes.h sm
check_interrupts decl unsigned flags
pat enable sti()
restore_flags(flags) pat disable
cli() is_enabled disable gt
is_disabled enable gt
err(double enable) is_disabled enable
gt is_enabled disable gt
err(double disable)
end_of_path gt
err(exiting w/intr disabled!)
Variables used in patterns
Patterns
States
10
Meta-level Compilation 4/6
is_ enabled
enable/ double enable
disable
enable
is_ disabled
error
disable/ double disable
end of path/ invalid exit
11
Meta-level Compilation 5/6
12
Meta-level Compilation 6/6

• Metal can specify whether a rule should be
  applied either down all paths (flow sensitive) or
  linearly through the code (flow insensitive).
• Caching is used to prune redundant code paths
  where state-machine instances follow code paths
  that reach the same state.
• The system represents the state of an
  state-machine as a vector holding the value of
  its variables.
• For each node in the input flow-graph, it records
  the set of states where it has been visited.
• If an state-machine arrives at a node in the same
  state as a previous instance, the system prunes
  it.

13
Checking Assertion Side-effects 1/2

• We can find incorrect uses of C assert macros
  using meta level compilation.
• Assertions should not have non-debugging effects.
• If an assert condition has important
  side-effects, these will disappear when the
  assertion is removed and the program will behave
  incorrectly.
• If an assertion expression has any assignment
  operations or function invocations, the assertion
  may have side-effects.
• We can write a metal checker that inspects
  assertion expressions for side-effects.
• In Xoks ExOS library OS, the extension found 16
  violations in 199 assertions.

14
Checking Assertion Side-effects 2/2

• include ltassert.hgt
• sm Assert flow_insensitive
• decl any expr, x, y, z
• decl any_call any_fcall
• decl any_args args
• start
• assert(expr) gt
• mgk_expr_recurse(expr, in_assert)
• in_assert
• any_fcall(args) gt err(func call)
• x y gt err(assignment)
• z gt err(post-increment)
• z-- gt err(post-decrement)

apply the extension linearly over input functions
metal provides a set of generic types for
matching different classes of types
a metal procedure call to apply the state-machine
to the expression in expr in the in_assert state
15
Temporal Orderings 1/8

• Many system operations must (or must not) happen
  in sequence.
• This constraints are well-suited for compiler
  checking since sequences of operations are
  encoded as literal procedure calls in a code.
• - Checking copyin/copyout
• - Checking memory management

16
Temporal Ordering 2/8

• Checking copyin/copyout
• Most operating system guard against application
  corruption of kernel memory by using special
  routines to check system call input pointers and
  to move data between user and kernel space.
• A meta-compilation extension can find errors in
  such code by finding paths where an application
  pointer is used before passing through the
  checking routines.

17
Temporal Ordering 3/8

• At each system call definition, the extension
  uses a special pattern to find every pointer
  parameter, which it binds to a tainted state.
• The only legal operations on a tainted variable
  are being (1) killed by an assignment or (2)
  passed as an argument to functions expecting
  tainted input (e.g. kprintf).
• A tailored version of this checker for Xok
  exokernel code found 18 errors from 187 distinct
  user pointers in the exokernel.

18
Temporal Ordering 4/8

• Checking memory management
• An extension checks four common rules to check
  memory management
• (1) Since memory allocation can fail, kernel
  code must check whether the returned pointer is
  not null before using it.
• (2) Memory cannot be used after it has been
  freed.
• (3) Paths that allocate memory and then abort
  with an error should typically deallocate this
  memory before returning.
• (4) The size of allocated memory cannot be less
  than the size of the object the assigned pointer
  holds.

19
Temporal Ordering 5/8

• We can write metal state-machine to check the
  memory management conditions.
• Pointers to allocated storage can be in exactly
  one of four states unknown, null, not_null,
  freed, or okay.
• A variable is bound to the unknown state at every
  allocation site.
• When an unknown variable is compared to null, the
  extension sets the variables state on the null
  path to null and on the non-null path to
  not_null.
• Pointers passed to free transition to the freed
  state.
• The checker only allows dereferences of pointers
  in not_null state.
• This extension found 132 errors in Linux.

20
Temporal Ordering 6/8

• sm null_checker
• decl scalar sz
• decl const int retv
• decl any_ptr v1
• state decl any_ptr v
• start, v.all
• ((v(any)malloc(sz))0) gt
• truev.null,
  falsev.not_null
• ((v(any)malloc(sz))!0) gt
• truev.not_null,
  falsev.null
• v(any)malloc(sz) gt v.unknown

21
Temporal Ordering 7/8

• v.unknown, v.null, v.not_null
• (v0) gt truev.null, falsev.not_null
• (v!0) gt truev.not_null, truev.null
• v.unknown, v.not_null return retv gt
• if (mgk_int_cst(retv) lt0) err(Error path
• leak!)
• v.null, v.unknown (any )v gt
• err(Using ptr illegally!)
• v.unknown, v.null, v.not_null free(v) gt
  v.freed
• v.freed free(v) gt err(Dup free!)
• v gt err(Use after-free!)
• v.all v v1 gt v.ok

22
Temporal Ordering 8/8
23
Enforcing Rules Globally 1/6

• The extensions described thus far have been
  implemented as local analyses.
• Many system rules are context dependent and apply
  globally across functions in a given call chain.
• Following two Linux rules are checked by global
  analysis
• - Kernel code cannot call blocking functions
  with interrupts disabled or while holding a spin
  lock.
• - A dynamically loaded kernel module cannot
  call blocking functions until the modules
  reference count has been properly set.

24
Enforcing Rules Globally 2/6

• Computing blocking routines
• We build a list of possibly blocking functions in
  three passes.
• (1) Make a list of blocking functions manually.
• e.g. kernel memory allocators called without the
  GFP_ATOMIC flag
• , routines to move data to or from user
  space.
• (2) The metal extension marks a function as a
  potentially blocking function if the function
  directly calls blocking functions in the list.
• (3) Make a global call graph for the entire
  kernel and perform a depth first traversal over
  this call graph calculating which routines have
  any path to a potentially blocking function.

25
Enforcing Rules Globally 3/6

• Checking blocking deadlock
• A metal extension can check both rules by
  assuming each routine starts in an enabled state
  with interrupts enabled and no locks held.
• As it traverses each global code path, if it hits
  a statement that disables interrupt, it goes to a
  disabled state.
• If it hits a potentially blocking function in a
  disabled state, it reports the global code path
  as an error.
• The extension found real 79 deadlock errors in
  Linux.

26
Enforcing Rules Globally 4/6
Disable interrupt
Block function
27
Enforcing Rules Globally 5/6

• Checking module reference counts
• Linux allows kernel subsystems to be dynamically
  loaded and unloaded.
• A module has its reference count tracking the
  number of kernel subsystems using the module.
• A module increment s its reference count during
  loading (by MOD_INC_USE_COUNT)
• decrements it during unloading (by
  MOD_DEC_USE_COUNT).
• A module must protect against being unloaded
  while sleeping by incrementing its reference
  count before calling a blocking function.
• An extension can check for load race condition by
  tracking if a potentially blocking function has
  been called and flagging subsequent
  MOD_INC_USE_COUNT.

28
Enforcing Rules Globally 6/6
Block function
client must be deallocated!
29
Linux Mutual Exclusion 1/2

• The checks for Linux locking conventions are
  important to avoid deadlock in kernel.
• Each kernel function must satisfy following
  conditions
• (1) All locks acquired within the function body
  are released before exiting.
• (2) No execution paths attempt to lock or
  unlock the same lock twice.
• (3) Upon exiting, interrupts are either enabled
  or restored to their initial state.
• (4) The bottom halves of interrupt handlers
  are not disabled upon exiting.
• (5) Interrupt flags are saved before they are
  restored.
• We can write metal state-machine to check these
  conditions.

30
Linux Mutual Exclusion 2/2
hold s-gtlock
s-gtlock is not released.
31
Conclusion 1/1

• Systems are pervaded with restrictions of what
  actions programmers must always or never perform,
  how they must order events, and which actions are
  legal in a given context.
• Programmers make mistakes, and often have only an
  approximate understanding of important system
  restrictions.
• Meta-level compilation makes it easy for
  implementers to extend compilers with lightweight
  system-specific checkers.
• The authors demonstrated meta-level compilations
  power by check real, heavily-used, and test
  systems.

32
References

• 1 Checking System Rules Using System-Specific,
  Programmer-Written Compiler Extensions
• by D. Engler et al, OSDI 2000
