Cooling Tower & Chilling Plants

1

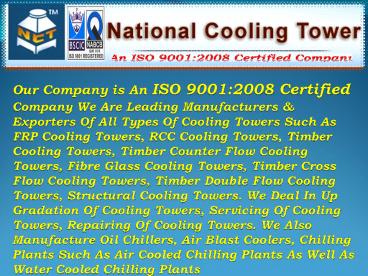

Our Company is An ISO 90012008 Certified Company
We Are Leading Manufacturers Exporters Of All
Types Of Cooling Towers Such As FRP Cooling
Towers, RCC Cooling Towers, Timber Cooling
Towers, Timber Counter Flow Cooling Towers, Fibre
Glass Cooling Towers, Timber Cross Flow Cooling
Towers, Timber Double Flow Cooling Towers,
Structural Cooling Towers. We Deal In Up
Gradation Of Cooling Towers, Servicing Of Cooling
Towers, Repairing Of Cooling Towers. We Also
Manufacture Oil Chillers, Air Blast Coolers,
Chilling Plants Such As Air Cooled Chilling
Plants As Well As Water Cooled Chilling Plants
2

• Profile -
• National Cooling Towers was founded in 1990. The
  National produces both Fibre glass counter flow ,
  Timber Cross Counter Flow Cooling Tower RCC
  Mechanical Draft and Hyperbolic Cooling
  Tower. The National Cooling Towers dedicates to
  providing superior products and services to their
  customers and because of this we have established
  this Internet side to allow you to explore our
  company.
• The Internet is fastest growing tool for
  marketing a companys products and services to
  the customers. The National Cooling Tower is
  proud to introduce its web site to our
  customers. We urge you to spare your valuable
  time to view our site and then contact us
  directly. Need assistance for your custom Cooling
  Tower? Our customer Programs are guaranteed to
  produce the best performance Cooling Towers.
• National is a very fast growing and diversified
  manufacturing and marketing group dealing with
  hi- tech engineering product lines. National
  Cooling Towers enjoys a significant presence in
  Cooling Towers industry. We have supplied our
  Cooling Towers to more than 4,00,000
  organisations from medium size units to corporate
  companies. We have developed an innovative range
  of products that cater to the needs of high
  profile industry demanding the best.

3

• Our product is the complete solution to process
  water cooling by way of designing of cooling
  towers as per your needs in the following range.
  We design the FRP Cooling Towers considering the
  Indian climatic condition using Fulkersons
  Method and CTI Acceptance Test Code for
  calculating air horse power require and
  dimensional sizing format to dissipate heat load
  (Kcal/hr) generated in the Cooling Towers.
• Product Range Per Cell Capacity.
• FRP Induced Draught Cooling Tower 03 to 1000 TR
• Timber Cooling Towers 25m3/hr above
• RCC Cooling Towers 25m3/hr above
• Natural Draft Cooling Towers

4

• Cooling Towers
• F. R. P. COOLING  TOWERS

• Feactures
• Compact Light-Weight Design
• Corrosion Resistant
• Weather Proof Construction
• Environmentally Safe
• Non Conductivity
• Ease of Maintenance
• Modular Evaporation Panel
• Consistence of Structural
• Revolutionary Fills Material
• Ensures Long Lasting Life
• Application
• Air Conditioning Refrigeration Systems
• Paper Textiles
• Chemicals Pharmaceuticals
• Cement Industry
• Engineering, Hotels Hospitals
• Process Cooling Industries

5
RCC COOLING TOWERS
6
TIMBER COOLING TOWERS / WOODEN COOLING TOWERS
7
CHILLING PLANT / WATER CHILLING PLANT

• National Engineers are the designer and manu
  factures of Chilling Plants for core Industries
  whose products output is of national importance.
  Over the past few years these equipment have won
  the confidence of the small and large scale
  manufactures  from various industries especially
  from.
• Plastic Processing Units
• Pharmaceutical Chemicals Process
• Plating  Anodising
• Lubricant Oil Cooling
• Air Conditioning Refrigeration
• Milk Dairy Food Product
• Industrial Cooling

8

• Since we continue to build on our cutting edge in
  technology, which gives us the most effective
  products, which are available in following range.
• Air Cooled Chilling Plant 01TR To
  100TR  Water cooled Chilling Plant. 03 TR TO
  350TR
• Note We are using imported Compressor Bitzer
  German make or Manrope France Make or Kirlsokar
  Copeland USA make for trouble shooting, smooth
  running of the plant.

9
AIR COOLED CHILLING PLANT
PERFORMANCE DETAILS

• Chillers Shell Tube type/PHE with insulated.
• Condenser Air Cooled/Water Cooled Shell
     Tube.
• Housing with easy access to all    components.
• Suction gas cooled fully hermetic    compressor
  with crank case heating.
• Sight glass with moisture filter, dryer,
     cooling agent and oil.
• Control panel, visual function Digital
     temperature controller.
• High / Low Pressure Gauges and Cut out with
  miniature circuit breaker system.
• Function control of all main components with
     visual indication.
• Electrical cabinet accommodating all    necessary
  power and control components.

10
WATER COOLED CHILLING PLANT

SALIENT FEATURES

• Mobile compact space saving.
• Easy to install low maintenance cost.
• Lowest power consumption.
• Energy efficient air / water-cooled compact
  chillers suitable for working in high ambient
  conditions.
• Manufactured Design as per customer
  application.
• Control panel, visual function fault
     indicator, and Digital temperature controller.
  High / Low pressure gauges Cut-out with
  miniature circuit breaker systems.
• Mimic display on panel.
• Pre-dispatch tested.
• Low noise running and no pollution.

11

About Ourselves

12
Mr. S. Chandrasekhar (Managing Director)
OFFICE 26, Amrapali Industrial Estate, Ram Mandir Road, Goregaon (W), Mumbai 400 104. INDIA Tel [phone]/12 Tel [phone]/56 Fax [phone] Email nct_at_vsnl.com Web www.nationalcoolingtowers.com, www.nctcoolingtower.com,   www.coolingtowersandchillingplants.com,  www.nationalengineer.net,  www.chillingplant.net, WORKS Plot No. 148/2 G. I. D. C. Opp. G.E. Power House, Umbergaon396 171, District Valsad. Gujrat State. Tel No 91-260- 2564 290   Plot No. J-22 J-23, GIDC, Umbergaon-396171. Dist. Valsad (Gujrat) INDIA. Tel.[phone].
Year of Establishment Area Occupied April 1990 1,00, 000 Sq. Ft.
Contact Person Contact No RAJESH PATIL 9321146234
13
Production Capacity Capability We are one of
the leading Cooling Tower manufacturers, having
FRP molding shop, Fan Testing unit, Fan Testing
Balancing unit and complete assemble unit.  We
have an installed capacity of 350 Nos. of Cooling
Tower per month i.e. 4200 per year.  With
opening up of our Economy, we have to match our
quality to that of developed countries so as to
face the international competition. We are
installing latest process control equipment in
the plant and new testing equipment in the
laboratory. We are inducing more technical hands
in the quality department.  Financially, we are
enjoying various credit facilities with
Corporation Bank, and they have always extended
co-operation to strengthen our capacity and
capability.
14

Quality Assurance Plan Ours is composite unit,
manufacturing FRP Molding, PVC Fills and Motor
required for Cooling Tower in the factory itself.
Due to this we are able to exercise full control
on the quality of the basic raw material for
Cooling Tower. Our Test bed is equipped with all
the instruments to ensure that the various tests
required under different specification are
conducted before Cooling Tower are cleared for
dispatch. We have also a separate Laboratory for
testing the quality of Raw Material. Each
consignment of Cooling Tower is dispatched to the
customer with an exhaustive test report giving
results of tests conducted in our Test Bed. The
process control checks are carried out at every
stage of manufacturing so that only the right
material goes for further processing. The
control checks are to ascertain that Cooling
Tower manufactured at our works are of desired
quality and comply to the standards to technical
specifications. Our Quality Control Department is
manned by persons having long experience in this
line. We believe that quality is not an accident
but the result of constant vigilance and testing
at every stage of manufacture. Today we can state
with satisfaction that we have received very few
complaints about the quality of our Cooling
Towers during the last ten years. Most of the
complaints were due to mishandling of the Cooling
Tower. The quality of National Cooling Towers is
maintained at high level due to the latest
processing technology with which these Cooling
Towers are manufactured. The following are the
salient features of the process inspection
carried out by us.
15
Details of Machinery Other Equipments
Sr. No. Description Capacity Make Make Nos Remarks
Name M/s. Year
01 Welding Transformers 300Amt. Parel Corporation 1994 4 For Fabricating of Tower Components
02 Vertical Spindle Drilling Machines ½ cd 5/7 cd 5/7 cd SKM Panchal SKM Panchal Padmavati 1994 3 For Header distribution pipe
03 Lathe Machine 6 long map m job size 500mm Quality Machine Tools 1992 1 For Bushes Fabrication work
04 Mechanically Saw Cutting Upto 12 cp New 1994 1 For Cutting Structural
05 Bench Grinder Grinding Machines 2800 rpm Jyoti 1994 2 For Sharping Tools
Name M/s. Year
06 Gas Cutting Set Oxy. LPG (Qutionairy) Indigenous 1994 1 For Various Cutting Operation
07 Air Compressor 3Nos. 5HP, 2HP ½ HP Fijustsu ELGI ELGI 1960 1994 1995 3 For Vaccum forming machines
08 Chain pulley blocks 2TR 4Nos. 1TR 1No. Speed-Herculus 1993 4 1 For Hoisting works
09 Computers P-4 1.7GH Intel Pentium 2002 2 Office works
10 Fax Panasonic Panasonic 1995 2 Faxing
16
 Details of Measuring Instruments Testing
Equipment are Etc
Sr. No. Description Nos. Make Capacity Year Remarks
01 Multi meter 2 ACD machine 0-200 Amt. 0-500 PV 1992 For Electrical Connections
02 Leakage Detector 1 ACD Machine -- 1992 For Checking of Leakage.
03 Tong tester 1 ACD machine 0-500 V 0-200 A 1993 Electrical spot Connection
04 H. V. Tester 1 Sev. Elec. Upto 5 KV 1994 For Testing Volts
05 OHM meter 1 Delta control Upto Ohen 1995 For Checking resistance
06 Digital Multimeter clamped with 500 V insulation testers 1 Imported 1995 For Testing El Circuits
17

• National Cooling Towers have been exporting to
  Nepal, Sudan, U. A. E., South Africa, Sri Lanka,
  Kenya, Nigeria, Vietnam, Bangladesh, Zambia,
  Dar-Es-Salaam, Doha Qatar, Jebel-Ali Dubai,
  Sharjah, Mombasa, Egypt, Ethiopia, Freetown,
  Mauritius, Tanzania, Austria, Cyprus, Sulatnate
  of Oman, Maroco, Malawi, Accra, Ghana, Lusaka

18

• We now look forward to meeting you to discuss
  about your specific requirements.
• Thanking you and assuring you of our best
  attention at all time.
• Yours faithfully,
• For National Cooling Towers,
• For National Engineers

19
Thanking You
