VL Motion Systems - Electric Brakes

1

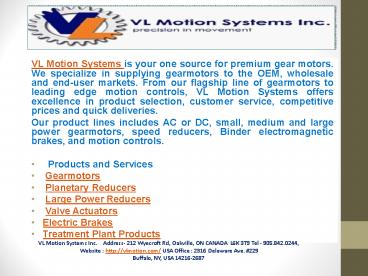

• VL Motion Systems is your one source for premium
  gear motors. We specialize in supplying
  gearmotors to the OEM, wholesale and end-user
  markets. From our flagship line of gearmotors to
  leading edge motion controls, VL Motion Systems
  offers excellence in product selection, customer
  service, competitive prices and quick deliveries.
• Our product lines includes AC or DC, small,
  medium and large power gearmotors, speed
  reducers, Binder electromagnetic brakes, and
  motion controls.
• Products and Services
• Gearmotors
• Planetary Reducers
• Large Power Reducers
• Valve Actuators
• Electric Brakes
• Treatment Plant Products

2


• Spring Applied DC Brake - "K"
  Series
• The brake model K is a spring applied DC
  brake.
• It has been designed to stop rotational
  movement of the machine shaft.
• However the user must ensure that the brake
  is sized accordingly.
• Please contact our office for technical
  application assistance.
• Very strong structure
• Very quiet in operating (lt 70 dBa)
• Simple to install and easy to maintain
• Good heat dissipation
• The coil is fully encased in an epoxy resin
• ?The mechanical parts are protected by zinc
  plating
• Hand release is on request.
• Torque ratings from 5 1500Nm (3.7 1100
  lb.ft)

3


• Spring Applied AC Brake - "AC" Series
• ? The brake series "AC" is a spring applied AC
  brake.
• It has been designed to stop rotational movement
  of the machine shaft.
• However the user must ensure that the brake is
  sized accordingly. Please contact our
• office for technical application assistance.
• Very strong structure
• Very quiet in operating (lt 70 dBa)
• Simple to install and easy to maintain
• Good heat dissipation
• The coil is fully encased in an epoxy resin
• ? The mechanical parts are protected by zinc
  plating
• Hand release is on request.
• Torque ratings from 4.5 400Nm (3.3 295
  lb.ft)

4


• Permanent Magnet Brake - "P" Series
•


• ?
• The "P" series is comprised of DC operated
  brake single-disc brakes where the dynamic effect
  of an electromagnetic field is used to generate
  the braking effect (electromagnetically engaged
  brakes). The products ensure a reliable brake
  release with zero residual torque in any mounting
  position and zero backlash during torque
  transmission. These brakes require little
  maintenance throughout their entire service span.
• Torque ratings from 5 220Nm (3.7 162
  lb.ft)
•


5

• Testimonials
• "Engineering, design and selection of power
  transmission components is crucial to the
  fundamental operations of the machinery we
  manufacture. When the need arises for expertise
  on the selection of these items, we call VL
  Motion. VL Motion provides a sound analysis of
  what components best meet our needs. Quality
  parts that perform to the specifications we
  require. And the service that complements them.
• - Marc Fitzner, P. Eng., President, Calmec
  Precision Limited

6

• Contact Details -
• VL Motion Systems Inc.
•  212 Wyecroft Rd,
• Oakville, ON

• CANADA
• L6K 3T9
• Tel - 905.842.0244
• Fax - 905.845.3009
•  Email- info_at_vlmotion.com
• Website http//vlmotion.com/

Thank you
