Title: VAF Panel Meter in India

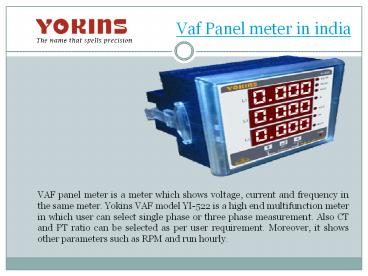

1
Vaf Panel meter in india
VAF panel meter is a meter which shows voltage,
current and frequency in the same meter. Yokins
VAF model YI-522 is a high end multifunction
meter in which user can select single phase or
three phase measurement. Also CT and PT ratio can
be selected as per user requirement. Moreover, it
shows other parameters such as RPM and run
hourly.
2
VAF panel meter is a meter which shows voltage,
current and frequency in the same meter. Yokins
VAF model YI-522 is a high end multifunction
meter in which user can select single phase or
three phase measurement.
3
Voltage(Line to Line and Line to neutral),
Current, Frequency, Power Factor(Pf), kW, kVA,
kVAr, kWh, kVArh, kVAh, RPM, Run hours, Load
hours Microcontroller based meters with low VA
burden. 4 digit 3 line seven segment display .CT
primary range 1A to 50kA AC programmable. CT
Secondary range 0.5A to 5A - AC programmable.
4
Parameter Displayed  Voltage (Line to Line and
Line to neutral), Current , Frequency ,RPM, Run
hours Features - Predefined CT primary ranges
can be selected from 5A to 800A. - 3 digit 3 line
seven segment display. - Run Hour displayed in 5
digit hour and minutes format. - Simultaneous
display of 3 instantaneous parameters.
5
Contact us
Website-
http//www.yokins.com/
E-mail-
yokins012_at_gmail.com
Contact no-
9818070756
