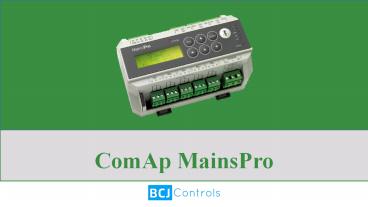

ComAp MainsPro
2
ComAp MainsPro Solar Protection Relay

• Network Service Providers for solar over 30 kW.
  It can be used with any embedded generator
  systems such as gen sets, co-generation, or
  renewable energy sources including photovoltaic
  plants or wind turbines. The ComAp MainsPro
  grants adjustable voltage, frequency, and loss of
  mains functions to safeguard the distribution
  network and the generators.

3
ComAp MainsPro Solar Protection Relay

• With ComAp MainsPro, no special knowledge is
  needed for the installation process and no
  additional units are required. This makes it an
  optimal solution for both untrained personnel and
  professionals. The unit is designed to comply
  completely with Utilities connection
  requirements and statutory codes, offering a high
  level of protection and safety when working in
  parallel to the mains.

4
ComAp MainsPro Solar Protection Relay

• This item can be used within our secondary
  protection units which come as a switchboard
  ready to connect inverter cabling to. Have a
  look here for more info.
• The ComAp MainsPro complies with IEC 60255, G83,
  G59/3, UL508, CEI 0-21, IEn NR 005/2012, VDE V
  0126-1-1 and VDE-AR-N 4105

5
ComAp MainsPro Product Features

• Flexible supply voltage and measurement range
• Suited for standard DIN rail installation or
  door-mount
• User friendly interface with easy setting (no
  software tools needed)
• Simple wiring with removable connectors
• Remote binary communication
• Compact design for installation in restricted
  spaces
• Lost of Mains function and history track function
  (Last 5 events history log)
• Integrated mechanical lock to secure your
  settings
• Breaker failure protection
• Watchdog relay output
• Increased resolution of frequency protection
  settings
• Resistance to frequency jumping

6
ComAp MainsPro Technical Information

• True RMS measurements for more accurate, reliable
  evaluation of failures
• Vector Shift and Rate of change of
  frequency protections are available in a single
  unit to allow for the best fit for each site
• Symmetrical components allow for better detection
  of voltage asymmetry failures
• Two stage settings of voltage and frequency
  safeguards cover short and long term disturbances
  with fitting priority
• Free assignment of five relay outputs allows for
  a large range of signaling and trip methods

7
ComAp MainsPro Technical Information

• Four binary switches to remotely alter unit
  operation
• Adjustable time delay of Automatic fault reset to
  avoid need for personnel on-site
• Universal power supply of 8 40 VDC, 85 265
  VAC, and 110 370 VDC
• Unit is independent on application due to the
  optional voltage range of 120/230/400 VAC with
  over-range to 156/290/520 VAC
• Supports three-phase and one-phase applications
• Last trip is recorded to provide evidence of trip
  cause

8
