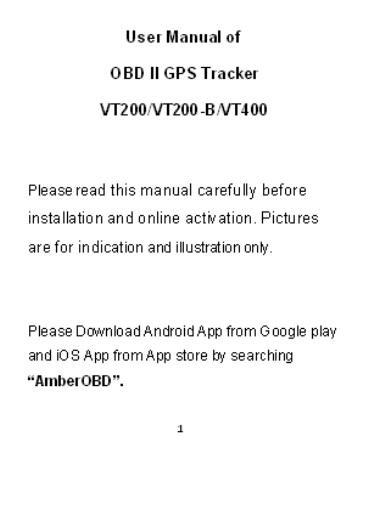

User Manual of OBD II GPS Tracker
VT200/VT200-B/VT400
Please read this manual carefully before
installation and online activation. Pictures are
for indication and illustration only.
Please Download Android App from Google play and
iOS App from App store by searching AmberOBD.
2
1. Introduction
3

• Note Make sure the SIM card supplies all of the
  functions as blow
• Support the 2G GPRS function .
• Enough 2G GPRS data.
• Enough call balance
• SMS function.
• 2. OBD installation position

4
Find the Car OBD interface refer to the diagram.
The interface position is different according to
the vehicle type and model.
3. Indicator All the indicators dark means
equipment power off . All of them keep constant
light when the device in sleeping state. Move
the vehicle to wake up it.
5
LED Constant light Flash
Red Connecting to tracking system by GPRS No GPRS connection
Blue Auto ignition, read car ECU data Car stalls, do not support reading data
Green Get GPS position No GPS position
4. SMS command Send text message (SMS) from your
mobile to the SIM card inserted on device. SMS
command starts with (, ends with ) ,
Separated by',' .
6
All inputs character should be in English. Case
insensitive
Server setting Server setting
Format (Set,Password,server,IP,Port) (Set,Password,server,Domain,Port)
Example (Set,888888,server, 198.11.183.28, 5088) (Set,888888,server, device.amber360.com,5088)
Expected (IP 198.11.183.28,Port5088)
7
feedback (IP device.amber360.com,Port5088)
APN setting APN setting
Format (Set,Password,apn,Apnname)
Example (Set,888888,apn,CMNET)
Expected feedback (APNCMNET)
Query location Query location
Format (Find,Password,car)
Example (Find,888888,car)
Expected feedback http//maps.google.com/?q22.30356 0N,113.549666E
8
Password setting Password setting
Format (Set, Original-password,password, New-password) The initial password is 888888
Example (Set,888888,password,123456)
Expected feedback (password,123456)
5. Warranty Card
Product model
9
IMEI No
Purchase Date
Customer Name
Telephone No
Repair date Defect Content Repairer


10

• Notes
• Please keep the Card well and the device maybe
  cannot be repaired if the card is missing.
• 1 year warranty period.
