L Angle

1

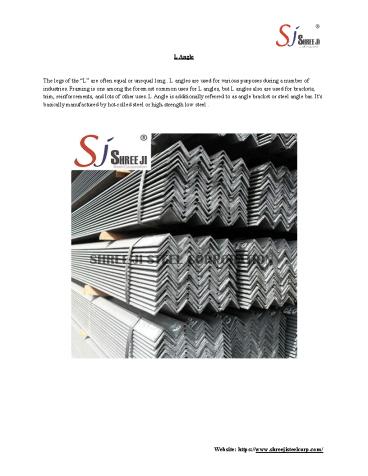

L Angle The legs of the L are often equal or
unequal long . L angles are used for various
purposes during a number of industries. Framing
is one among the foremost common uses for L
angles, but L angles also are used for brackets,
trim, reinforcements, and lots of other uses. L
Angle is additionally referred to as angle
bracket or steel angle bar. It's basically
manufactured by hot-rolled steel or high-strength
low steel .
Website https//www.shreejisteelcorp.com/
2
Product Name L Angle
Type Equal Angle
Brand Shree Ji
Standard IS 1786
Material Mild Steel
Place of Origin Kolkata/Durgapur
Minimum order Quantity within West Bengal 16 Metric Ton
Minimum order Quantity Outside of West Bengal 25 Metric Ton
Application Construction
Usage Engineering Structure Fabrication Activities
L Angle Sizes and Weights L Angle Sizes and Weights L Angle Sizes and Weights
Size (in mm) Weight (in Kg/sq. m) Weight (in Kg/sq. feet)
19x19x3 0.860 0.262
20x20x3 0.900 0.274
23x23x3 1.046 0.319
25x25x3 1.099 0.335
25x25x5 1.798 0.548
30x30x3 1.400 0.426
30x30x5 2.600 0.792
31x31x3 1.280 0.390
35x35x5 2.599 0.792
37x37x3 1.700 0.518
38x38x3 1.850 0.564
40x40x3 1.798 0.548
Website https//www.shreejisteelcorp.com/
3
40x40x5 3.002 0.915
40x40x6 3.498 1.066
L Angle Sizes and Weights L Angle Sizes and Weights L Angle Sizes and Weights
Size (in mm) Weight (in Kg/sq. m) Weight (in Kg/sq. feet)
45x45x5 3.380 1.030
50x50x5 3.799 1.158
50x50x6 4.502 1.372
60x60x5 4.501 1.372
60x60x6 5.399 1.645
60x60x8 7.000 2.133
65x65x5 4.900 1.493
65x65x6 5.798 1.767
65x65x8 7.697 2.346
65x65x10 9.399 2.864
70x70x5 5.300 1.615
70x70x5 6.300 1.920
75x75x5 5.700 1.737
75x75x6 6.800 2.072
75x75x8 8.900 2.712
75x75x10 11.000 3.352
75x75x12 12.200 3.718
80x80x6 7.300 2.224
80x80x8 9.600 2.925
80x80x10 11.800 3.596
90x90x6 8.200 2.499
90x90x8 10.801 3.292
Website https//www.shreejisteelcorp.com/
4
90x90x10 13.400 4.094
90x90x12 15.799 4.815
100x100x6 9.100 2.804
L Angle Sizes and Weights L Angle Sizes and Weights L Angle Sizes and Weights
Size (in mm) Weight (in Kg/sq. m) Weight (in Kg/sq. feet)
100x100x8 12.097 3.687
100x100x10 14.912 4.545
100x100x12 17.701 5.395
110x110x8 13.400 4.084
110x110x10 16.499 5.028
110x110x12 19.600 5.974
130x130x8 15.800 4.815
130x130x10 19.699 6.004
130x130x12 23.300 7.101
150x150x10 22.803 6.950
150x150x12 27.199 8.290
150x150x16 35.800 10.911
150x150x20 44.100 10.911
Rolling Tolerances of L Angle Rolling Tolerances of L Angle Rolling Tolerances of L Angle
Leg Length Sectional weight Length
Up to 45 mm 1.5 mm 3 mm thickness 5 For fixed length 100 mm
45 mm to 100 mm 2 mm Over 3 mm thickness 5/-3
Above 100 mm 2
Website https//www.shreejisteelcorp.com/
5
L Angle Chemical Composition (in max values) L Angle Chemical Composition (in max values) L Angle Chemical Composition (in max values) L Angle Chemical Composition (in max values) L Angle Chemical Composition (in max values) L Angle Chemical Composition (in max values) L Angle Chemical Composition (in max values)
Carbon Manganese Max Sulphur Max Phosporous Max Silicon Max Equivalent
0.23 1.50 0.045 0.045 0.40 0.42
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03
MS Angle Mechanical Composition (in max values) MS Angle Mechanical Composition (in max values) MS Angle Mechanical Composition (in max values) MS Angle Mechanical Composition (in max values) MS Angle Mechanical Composition (in max values) MS Angle Mechanical Composition (in max values)
Tensile Strength Min, Mpa Yield Stress, Min, MPa Yield Stress, Min, MPa Yield Stress, Min, MPa Elongation at gauge length 5.65 v?o Bend Test
mm lt20 mm 20-40 mm gt40 mm min min
410 250 240 230 23 3t (t is 3 times thickness)
