The main components of a generator

1

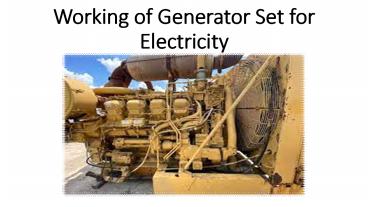

Working of Generator Set for Electricity
2

• Do you have any idea how a generator can work? In
  this post, we have shared in detail how
  a generator set for electricity works.
• A generator is something mysterious. The
  generator works by converting mechanical energy
  into electrical energy and then produces current
  or electricity.
• There are many methods followed by the generator
  sets for electricity. A rotating rotor produces a
  current in an armature. This rotation can be done
  by using a coupling method. For example, you can
  couple a diesel engine with the generator's
  Armature, and then the rotor begins to rotate,
  thus producing current.
• Even in power plants, the high-pressure steam is
  allowed to hit a turbine, and when the turbine
  starts rotating, it is coupled with the Armature
  to produce current.

3
Working of Generators

• Now let's see how an armature can produce
  electricity by rotating. There are two types of
  windings field winding and armature winding.
• The field winding is not rotatable or movable,
  but it is stationary that is fixed. But when it
  comes to armature winding, it is constructed so
  that it tends to be rotated. The field winding
  produces magnetic flux. An induced emf is
  produced when the armature coil begins to rotate
  between the north and south poles.
• This process is explained in Faraday's Law. The
  coil observes the produced emf from the armature
  rotation, and then it gives output. This output
  is nothing but electric power or electricity.
  From this output, we consider AC and DC.

4
Do You Know How a Circuit is Completed?

• It's simple! When an armature starts to rotate,
  it rotates in 360 degrees. If a rotation is
  completed to the generator sets for electricity,
  then a circuit is completed. Once the rotor
  rotates from 0 degrees to 180 degrees, the
  current will be in a forward direction, and when
  the rotor rotates from 180 degrees to 360
  degrees, the current will be in the reverse
  direction.
• The current that changes from one direction to
  another is known as Alternating Current. One
  complete rotation is called 1-hertz frequency.

5
Components Used in the Generator and How it Works

• Generally, the generator produces Alternating
  Current. By using two components, this is divided
  into AC and DC. A component named Slip ring is
  used to produce AC. Slip ring contains a carbon
  brush in between them. When the rotor rotates,
  the slip ring also rotates. As the slip ring
  rotates, it rubs the carbon brush to produce
  electricity.
• For direct current, there is no phase change. A
  component called a split ring is used. It is
  otherwise known as a commutator. When this
  commutator rotates according to the coil, the
  phase either changes forward or backward, and the
  electric current is produced. But this production
  of current will be in one direction only.

6
The Main Components of a Generator

• Engine
• Engines are the hearts of any system. The input
  to the generator comes from the engine. We all
  know, without an engine, any machine or vehicle
  is useless or lifeless. So, the quality of
  Engines should be of good quality. Before buying
  an engine, consider the best advice from the
  experts.
• Alternator
• Alternators are as crucial as engines. It can
  have two types of components like fixed and
  movable. These components help us to produce
  electric current from generators set for
  electricity. As I said before, the fixed
  component is the stator, and the moving component
  is the rotor or Armature. For an alternator, it
  will be better to use a brush-less design because
  it does not require high maintenance.
• Fuel System
• Humans cannot live without food and water, and in
  the same way, Engines cannot run without fuels.
  There are several types of engines, where few
  engines require diesel, few require petrol, few
  needs lubricant oils, and few require different
  types of gasoline.
• Fuel is the only thing that keeps your engine
  healthy, which keeps your engine activated -
  ready to work mode. It should be checked
  regularly. We may never know when the fuel gets
  over.

7

• Voltage regulator
• The voltage regulator is a simple process. By the
  name itself, you can understand that it operates
  to produce voltage. The main goal is to convert
  DC to AC voltage. This process can take place in
  four steps.
• AC voltage converted to DC current
• DC current converted to AC current
• AC current converted to DC current
• DC current converted to AC voltage
• This process will be continuing until the
  required current is produced. The following
  components conduct the above process.
• Exciter windings
• Rotating Rectifiers
• Armature or Rotor
• Cooling and Exhaust System
• When all the components work heavily, then at
  least there should be some rest to freshen up.
  That's why the cooling agents are used. Due to
  loads of work heat will be produced in the
  place.
• To minimize heat production, cooling agents like
  freshwater, hydrogen, and other coolants are
  used. Even in our houses, we use exhaust fans to
  remove the heat produced in the kitchen.
  Similarly, large industries and companies use
  cooling systems.

8
What is the Need to Use Lubricant Oils?

• Lubricants are required to make work easier
  without any sound or tightness. Since the
  generator process is moving, it can become
  tighter, or it can even make sounds. So,
  lubricant oils, greases, etc., are used. You must
  also ensure that there is no leakage. And change
  lubricants when it has reduced in amount. Use
  suitable quality lubricants for its stability.
• Battery Charger
• Without a battery, the engine cannot work.
  Similarly, Without a battery charger, the battery
  will not last. So, every single component is
  necessary.
• Main Frame
• The frame helps the generator to be earthed by
  preventing it from any shock.

9
Conclusion

• The generator is a system that works efficiently
  to produce an electric current. The generator set
  for electricity production has many components to
  generate electricity. They work in a way that
  creates wonder when you see them alive. If the
  generator were not discovered, it would have been
  difficult for the industries to manage their
  workloads.
