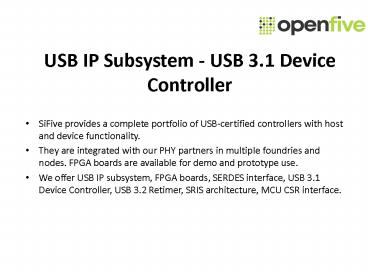

USB IP Subsystem - USB 3.1 Device Controller

• SiFive provides a complete portfolio of
  USB-certified controllers with host and device
  functionality.
• They are integrated with our PHY partners in
  multiple foundries and nodes. FPGA boards are
  available for demo and prototype use.
• We offer USB IP subsystem, FPGA boards, SERDES
  interface, USB 3.1 Device Controller, USB 3.2
  Retimer, SRIS architecture, MCU CSR interface.

2
USB 3.1 Device Controller Key Features

• Compliant with USB 3.1 Gen 2 specification, USB
  3.1 PIPE interface
• Supports 32/64 data bus width
• AXI, AHB bus standards
• Supports 32/64/128 bit data bus
• Supports all USB 3.1 power down modes
• Supports Ccontrol, bulk, Iiochronous and
  interrupt transactions
• Bulk endpoint support streaming
• Device can be configurable up to 15 IN and 15 OUT
  functional endpoints
• Configurable number of function endpoints
• Dynamically configurable endpoint FIFO for
  optimum usage of memory
• Synchronous SRAM interface for FIFO
• Fully integrated DMA controller

3
USB 3.2 Retimer Features

• Compliant to USB 3.1 Appendix E standard
• Supports Gen 1(5G) and Gen 2(10G) speeds
• Supports all low power states
• Supports MCU CSR interface to drive ASIC control
  and status register
• Supports PCS logic with 8b/10b for Gen1 and
  128b/132b for Gen2 support
• Supports SERDES interface
• Optional support to external PHY with PIPE
  interface
• SRIS architecture
• Pass through and local loopback supported
• Provision to monitor key events including
  internal errors
• Provision to monitor link states
• Option to tune PIPE control signal through CSR
  interface
• Master loopback support for production test
• Option to generate LFPS pattern in debug mode
