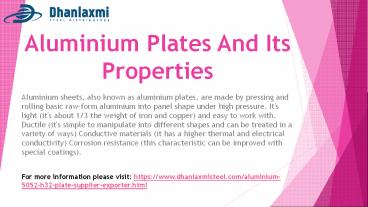

Aluminium Plates And Its Properties

1
Aluminium Plates And Its Properties

• Aluminium sheets, also known as aluminium plates,
  are made by pressing and rolling basic raw-form
  aluminium into panel shape under high pressure.
  It's light (it's about 1/3 the weight of iron and
  copper) and easy to work with. Ductile (it's
  simple to manipulate into different shapes and
  can be treated in a variety of ways) Conductive
  materials (it has a higher thermal and electrical
  conductivity) Corrosion resistance (this
  characteristic can be improved with special
  coatings).
• For more information please visit
  https//www.dhanlaxmisteel.com/aluminium-5052-h32-
  plate-supplier-exporter.html

2
5052 H32 Aluminium Plate

• ALUMINIUM PLATE 5052 H32 is a high-strength alloy
  and one of the most widely used non-heat treated
  grades. Due to their superior characteristics and
  qualities, the plates are widely appreciated and
  utilised in a variety of industries and
  applications. Furthermore, this alloy has a
  greater fatigue strength and is resistant to salt
  water corrosion and the maritime environment.

3
5052 H32 Aluminum Plate Chemical Composition
5052 H32 Value
Si 0.50
Fe 0.50
Cu 3.8/4.9
Mn 0.30/0.9
Mg 1.2/1.8
Cr 0.10
Zn 0.25
Ti 0.15
Al Balance
4
5083 Aluminium Plate

• ALUMINIUM PLATE 5083 aluminium alloy is
  well-known for its outstanding performance under
  extreme conditions. The compound has the highest
  resilience to saltwater and manufacturing
  artificial conditions of all the non-heat
  treatable alloys, however it is not recommended
  for usage in temperatures exceeding 65C.

5
ASTM B209 Aluminium 5083 Plate Specification

• Specifications  ASTM B209 / ASME SB209
• Standard  ASTM, ISO, GB, DIN, EN, etc
• Thickness  0.2300mm
• Width  5002500mm
• Length 50010000mm
• Aluminum Plate Coating  PVC Coated, Color
  Coated, Polyester, Fluorocarbon, polyurethane and
  epoxy coating
• Temper  O, F, H12, H14, H16, H18, H19, H22, H24,
  H26, H32, H34, H36, H38, H111, H112, H321, T3,
  T4, T5, T6, T7, T351, T451, T651, T851
• Form Coils, Foils, Rolls, Perforated Sheet,
  Chequered Plate, Strip, Flats, Blank (Circle),
  Ring (Flange)

6
6082 T6 Aluminium Plate

• ALUMINIUM PLATE 6082 T6 is an alloy made up of
  silicon, manganese, and aluminium that has good
  general properties. This grade has strong overall
  corrosion resistance and is extremely durable
  when used in harsh environments. Rolling and
  extrusion processes are used in the manufacturing
  process. This grade can only be utilised at
  somewhat high temperatures, where it has strong
  strength and performance but is less ductile.

7
6082 T6 ALUMINIUM PLATE SIZES
Sizes (mm) Theoretical Mass KG/Plate
2000 X 1000 X 0.5 2500 X 1250 X 0.5
2000 X 1000 X 0.7 2500 X 1250 X 0.7
2000 X 1000 X 0.9 2500 X 1250 X 0.9
2000 X 1000 X 1.2 2500 X 1250 X 1.2
3000 X 1500 X 1.2 2000 X 1000 X 1.6
2500 X 1250 X 1.6 3000 X 1500 X 1.6
2000 X 1000 X 2.0 2500 X 1250 X 2.0
3000 X 1500 X 2.0 2500 X 1250 X 2.5
8
About us

• Stainless Steel, Monel, Duplex Super Duplex,
  SMO254, BiMetal, Beryllium Copper, Inconel,
  Aluminum, Copper, Brass, Hastalloy, Titanium
  Tantalum Alloys, Nickel High Nickel Alloys,
  Molybdenum, Tungsten, Carbon Steel, Mild Steel,
  Spring Steel, High-Speed Steel, Tungsten Carbide,
  Alloy Steel, White Metal, Lead, Zinc, Tin, etc.
• For more information please visit
  https//www.dhanlaxmisteel.com/
