Title: Recycling Technologies For Li-ion Batteries


1

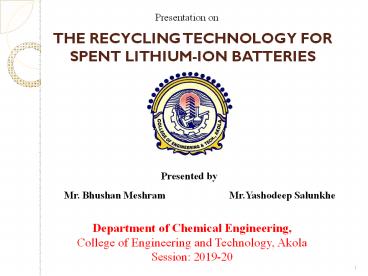

THE RECYCLING TECHNOLOGY FOR SPENT LITHIUM-ION
BATTERIES
Presentation on
Presented by
Mr. Bhushan
Meshram Mr.Yashodeep
Salunkhe
Department of Chemical Engineering, College of
Engineering and Technology, Akola Session 2019-20
2
CONTENTS
  • Introduction
  • Background Of Project
  • Aim Objectives
  • Literature Survey
  • Experimental Work
  • Result
  • Analysis
  • Conclusion
  • References

3
INTRODUCTION
  • Rechargeable batteries have an essential role in
    our lives and are related to many daily
    activities that would be impossible without the
    ability to recharge.
  • Lithium-ion, nickel-cadmium, nickel-metal-hydride
    and lead acid batteries.
  • In this study, we first introduce the working
    principle of lithium ion batteries and their
    components, then conduct a literature review of
    recycling process.
  • On metals Co, Mn, Li and Ni with the aim of
    finding the best conditions for a leaching.

4
BACKGROUND
  • The Current population of India is 136.6 crore as
    the searching survey of Oct-7,19.
  • In that About 800 Million peoples are using
    mobile in that users 500 million are using
    smart-phones.
  • E-waste generated in India Overall Is about 2
    million tonnes/year and up to 4.38 lacks tonnes
    recycled
  • In Among Status Maharashtra generates the most
    e-waste (19) 3.96 lacks tonnes but recycle
    up to 47,810 tonnes.

5
AIM OBJECTIVES
  • Aims to reduce the number of batteries being
    disposed as municipal solid waste.
  • Reduction in waste sent to landfills.
  • Conservation of natural resources, such as metals
    and minerals.
  • Helps prevent pollution by reducing the need to
    collect new, raw materials.
  • Helps create new, well-paying jobs in the
    recycling and manufacturing industries in the
    India.
  • Once the materials are recycled they can be
    reused in making new products.

6
The Recupyl process
LITERATURE SURVEY
  • The Akkuser process

Akkuser recycles the batteries by its own
Dry-Technology method,which is mechanical process
based on magnetic and mechanical separation unit.
  • The Umicore process

Umicore Processes by the pyrometallurgical steps
deploys Umicores unique UTH technology.
  • The Accurec process

High energy density, reactive alkaline metals and
highly flammable electrolutes makes lithium
batteries.
Recuplys recycling process typical separate to
the components of e-waste followed by targeted
hydrochemistry to extract valuable metals.
7
Li-ion batteries recycling market by region, 2019
8
E-Waste Generation India Sate Wise,2019
19.8
19
10.1
9.8
9.5
8.9
8.7
7.6
Madhya Pradesh
9
Principle of lithium-ion batteries
  • A rechargeable lithium-ion battery is formed from
    several cells, each made up by four individuals
    but connected components (cathode, anode,
    electrolyte and separator).
  • Cathodes and anodes are electrodes, which store
    electrical energy as chemical energy.
  • The electrolyte constitutes as a conductive
    medium to assure mobility of the ionic components
    between the anode and the cathode during the
    redox reaction process.
  • The may be a thin micro-porous polymer membrane
    which is placed between the anode and cathode to
    prevent direct contact.

10
  • The working principle (figure shows) of a
    lithium-ion rechargeable battery cell is dealing
    with multiple charging and discharging processes.

e-
e-
e-
e-
MO Li x e- LiMO
LiMO MO Li x e-
Figure shows Schematic of the charge- discharge
process in a lithium-ion battery
11
Lithium-ion battery components The Cathode
  • The cathode is made of a mixture of the active
    material and pasted onto both sides of aluminium
    foil. Typically active materials containing
    80-85 metal oxide powder, 10 polyvinylidene
    fluoride (PVDF) binder, and 5 acetylene black.

Spinel structure LiMn2O4(3D)
Layered LiMnO2(2D)
Olivine structure LiFePO4 (1D)
12
The anode
  • The anode consists of a copper foil coated with a
    paste made of active materials, mainly containing
    90graphite, 4-5 acetylene black and ,More than
    98 of commercial negative electrode materials
    used in Lithium-ion battery system are
    carbonaceous materials.

The electrolyte
  • The selection of electrolyte materials is
    important for the performance of lithium-ion
    batteries, and must be chosen with care to the
    redox environment at both positive and negative
    electrodes. It must also perform stably in a wide
    voltage range (up to 4.5 V for LIB).

13
EXPRIMENTAL WORK
  • Methodology -
  1. Collection

The first step of this research was to collect
mobile phone batteries from mobile phone repair
shops ,Collecting about 20 Li-ion batteries of
different brands.
  1. Dismantling and crushing

Each battery was cut into three or four parts
with the help of metal cutting scissors, which
were then crushed with a 500-W blender.
  1. Sieving and classification

After crushing, a sieve was applied for 2 min,
which consisted of four meshes.
14
Corresponding to mesh 18, 35, 60, and 140 with
openings of 1 mm, 0.50 mm, 0.25 mm, and 0.105 mm,
respectively.
  1. Leaching

Black mass samples were added to the leaching
agent in a plastic beaker.
  1. 4LiCoO2(s)6H2SO4(aq)
    4CoSO4(aq)2Li2SO4(aq)
    6H2O(g)O2(g)
  • 4LiMnO2(s) 6H2SO4(aq)
    4MnSO4(aq)2Li2SO4(aq)
  • 6H2O(g)O2(g)
  1. Filtration

The leach solution and insoluble residues were
immediately separated by some filtration
methodes.
15
Dismantling
Interior Part
Components
Blender 500W
Sieving
Powder
16
Leaching
Liquid Mixer-separatoration
( Li2SO4(aq) , MnSO4(aq) )
Lithium(Li)
Evaporation
Cobalt (Co)
Manganese(Mn)
Electrodeposition
(CoSO4(aq) )
17
The solid residues from filtration were left to
dry and then they were weighed. The leaching
recovery rate was calculated.
Liquidliquid extraction
In order to separate the liquid mixtures , batch
experimentation was performed in a 500mL beaker
using an aqueous-to-organic-phase.
Electro-deposition
The stripping solution of cobalt was treated in a
system with a lead anode and stainless-steel
cathode, both with an area of 0.00499 m2. The
electrodes were cleaned and polished and the
temperature was controlled.
18
Result
  • The examined temperatures of 28C, 40C, 50C and
    60C, leaching at 60C seen to be an optimal
    temperature the leaching efficiencies not being
    much different from the one at 60C.
  • It was observed that at a leaching time of 30min
    that almost all the metals reached their maximum
    efficiency .
  • The optimal solid-liquid ratio for leaching was
    indicated to be 1/20 g/ml.
  • The effect of concentrations was studied by using
    0.5M, 1M, 2M and 3M of H2SO4 show that the
    optimal concentration for leaching was 2M H2SO4
    in this study.

19
  • Effect Of H2O Concentration On Leaching Process

Leaching Efficiency()
Concentration Of H2SO4
20
  • Effect of temperature on the leaching

Temperature C
21
CONCLUSION
  • The aim of this study was to investigate the
    optimal leaching conditions for recovery of Co,
    Mn, Li and Ni from spent lithium-ion batteries by
    using a hydrometallurgical treatment.
  • Parameters such as temperature, concentration of
    H2SO4, leaching time and solid-liquid ratio.
  • By analyzing leaching efficiencies could be
    calculated and the optimal leaching conditions
    could be indicated.
  • From this study, it was indicated that the
    temperature effect on the leaching process at
    50C, with no noticeable effect when using 3M
    H2SO4 compared to 2M.

22
REFERENCES
  • X. Zheng et al., A Mini-Review on Metal
    Recycling from Spent Lithium Ion Batteries,
    Engineering, vol. 4, no. 3, pp. 361370, 2018.
  • W. Gao et al., Comprehensive evaluation on
    effective leaching of critical metals from spent
    lithium-ion batteries, Waste Manag., vol. 75,
    pp. 477485, 2018.
  • P. Meshram, B. D. Pandey, and T. R. Mankhand,
    Extraction of lithium from primary and secondary
    sources by pre-treatment, leaching and
    separation A comprehensive review,
    Hydrometallurgy, vol. 150, pp. 192208, 2014.

23
