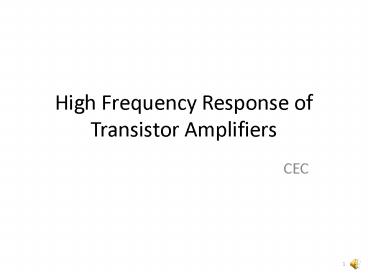

High Frequency Response of Transistor Amplifiers

• CEC

2
Contents

• Introduction.
• h-parameter model.
• Capacitive Effects.
• Base Spreading Resistance.
• Approximate hybrid-p model.
• CE Short Circuit Current Gain.
• Gain-Bandwidth Product.

3
Transistor
4
Approximate Hybrid Parameter Model
Common Emitter Configuration h parameter model
5
Hybrid Parameter Model
6
h-parameter Model

• Transistor modeled as a two port network.
• Will suffice as a low frequency model for
  transistor amplifiers.
• At high frequencies, junction capacitances will
  come into play.
• Forward biased emitter base junction exhibits
  capacitance.
• Reverse biased collector base junction exhibits
  capacitance.

7
h-parameter Model

• Capacitive effects to be considered at high
  frequencies
• Transistor/Amplifier parameters may vary at high
  frequencies.
• h-parameter model may not be suitable at high
  frequencies.

8
High Frequency Response

• Depends on transistor capabilities.
• To consider capacitive effects of PN Junctions.
• Hybrid p model incorporates junction
  capacitance effects.
• Hybrid - p model permits determine CE short
  circuit current gain and its dependence on
  frequency.
• Hybrid - p model also called Giacoletto Model.

9
High Frequency Response

• To consider capacitive effects of the junctions
  to determine the upper 3 dB frequency.
• Forward biased PN junction exhibits diffusion
  capacitance.
• Reverse biased PN junction exhibits transition
  capacitance.
• Base Spreading Resistance bulk resistance of
  the base, portion of the base through which base
  current proper flows.

10
Base Spreading Resistance
11
Base Spreading Resistance
Resistance between base region and base terminal.
rbb Base Spreading Resistance
12
Hybrid p Model of Common Emitter Transistor
Bulk Resistance of the base
Transition Capacitance due to reverse biased
collector-base junction
Virtual Base
Base Terminal
Vbe
Diffusion Capacitance due to forward biased
emitter junction
13
Capacitive Effects

• Capacitive effects negligible at low frequencies.
• Input resistance from base to emitter with output
  shorted hie rbb rbe.
• rbc that shunts Cbc is normally large 4MO ,
  neglected.
• Output Resistance rce gtgt RL, ignored when RL
  connected across.

14
Transconductance

• Mutual Conductance or Transconductance at
  constant VCE , gm since VBE
  cannot be measured.
• More accurately gm where VT .
• Output current generator has a value given by
  gmVbe.
• Since rbc is very large and rce gtgt RL, we can
  approximate the hybrid p model.

15
Approximate hybrid p model
16
CE Short Circuit Current Gain
Current Gain with output shorted
Ii
where
Ai (IL/Ii)
CE short circuit forward current transfer ratio
cutoff frequency.
17
Beta Cut Off Frequency

• fß is the common emitter forward current transfer
  ratio cut off frequency.
• Frequency at which a transistors CE short
  circuit current gain drops 3 dB from its value at
  low frequencies.
• Maximum attainable bandwidth for the current gain
  of a CE amplifier with a given transistor.

18
a and ß Cut Off Frequencies
fa gt fß
CE Configuration
CB Configuration
fa
fß
19
Approximate High Frequency Model with Resistive
Load
Subject to Miller Transformation
20
Approximate High Frequency Model with Resistive
Load
Additional Capacitance due to Miller Effect
C Cbe Cbc(1 gmRL)
fT 1/(2prbeC)
21
Gain Bandwidth Product

• fT is the frequency at which common emitter
  short circuit current gain falls to unity.
• fT hfefß hfbfa
• fT is the product of low frequency gain hfe and
  the CE bandwidth fß .

22
Gain Bandwidth Product
Gain
23
Effect of Source Resistance
Upper Cut off frequency
fH
R (Rs rbb) rbe
Source Resistance
24
