Selection of the best material & documentation in defense industry

1

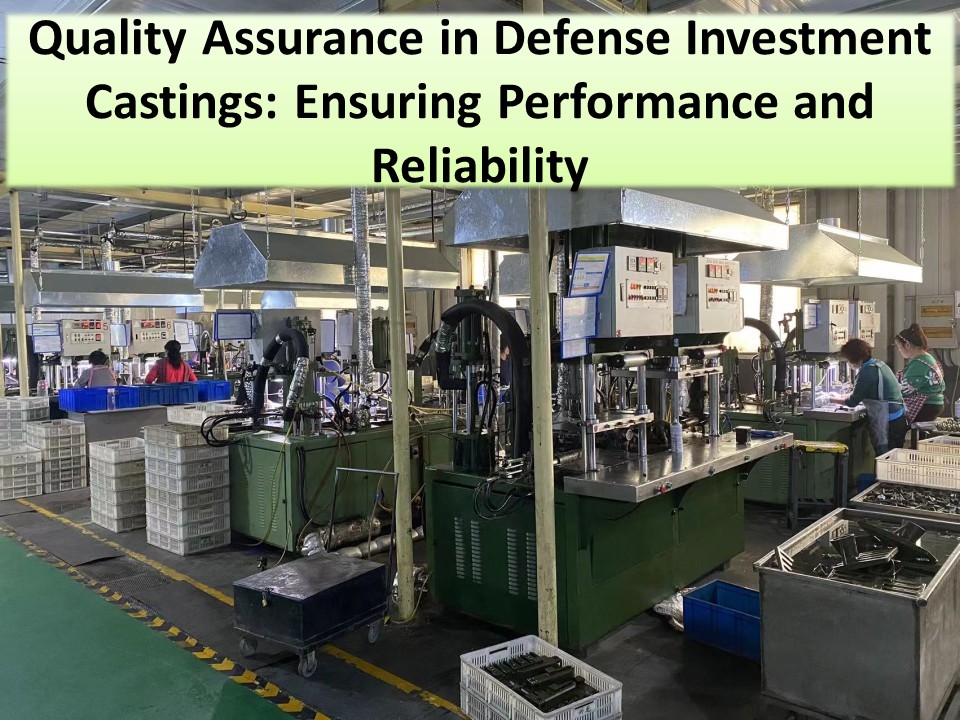

Quality Assurance in Defense Investment Castings
Ensuring Performance and Reliability
2

• Among the many casting technologies, investment
  casting stands out due to its capacity to make
  components with an excellent level of accuracy.
  As for investment casting, what exactly is it?
  The manufacturing method entails the creation of
  a wax model of the required component, followed
  by the application of a refractory substance to
  the wax model in order to fabricate a mold. After
  that, get the wax to melt so that you may pour
  the molten metal into the hollow. After that, the
  final component is acquired by the process of
  solidification and breaking of the refractory.

3
Applications in the Defense and Military Sector

• The manufacturing of components for weapons,
  components for vehicles, and aerospace defense
  systems are all examples of investment castings
  for defence industry sector. It fulfils the need
  for components that are able to function
  dependably even when subjected to harsh
  circumstances. Investment casting, on the other
  hand, makes it possible to manufacture components
  that possess the strength, accuracy, and
  durability that are necessary for commercial and
  military applications.
• When it comes to military investment castings,
  the effect of quality assurance that is not up to
  grade cannot be understated. Accuracy and
  dependability are of the utmost importance in the
  military technology sector. When it comes to the
  performance and safety of military systems, even
  the slightest reduction in the quality of cast
  components may have far-reaching effects.

4

• It is possible for military systems to develop
  major flaws as a result of inadequate quality
  assurance, which leaves them susceptible to
  breakdowns at important periods. Any fault or
  imperfection in a casting has the potential to
  impair the accuracy and reliability of the system
  as a whole, regardless of whether it is a minor
  component in an aircraft engine or an essential
  component in a missile guidance system.
• The impact of substandard quality assurance on
  military systems goes beyond the immediate
  concerns about safety and extends both to the
  operational efficiency and cost-effectiveness of
  the systems." It is possible for faulty castings
  to result in frequent failures, greater expenses
  for maintenance, and delays in operations. All of
  these factors may have substantial repercussions
  for the preparedness and effectiveness of the
  defensive infrastructure.

5
Selection Of The Best Material And Documentation
In Defence Industry

• 1. Choosing the appropriate materials
• This is yet another essential component of
  quality control in the military investment
  castings industry. Components that are able to
  survive harsh circumstances, such as high
  temperatures, corrosive environments, or
  ballistic impacts, are often required for use in
  military applications. For the purpose of
  military castings, materials such as super
  alloys, stainless steel, and titanium are often
  used due to the exceptional strength, heat
  resistance, and corrosion resistant capabilities
  that these materials provide. For the purpose of
  ensuring that each material satisfies the
  mechanical and chemical criteria that have been
  set for the application in question, each
  material is subjected to stringent testing and
  validation.

6

• 2. Quality of the components
• After the material the quality of the components
  is monitored and evaluated during the whole
  casting process, and quality control procedures
  are performed at each and every step of the
  process. It is possible to identify surface
  defects, internal faults, and dimensional errors
  via the use of non-destructive testing
  procedures. Some examples of these techniques are
  X-ray inspection, ultrasonic testing, and dye
  penetrant testing. In order to uncover any flaws
  that can impair the component's performance or
  dependability, these tests are carried out with
  the utmost precision and accuracy.
• 3. Thorough documentation
• When it comes to quality assurance in military
  investment castings, traceability and
  documentation are two things that are very
  necessary. Each individual component is given a
  one-of-a-kind identifying number, and they are
  subjected to comprehensive documentation at each
  and every step of the manufacturing process. The
  thorough documentation not only assures that the
  components comply with industry standards, but it
  also makes it easier to diagnose, maintain, and
  update the components in the future.

7
Bottom Line

• In summary, it is impossible to overestimate the
  importance of quality assurance in guaranteeing
  the dependability and effectiveness of investment
  castings for defence industry. The military
  sector places the greatest expectations on
  components' accuracy, robustness, and
  performance, and investment castings are
  essential to fulfilling these needs.
