Pathogenesis of Mycobacterioses, especially Tuberculosis

1

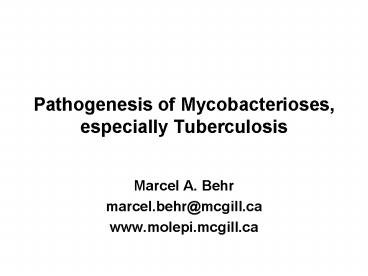

Pathogenesis of Mycobacterioses, especially
Tuberculosis

• Marcel A. Behr
• marcel.behr_at_mcgill.ca
• www.molepi.mcgill.ca

2
Mycobacterial pathogenesis overview

• Lecture 1
• Introduction and definitions
• Epidemiology
• Pathogenesis of TB infection and disease
• Clinical Manifestations
• Treatment and control
• Lecture 2
• Host factors
• Virulence factors
• Immunity and Vaccination

3
Mycobacteria Background

• Most Mycobacteria non-pathogenic
• soil water organisms
• more named each year (sampling)
• Pathogenic Mycobacteria
• Can be environmental-humans accidental host
• E.g. Mycobacterium avium
• Can be obigate pathogens with no known
  environmental reservoir
• E.g. Mycobacterium leprae

4
Mycobacteria are not limited to the tropics
Leprosy in Norway, 1851-1920 Rates low in cities
where TB rates high
5
Pathogenic Mycobacteria Properties

• Most slow growing, doubling on order of day (c.f.
  E coli 30 min.)
• Gram-positive, but dont gram stain
• Mycolic acid cell wall
• acid fast staining
• Wall protects bacteria from environment,
  molecular biology
• Wall immunostimulatory Freunds

6
Non-tubercuous Mycobacteria pathogenic to humans

• Mycobacterium avium sp. avium
• Avian tuberculosis
• In humans
• disease in AIDS
• Chronic pneumonia
• Lymph node disease in children
• M. avium sp. paratuberculosis
• Inflammatory bowel disease in ruminants, primates
  (Johnes disease)
• In humans implicated by some in Crohns
• M. leprae
• The agent of leprosy

7
Non-tuberculous mycobacterial infections in
Swedish children
Rates increasing where TB gone, BCG stopped
BCG discontinued
8
Mycobacterium tuberculosis

• M. tuberculosis complex
• Includes M. tuberculosis, M. bovis, M. caprae, M.
  microti, M. africanum
• Identical by 16s rRNA sequence
• Homology in other genes usually 99 or more
  (thus, one species)
• Agents of tuberculosis (TB) in a variety of
  mammalian species

9
Clinical Definitions

• Tuberculous infection is the carrier state, aka
  latent infection
• clinically latent, either because bacteria latent
  or bacterial replication death
• non-infectious, tuberculin positive
• Tuberculosis is diseased state
• actively replicating bacteria
• contagious, culture positive

GET IN STAY IN
GET OUT SPREAD
10
Clinical Definitions

• Tuberculous infection is the carrier state, aka
  latent infection
• clinically latent, either because bacteria latent
  or bacterial replication death
• non-infectious, tuberculin positive
• Tuberculosis is diseased state
• actively replicating bacteria
• contagious, culture positive

Bacterial survival
Bacterial pathogenesis
11
TB Epidemiology

• Originally from animals, ca. 15,000 B.C.
• With pasteurization, most TB now due to human -
  human Respiratory aerosols
• 1/3 worlds population carry M. tuberculosis
• not infectious
• 8 million cases / year
• contagious
• 20 million active TB cases
• 2 million deaths / year (tied with AIDS 1)

12
(No Transcript)
13
TB and AIDS Epidemiology

• Infection rates often high to both
• Most notably sub-Saharan Africa, South-East Asia
• M. tuberculosis accelerates progression of HIV to
  AIDS
• TB cause of death in about 25 AIDS
• HIV infection is single strongest risk factor for
  progression of TB infection to TB disease
• Evil synergy where resources most limited

14
Pathogenesis of Mycobacterial infections

• Best studied for M. tuberculosis
• Initial insult likely function of
• which Mycobacterial species
• dose and site of infection (gut / lungs)
• immune status of host
• age
• constitutive immunity (host genetics)
• acquired immunity (naïve vs. primed, HIV,
  nutrition, etc.)

15
Outcomes after TB exposure

• Exposure, no infection
• ? Frequency (2/3 TB contacts dont test )
• ? Bacteria dead at contact
• Exposure, infection, never disease
• 90 wont get disease if immune status OK
• 10x more common than disease
• Exposure, infection, disease, /- death
• Variable latent period
• 5 in 5 years, 5 in rest of life

16
Overview of TB
90 no sequellae
Primary infection (tuberculin positive)
5 primary TB (within 2 years)
GET IN
5 reactivation (later in life)
GET OUT
STAY IN
17
Pathogenesis of TB - 1

• Aerosol travels to alveoli of lungs
• M. tuberculosis engulfed in alveolar macrophages
• if activated (e.g. healthy adult), host may clear
  bacteria, or at least contain infection
• tuberculin positive
• if unactivated (e.g. infant), bacteria survive
  and replicate in macrophages
• attract more cells (PMNs, T-cells), damage
  tissue, and form granulomatous tubercle

18
Pathogenesis of TB - 2

• Tubercle can remain silent (abN X-ray)
• Granulomatous response may fail to contain
  bacteria
• Immediate lymphatic / hematogenous spread
  (primary TB)
• Granulomatous response can result in tissue
  damage
• N.B. TNF - alpha production
• Granuloma may remain wall off for years to
  decades, then allow release of viable bacteria
  reactivation

19
Pathogenesis of TB - 3

• Infection starts in lungs, but may spread to
  anywhere in body (15 cases)
• Extrapulmonary TB generally not contagious,
  therefore dead-end for bacteria
• Primary TB, Post-primary TB, Reactivation
  TB as pathophysiological concepts
• Clinically not always evident
• For treatment, irrelevant

20
Clinical Manifestations of TB

• General
• fever, weight loss, weakness, consumption
• result from inflammatory response
• Organ specific
• pneumonia cough, sputum /- blood
• scrofula swollen lymph nodes
• genitourinary sterile pyuria
• bone back pain, fracture, hump-back
• meningitis headache, obtundation
• miliary TB no obvious source

21
Chest radiograph in pulmonary TB
Abnormalities often seen in upper lobe or
superior segments of lower lobe May have unusual
appearance in HIV-positive persons Cannot
confirm diagnosis of TB but useful screen,
because this is most contagious form
22
Strategies for TB control

• Preventive vaccination
• Immunize prior to exposure with goal to
• Prevent establishment of infection
• Prevent infection from developing to disease
• Immunize post exposure to
• Prevent established infection from progressing
• Antibiotic treatment
• Can target active TB or latent infection

23
Antibiotic treatment of TB

• TB disease
• Untreated TB disease generally lethal can
  survive years
• Therefore, TB treatment can
• Reduce individual mortality
• Prevent spread of infection
• TB infection
• 10 will get disease
• Therefore, treatment of latent infection can
  prevent progression to active disease

24
How to treat active TB1 - diagnosis

• Canada culture, PCR
• Can detect small numbers of bacteria
• This translates into capacity to detect disease
  early
• Developing world microscopy only
• Only positive when large numbers of bacteria
• Many patients have progressed to substantial
  disease burden when first diagnosed
• More complicated to treat (they are sicker)
• Further spread already achieved

25
How to treat active TB2 antibiotic therapy

• Diseased individual 105 bacteria / ml sputum x
  1 litre liquified lung
• If spontaneous mutation rate to isoniazid 10-6
  bacteria, INH alone should select for resistance
• Clinical response followed later by relapse with
  drug-resistant TB
• Add rifampin (10-8 bacteria), resistance to both
  unlikely

26
Difficulties with treatment of active TB

• Multi-drug treatment required
• Only learn of antibiotic susceptibility after
  about 6 weeks
• Therefore, usually begin with 4 drugs
• Short-course antibiotic regimen is 6 months
• Resistance can result from
• Failure to take all medications
• Failure to be provided with steady supply of
  medications
• Resistant forms can of course spread

27
How to treat latent TB infection1 - diagnosis

• Canada tuberculin skin test
• Detects immune response (DTH) to bacteria
• Limitations
• Can have weak false positive response due to
  infection with other Mycobacteria
• Can be transiently positive after BCG vaccination
• Can be negative in persons with weakened immune
  system (i.e. those at higher risk of progressing)
• Developing world who has time for this?
• 1/3 of all people positive
• Can we realistically treat 2 billion people?

28
How to treat latent TB infection2 antibiotic
therapy

• Infected individual should have small bacterial
  burden
• Unclear how many actively replicating
• Treatment usually consists of isoniazid alone for
  9 months
• No clinical response to follow
• Easiest to target those most likely to progress
  to active TB
• Recent infection (5 in 5 years)
• Immune compromised (HIV, transplant)

29
Difficulties with treatment of latent TB infection

• Hard to ensure adherence in someone who
  essentially feels well
• Never get antibiotic susceptibility
• Therefore, hope INH sensitive
• Resistant forms require antibiotics of unproven
  efficacy in this setting

30
Summary

• Epidemiology
• 1 infectious disease
• Pathogenesis
• Establishment of infection
• Progression to disease
• Clinical Manifestations
• Pulmonary TB contagious, good for the bacteria
  but bad for the host
• Treatment and control
• Antiobiotics alone not doing it

31
Mycobacterial pathogenesis overview

• Lecture 1
• Introduction and definitions
• Epidemiology
• Pathogenesis of TB infection and disease
• Clinical Manifestations
• Treatment and control
• Lecture 2
• Textbook issues
• Host factors
• Virulence factors
• Immunity and Vaccination

32
Textbook

• p295 TB is more contagious in infants and
  children than it is in adults
• 32 of children who rode bus were infected
• Infection rate normal
• 51 of 81 infected children developed active TB
• Progression to active disease in gt ½
• Does this reflect that TB is more contagious or
  more likely to cause active disease in children?
• p305 The demise of the Nramp1 hypothesis
• Still alive
• p306 M. microti is a BCG alternative.
  Ubiquitous environmental Mycobacteria that
  interfere with immune response include M. avium,
  M. terrae., M. scrofulaceum

33
Overview of TB
90 no sequellae
WHY?
Primary infection (tuberculin positive)
5 primary TB (within 2 years)
GET IN
5 reactivation (later in life)
GET OUT
STAY IN
34
TB pathogenesis two genomes do battle
M. tuberculosis
H. sapiens
Virulent vs. attenuated
Susceptible vs. resistant
10
90
TB infection (2 billion people)
Active TB (2-3 million deaths / year)
35
TB pathogenesis three genomes do battle
M. tuberculosis
H. sapiens
Virulent vs. attenuated
Susceptible vs. resistant
40
60
TB infection (2 billion people)
Active TB (2-3 million deaths / year)
HIV
36
What is normal outcome of interaction?

• Host 90 of infections do not result in disease
• Therefore, disease is anomaly
• Bacteria infection without disease is dead end
• Therefore, disease is necessity
• This does not set up well for compromise
• Best case scenario, have disease in minority

37
Determining host factors

• Classic epidemiologic studies
• Genetic epidemiologic studies
• Candidate gene approach
• Agnostic search (whole genome scan)
• Rare genetic diseases
• Animal models
• Acquired immunedeficiency
• Natural experiments, e.g. HIV

38
Determining host factors

• Classic epidemiologic studies
• Genetic epidemiologic studies
• Candidate gene approach
• Agnostic search (whole genome scan)
• Rare genetic diseases
• Animal models
• Acquired immunedeficiency
• Natural experiments, e.g. HIV

39
Host factors Epidemiology

• Extremes of age (infants, elderly)
• More likely to develop active TB
• Male sex
• Men outnumber women throughout world
• HIV infection
• Stongest risk factor in causing reactivation of
  previous latent infection
• Also accelerates rate from new infection to rapid
  primary disease
• Smoking, Drinking, Drugs
• Appear to increase risk of TB, but marker of
  exposure or risk factor?

40
Host factors Genetic Epi

• Candidate genes from animal models
• Nramp1 a player in the Gambia, Northern Alberta
• Stronger effect in primary disease
• Vitamin D receptor mutations
• Mannose binding protein
• Unidentified gene on X chromosome

41
Host factors Rare genetic defects

• Occasional families observed with rapidly
  disseminating disease
• Can be disease due to BCG vaccine
• Can include other non-pathogenic Mycobacteria
• Also, occasionally Listeria, Salmonella
• Lessions
• Gamma-interferon receptor
• IL-12
• IL-12 receptor

42
Bacterial factors

• Bacterial factors
• Infection
• Persistence
• Provocation of disease state to continue
  transmission cycle

43
Problem with defining TB virulence

• M. tuberculosis more virulent for humans than
  cows
• M. bovis more virulent for cows than humans
• Which one is more virulent?
• Both of these more virulent for humans than other
  Mycobacteria
• What makes M. tuberculosis complex more virulent?

44
Problems with studying TB virulence

• Biohazard
• need proper facilities
• Slow generation time
• need patience
• Targeted gene disruption very difficult
• homologous recombination works poorly

45
Difficulties in studying TB virulence animal
models

• Human studies unethical
• Monkeys closest disease to humans
• expensive, also ethics issues
• Rabbits close in pathology
• get cavitary lung lesions
• Mice cheapest, easier
• specific immune defects and reagents
• help understand lack of containment of primary
  infection
• Cell culture easiest
• Only one cell, therefore immunologically
  simplified

ease
relevance
46
Difficulties in studying TB virulence - 3

• Models help understand specific process, but
  dont necessarily emulate natural pathogenesis
• No animal model for latency
• No animal model for late reactivation
• No animal model for effect of BCG vaccination on
  exposure much later in life

47
Key Steps in TB Pathogenesis

• Bacteria get into the cell
• Bacterial survival in phagocytes
• Avoidance of activated macrophage response
• Bacteria thrive in phagocytes
• How to make the macrophage your home
• Bacteria apparently wait it out
• Latency if inactive, then inert?
• Tissue destruction
• Whos fault is this?

48
Entry and survival in Phagocytes Theories

• Alternate entry into macrophage
• Multiple methods in suggest that the bacteria
  wants to go there
• Not so much phagocytosis as invasion
• Impaired acidification of phagosome
• impaired action of lysosomal enzymes at higher pH

• Delayed fusion of phagosome-lysosome
• Neutralization of oxygen radicals
• catalase, phenolic glycolipids
• Escape from phagosome into cytoplasm?

49
Avoidance of activated macrophage response

• Lipoarabinomannan (cell wall glycolipid)
• inhibits T cell proliferation
• blocks IFN-gamma activation in macrophage cell
  lines
• Ag85 blocks fibronectin (which stimulates
  T-cells)
• Other factors?

50
Latency

• Big debate
• Con
• no evidence this exists
• bad lesson from HIV latency paradigm
• Pro
• most bacteria move slow in soil
• Mycobacteria have all the genetic apparatus for
  anaerobic life, genetically similar to spore
  forming organisms
• vegetative growth perhaps the abnormal condition

51
Latency - advantages

• Great way to see the world
• hedge against disasters
• Metabolically inert may mean antigenically inert
• hide from immune system in phagocyte
• Metabolically inert likely means not susceptible
  to antibiotic therapy
• treatment of latent infection 60-90 effective

52
Tissue destruction

• Mycobacteria immunostimulatory
• host response kills the patient
• host response also renders the patient
  contagious, liberating the bacteria
• Mycobacteria stimulate TNF-alpha, which does the
  damage lung becomes an atomizer
• Cant explain species specificity unless can
  explain degree of TNF stimulation
• Certain antigens can evoke DTH response
• Mycolic acids from cell wall toxic when injected
  into animals

53
Genomic analysis of virulent and attenuated
strains

• BCG vaccines are lab attenuated
• In vitro growth for 5 decades
• Reduced virulence with in vitro passage
• Circulating isolates in S.F. have enough to cause
  disease
• Compare the genomes of circulating clones and BCG
  vaccines, by hybridizing to Genechip

54
Affymetrix genechip
55
Affymetrix genechip detail
20 tiles for one gene
56
A Probe Set (DNA Chip)
Perfect Match
Mismatch
AGGCTATCGCACTCCAGTGG
Perfect Match
AGGCTATCGTACTCCAGTGG
Mismatch
57
Genechip properties

• With 100,000 probes on chip
• Can have 20 probes per gene
• Permits one to scan for genomic deletions smaller
  than complete genes
• Rapidly can catalogue small genomic deletions
• Not single nucleotide polymorphisms,
  rearrangements, duplications

58
Lessons from comparative genomics

• BCG vaccines have lost more genome in 5 decades
  than circulating clones in ? 5 centuries
• BCG vaccines are missing regulatory genes and
  antigens
• Circulating clones are missing insertion elements
  and phages
• Could loss of antigens be responsible for loss of
  virulence?

59
Targeted analysis of RD1

• One region (RD1) absent from all BCG strains,
  present in all virulent strains
• 9.5 kB, 9 open reading frames, none with known
  function
• 2 antigenic proteins
• Goal
• Delete RD1 from H37Rv by allelic exchange
• Look for virulence phenotype
• If attenuated, explore why

60
Growth in macrophages
Bacteria / well (x 10(3))
Alamar blue reducing activity ( of day 0)
61
Growth in C57BL6 mice
TB TB?RD1 BCG
62
RD1 analysis lessons

• Deletion clearly associated with attenuation of
  virulence
• Region has 2 best candidates for immunodiagnosis
  parts of tuberculin
• Antigens appear to be virulence factors in M.
  tuberculosis
• During growth in vitro, the organismn
  preferentially drops antigens, perhaps because
  they are no longer needed (and expensive to
  maintain)
• in vivo, organism conserves antigens

63
TB immunology

• Important to understand pathogenesis
• Role of host
• Genetics, e.g. Nramp1
• Environment, e.g. previous Mycobacterial
  exposures
• Role of bacteria, e.g. antigens
• Critical to developing new vaccines

64
Use of immunology to develop new vaccine

• Live, attenuated vaccine based on premise that
  one wants to mimic natural infection
• Disease lite
• Does natural infection with TB produce memory?
• Latent infection reduced TB rates
• Active TB treated reinfected and disease again
• Suggestion of concomitant immunity
• What type of immune response is desired?

65
Properties of vaccine needed

• Live vaccines more protective than killed
• New vaccine either should be
• Attenuated strain
• Antigen provided in live vector (e.g. adenovirus)
• Some clever immunologist figures it out
• Old vaccine preferentially missing antigens
• Effect of vaccination will vary with
• Host genetics
• Host age at vaccination
• Host environemnt other Th1/Th2 stimuli
  encountered, e.g. helminths, HIV, malnutrition

66
TB pathogenesis - summary

• M. tuberculosis is a bacterium
• H. sapiens is a host
• TB is the interface of the two
• Conventionally, each side studied in depth
  holding other variable steady
• Previously pathology due to host response
• bacterial factors gaining increasing attention
• Future approaches to understanding require
  studying interaction of two
